Presence Sensor Case (LD2450) - 30 & 38 pin
Print Profile(4)
Description
ESP32 Presence Sensor Case - Options for 30 and 38 pin MCU
Case includes the suports for an LD2450 mmWave presence sensor and room for the antenna.

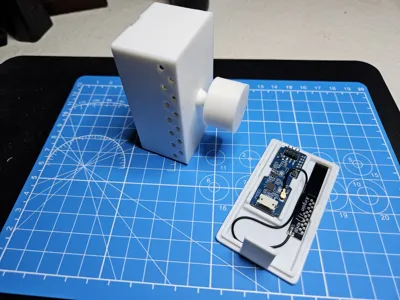

This case can be wall mounted. Here is the Basic Ball Joint that attaches to the case for mounting and adjustable positioning. If you don't want to mount the case, you can optionally remove the Screw Hole “negative part” from the Objects in Bambu Studio.
There are now 3 options for air-flow:
- Holes (my original upload)
- Slots
- Full height slots
- Short bottom slots

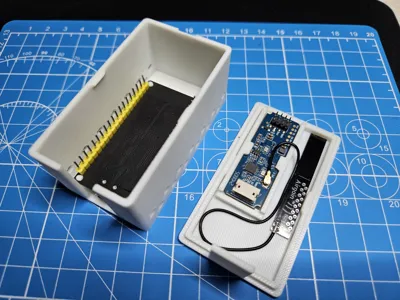

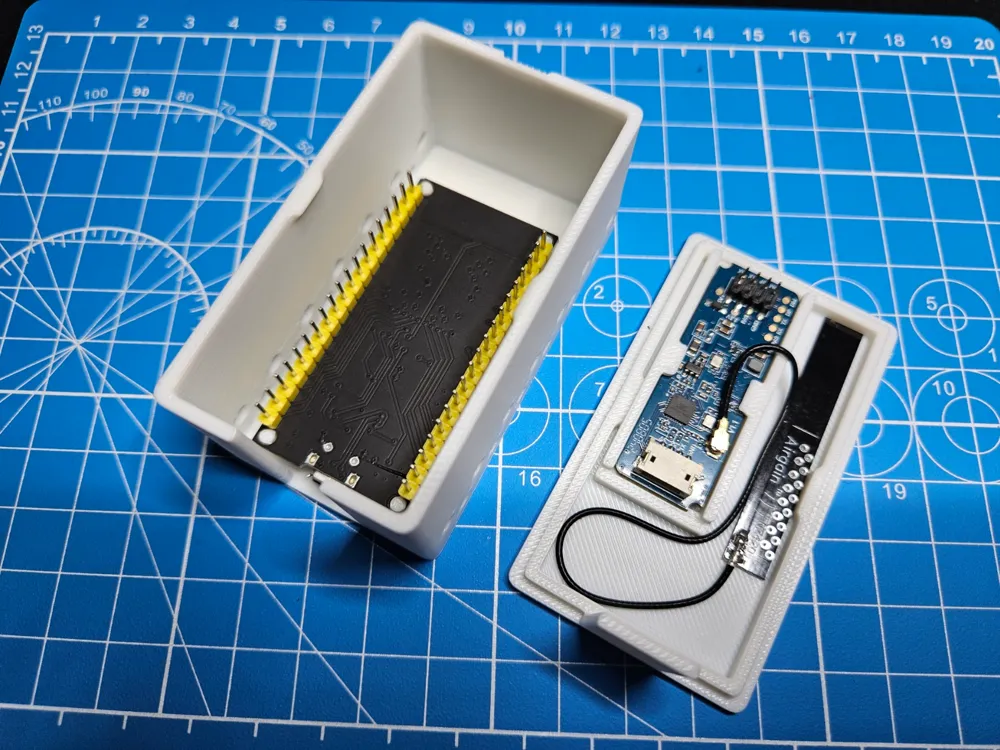

This case is precisely designed to house:
(I have no affiliation with these products)
- ESP32 30 pin MCU (option)
- ESP32 38 pin MCU (option)
- LD2450 mmWave presence sensor
You should not need support, but I suggest printing the lid and box seperately. If the “catches” over the LD2450 (on the lid) fail, add support (lid only). I successfully printed the lid 3 times without support.
Eventually I will upload my .yaml file for ESPHome (Home Assistant)
Also checkout:
Boost Me (for free)
Please support my designs so that I can share even more with the community.
