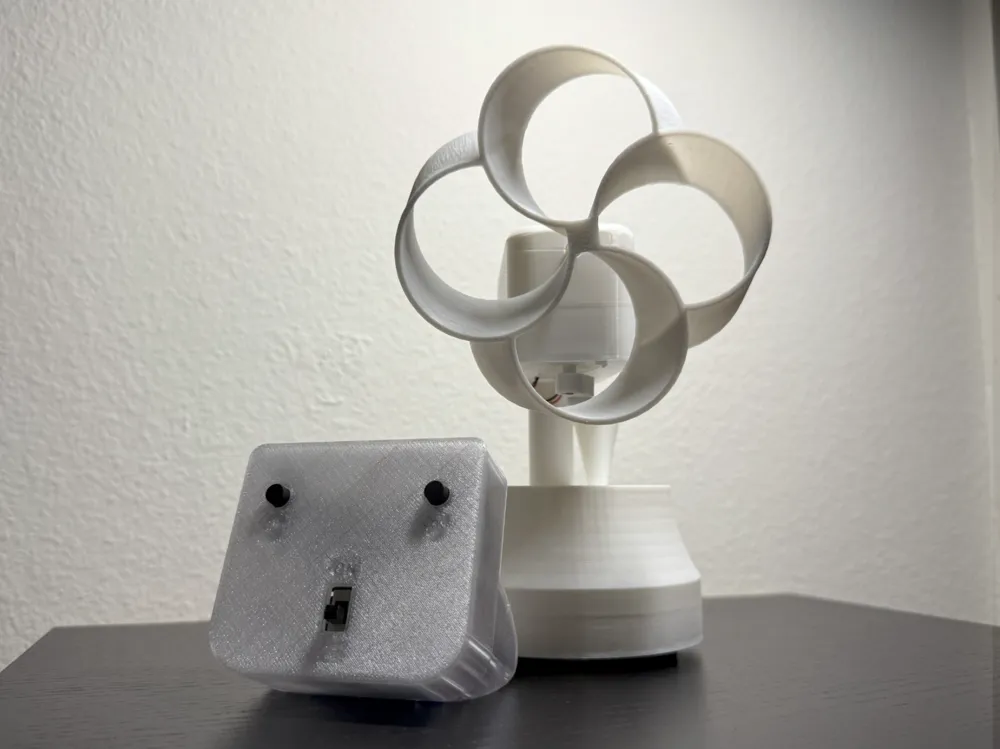

Cyberbricks-powered desktop fan

Cyberbricks-powered desktop fan

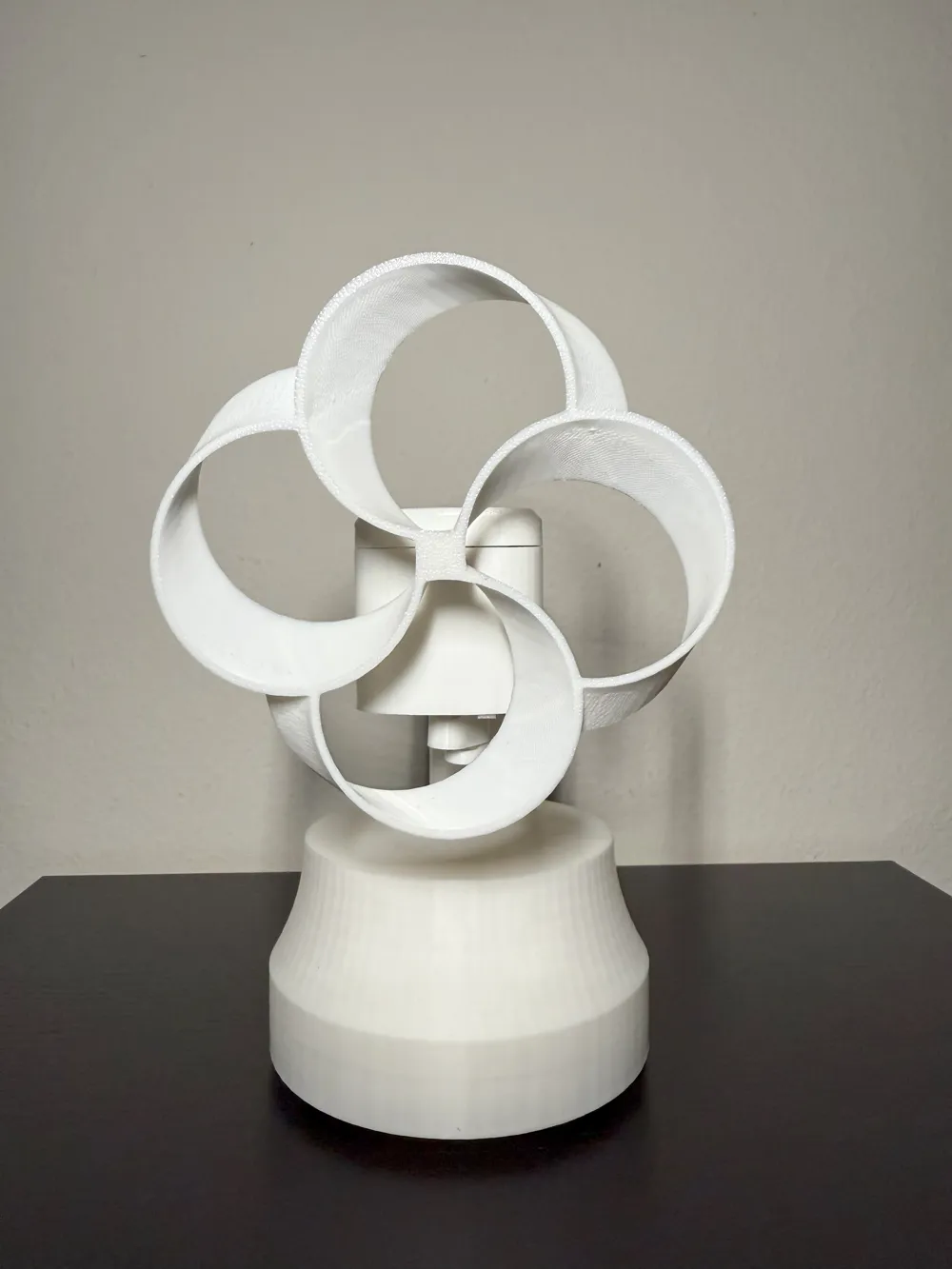

Stay cool and in control with this Cyberbricks-powered fan system.

This model combines two core features:

• Fan Function: Three adjustable speed levels to keep the air flowing.

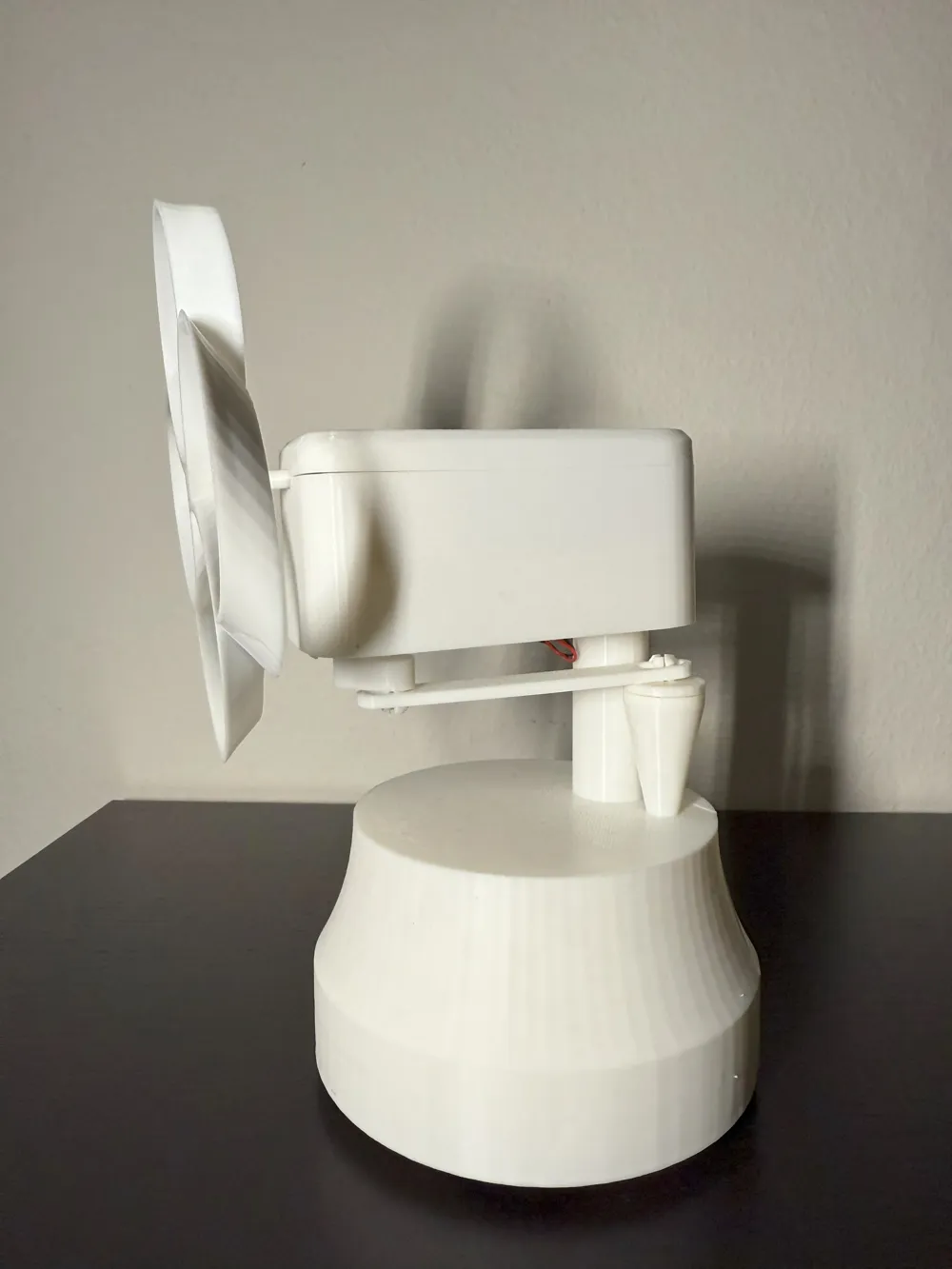

• Oscillation Function: Three adjustable swing speeds for wider airflow coverage.

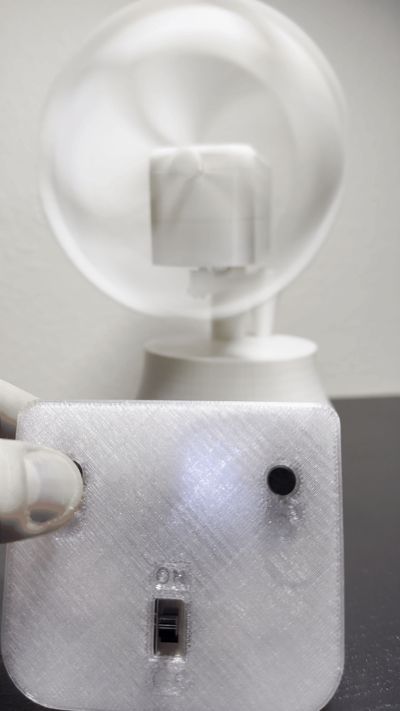

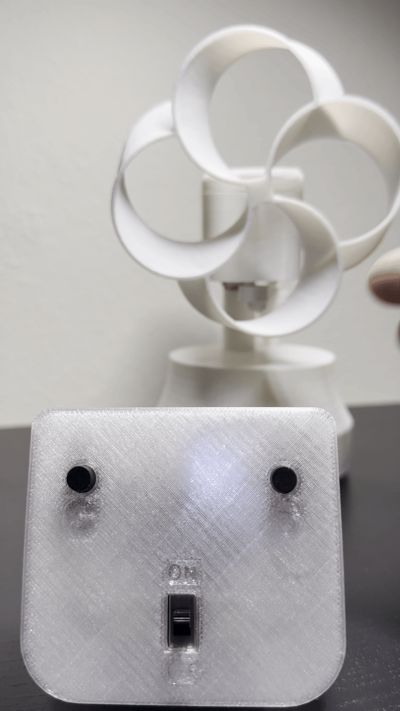

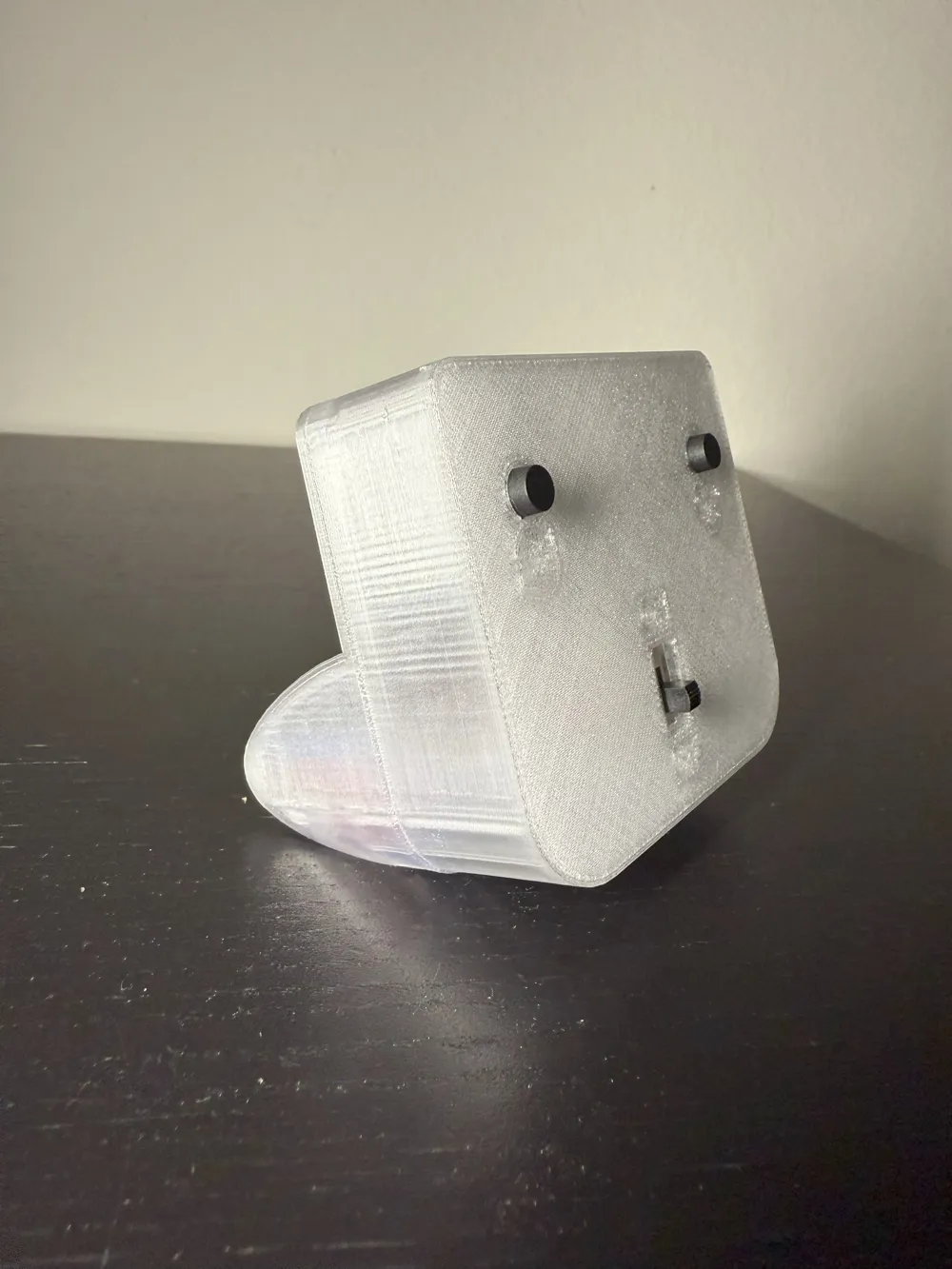

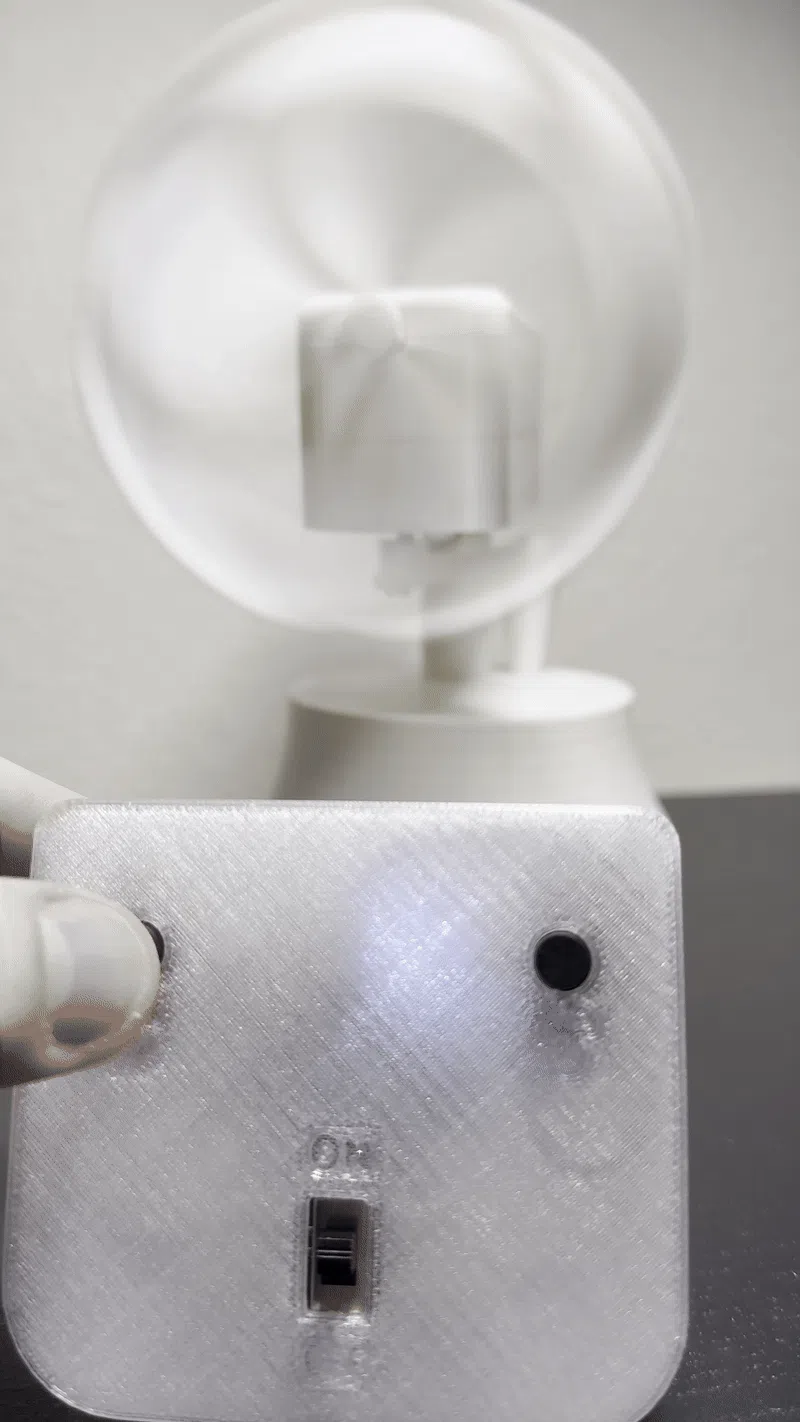

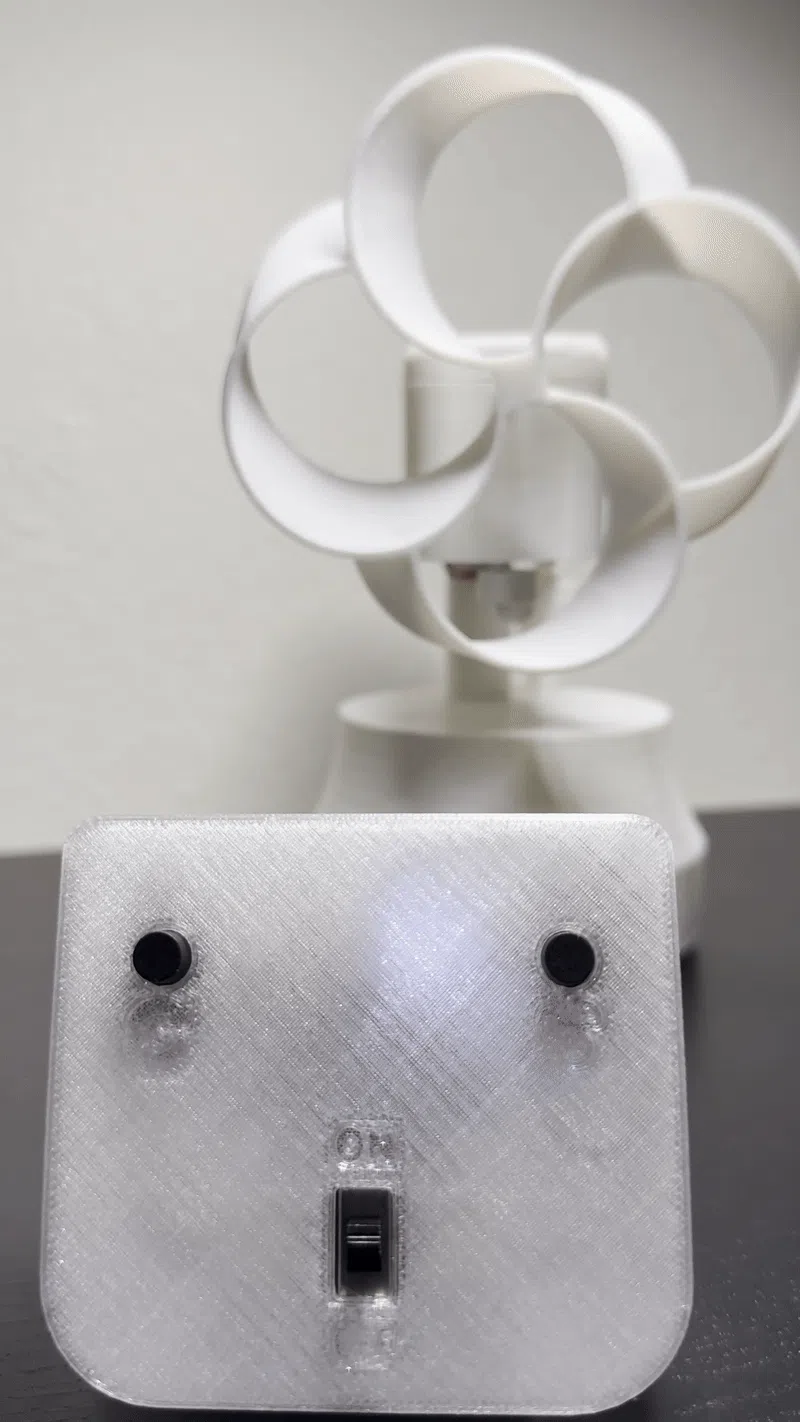

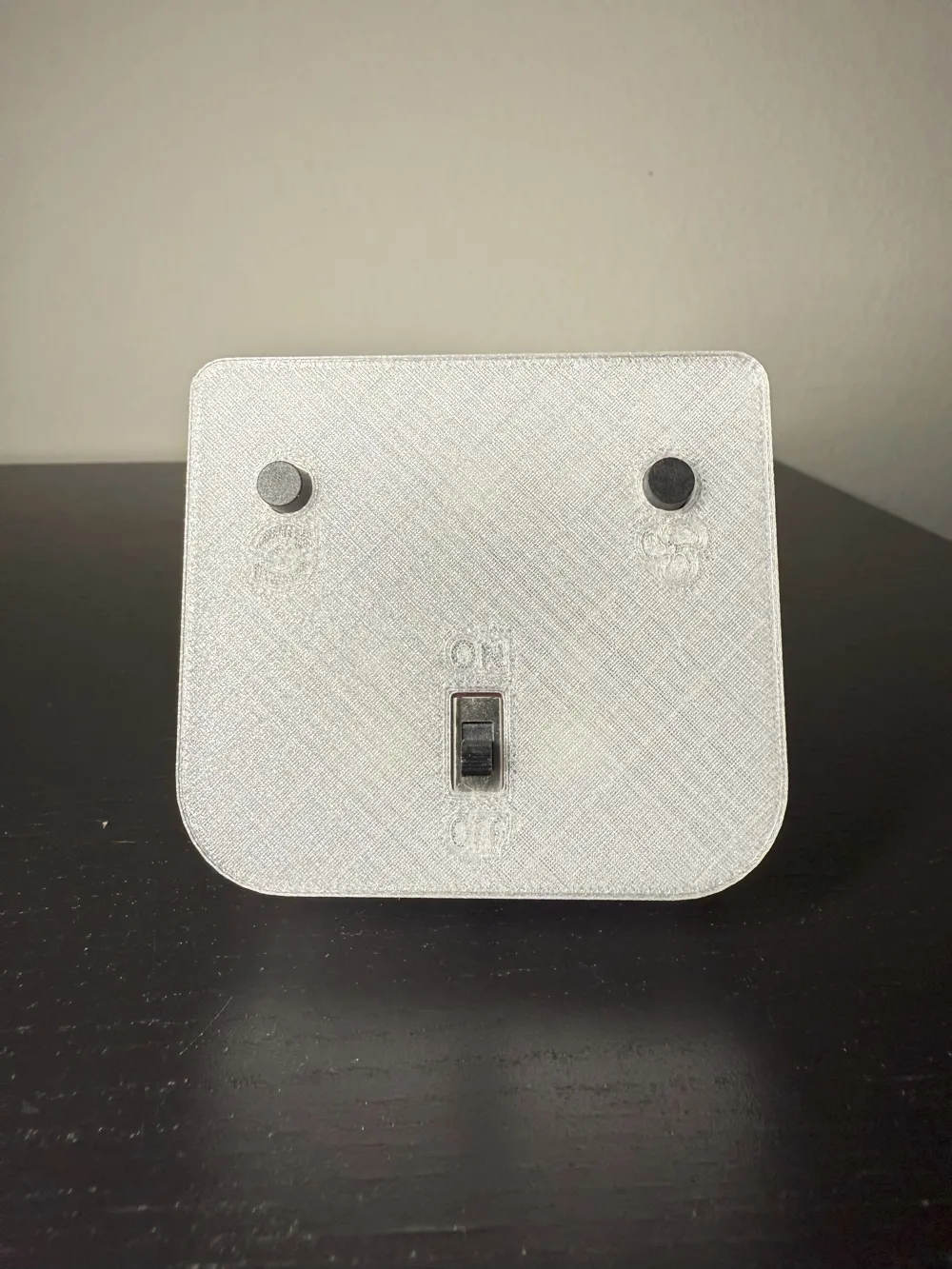

Both features are remotely controlled using Cyberbrick components.

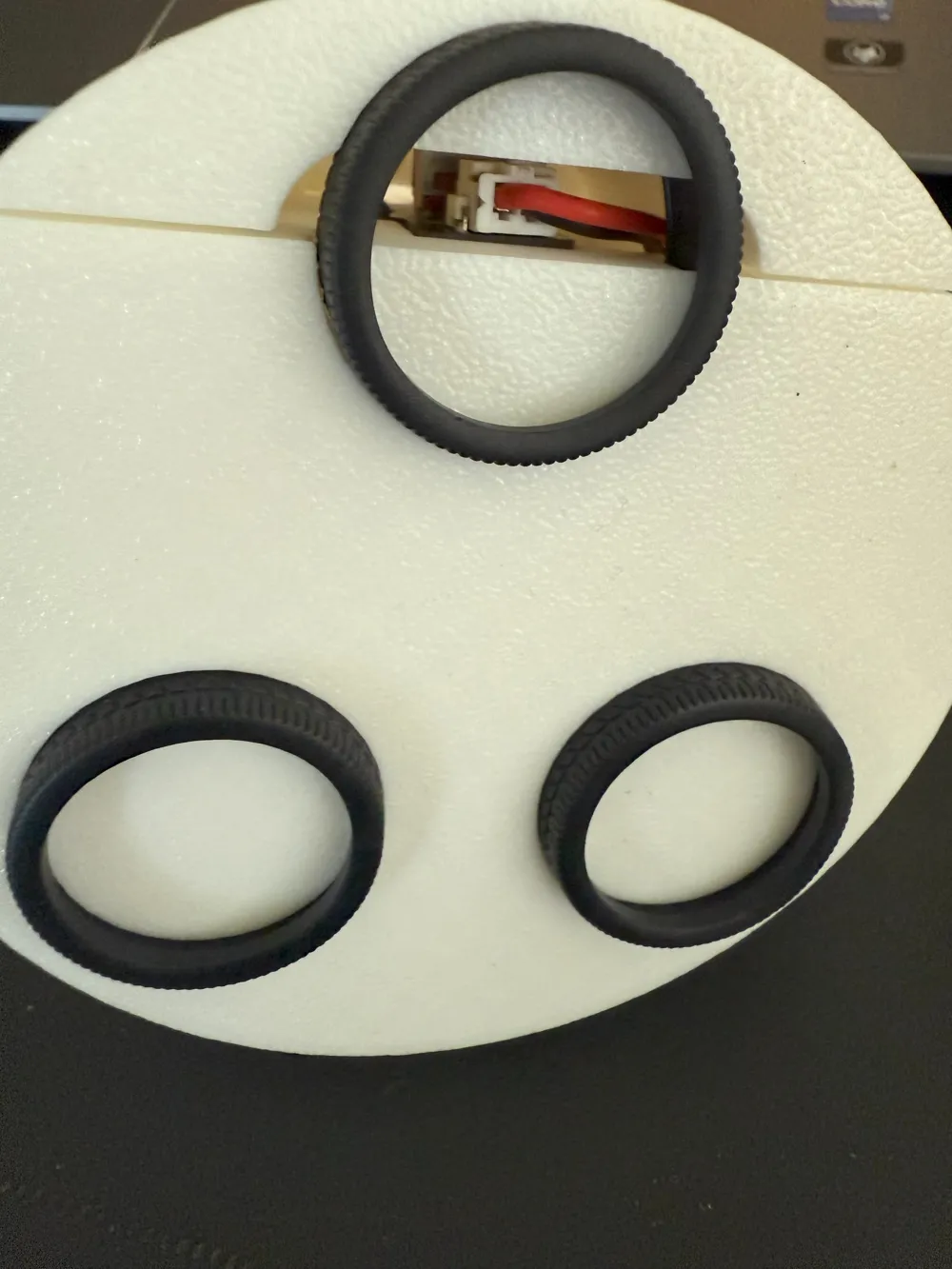

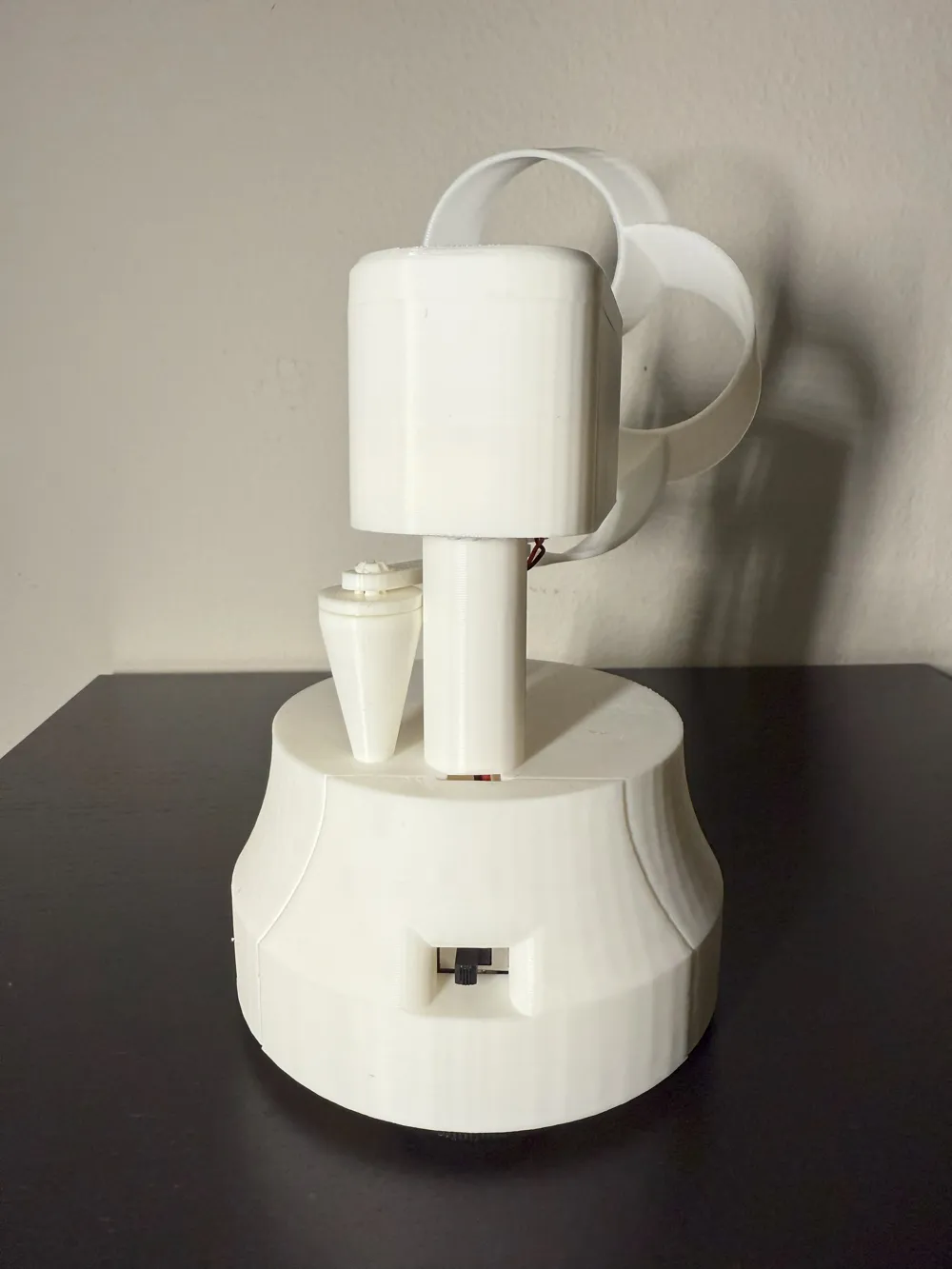

The base is equipped with rubber feet to reduce vibration and provide stable grip on smooth surfaces. Perfect for desktops, workshops, or wherever you need some airflow.

All required components can be found in the CyberBrick Ultimate Hardware KIT - ZK003, except:

• A  bearing, whith the dimensions 30 mm (outer dimension) / 20 mm (inner dimension) and 15 mm (height)

  • The bearing can either be bought seperately or you can use the parametric bearing modeler from:

    @Koolm https://makerworld.com/en/models/1083205-bearing-generator-parametric-ball-bearings?from=search#profileId-1075444

• A housing for the 1:48 reduction gear kit, where I used the standard which can be found at:

  https://eu.store.bambulab.com/de/products/single-axis-plastic-reduction-gear-kit?srsltid=AfmBOoqZ6olp4ezaz_DGS70swhHlHOMet2NzVCN_UbvH0LhpcpslKxZt

For the full assembly instructions please read through the attache manual.

🌀 Keep yourself fresh during the summer – and build something cool while you’re at it!

HAVE FUN!!!
