Index Pool Intake

Here you will find the customizable model https://makerworld.com/en/models/1573215-parametric-intex-adapter#profileId-1655016

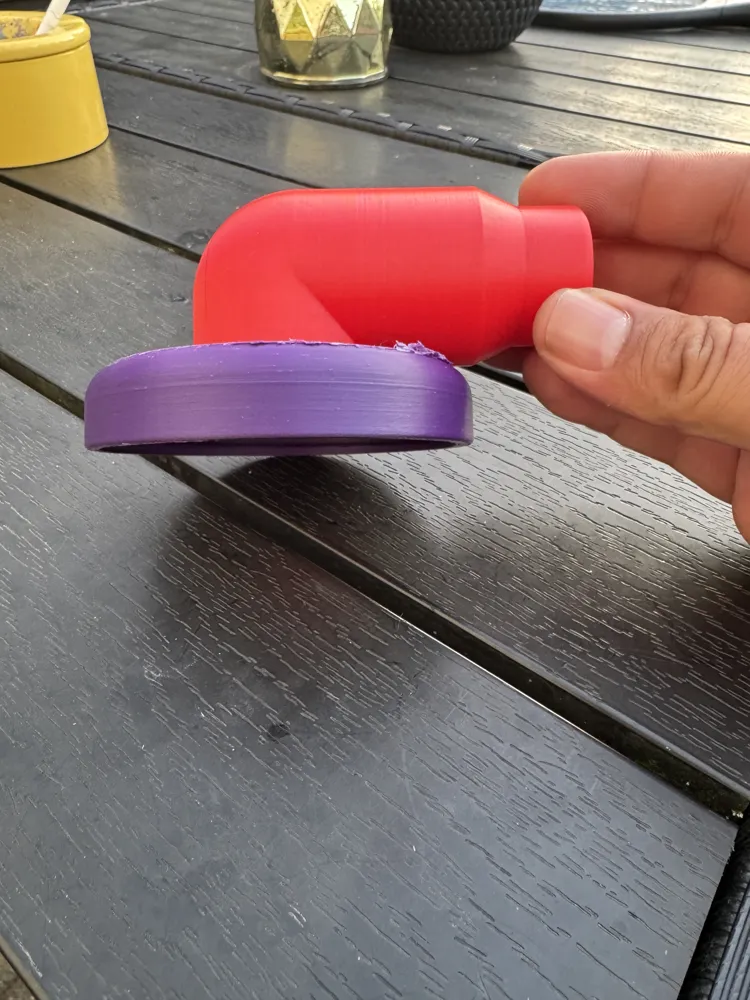

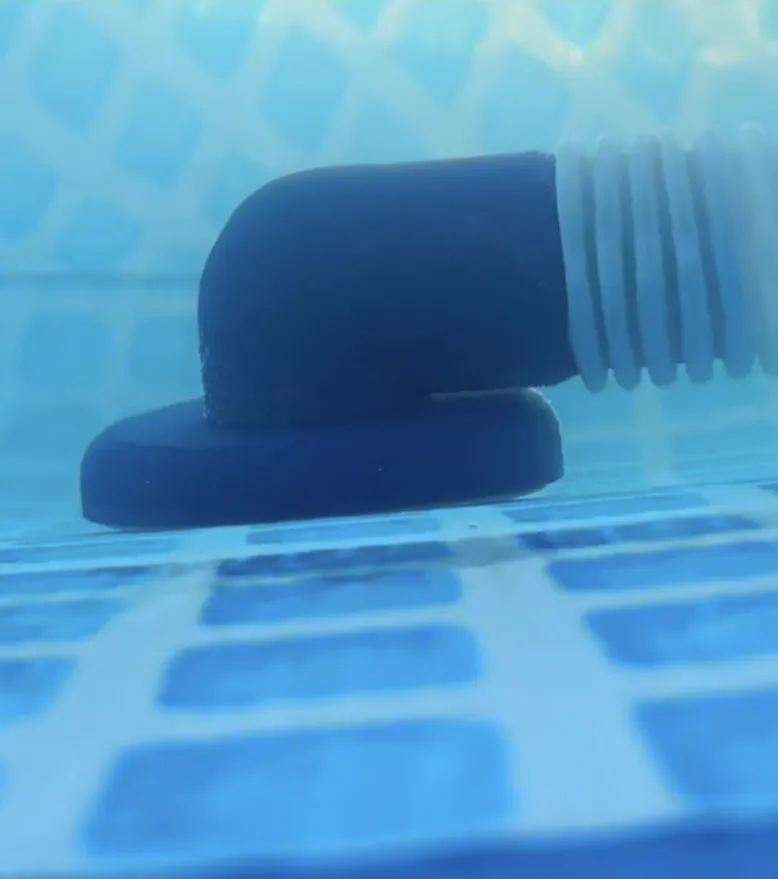

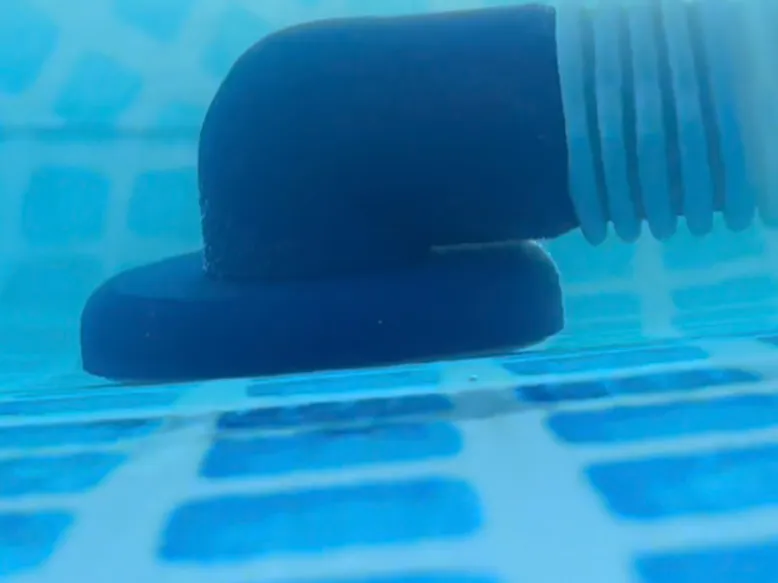

Modified Intex Hose with Custom-Designed Adapter and 35 mm Connection

The original Intex hose exhibited porosity at the connection point due to aging and material fatigue, resulting in leaks. To rectify this issue, the hose was severed, and a custom-engineered adapter with a 35 mm inner diameter was implemented. Furthermore, a novel thread design was developed for the Intex system's intake and outlet, as standard adapters from MakerWorld and other platforms proved incompatible. This bespoke solution now ensures a secure and leak-proof connection.

Features:

• Custom-Designed Adapter: As standard adapters for the Intex system were unsuitable, an adapter was specifically engineered for the Intex thread, guaranteeing a perfect fit.
• Adapted 35 mm Connection: The modified adapter incorporates a 35 mm inner diameter to ensure the hose integrates seamlessly and functions reliably.

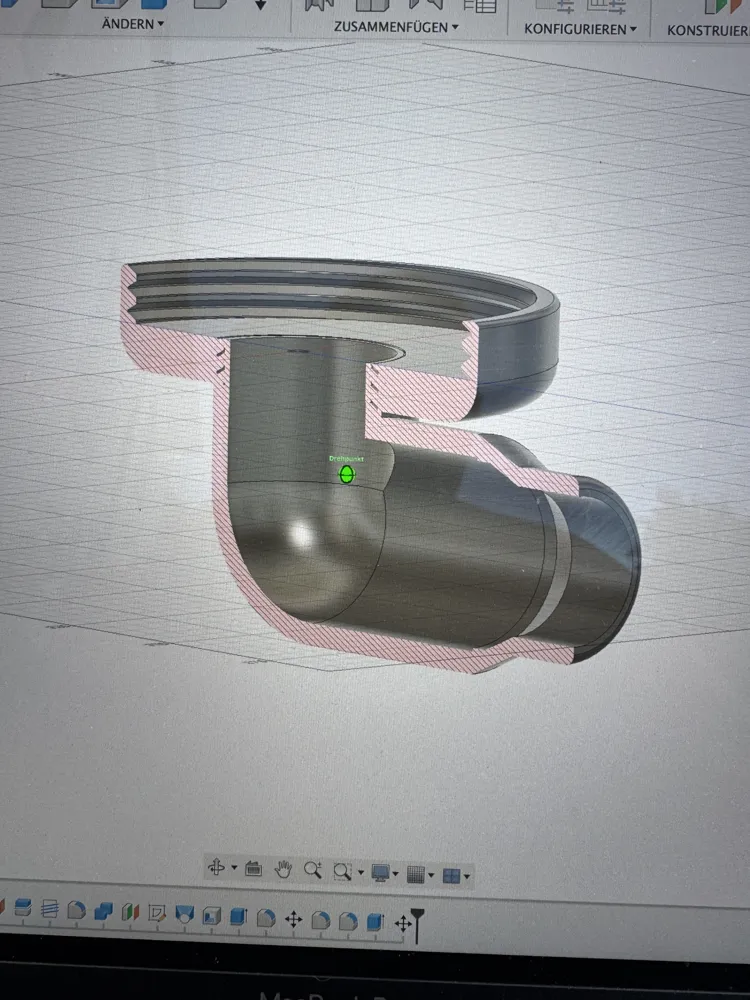

• Bespoke Threaded Connection: The thread for the intake and outlet was custom-designed to address the incompatibility issue and create a stable, airtight seal.
• Durable Solution: The combination of the modified adapter and custom-designed thread provides an exceptionally robust and durable solution, eliminating common leaks and connection problems.

Advantages:

• Eliminates Water Leakage: Custom fitting and specially designed threading entirely prevent leaks.
• Custom Tailored: The adapter and thread were precisely calibrated for the Intex system, ensuring a perfect fit and maximum efficiency.
• Cost-Effective, Bespoke Solution: Instead of relying on standard adapters, a proprietary, enduring solution was devised to meet precise requirements and guarantee long-lasting functionality.
• Ease of Use: The modified adapter and custom-designed thread integrate effortlessly into the existing system.

This tailored solution provides a reliable and durable connection for your Intex system, fulfilling all requirements and rectifying the product's original weaknesses.

The material is currently PLA in the testing phase.
You will need to adjust the file later with a different material to select parameters that work with your printer's results using the respective material. Upload is PLA settings
