SillySledge Stop assembly.txt

cover










Shell Holders and Pins


Right Stock


Right Shell Holder


Left Stock


Left Shell Holder

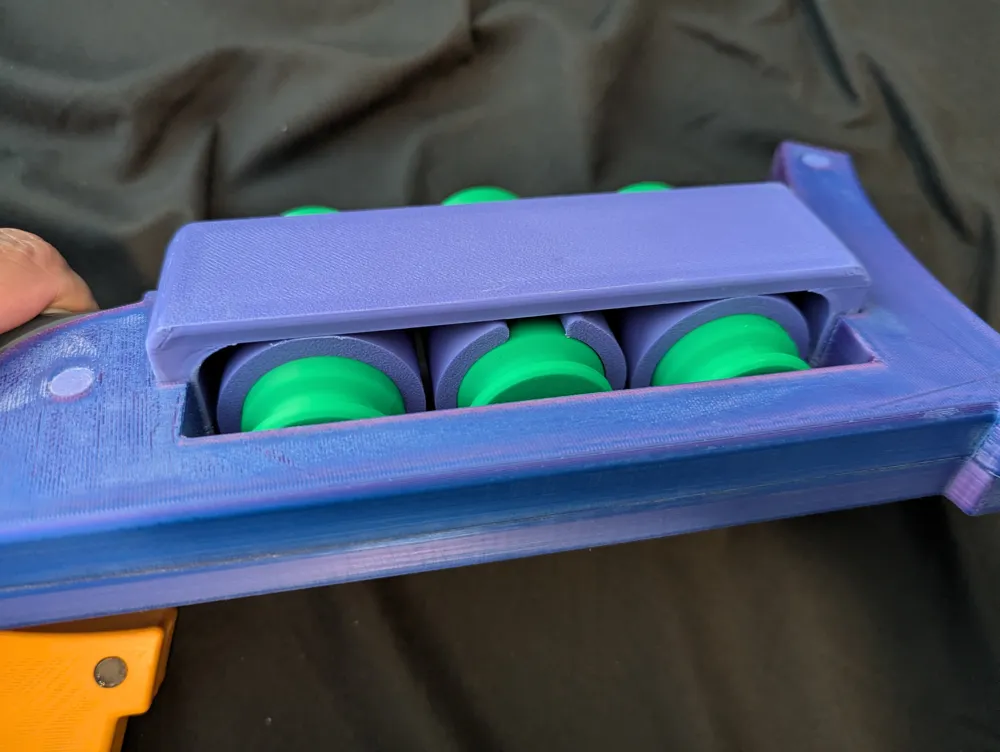

<ul><li>Printed with 5 walls</li><li>20% triangle infil, for strength </li><li>I used brim ears on all the corners of the stock</li><li>be sure to print three shell holders and three pins</li><li>the shell holder has a straight edge on the lower inner edge which will match the bottom of the shell clamps</li><li>the right shell holder has one clamp, the left has two</li><li>glue the right shell holder to stock, then the shell clamp; it will be difficult to add the shell holder if it is done last. </li></ul>

0.24mm layer, 5 walls, 20% infill

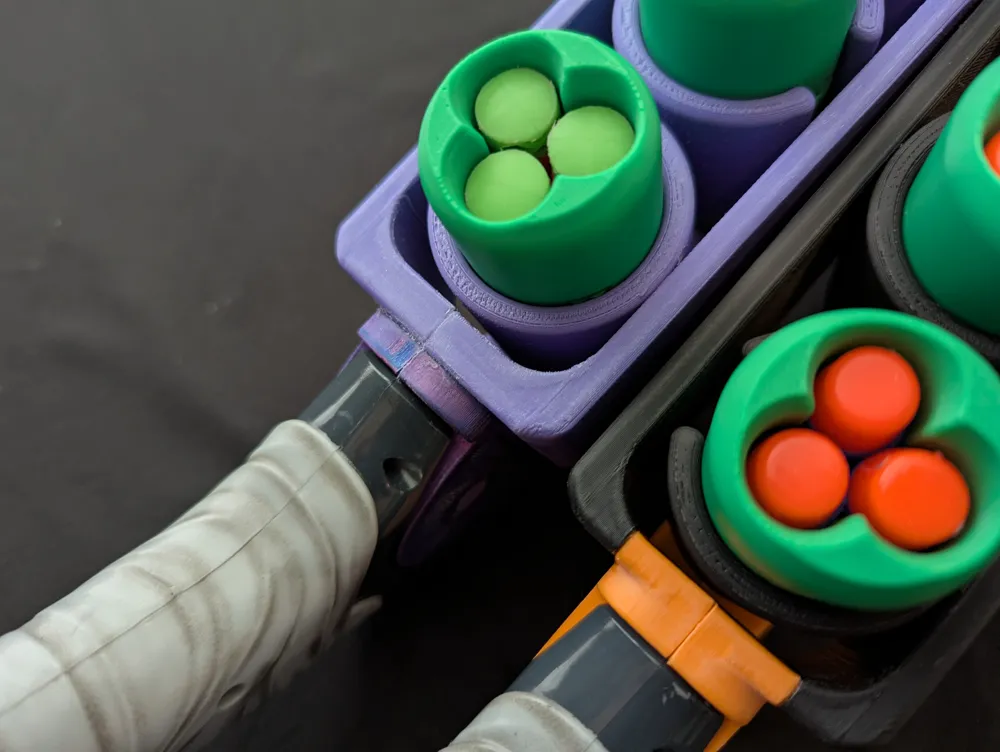

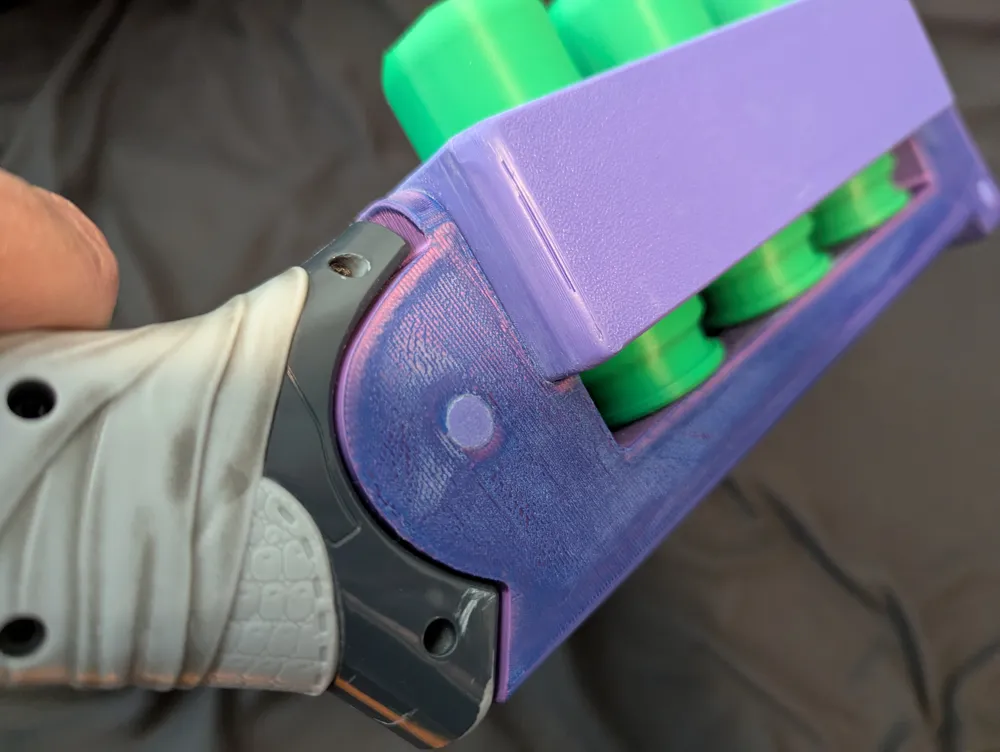

<p>Silly Shell storage for your SillySledge</p>

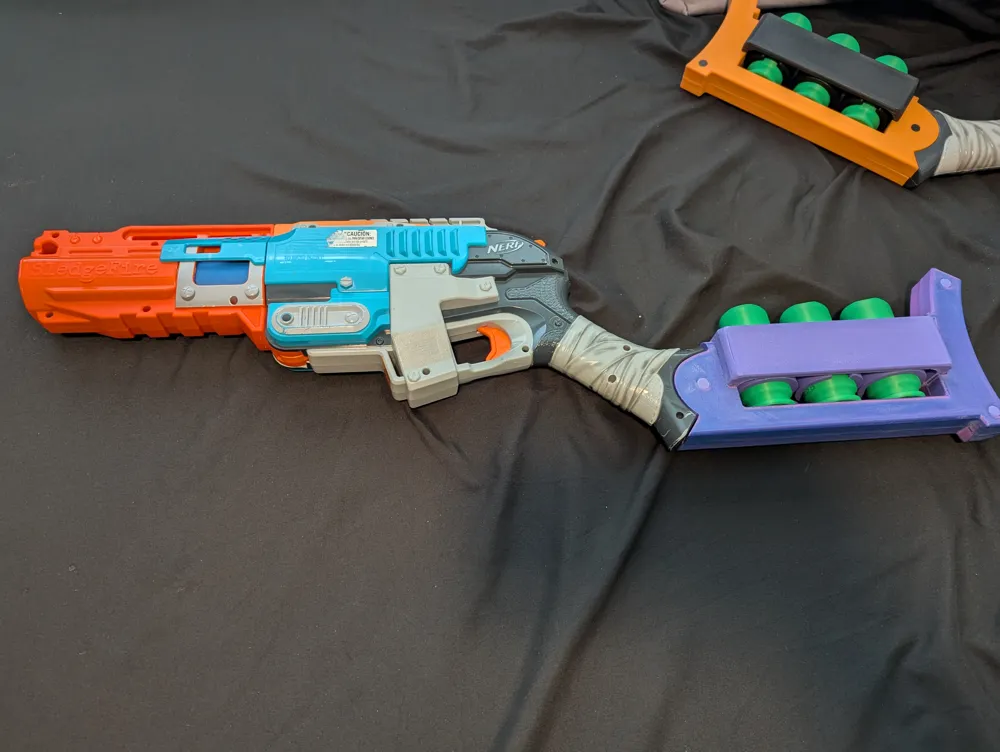

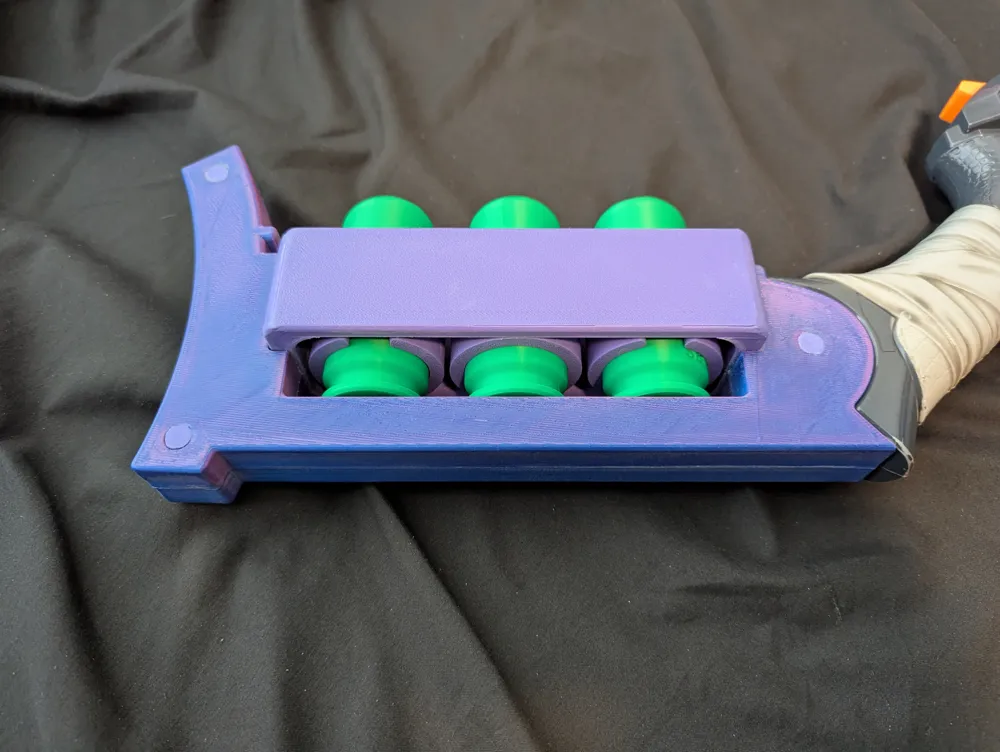

SillySledge Stock PRO with Silly Shell storage
