UniFi Lite-8-POE Switch openGrid mount (+PA)
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
1.5 h
2 plates
Open in Bambu Studio
Boost
27
91
9
2
88
49
Released
Description
Boost Me (for free)
❤️ Find this model useful? Please give it a Boost, it helps immensely!

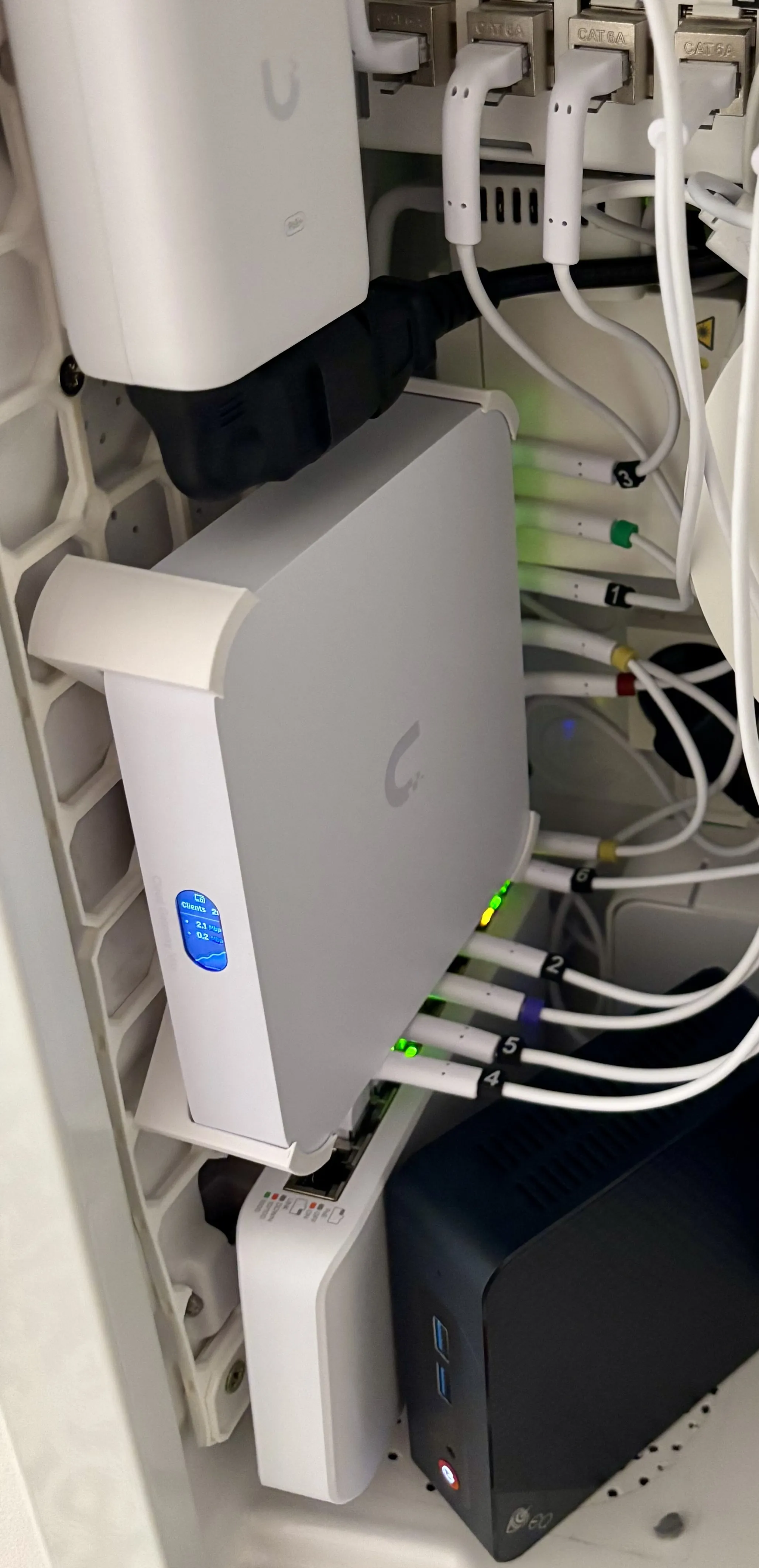

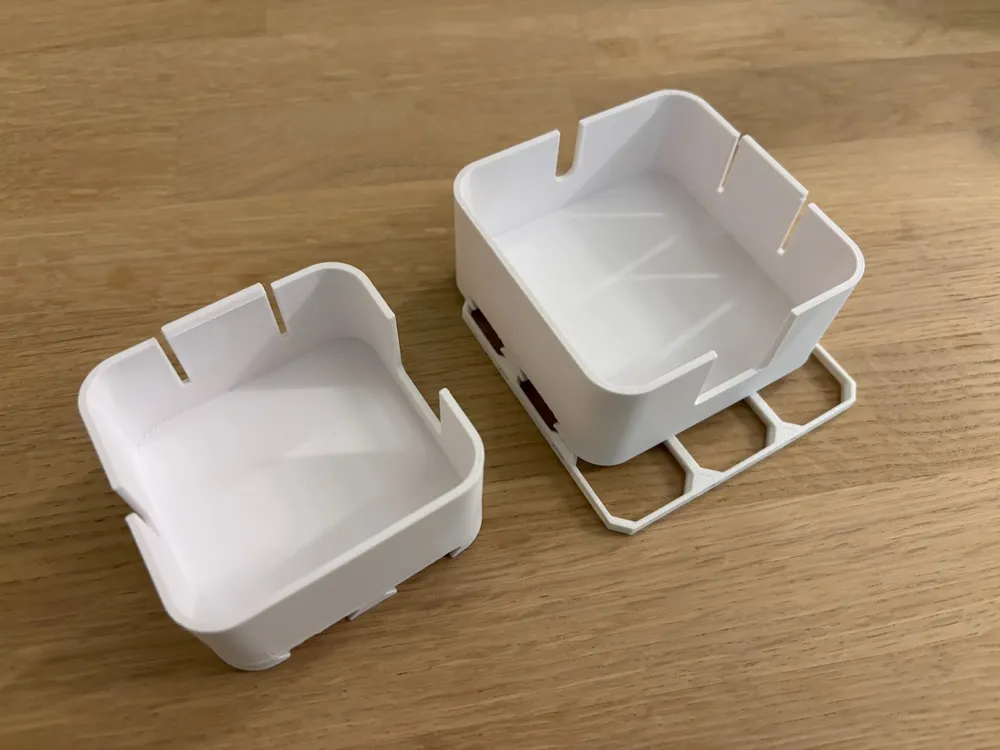

This is a dedicated mount for i) the UniFi Lite 8 PoE Switch (USW-Lite-8-POE) and ii) its power adapter (+PA), designed specifically for the openGrid wall-mounting system.

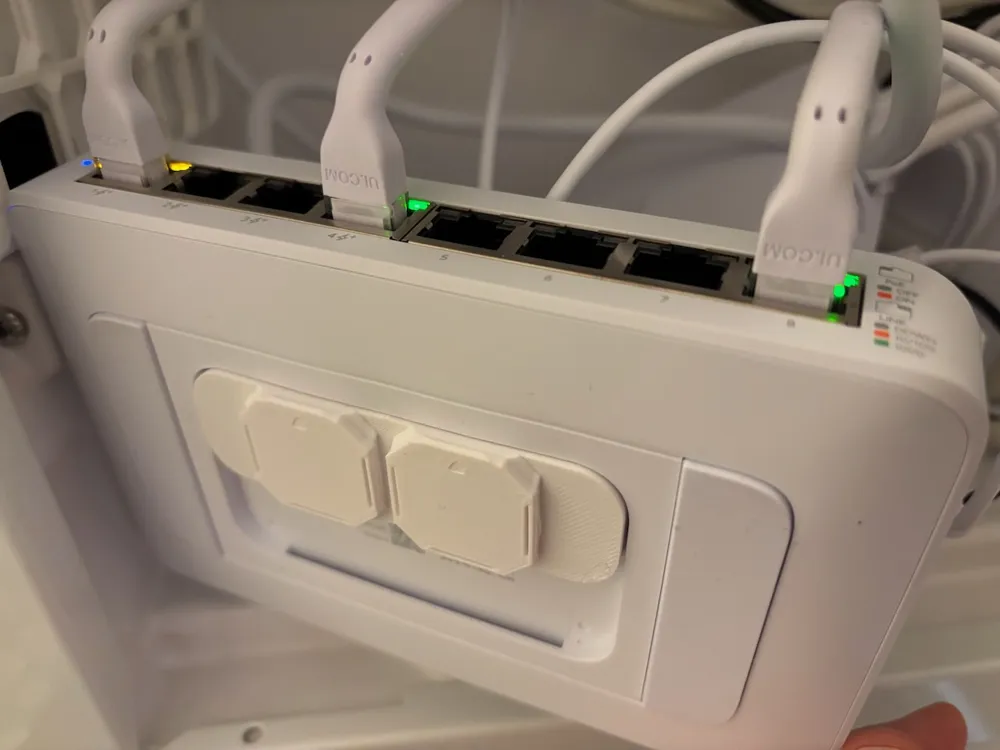

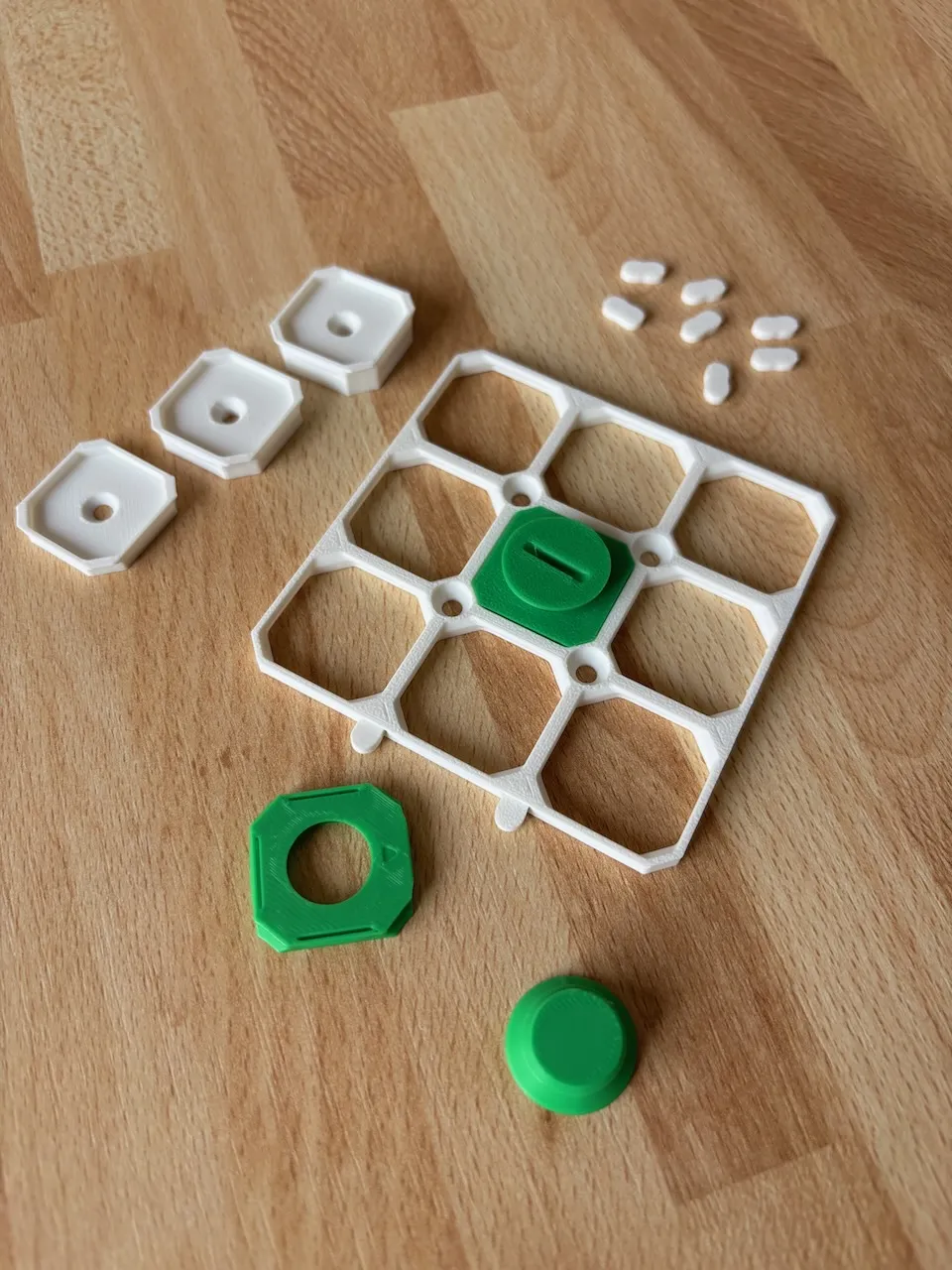

The mount uses the switch's built-in wall mounting slot for a secure fit. It is fully compatible with both standard openGrid and space-saving openGrid lite boards.
➡️ Check out my UniFi openGrid mounts collection here!
Mounting details:

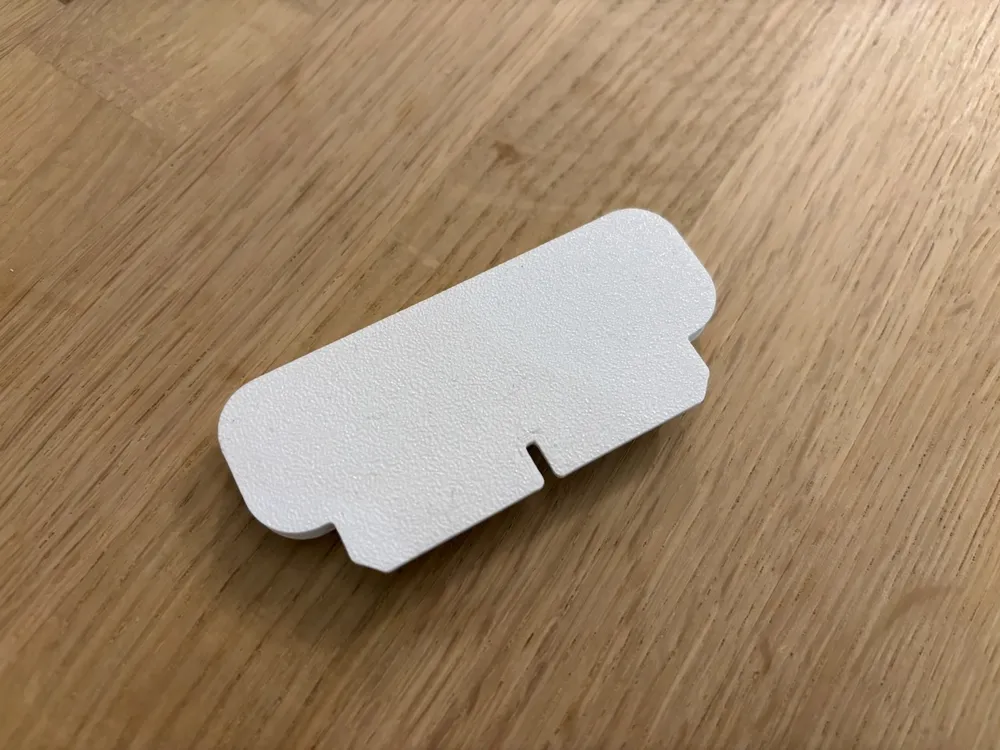

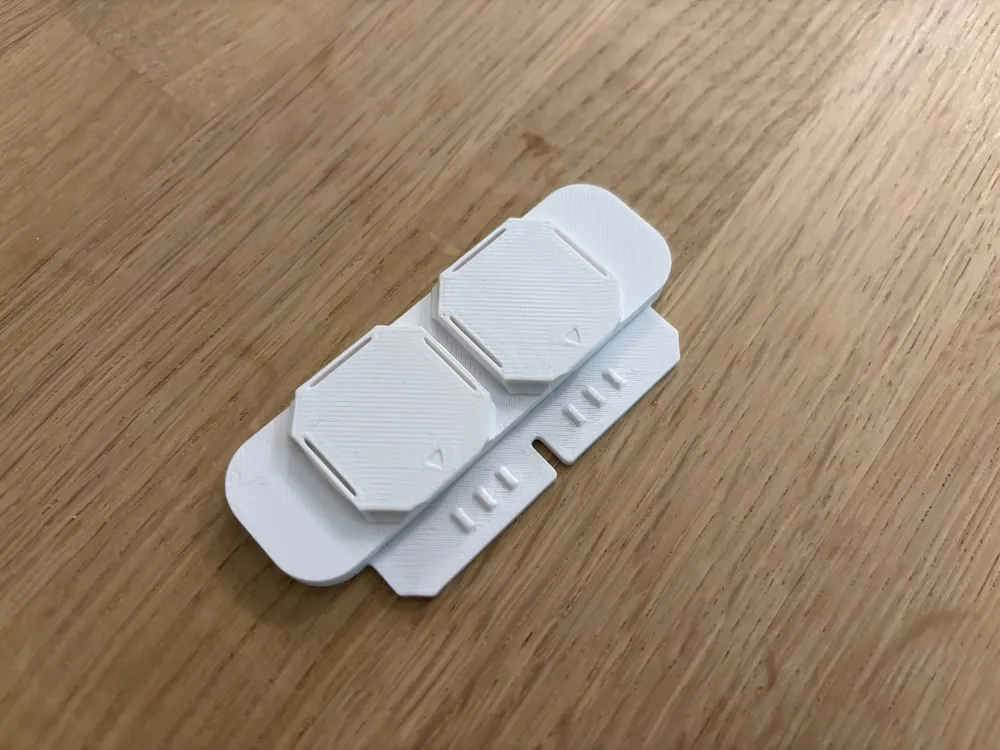

- Built-In snaps: The switch mount features integrated 2-row Multiconnect snaps, so no extra parts are needed for installation.

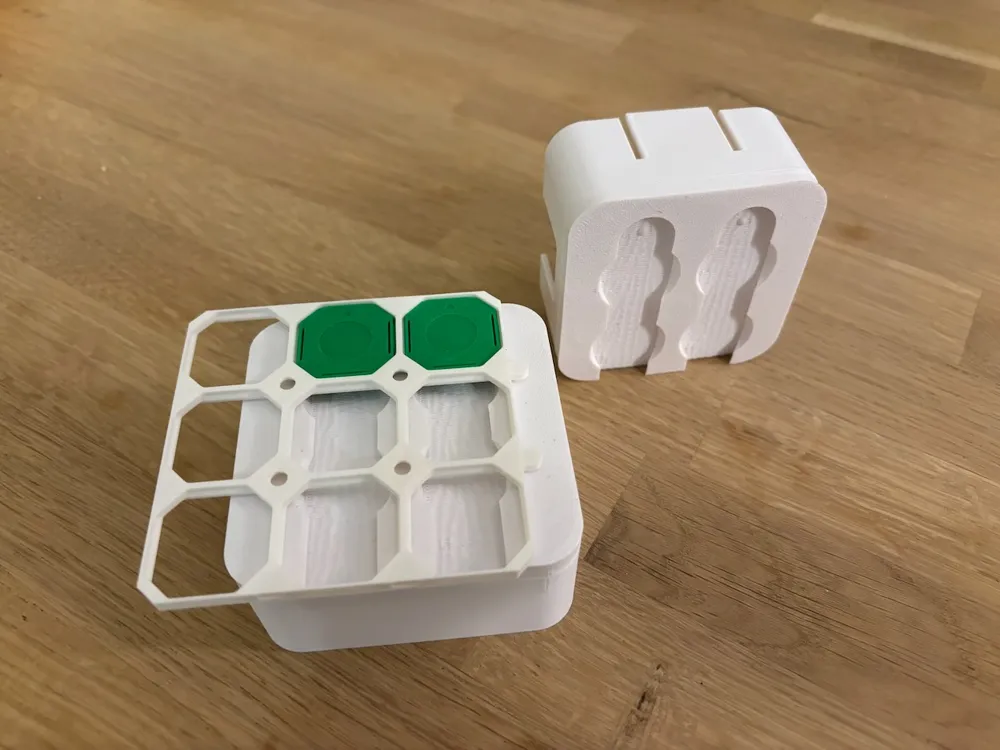

- The separate power adapter mount requires Multiconnect snaps.
Print settings:
- Material: PETG is recommended to handle the heat in a network closet and prevent any potential warping.
- Supports: Yes, the print profile includes easy-to-remove supports for the openGrid snap-ins, tuned for a clean finish.
- Orientation: Print as oriented in the file for best results.
Boost Me (for free)
📸 Don't forget to share a picture of your make (and a Boost would be awesome too), it helps others discover it!
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
