USB-C NFC Reader Board x 1: https://retroremake.co/products/nfc-reader-pack-mister-fpga

Description

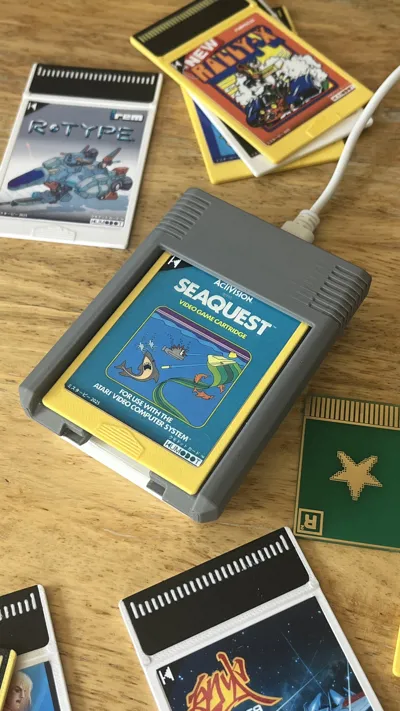

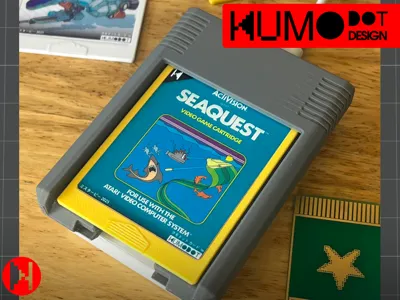

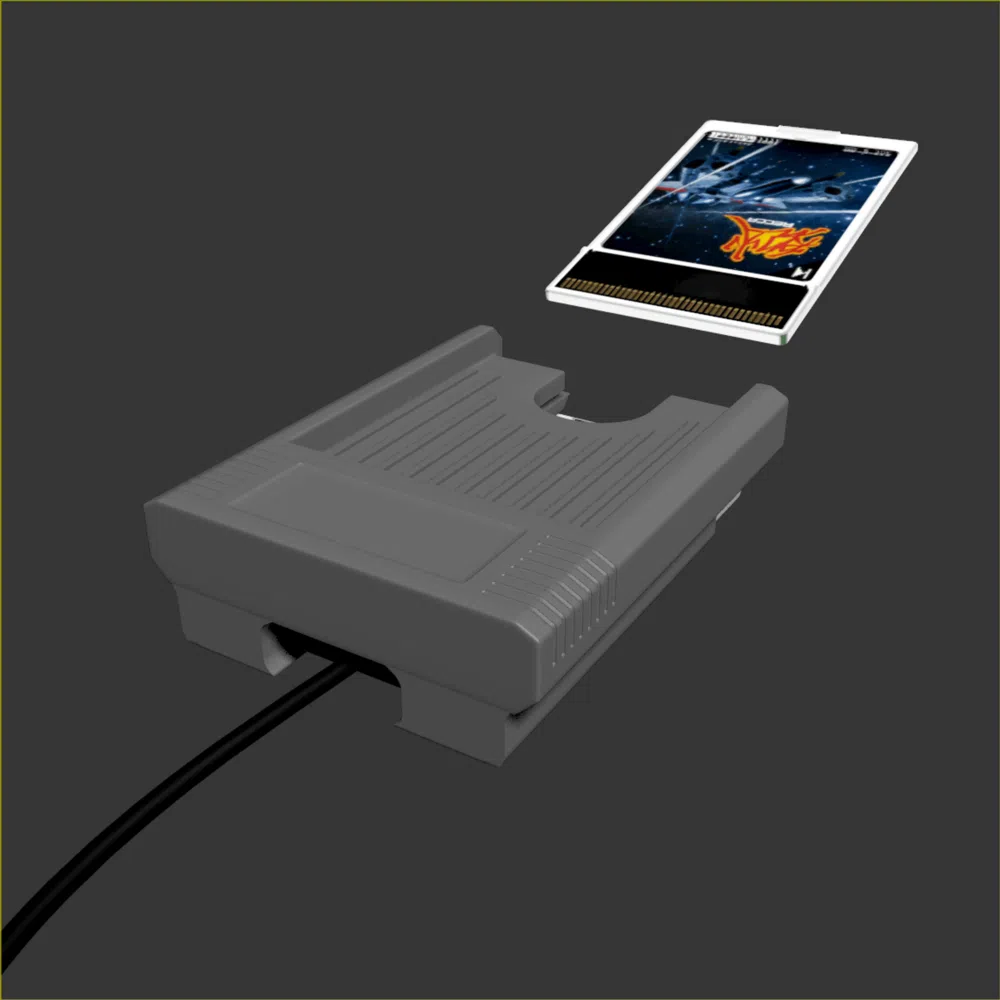

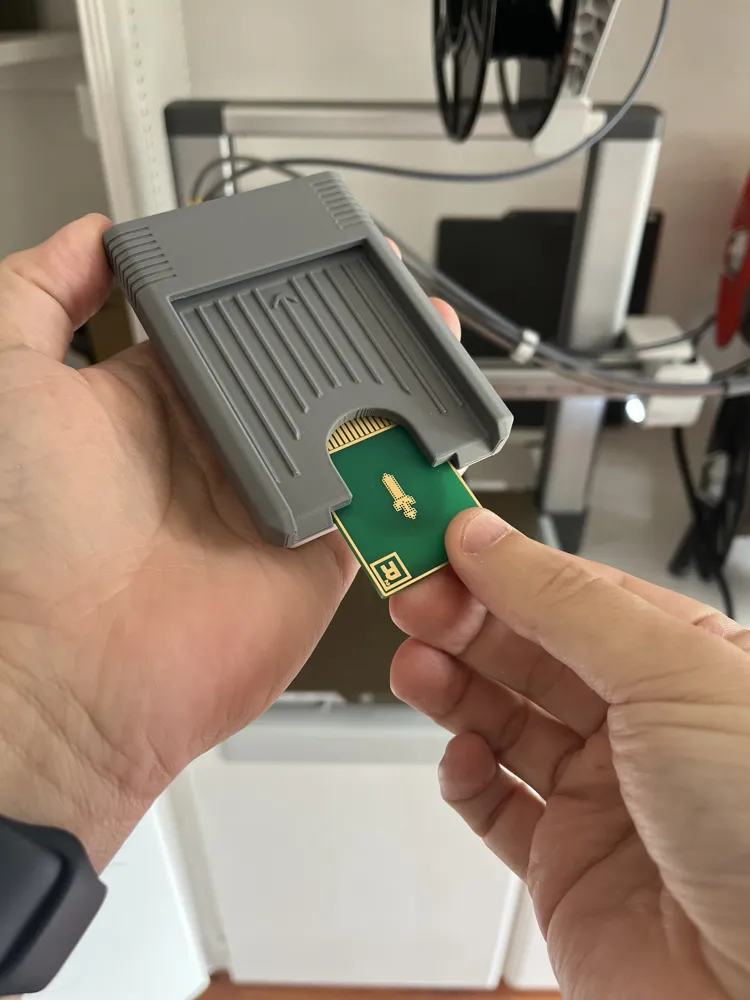

My version of the NFC Reader for the MIsterFPGA is finally here. :) This was made specially for the NFC Reader that comes with the Batch 3 of RetroMake MisterPI, and has a dual Slot for the “HuCards” and also for the Mini NFC PCB Cards that comes with it.

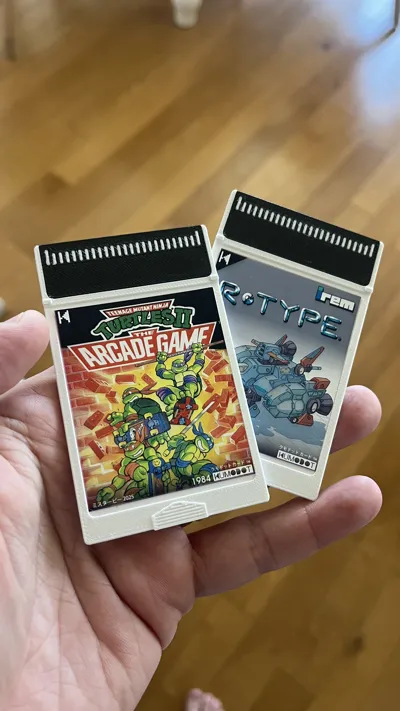

3 Plates are included. One for the Main Slot, one for the Reader case, and one for my Own version of HuCard Design. It does feature a small 25mm depression so you can add your tag on it. Its positioned in a way that its read when its fully inserted on the slot to increase the coolness. It also has a “locking” mechanism to secure the cards in place.
If you want to know about that specific NFC usb reader you can check it here : NFC Reader Pack - MiSTer FPGA – Retro Remake

Hope you like it as i do !
