A1 & A1 Mini Shutter Release Mount

🧰Model Description

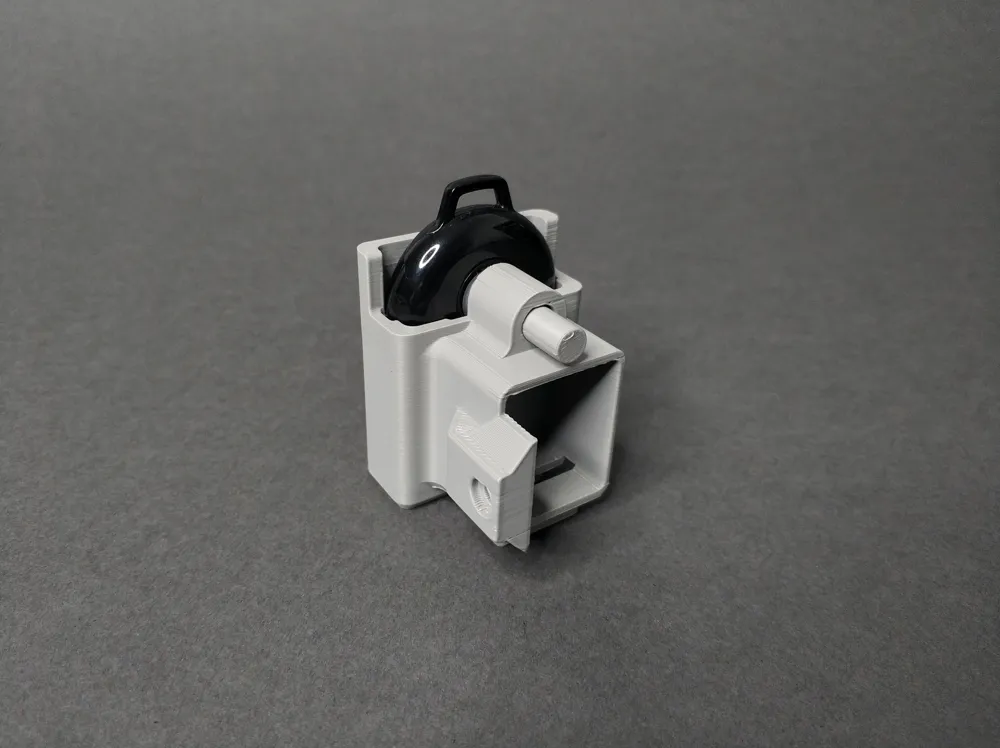

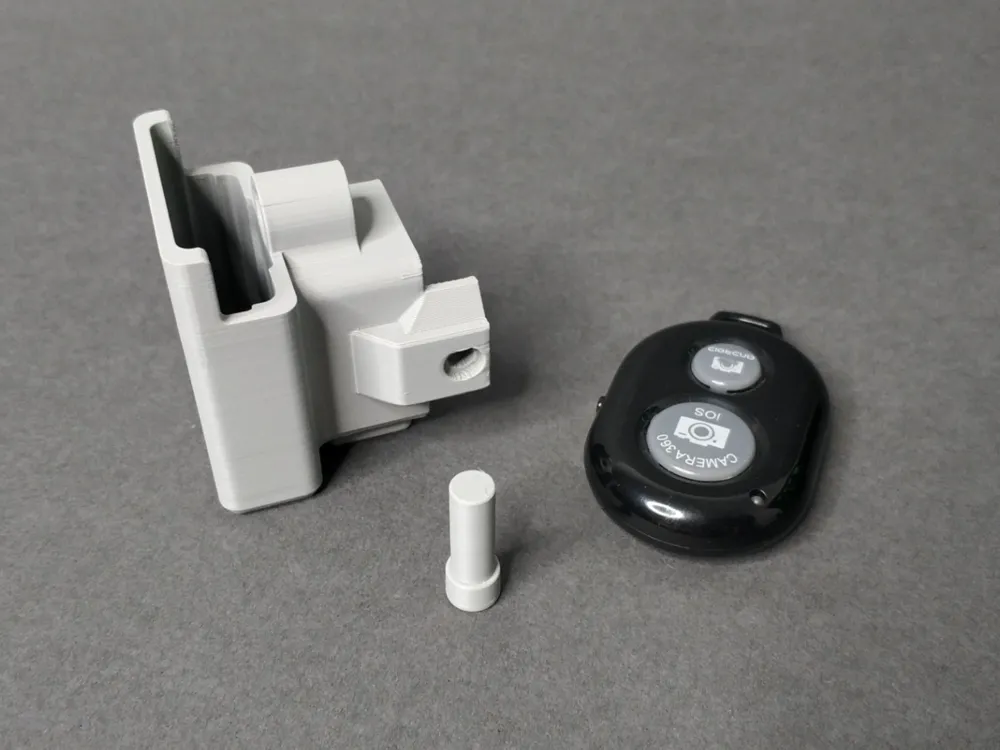

Step up your social media game with better timelapse videos of your prints. I designed this remote shutter release mount to work with the A1 and A1 Mini printers as a replacement for the cover holding the purge wiper. The mount is compatible with the generic shutter release remotes shown in the pictures.
The compatible remote dimensions are 33.5x52.3x11mm.

📬Model Updates

v2 - Launch Version

• Several iterations have been done to model to improve printing quality and installation ease.



💻Setup Information

I tried several camera apps with this remote shutter, but the only one that seemed to take pictures when the button was pressed (not when released) was Open Camera for Android. Unfortunately, I am not able to check for IOS.

If you find an app that works well with these remotes, leave a comment! I am sure a lot of people would appreciate it.

🪛Model Assembly

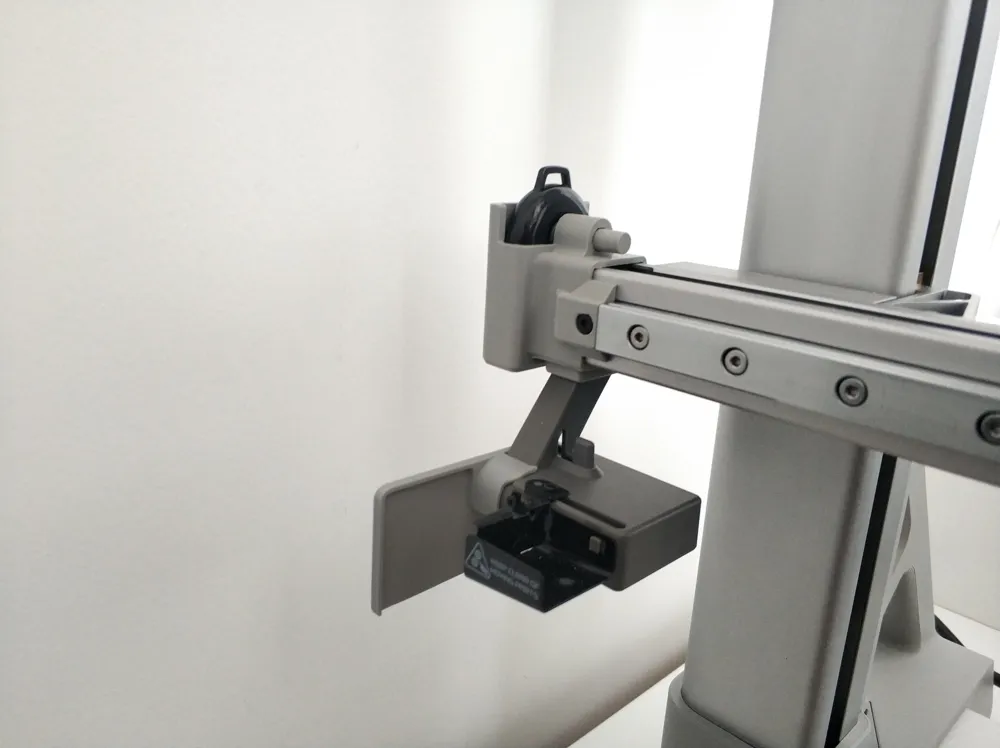

Use the hex key included with your printer to remove the two screws holding the stock cover and purge wiper. Then, simply swap the original cover with this shutter release mount and re-tighten the screws.

⚠️ Before starting your print, make sure the “Trigger” is not too long as it might cause problems. In case it is too long, shorten it in the slicer and print again.

📃License Information

My models are licensed under a Standard Digital File License.

I am working towards being able to offer commercial licenses for my models, so if you enjoy my work, consider following me.

🫱🏻🫲🏾Community Feedback

I'm proud of the models I create, but I know there's always room for improvement! If you have any feedback or suggestions, don’t hesitate to share. I’m always open to making updates and refining my designs to make them even better. Your input helps me grow as a maker!
