Description

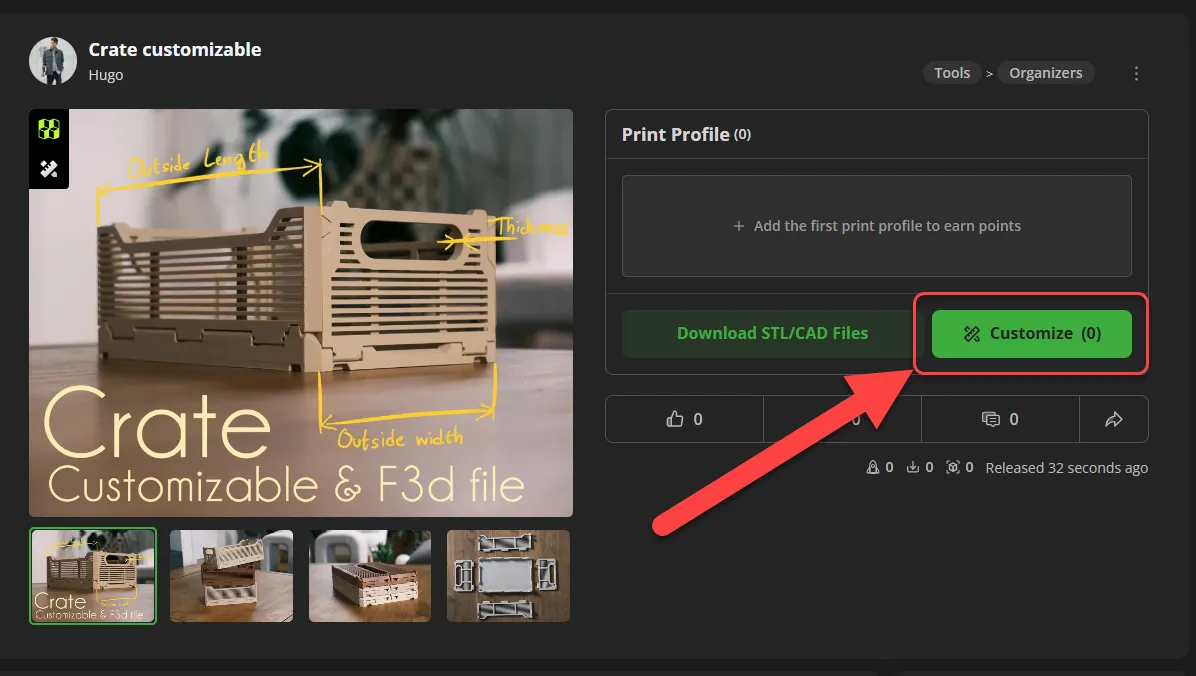

This is a new take on my last crate, but now you can customize it super easily using MakerWorld’s new tool.

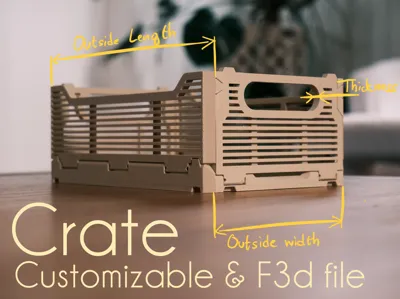

Just tweak three simple settings to make it fit your needs:

Outside length
Outside width
Wall thickness

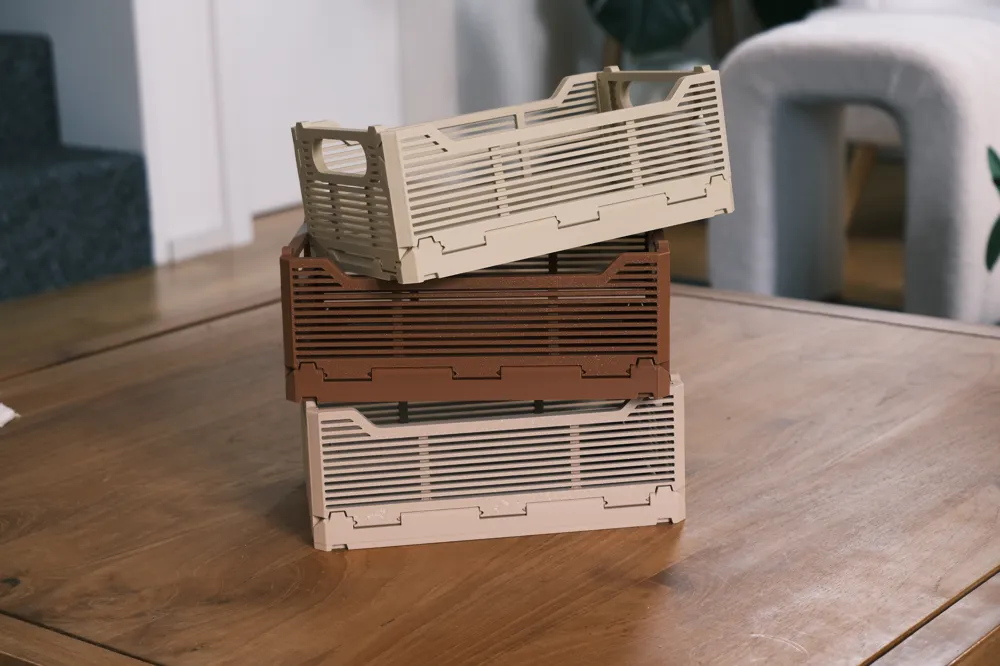

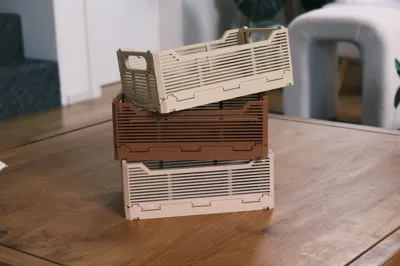

The height adjusts automatically to give you the biggest crate possible that still folds down flat.

If you want to go even further, you can grab the F3D file and play around with it in Fusion 360 to make it your own.

Assembly

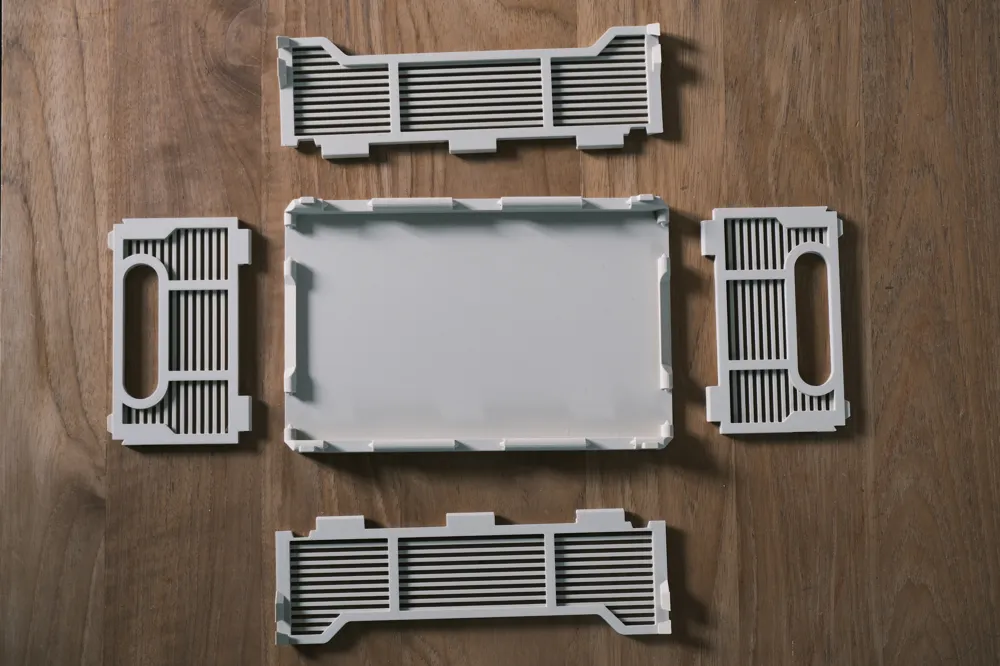

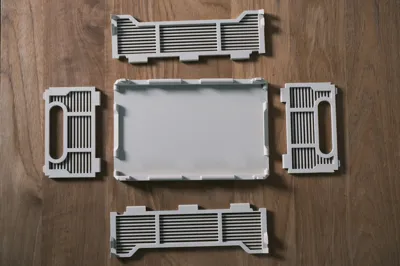

Print the 5 pieces (1 x base, 2 x long side and 2 x short sides)

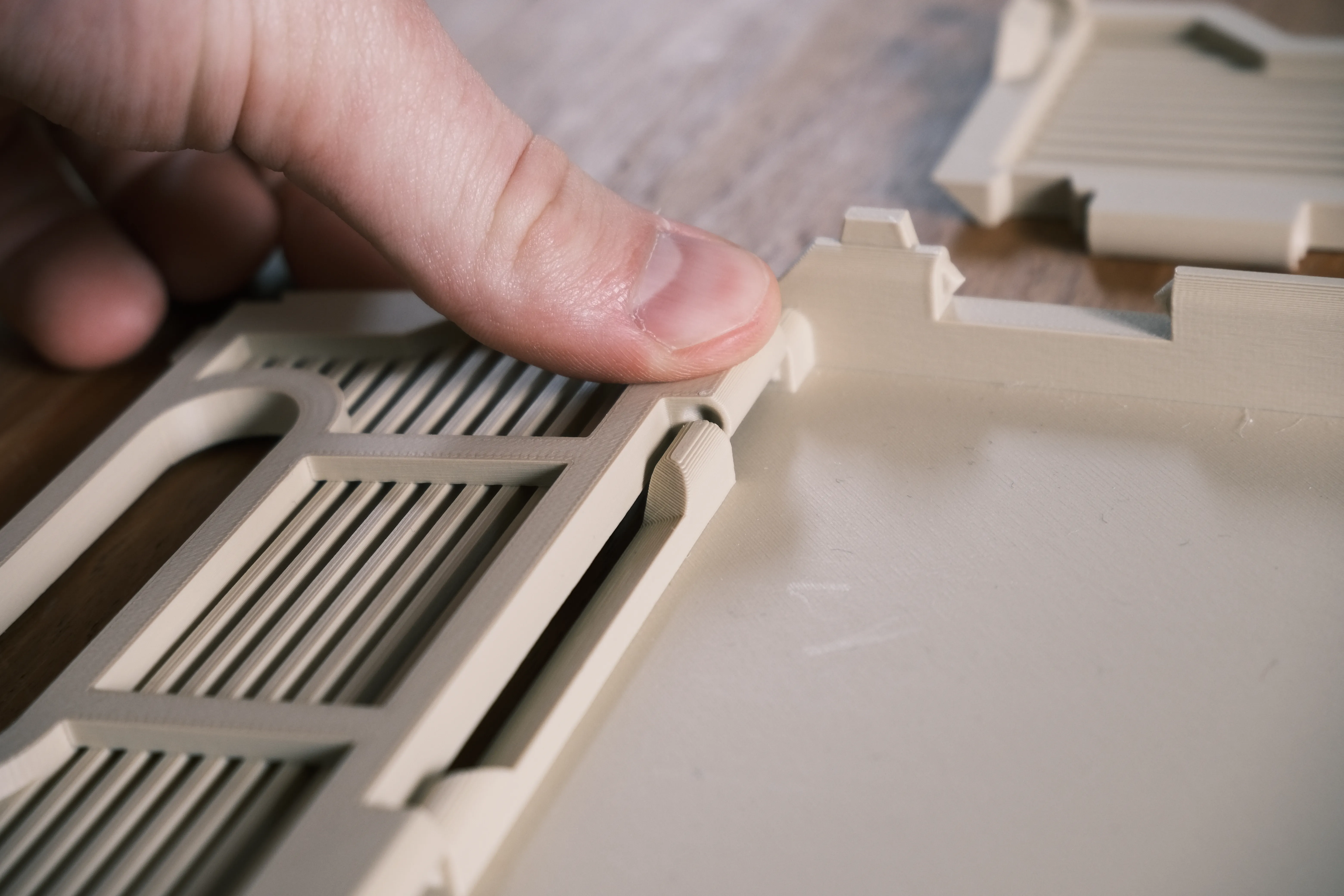

Snap the sides onto the base in this orientation :

Enjoy :)

Comment & Rating (83)

@user_2165453289

What are the extra pieces outside the 2 print plates for?

@cold.

Boosted

had the same problem. Some of the "ribs" were disconnected from the walls.

@user_2165453289

Replying to @cold. :

Thank you much

@DennyKDE

Hi, I really like this box, which is why I've already printed a second one. During the second print, I noticed that in your model, on the short sides in the upper area, there are two sections that look strange or are an error. This small error is not visible in the sample picture

Show original

@user_279434906

When customizing, the download is only one solid mesh, you can't separate the parts to organize them for printing.

@user_2397353277

You can "split to object" and then lay them out. Mind you I did that and not just get a serializing nan error" I think the bambu tool still has some bugs to workout.

@user_279434906

Replying to @user_2397353277 :

Thank you.

@1SaAk2

Print Profile

250x160 0.16mm layer, 5 walls, 15% infill

Muy bueno el diseño

@OndraDvoulety

Very nice project, uploaded profile based on my H2S maximum size print. Happy printing and thanks for this model. Very useful.

@bluathena

The parametric modeling is great but could use some improvement. I just used it and the model does not allow to adjust the height of the tote. It automatically adjusts the height based on the length and width. Because of this height adjustment happening automatically, I am assuming, the end pieces with the hand holds are a bit wonky. the hand holds do not move with the auto height adjustment and the ribs do not change either. It also appears 2 of the vertical ribs do not know where they belong. lol Otherwise, a good model. Easy to print and assemble. Reminds me of the knockdown containers from when I worked in manufacturing. 😂 I was able to successfully scale the parts in Bambu Studio to get the desired size, or close enough. I have printed a couple so far. I have also printed other models and this one, so far, is my recommended model.

@user_387095798

Print Profile

0.2mm layer, 2 walls, 15% infill

Super easy to print and assemble

Show original

@khaki

Print Profile

A1 Mini Version - 0.2mm layer, 2 walls, 15% infill

Printed well with only slight warping due to a cold room lol

@user_682186227

Is there an option to get a version of this with 190 High ?

@user_2644720774

Print Profile

0.2mm layer, 2 walls, 15% infill

An absolutely magnificent print. My daughter is utterly delighted with it. Our profound gratitude for making it available

Show original
