mesh hook + bearing set for filament spool loading
Print Profile(1)
Description

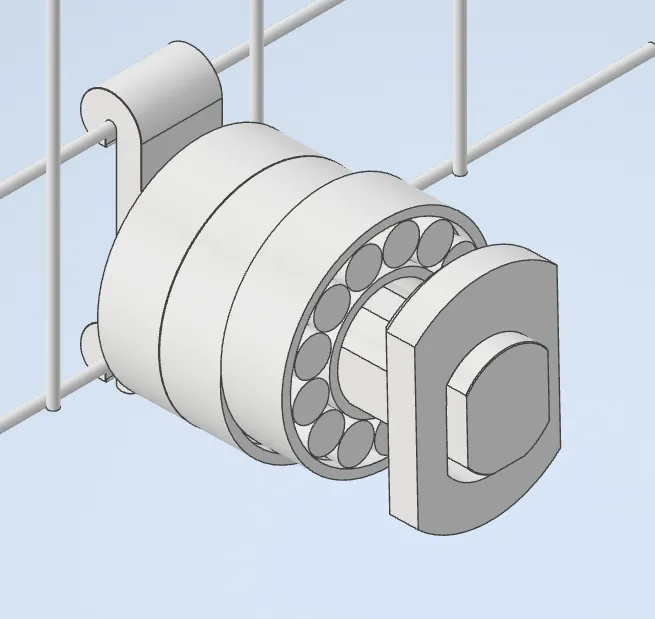

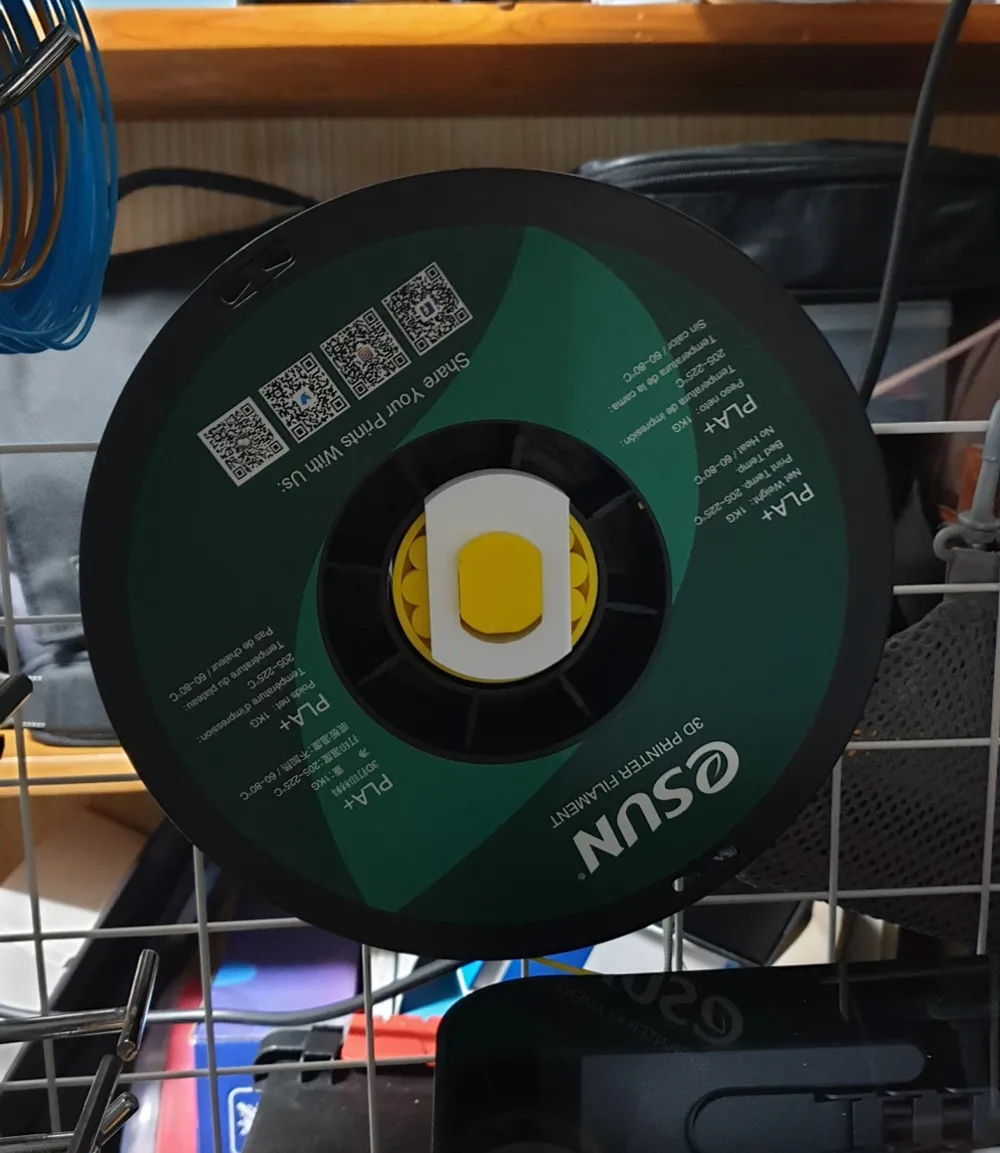

Filament spool holder for hanging on a wire mesh
Wire mesh wire thickness: ∅2.5~3.0mm
Wire mesh spacing: 50mm
Minimum spool inner diameter: ∅52mm <
When inserting or removing the spool
The spool can be inserted or removed as the bearing is lifted

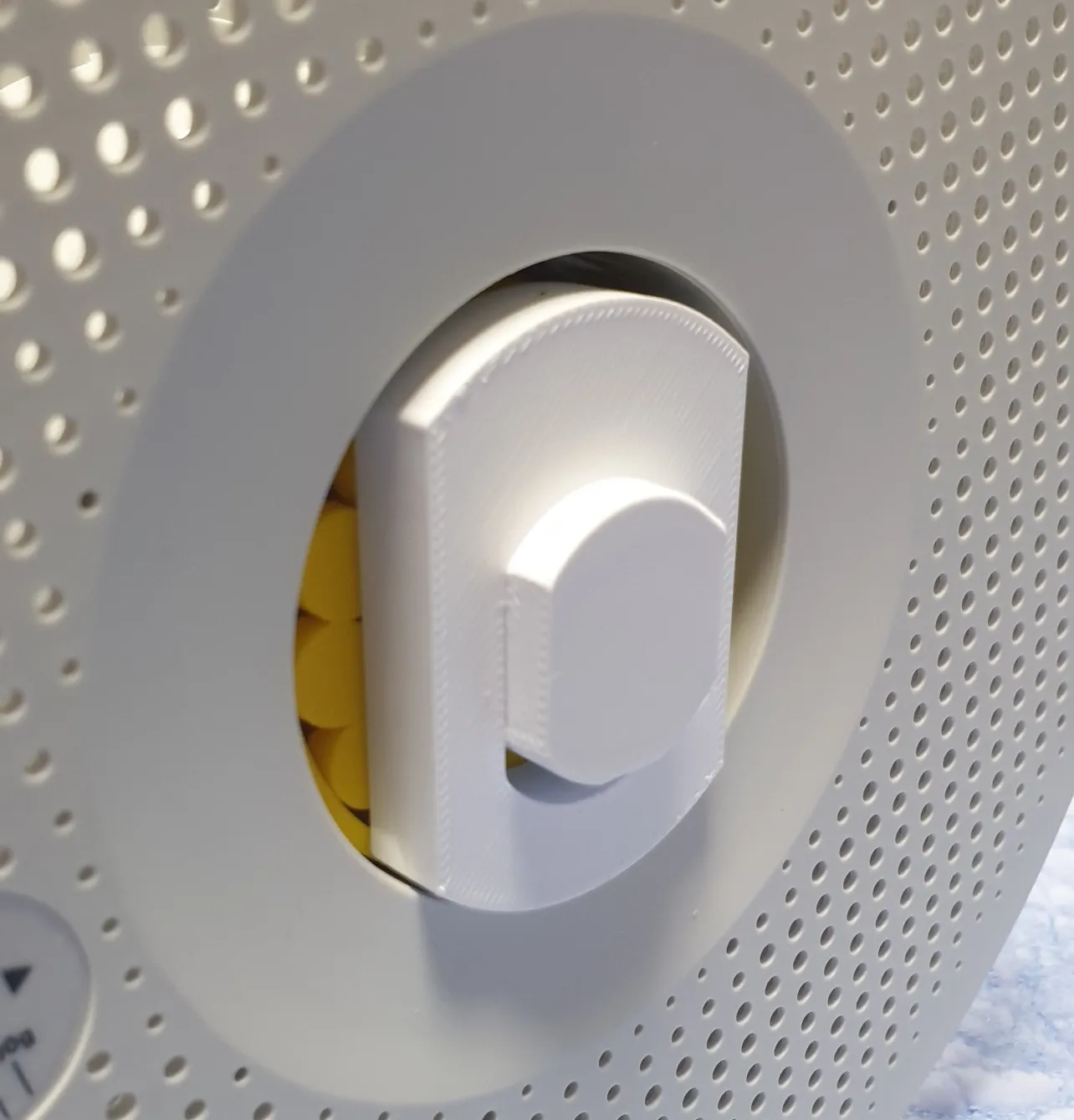

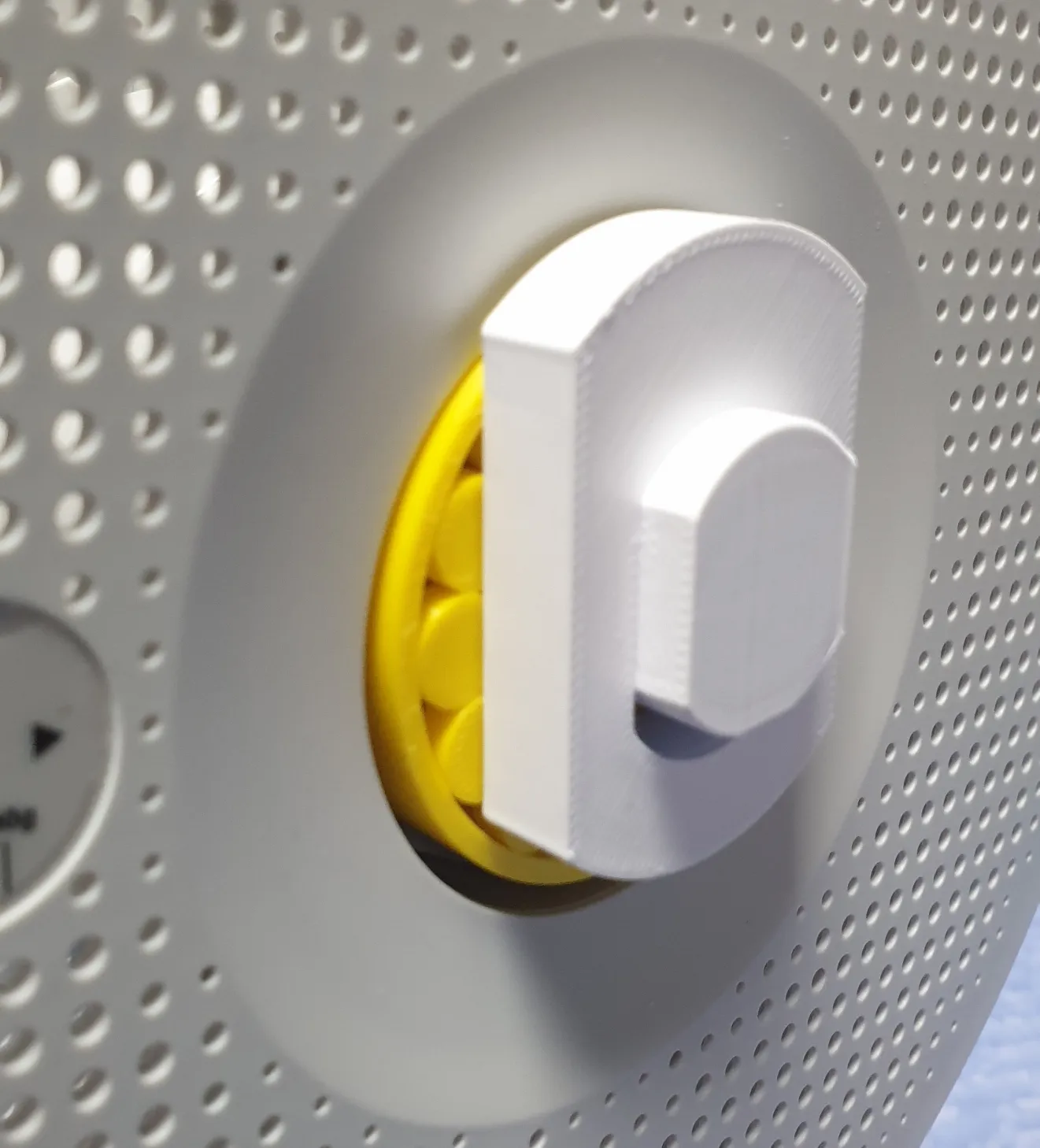

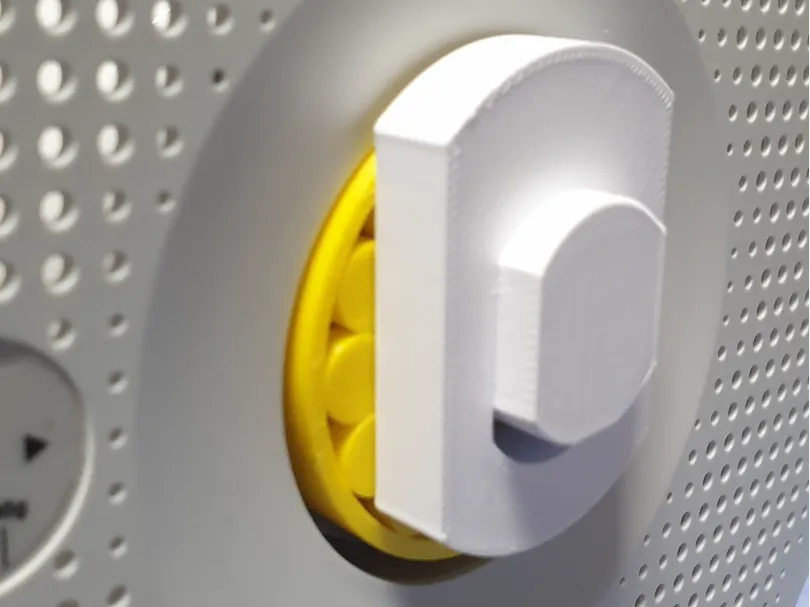

When the spool is inserted
The bearing lowers due to gravity
The clip prevents the spool from falling out

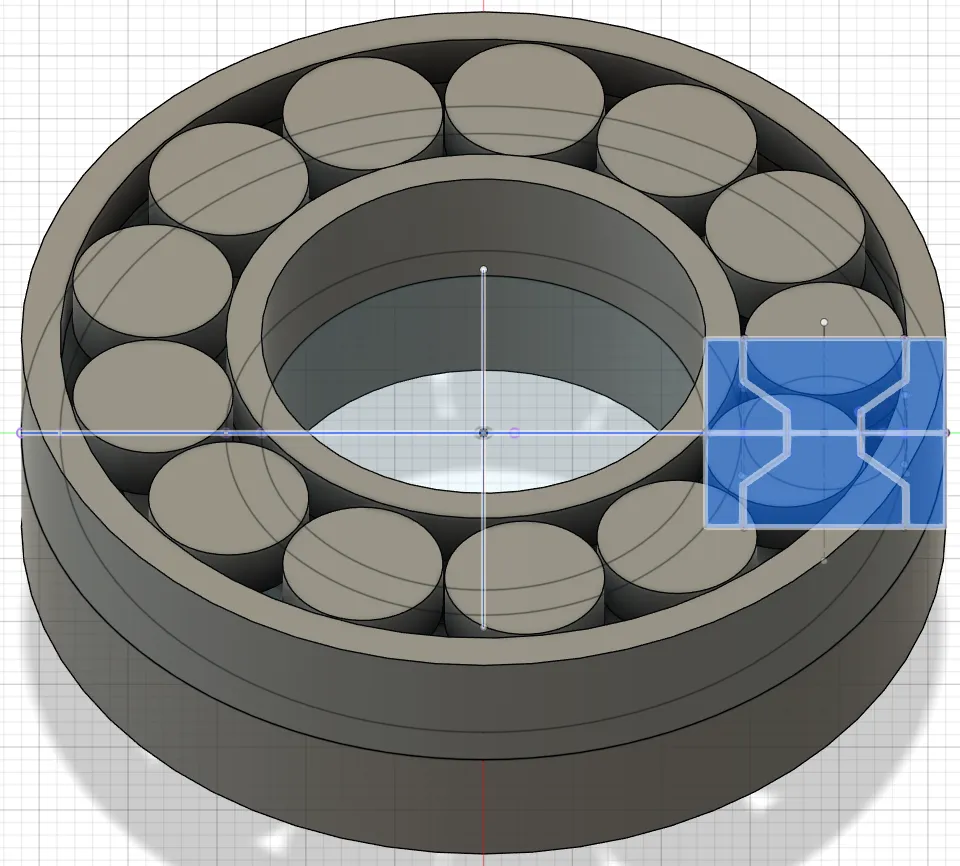

drawing
The bearing gap is 0.15mm
