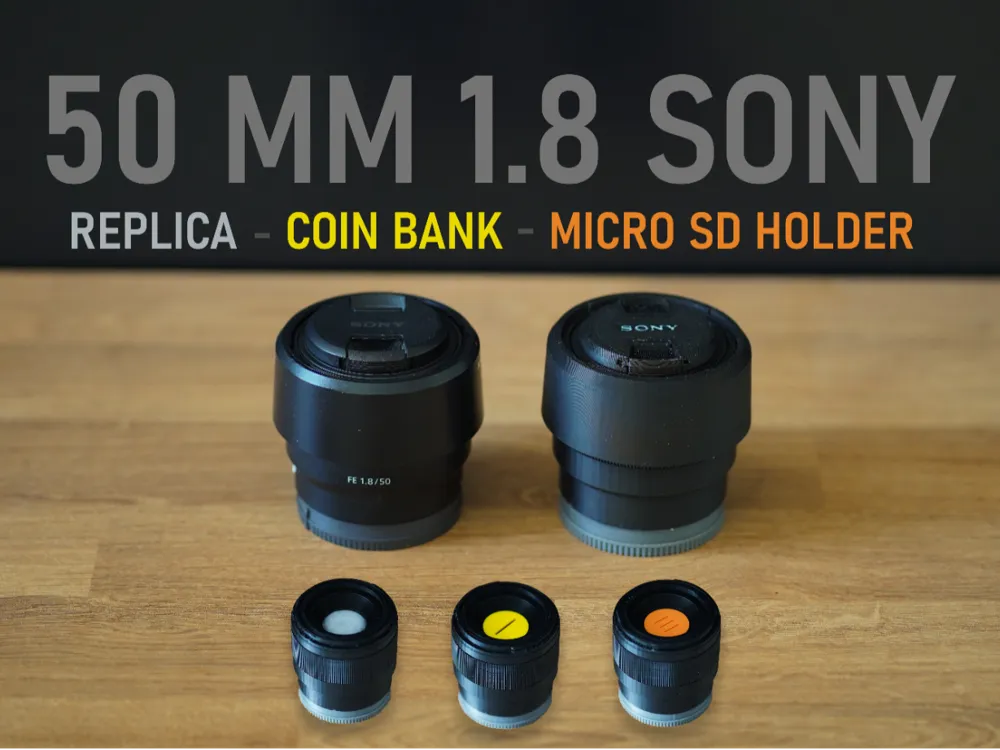

Sony 50mm Replica (Coin bank, microSD holder...)

Sony FE 50mm f/1.8 Lens Replica – E-mount

3D model of the Sony 50mm f/1.8 lens, E-mount.

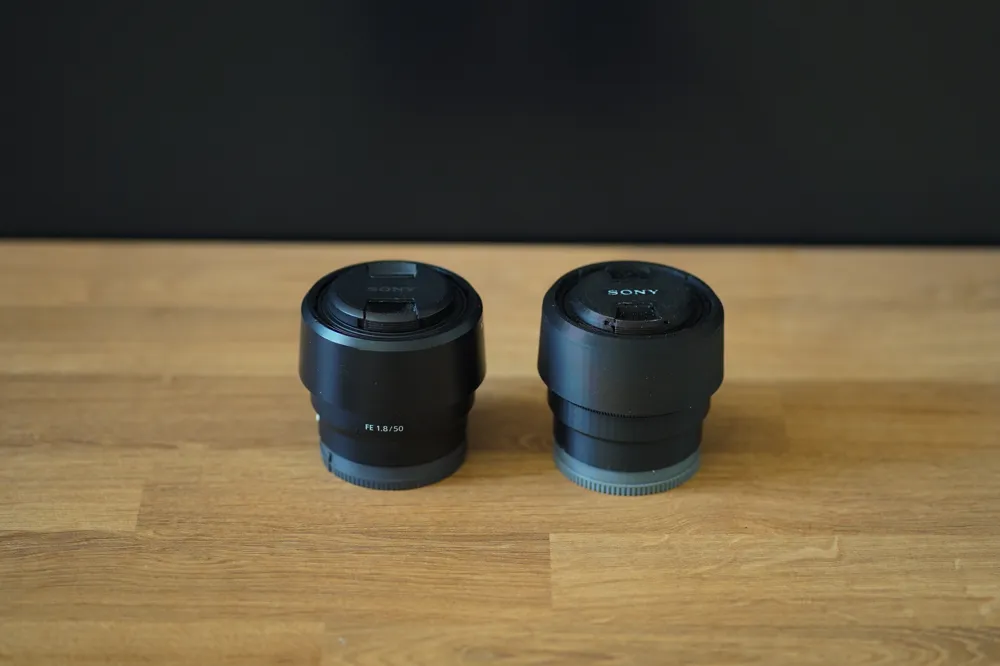

This replica was designed to be as close as possible to the real model, with minimal deviations in tolerance & measurements, but generally faithful to the original design.


⚠️ Printing Tips

-1- General Parts

Focus Ring:

• To be printed at 0.16 mm with a 0.4 mm nozzle

Front Cap:

• Requires AMS to get the two-color logo
• Only activate classic supports on the build plate
•  Slightly pull the right and left tabs outwards to make the "spring" functional

-2- Choose your lens version

◯ "No Text" Version – Easy (highly recommended)

• Smooth body, no inscription
• Nozzle: 0.4 mm – Layer height: 0.16 mm
• Optional: AMS for gray base + color customization

◎ "Contour Text" Version – Medium difficulty

• Text in contour extrusion (relief)
• Recommended nozzle: 0.2 mm (possible with 0.4 mm, but requires testing)
• Layer height: 0.16 mm or less
• AMS required for multi-color printing

○ "Negative Text" Version – Difficult

• Text in engraving (material removal)
• Recommended nozzle: 0.2 mm, ideally 0.08 mm or 0.06 mm
• AMS required

◉ "Thin Positive Text" Version – Difficult (test only)

• Text in fine extrusion (material addition)
• Nozzle: 0.2 mm required – ideally 0.08 or 0.06 mm
• AMS required

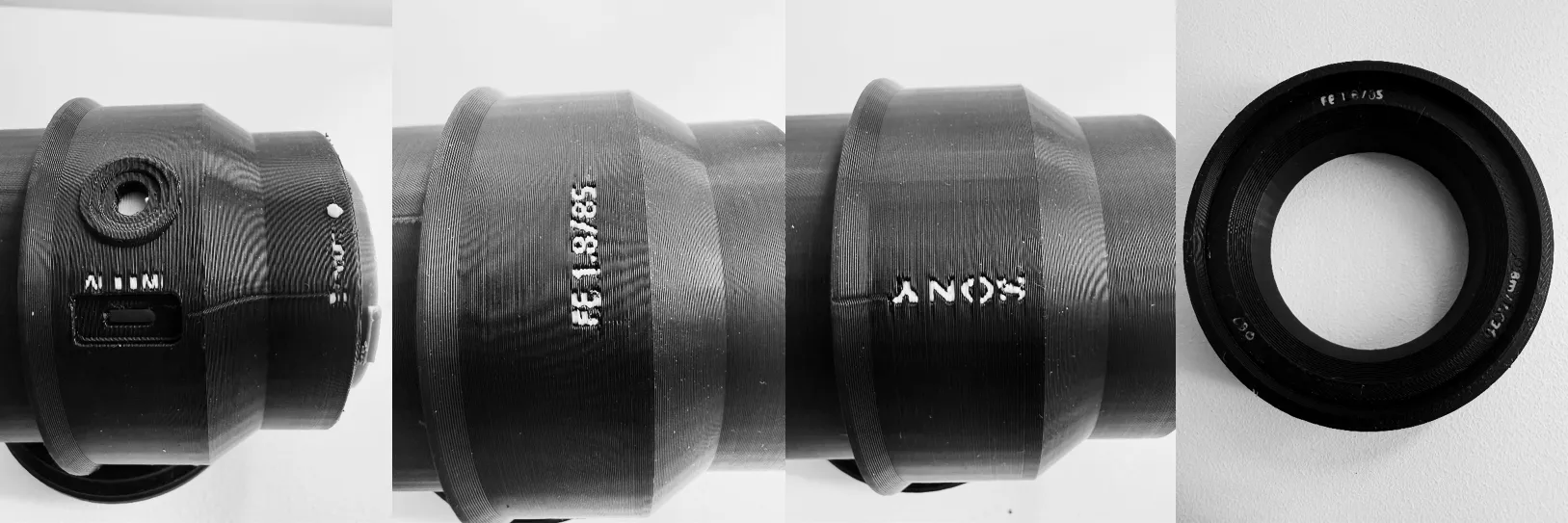

🧪 Below are tests carried out with a 0.4 mm nozzle on an 85mm replica: acceptable but limited results.
(As soon as I receive my A1 with a 0.2 nozzle. I'll start testing)

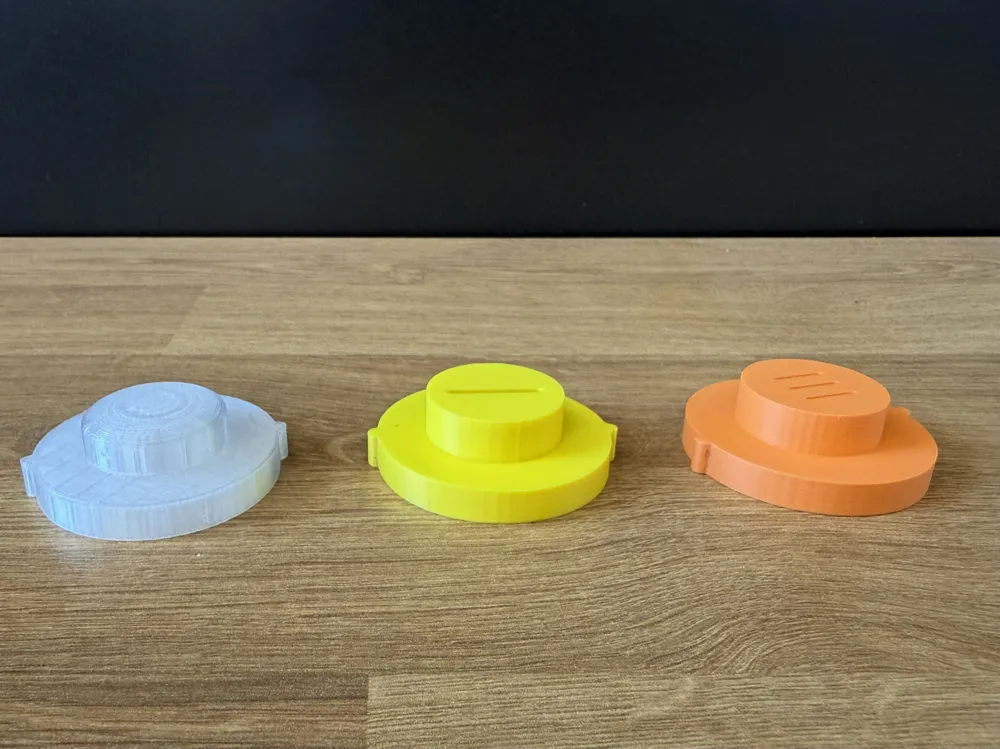

-3- Options for the lens interior

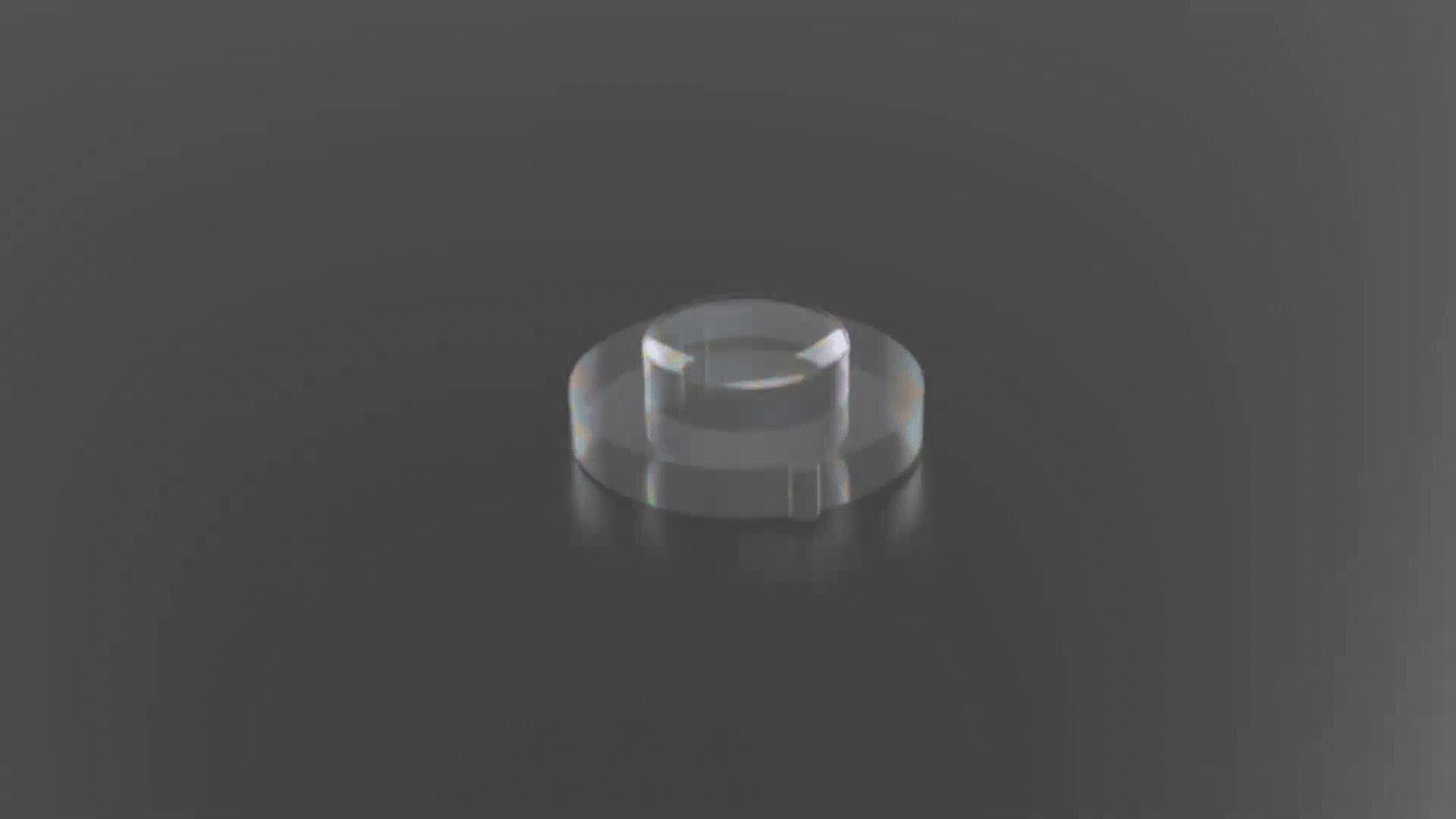

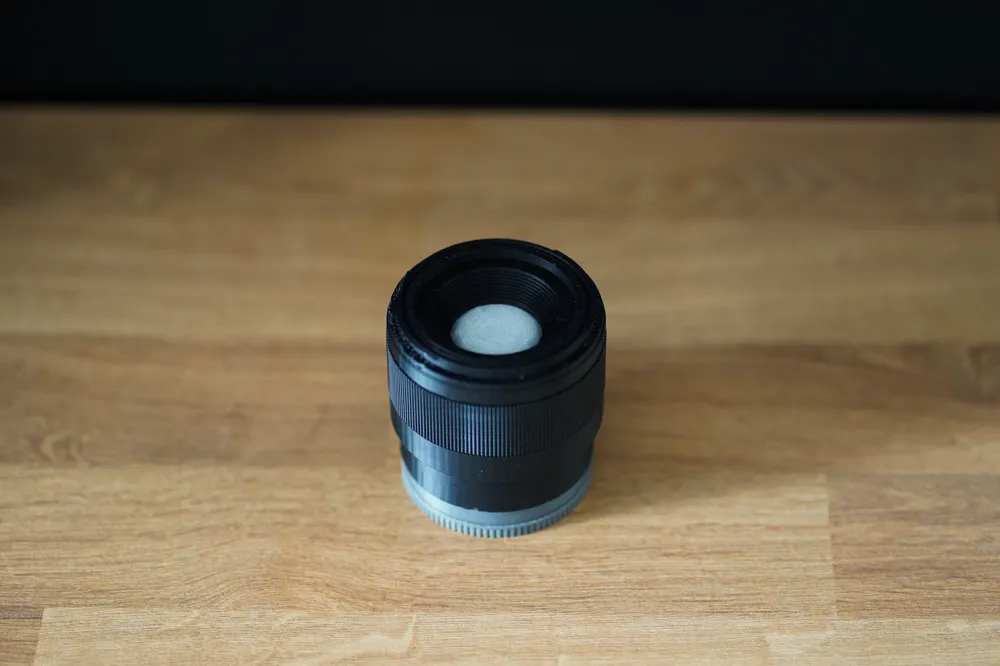

⚪ Classic Version

• Lens imitation. (Recommended Filament: Bambu PETG Translucent / Activate top layer smoothing)

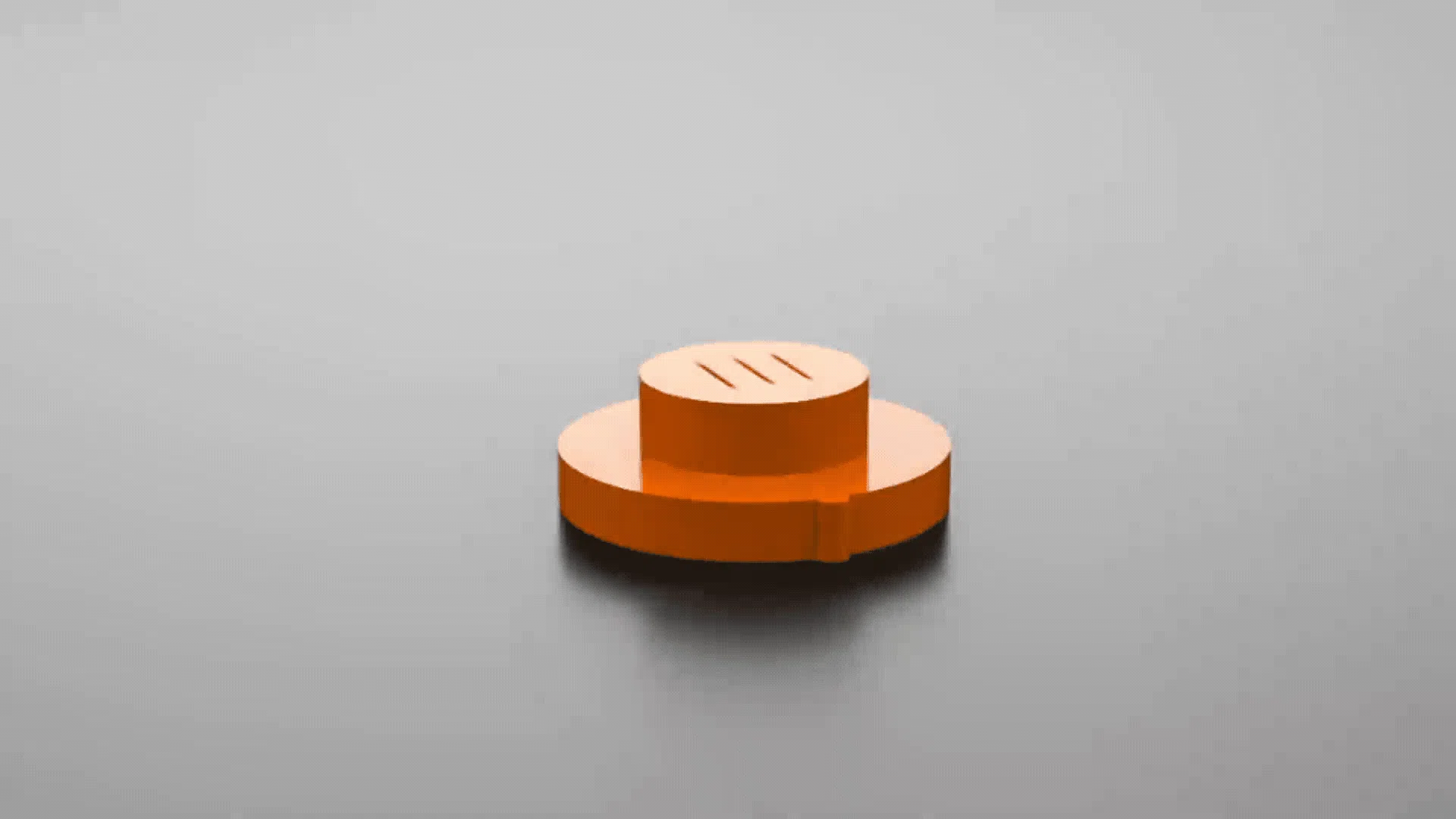

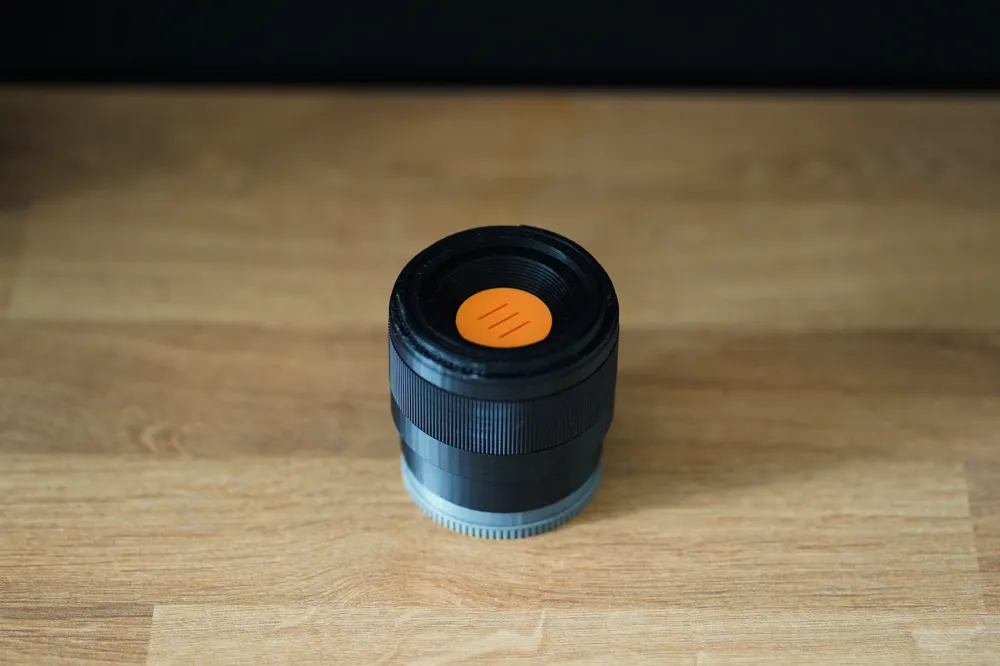

🟠 microSD holder Version

•  Compartment  for 3 microSD cards.  (Filament of your choice / Activate top layer smoothing)




          👉 Version for SD card [Sony FE 85 mm 1.8]

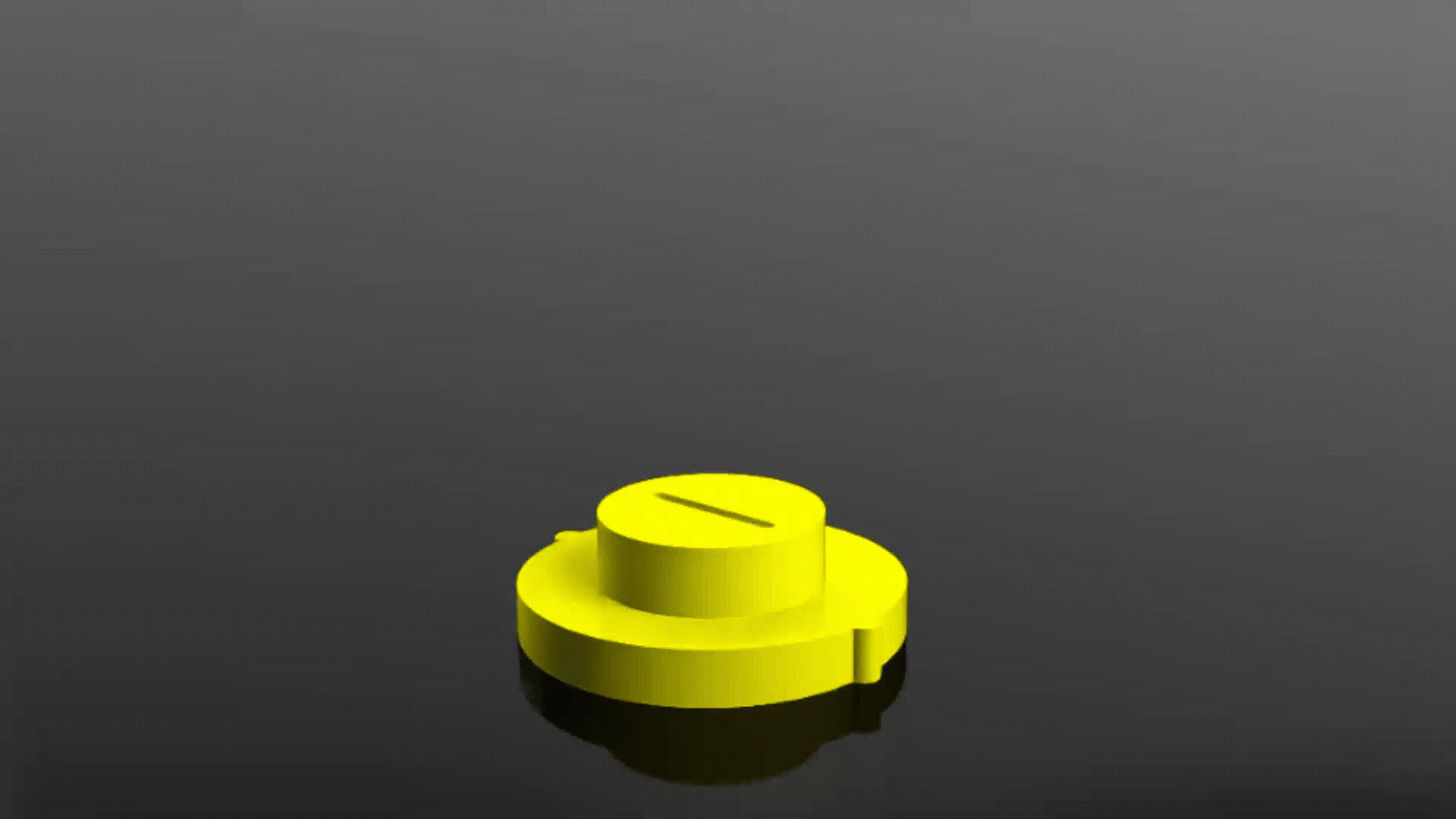

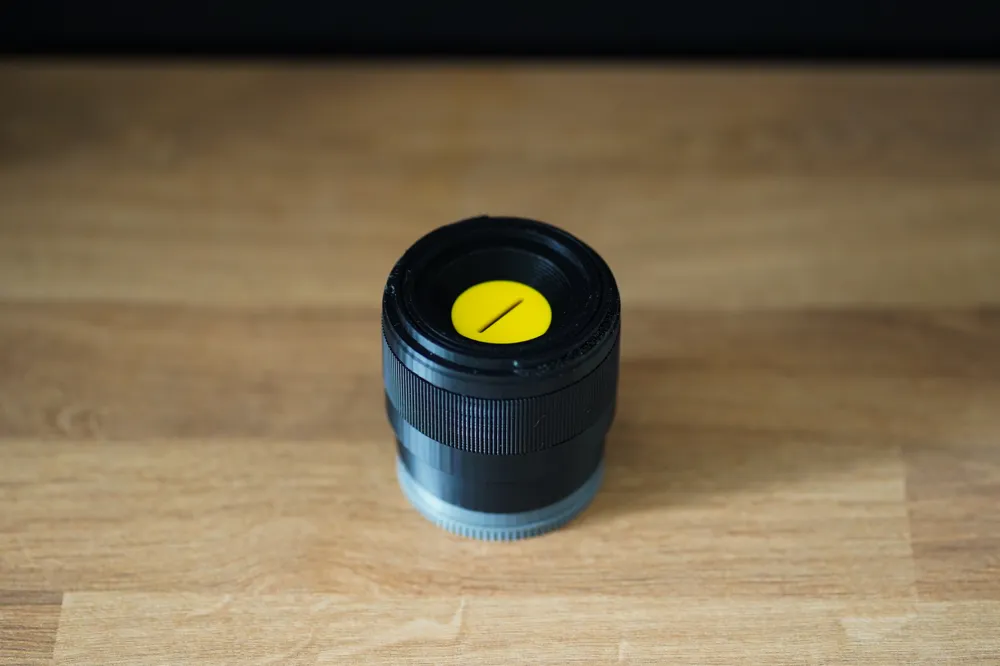

🟡 Piggy bank Version

• Compatible with 1, 2, and 5 cent coins (Filament of your choice / Activate top layer smoothing)



            👉 Version for euros [Sony FE 85 mm 1.8]

-------------------------------------------------------------------------------------------------------------------------------------------------------------

📸 Other

• The rear lens cap is also available: [Lens caps for Sony]

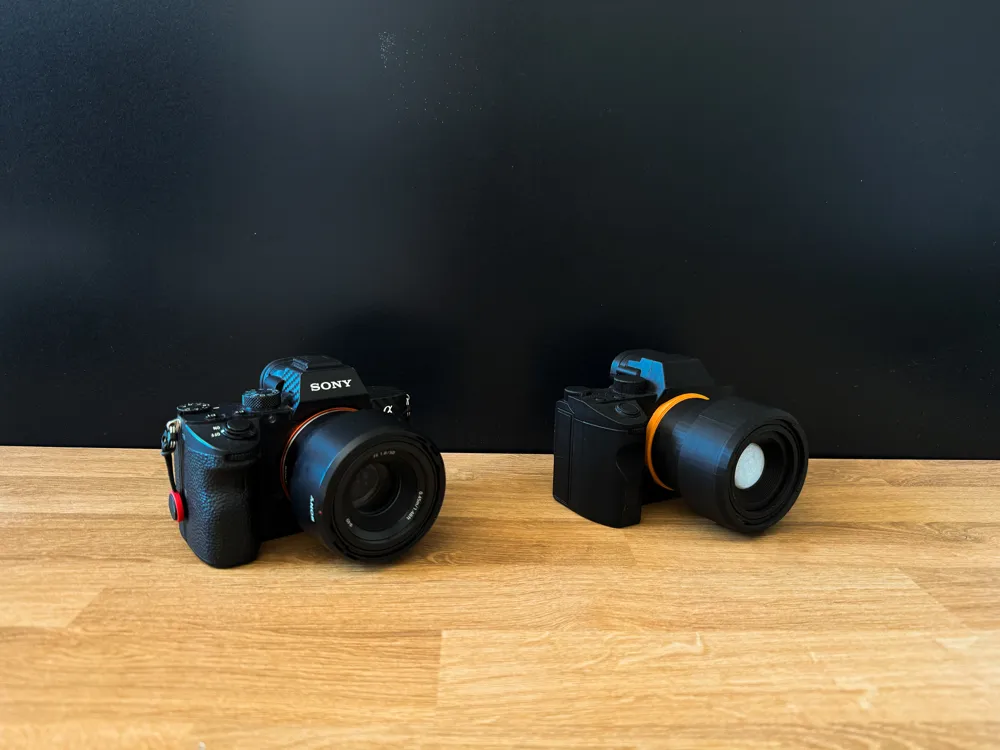

• The Sony Alpha 7 III replica is available here: [Unavailable]

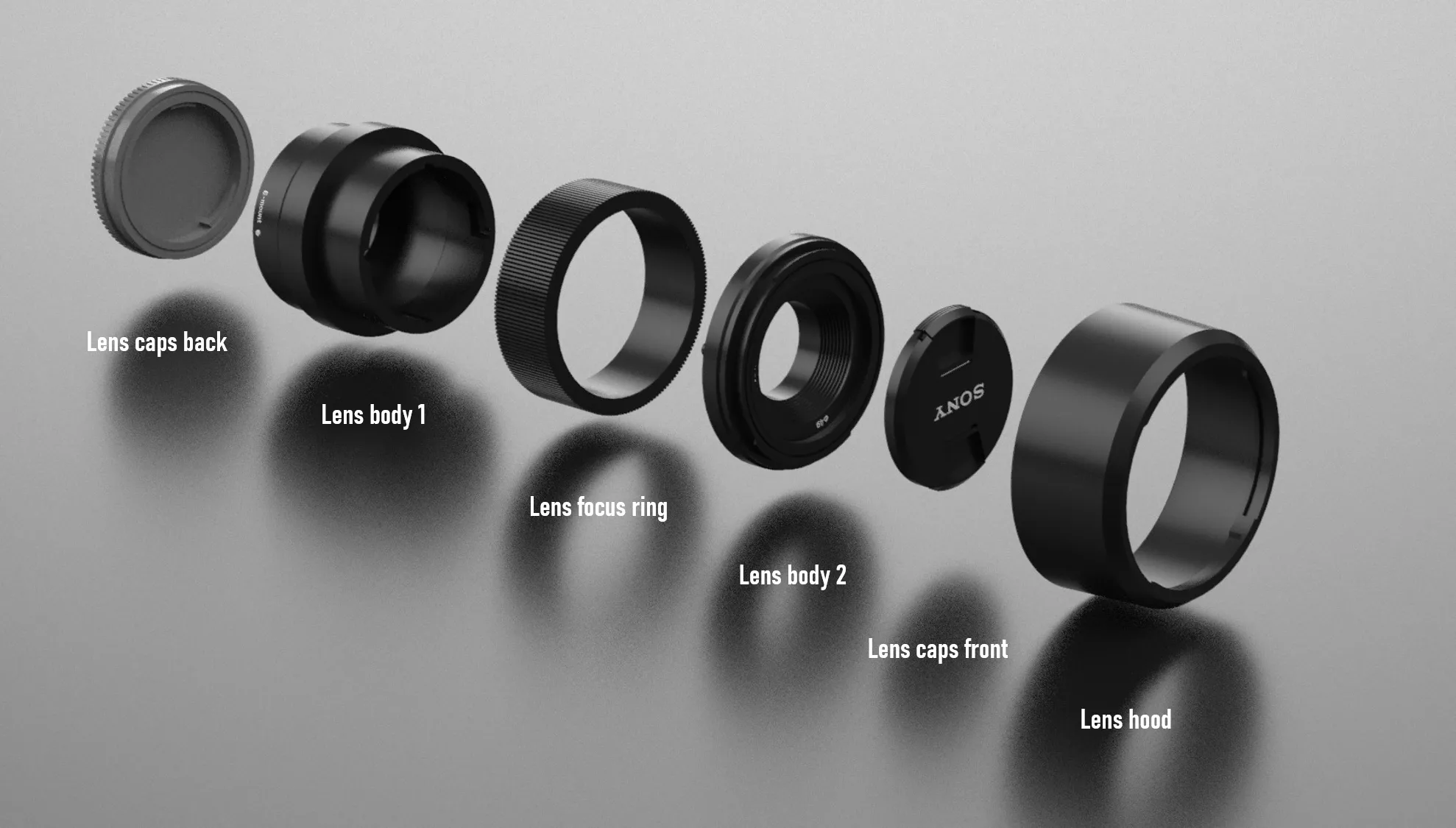

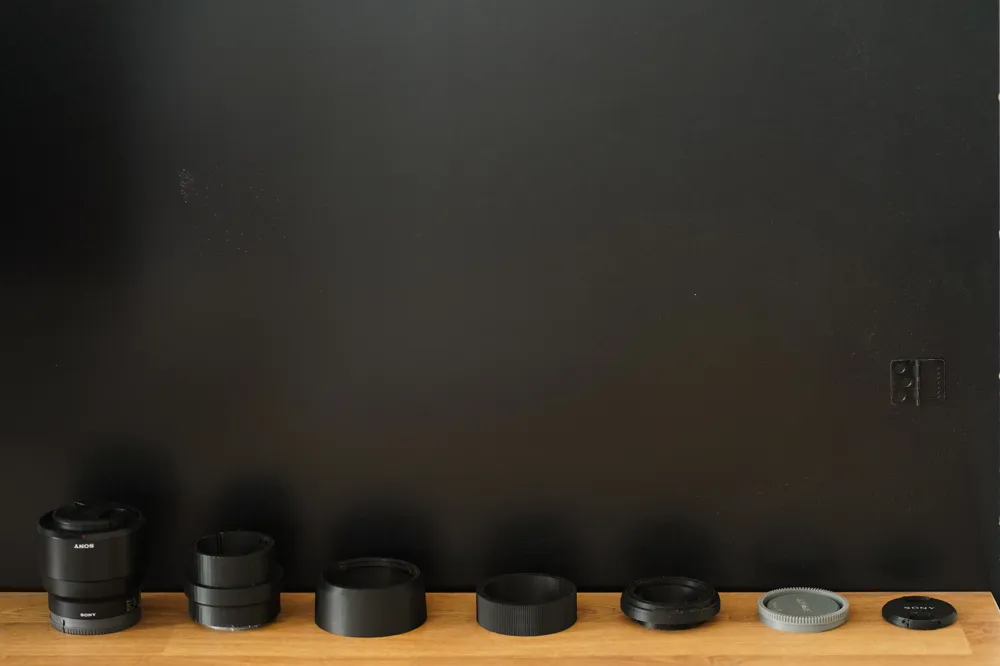

• All elements (front/rear cap, lens hood) are interchangeable with the real Sony 50mm f/1.8

• For the "Lens Caps Front", for the spring system, I was loosely inspired by this model [Lens caps Front]

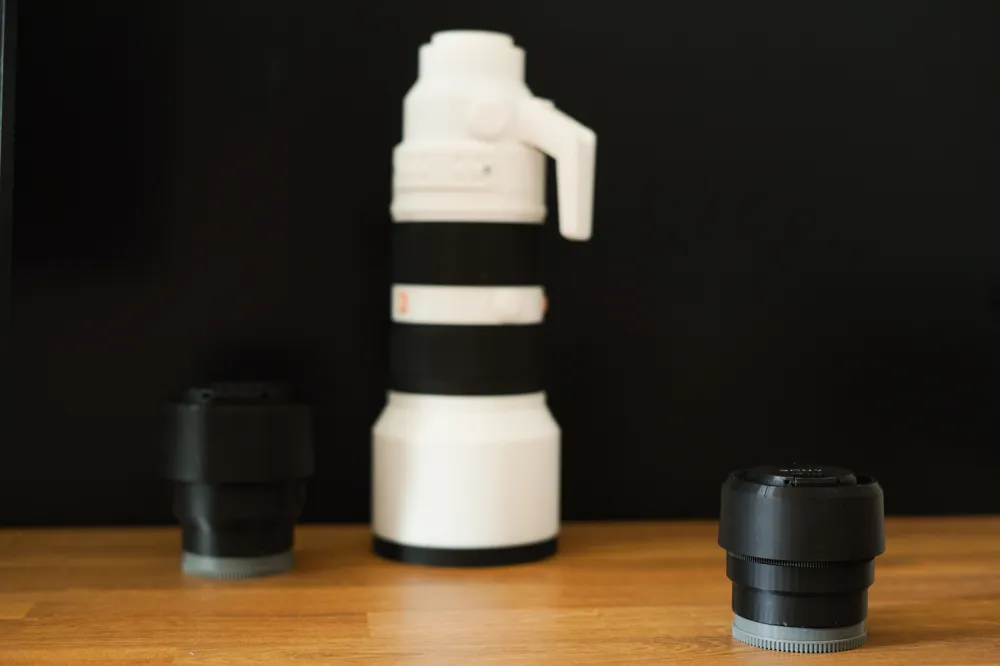

My other replicas:

👉 [Sony FE 85mm 1.8 Replica]

👉Sony 24-70mm 2.8 GMII Replica (Under design)

👉Sony 70-200mm 2.8 GMII Replica (Under design)

Feel free to give me feedback in the comments, share your photos, leave a like and a boost if you enjoyed it.
Happy printing everyone!
Epsilon
