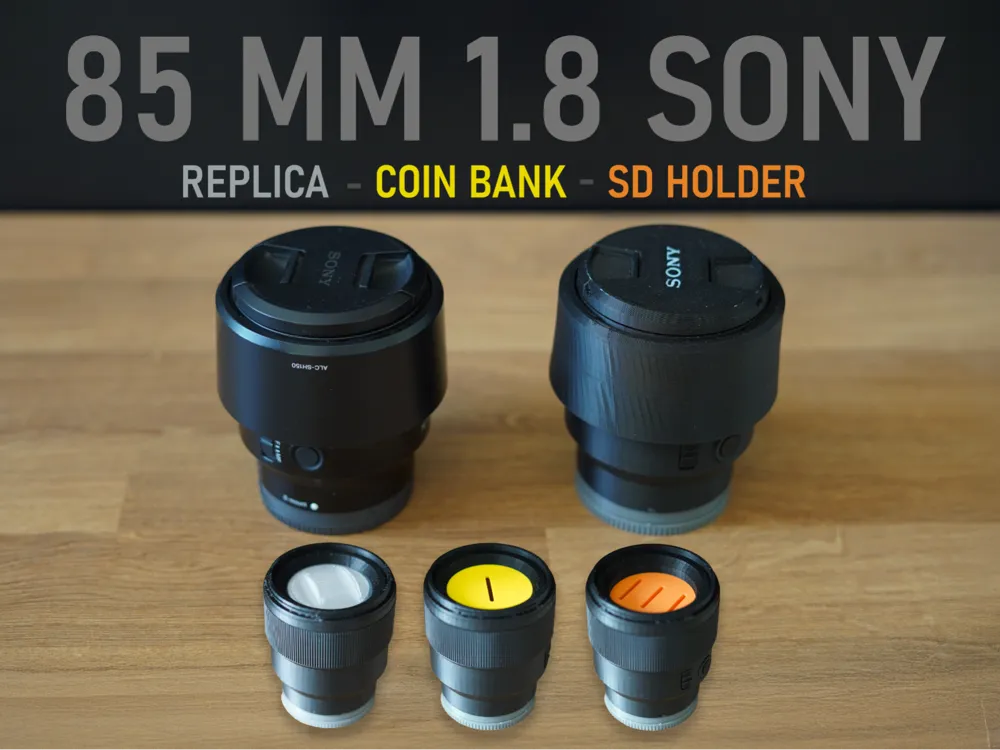

Sony 85mm Replica (Box, Coin bank, SD holder...)

Sony FE 85mm f/1.8 Lens Replica – E-Mount

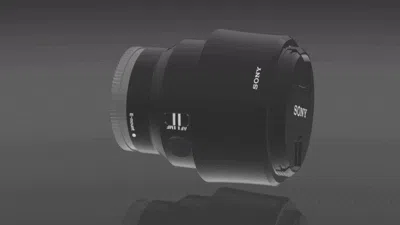

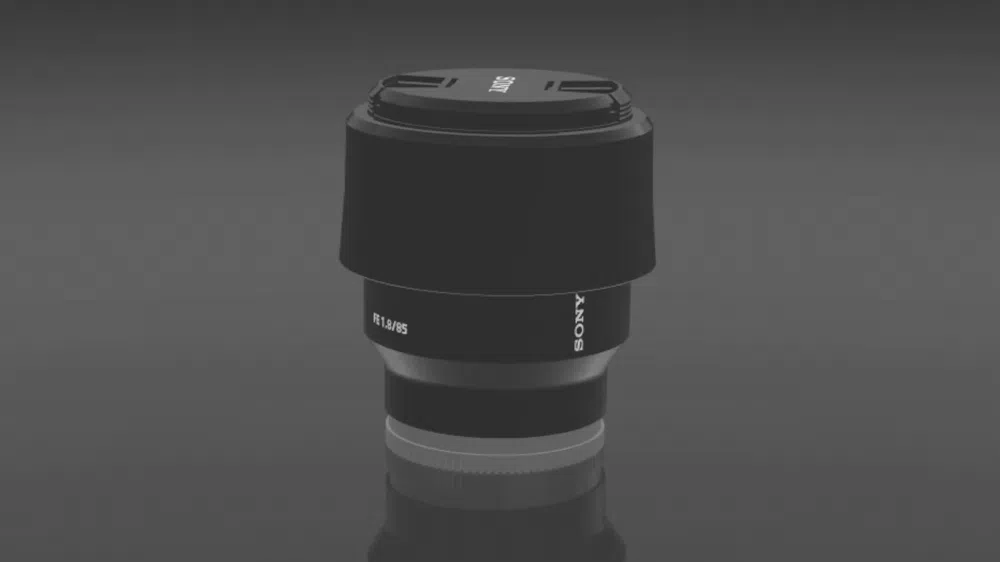

Modeling of the Sony 85mm f/1.8 lens, E-mount.
This replica was designed to be as close as possible to the real model, with some minimal differences in tolerance & measurements, but generally faithful to the original design.

⚠️ Printing Tips

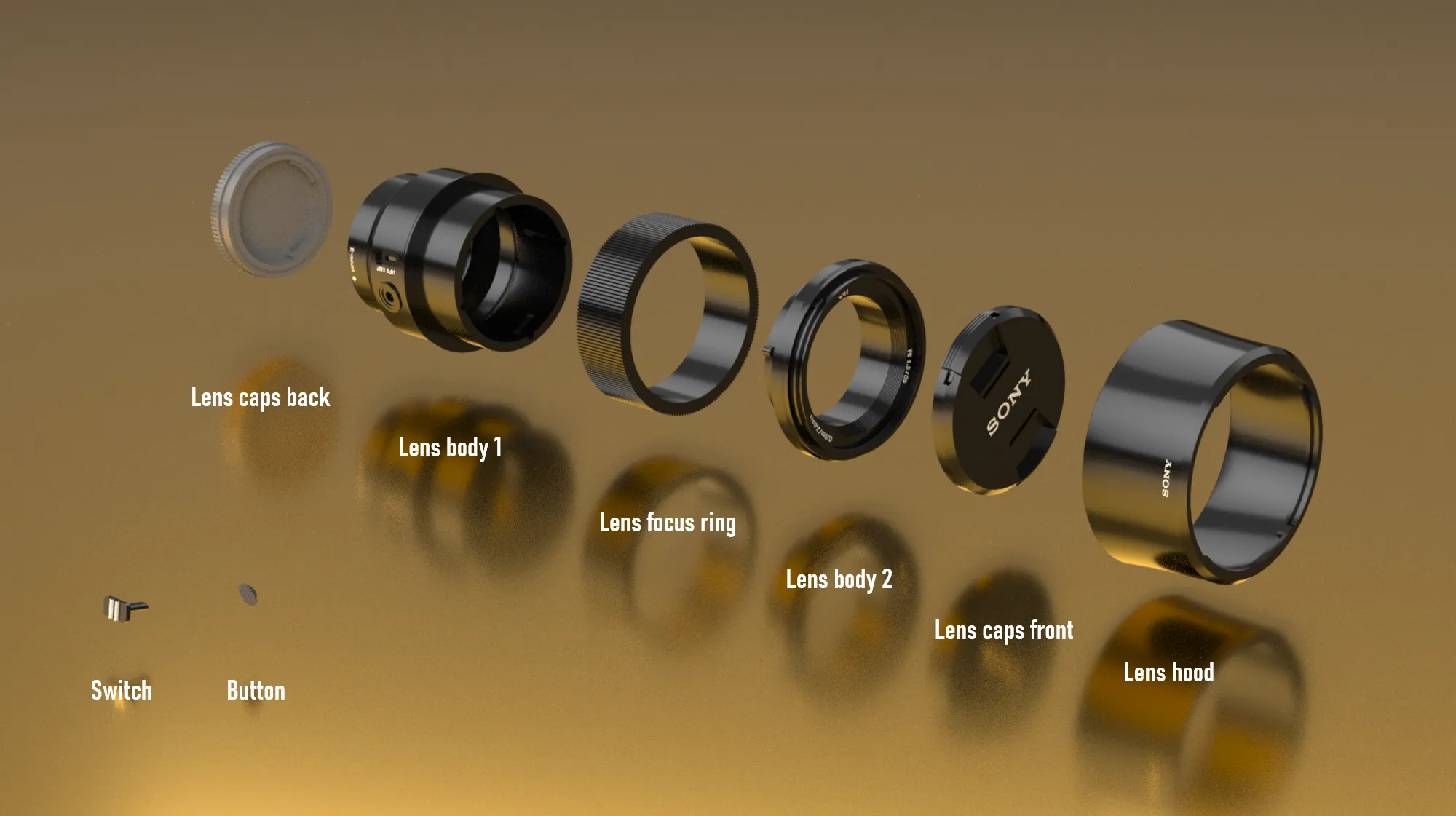

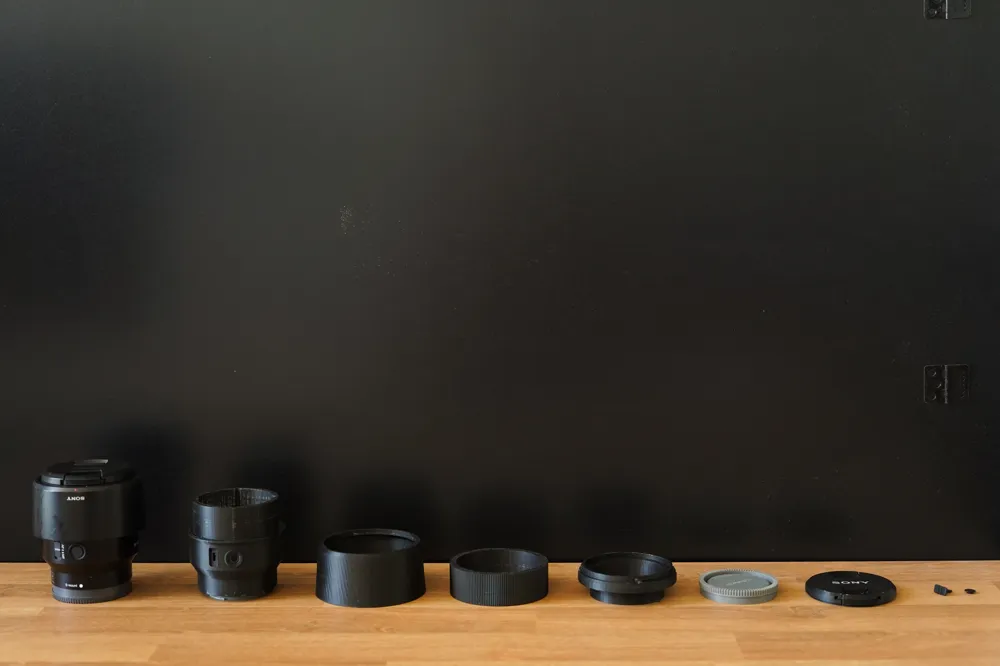

-1- General Parts

Focus Ring:

• To print in 0.16 mm with a 0.4 mm nozzle

Front Cap:

• Requires AMS to get the dual-color logo
• Only enable normal supports on the build plate
•  Slightly stretch the right and left tabs outwards to make the "spring" functional

Button & Switch:

• Print it at a low speed
• Only enable normal supports on the build plate

  It is possible to add a micro spring and glue it to simulate the button's return. If printed well, the switch should slide correctly without coming off.

-2- Choose your lens version

◯ "No Text" Version – Easy (highly recommended)

• Smooth body, no text
• Nozzle: 0.4 mm – Layer height: 0.16 mm
• Optional: AMS for gray base + color customization

◎ "Contour Text" Version – Medium difficulty

• Text in contour extrusion (raised)
• Recommended nozzle: 0.2 mm (possible with 0.4 mm, but requires testing)
• Layer height: 0.16 mm or less
• AMS mandatory for multi-color printing

○ "Negative Text" Version – Difficult

• Text in engraving (material removal)
• Recommended nozzle: 0.2 mm, ideally 0.08 mm or 0.06 mm
• AMS mandatory

◉ "Fine Positive Text" Version – Difficult (test only)

• Text in fine extrusion (material addition)
• Nozzle: 0.2 mm mandatory – ideally 0.08 or 0.06 mm
• AMS mandatory

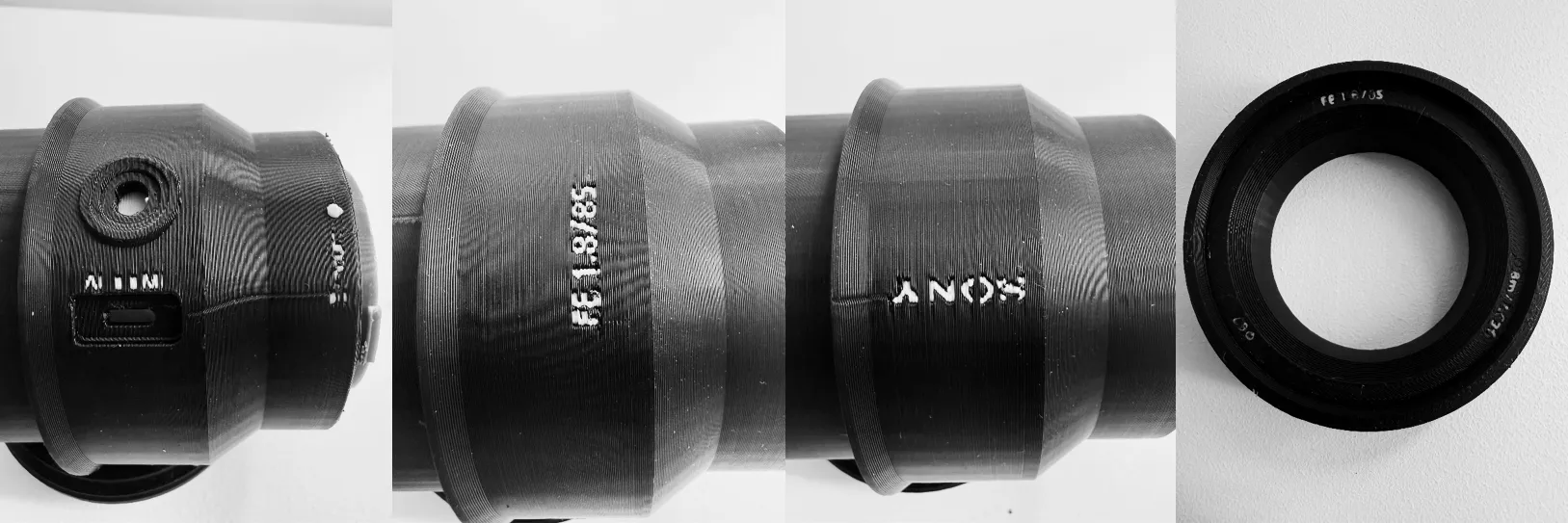

🧪 Below are tests performed with a 0.4 mm nozzle on an 85mm replica: acceptable but limited results.
(As soon as I receive my A1 with a 0.2 nozzle. I will start testing)

-3- Options for the lens interior

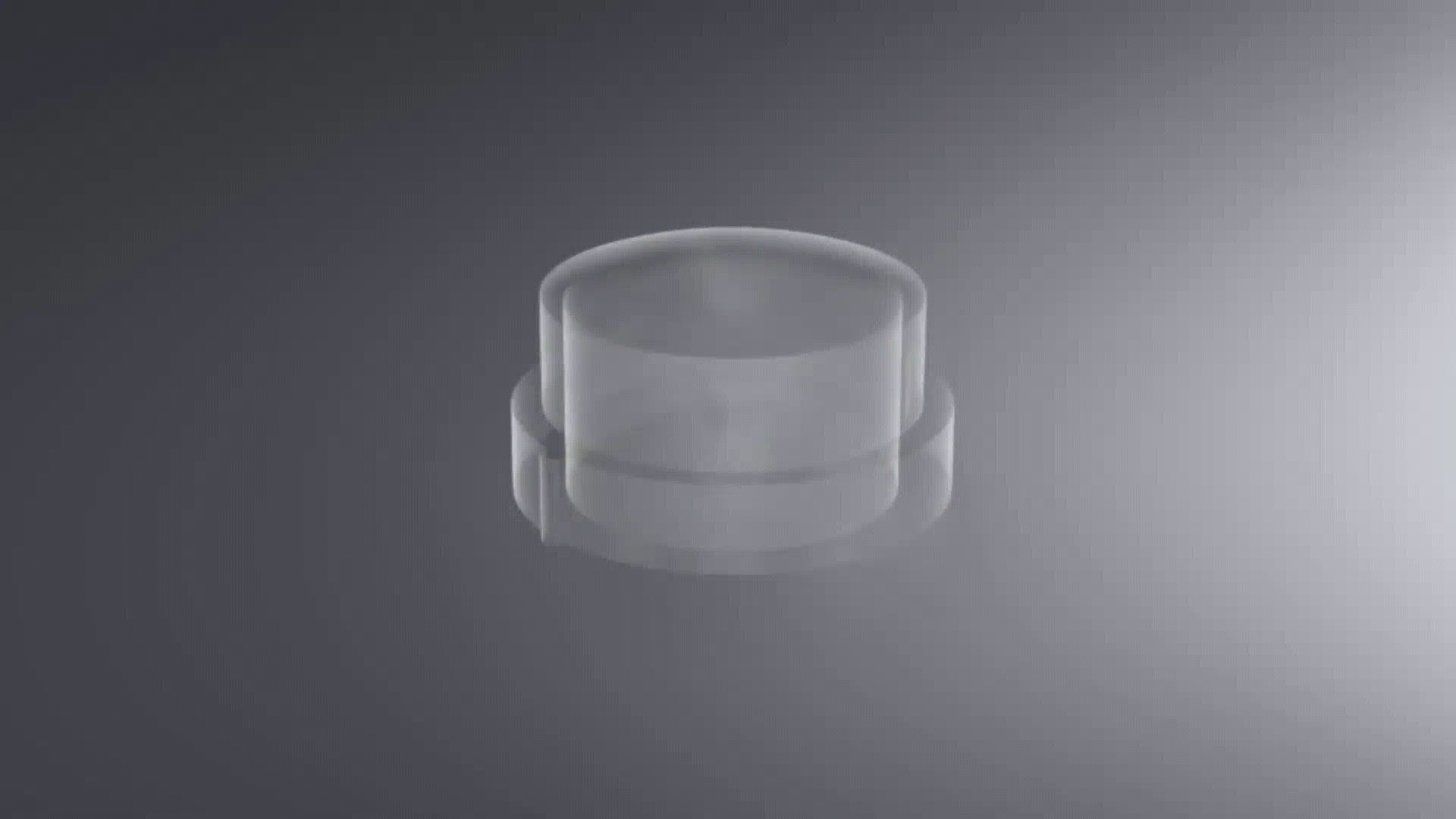

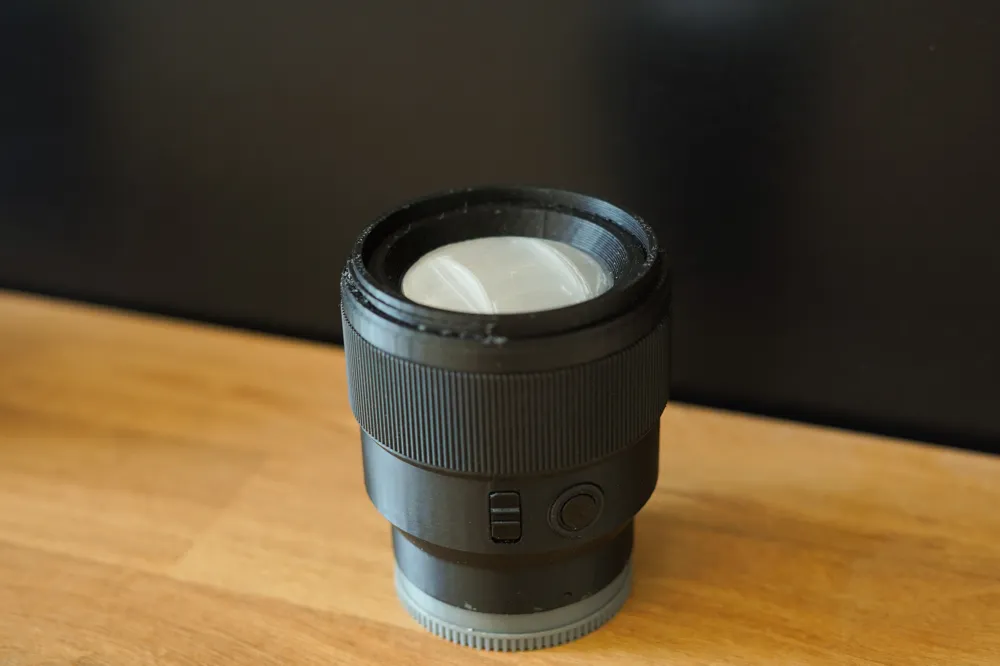

⚪ Classic Version

• Lens imitation. (Recommended filament: Bambu PETG Translucent / Enable top layer ironing)

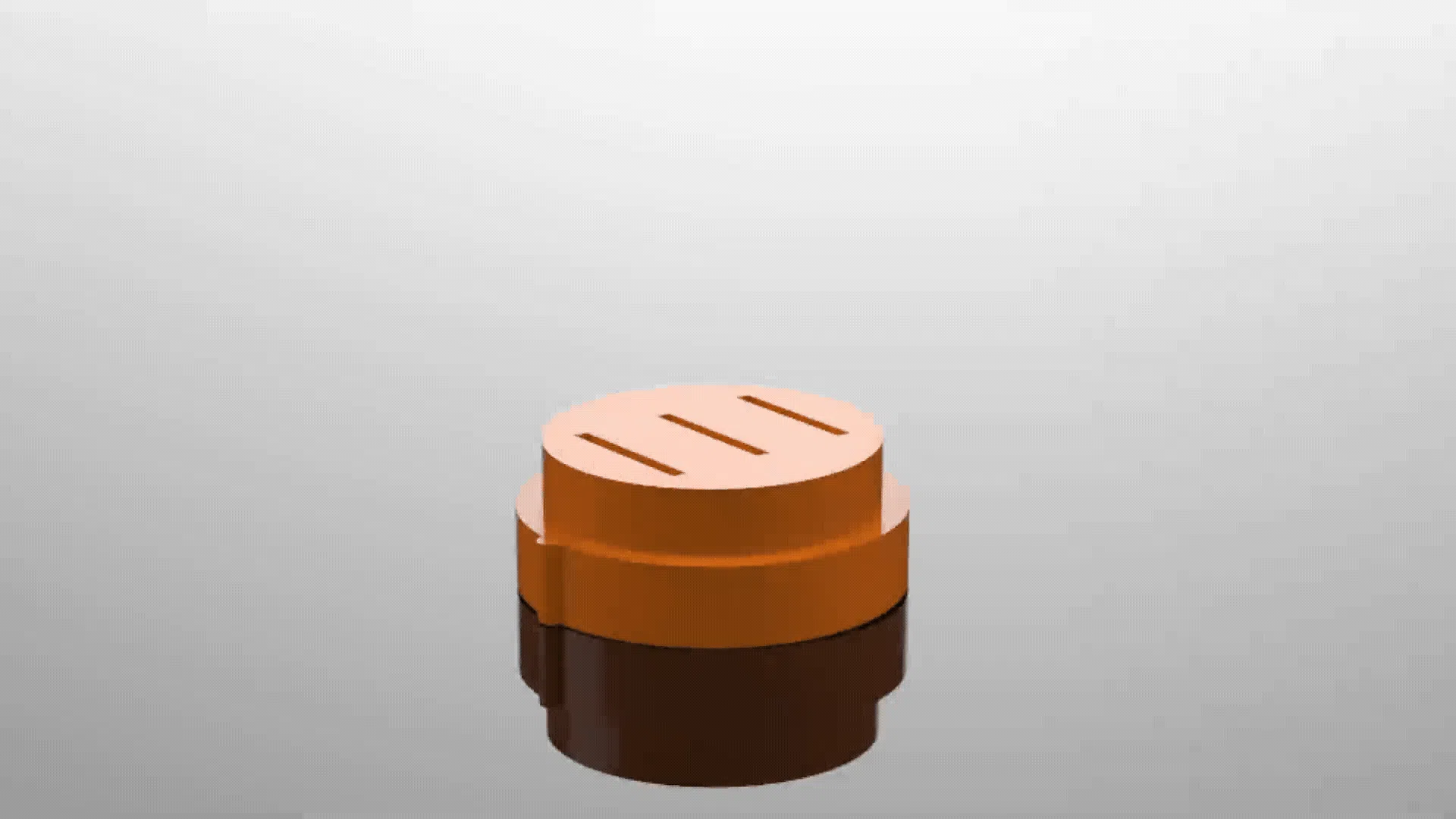

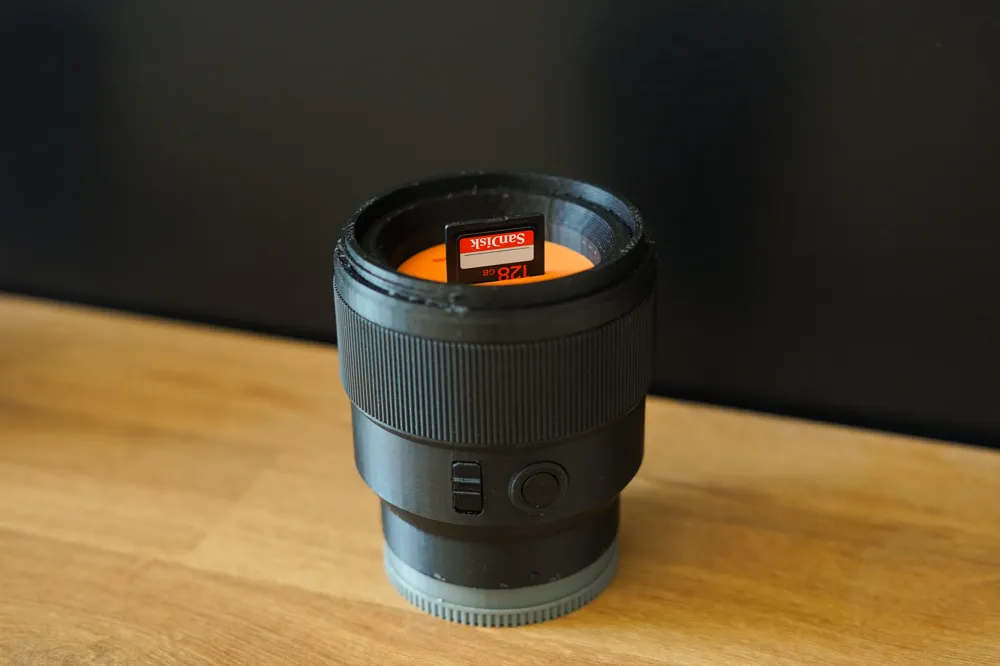

🟠 MicroSD Holder Version

•  Compartment for 3 microSD cards.  (Filament of your choice / Enable top layer ironing)





  👉 Version for micro SD card [Sony FE 50 mm 1.8]

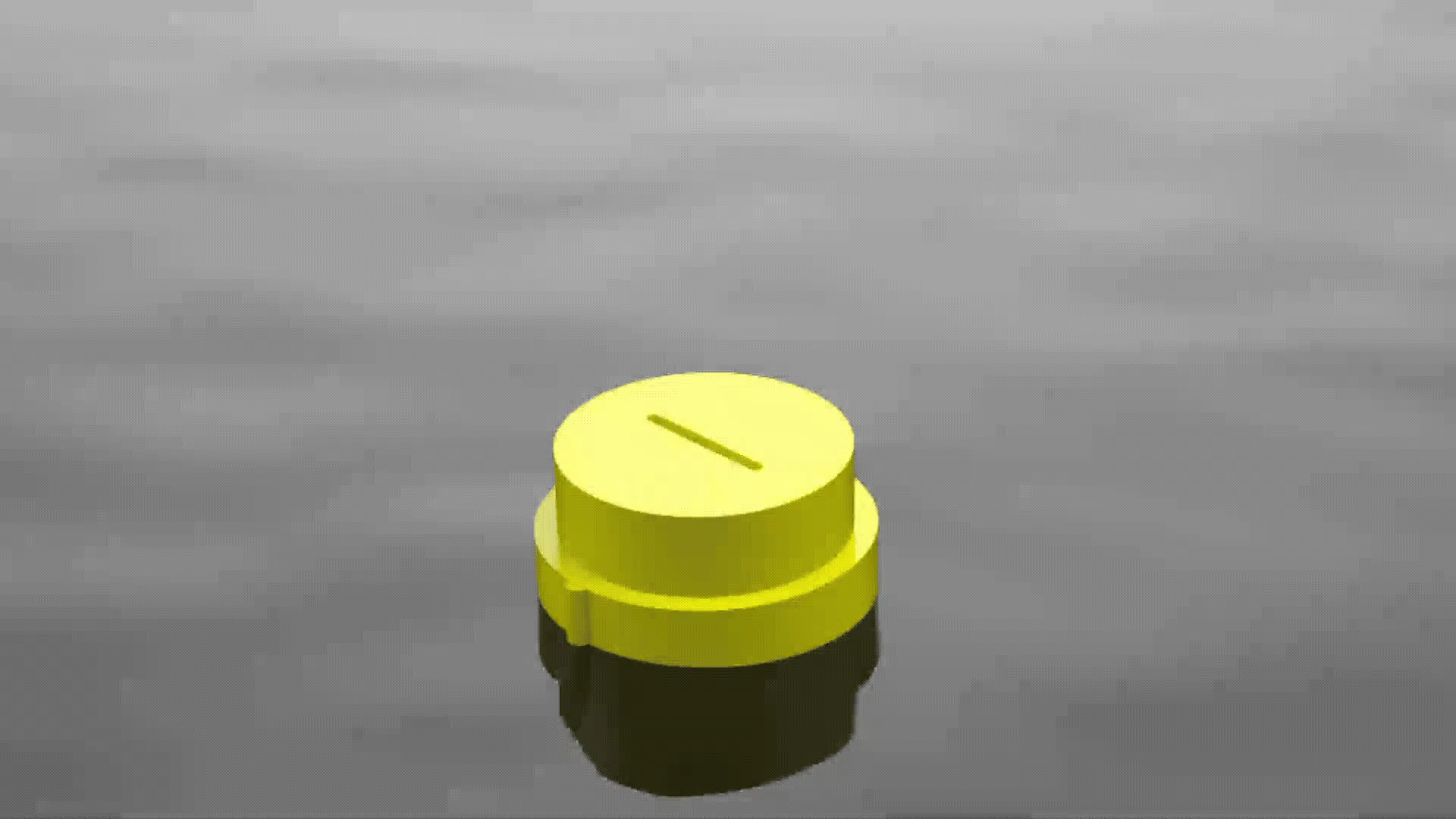

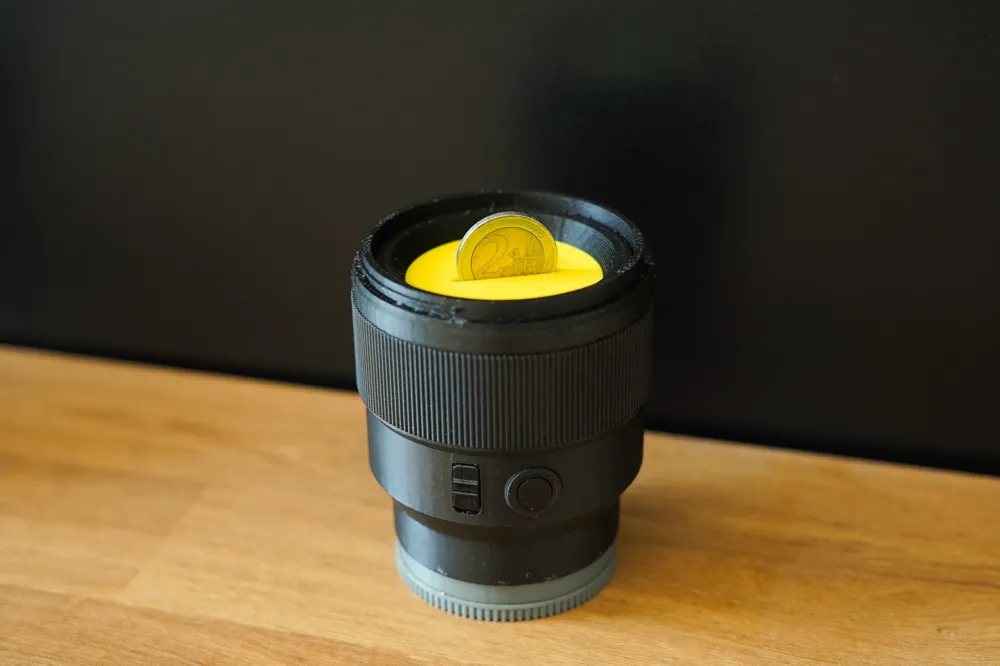

🟡 Piggy Bank Version

• Compatible with 1, 2, and 5 cent coins (Filament of your choice / Enable top layer ironing)





  👉 Version for cents [Sony FE 50 mm 1.8]

-------------------------------------------------------------------------------------------------------------------------------------------------------------

📸 Other

• The rear lens cap is also available: [Lens caps for Sony]

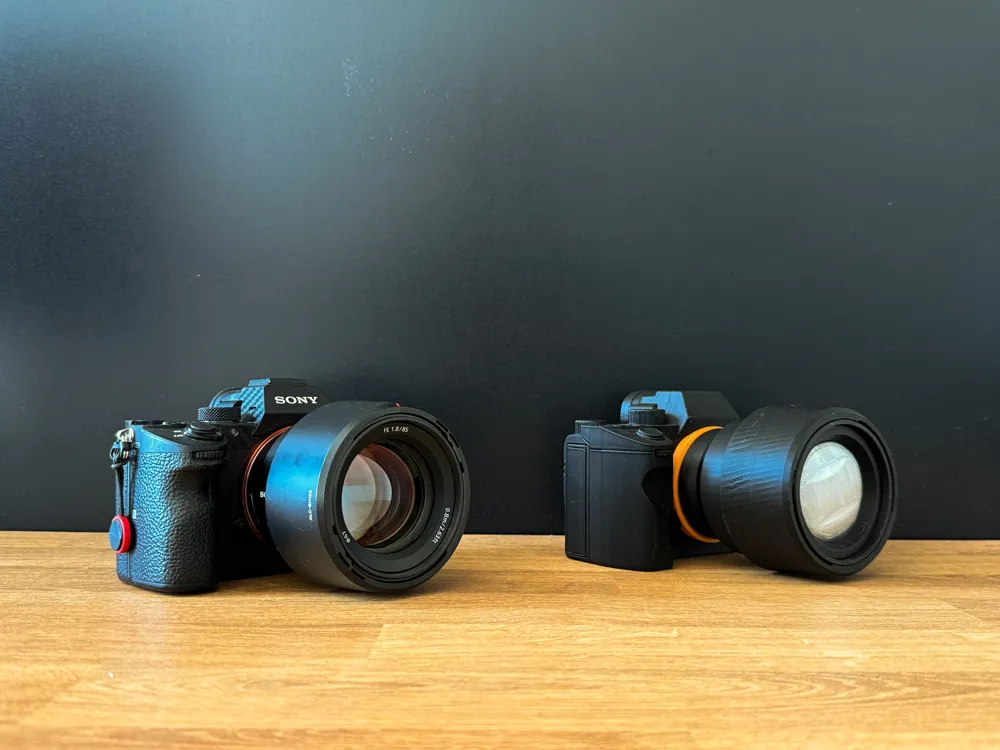

• The Sony Alpha 7 III replica is available here: [Unavailable]

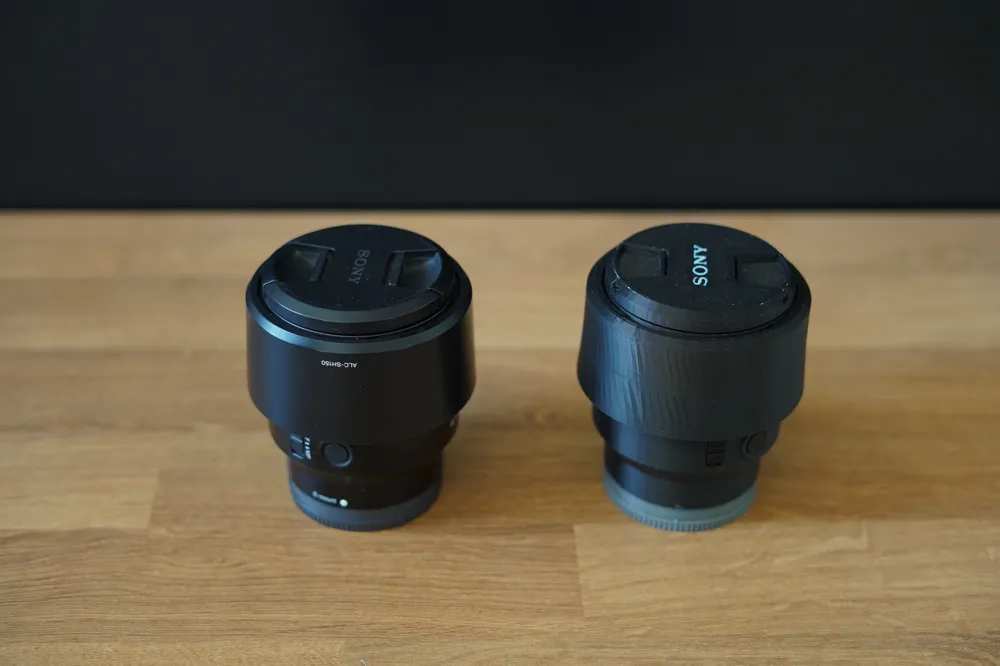

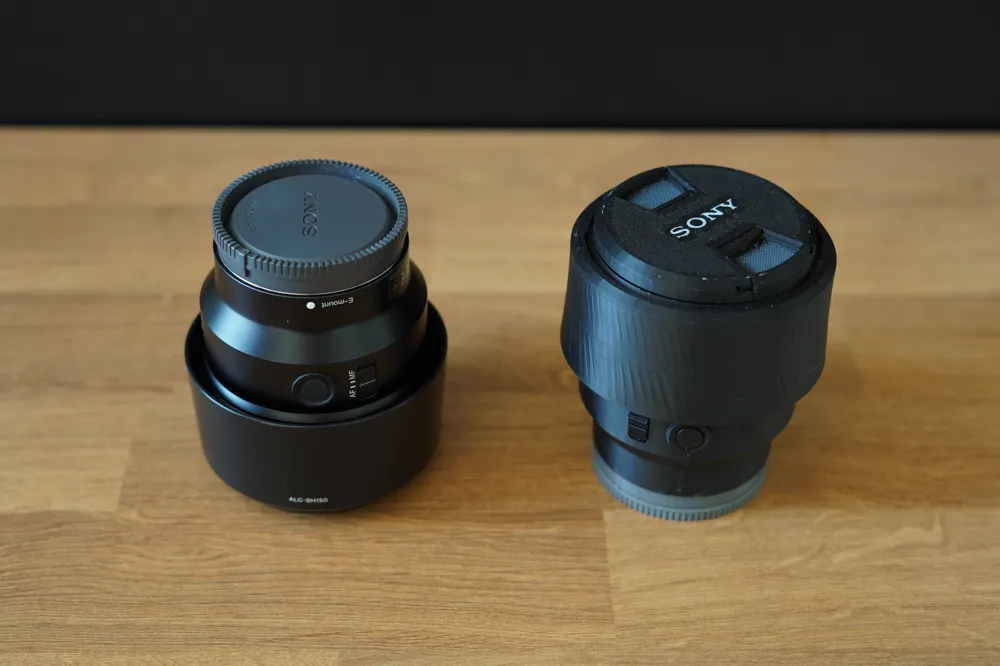

• All elements (front/rear cap, lens hood) are interchangeable with the real Sony FE 85mm f/1.8

• For the “Lens Caps Front”, for the spring system I was loosely inspired by this model [Lens caps Front]

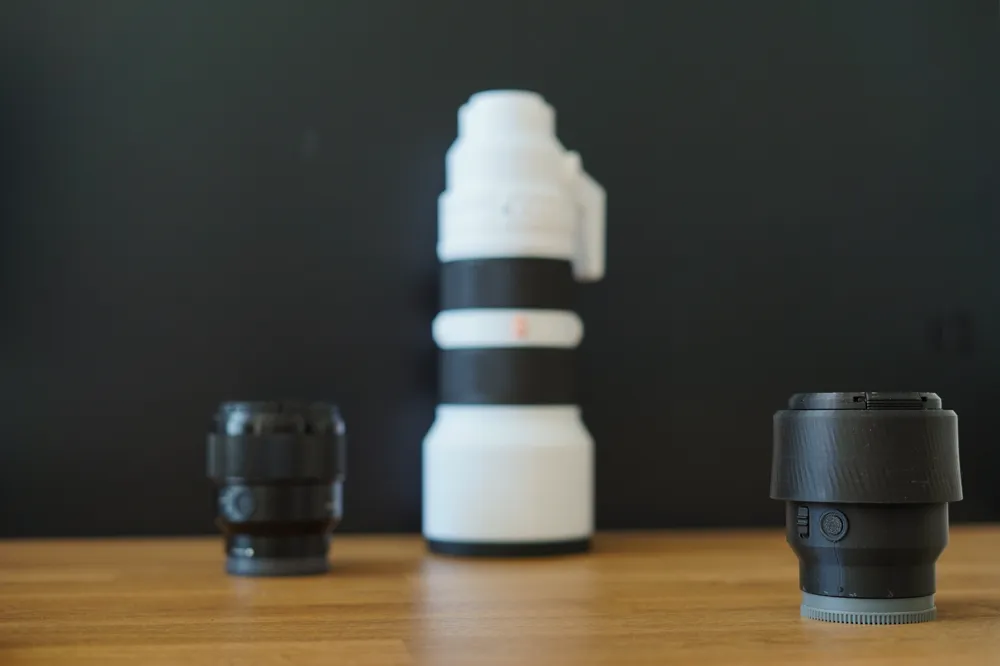

My other replicas:

👉 [Sony FE 50mm 1.8 Replica]

👉 Sony 24-70mm 2.8 GMII Replica (In design)

👉 Sony 70-200mm 2.8 GMII Replica (In design)

Feel free to give me feedback in the comments, share your photos, drop a like and a boost if you enjoyed it.
Happy printing everyone!
Epsilon
