Here's a flat wall bracket for any 100x100mm VESA pattern display, monitor or small television / TV.
It's super strong (even in PLA) and suitable for most displays up to 32" / 81cm.

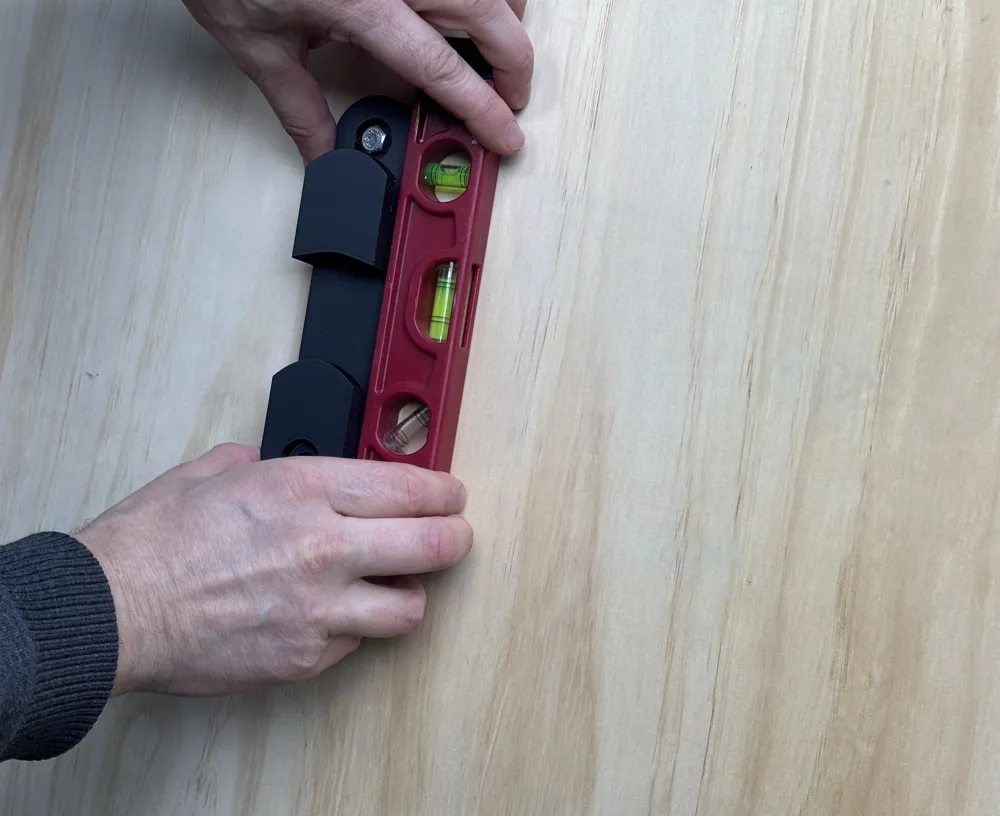

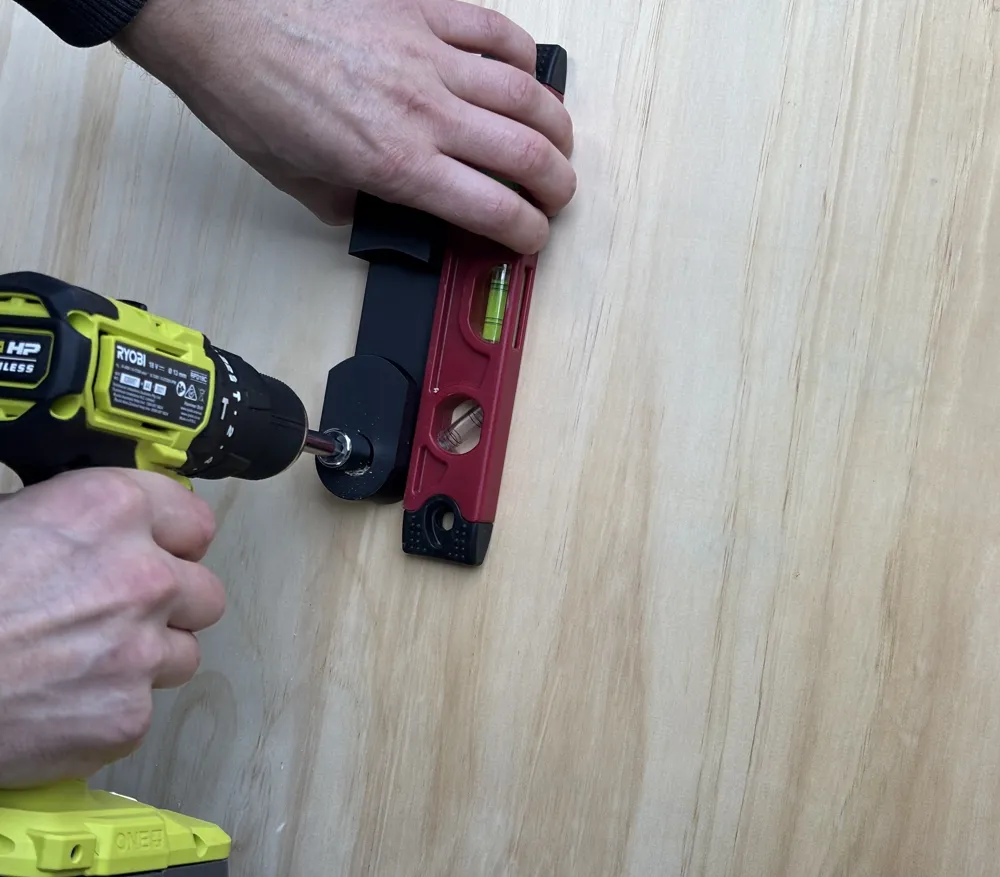

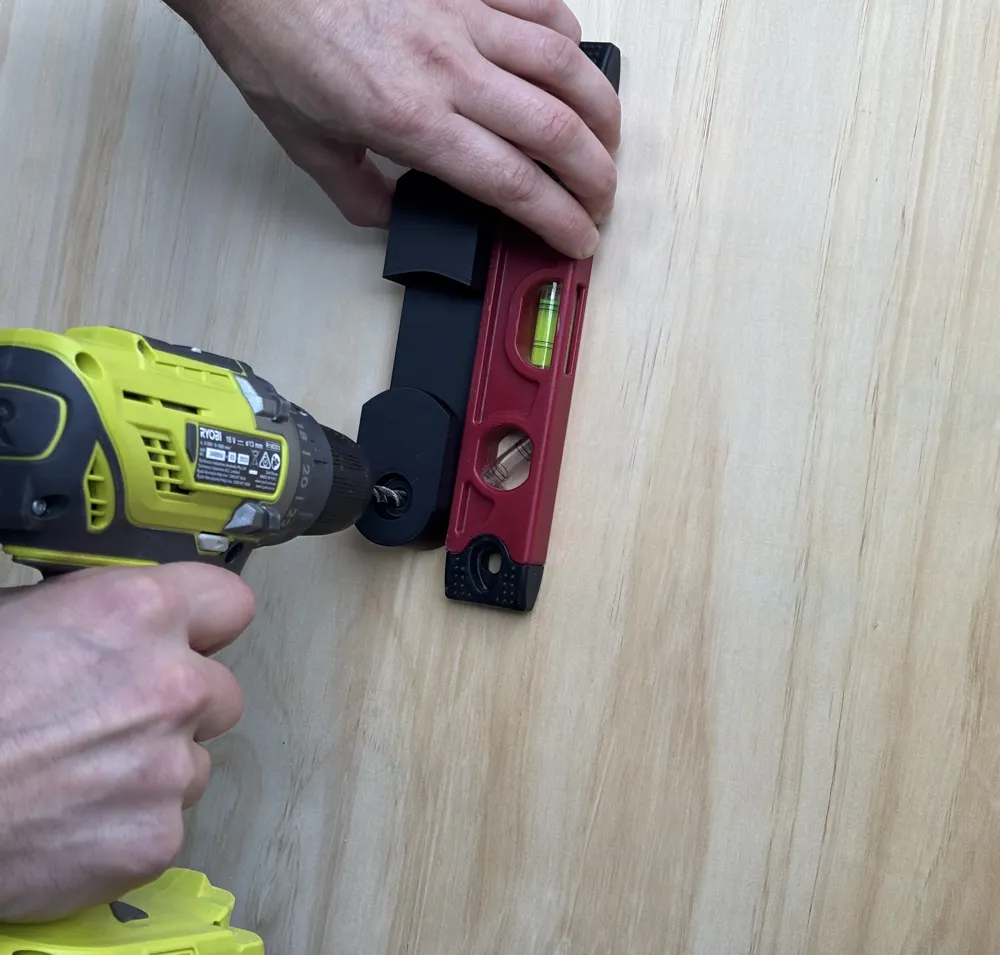

This bracket has a nice straight edge on the wall mount to make using a level super easy.

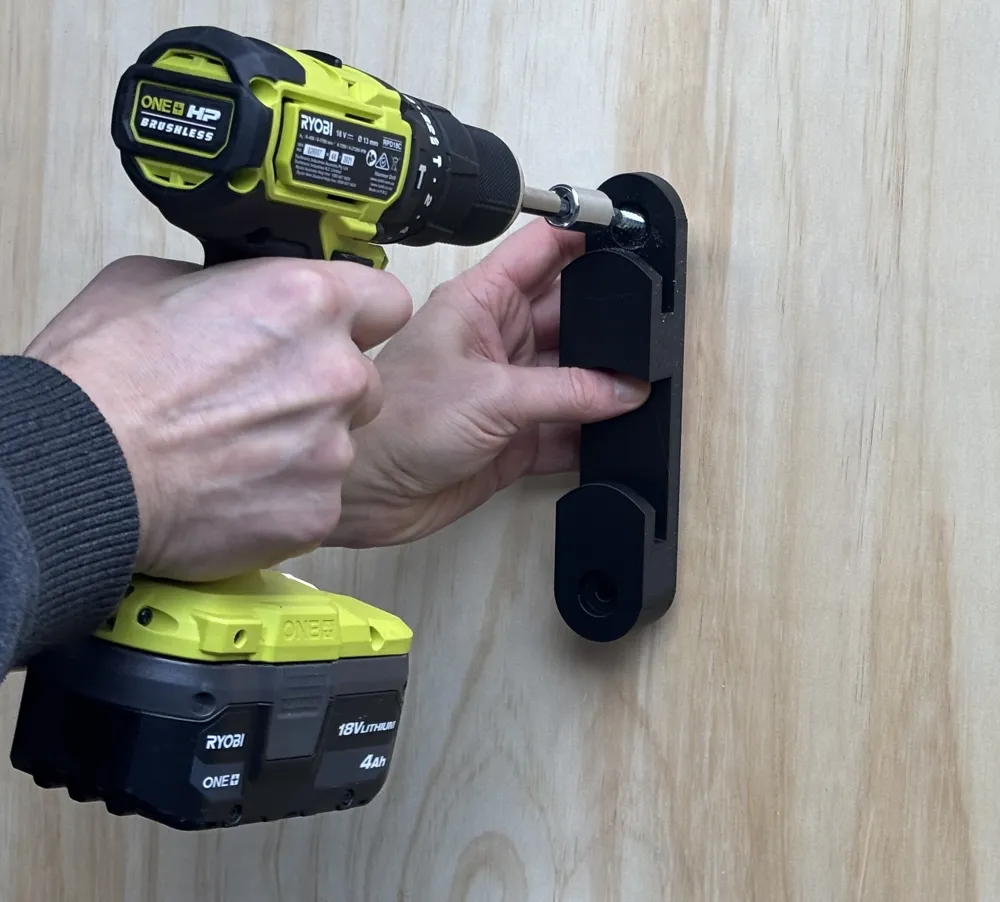

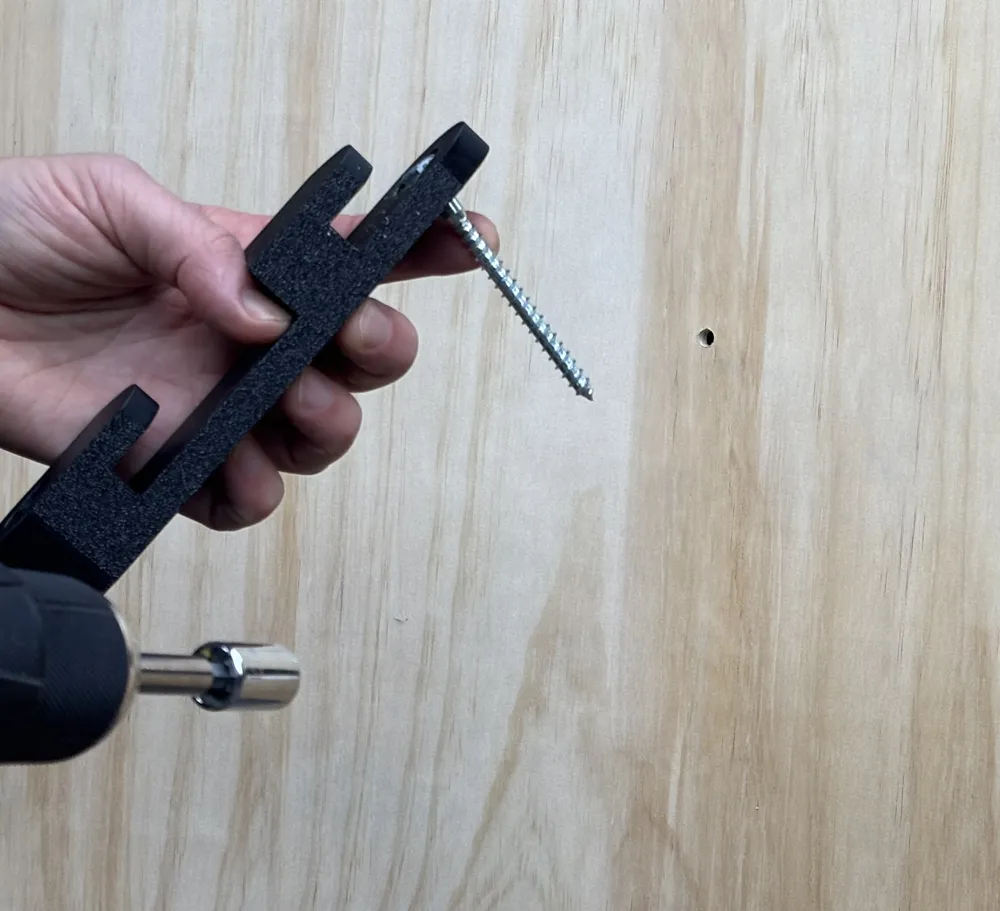

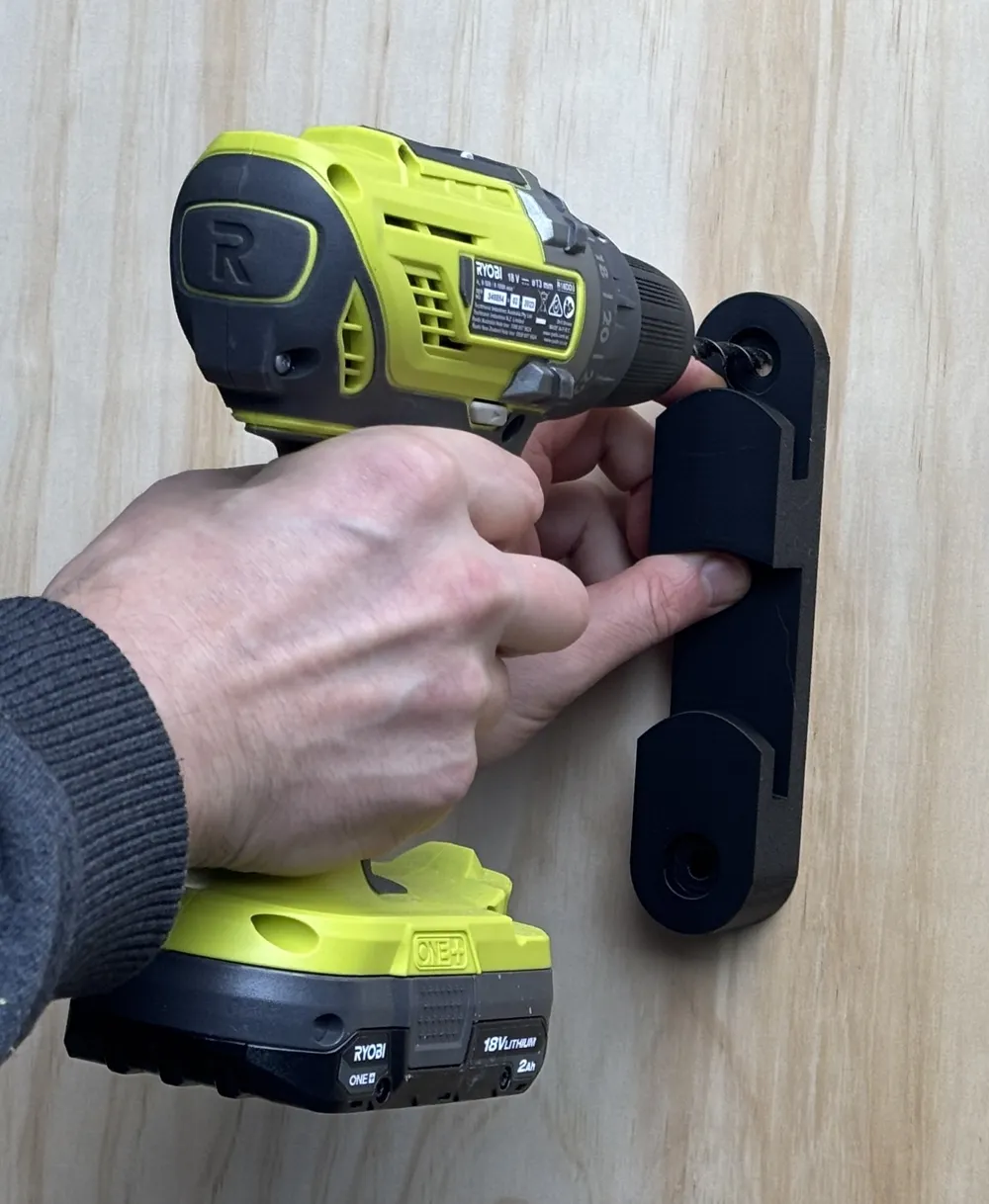

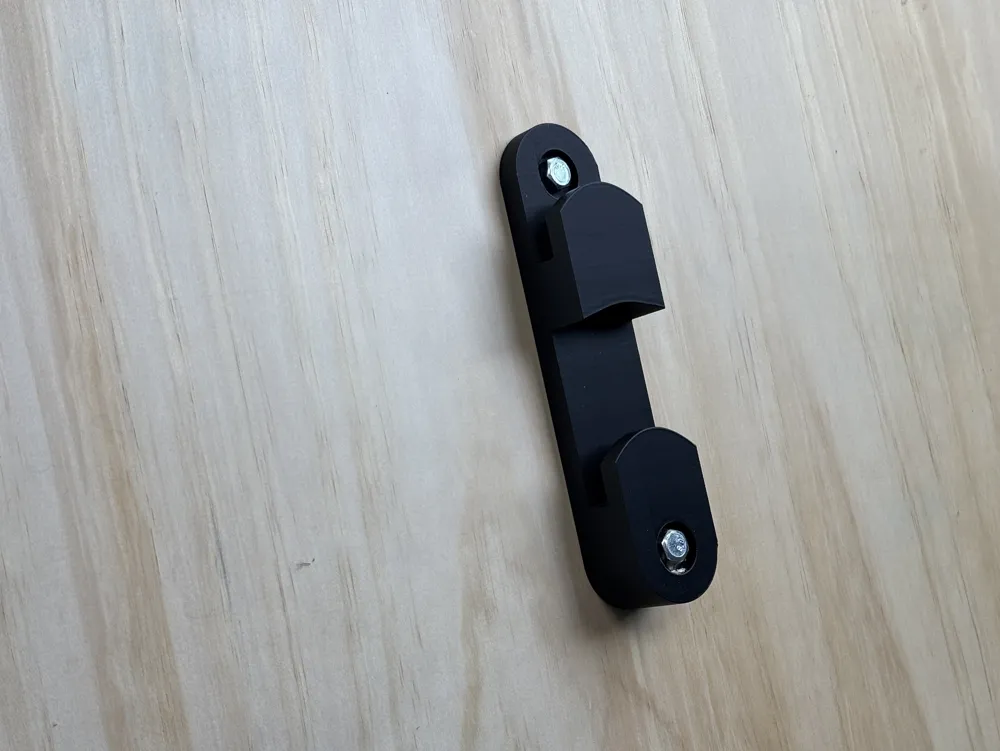

The wall mount supports industry standard 8mm lag bolts with enought head room to get a 12mm socket in.

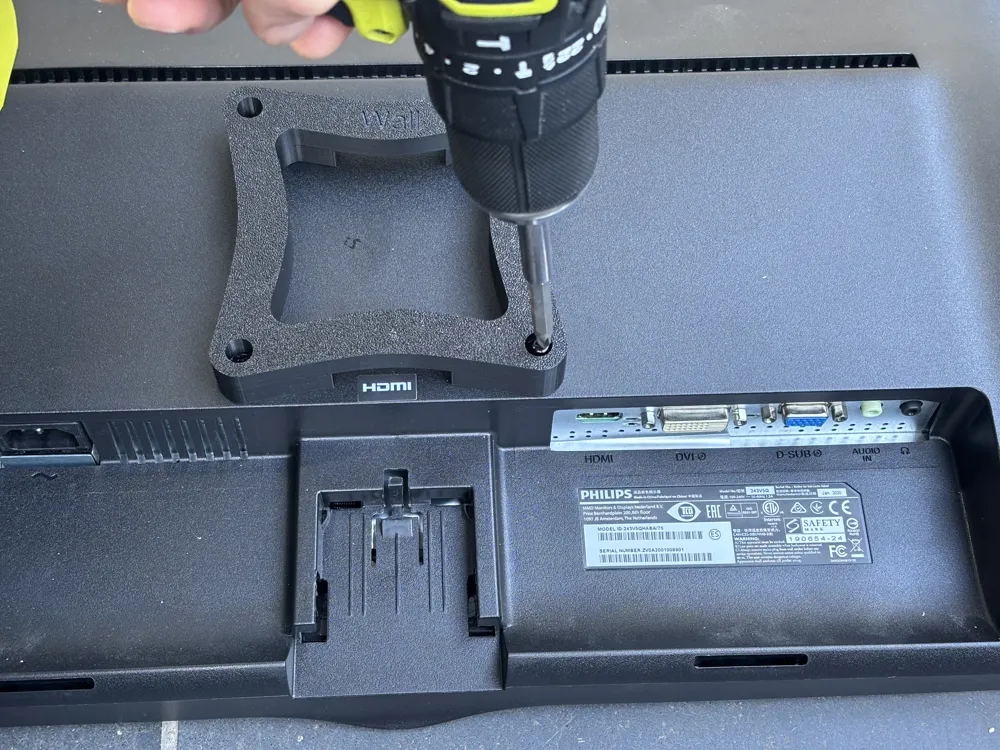

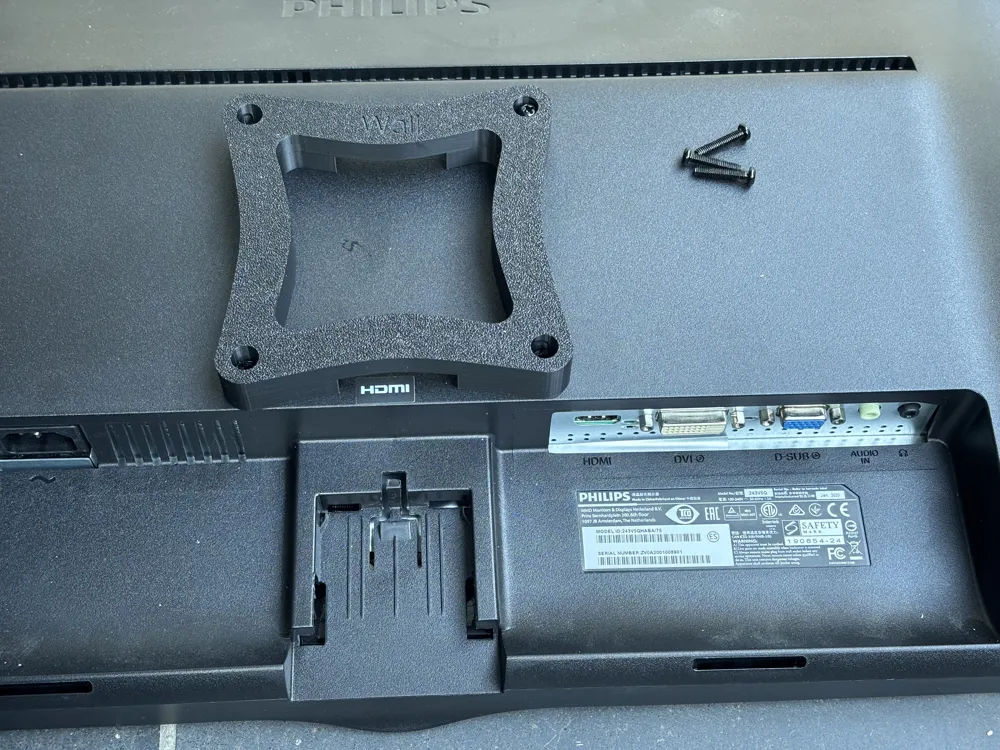

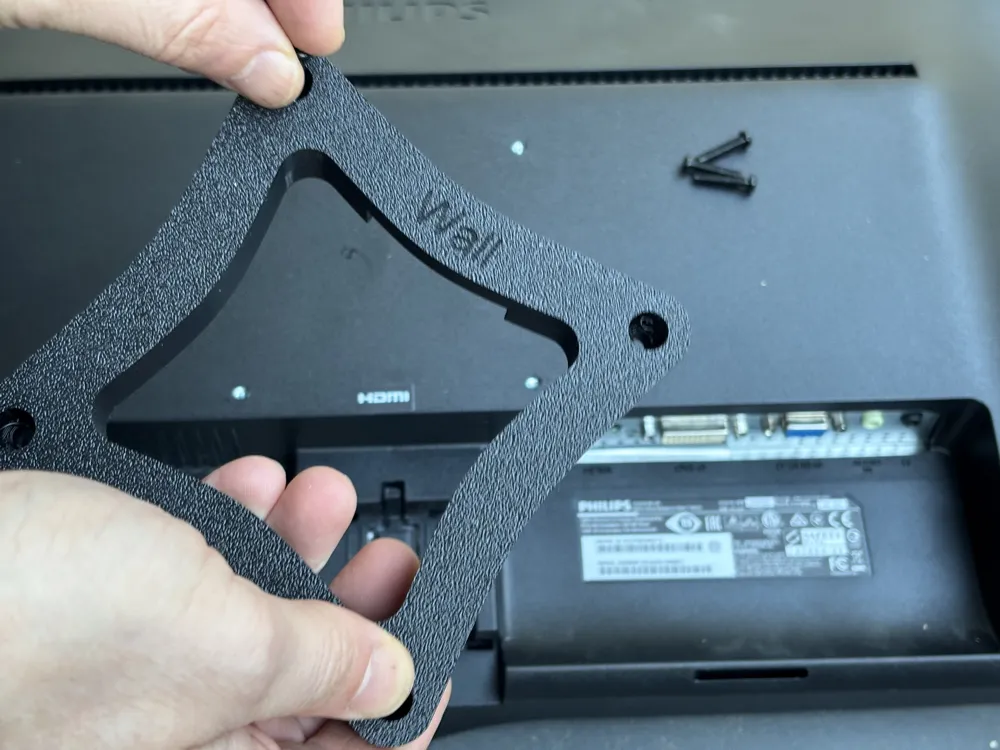

The 100x100mm VESA adapter has the right tolerance to always stay tight and vertically aligned.

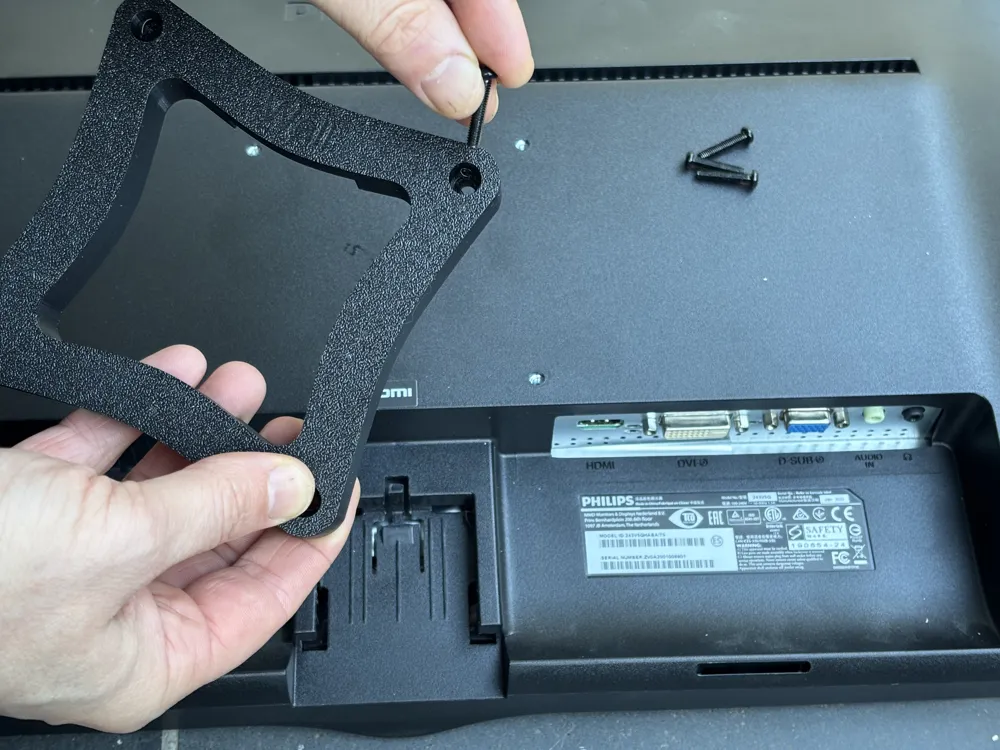

Made to accept both 4mm and 5mm bolts to suit all VESA standards.

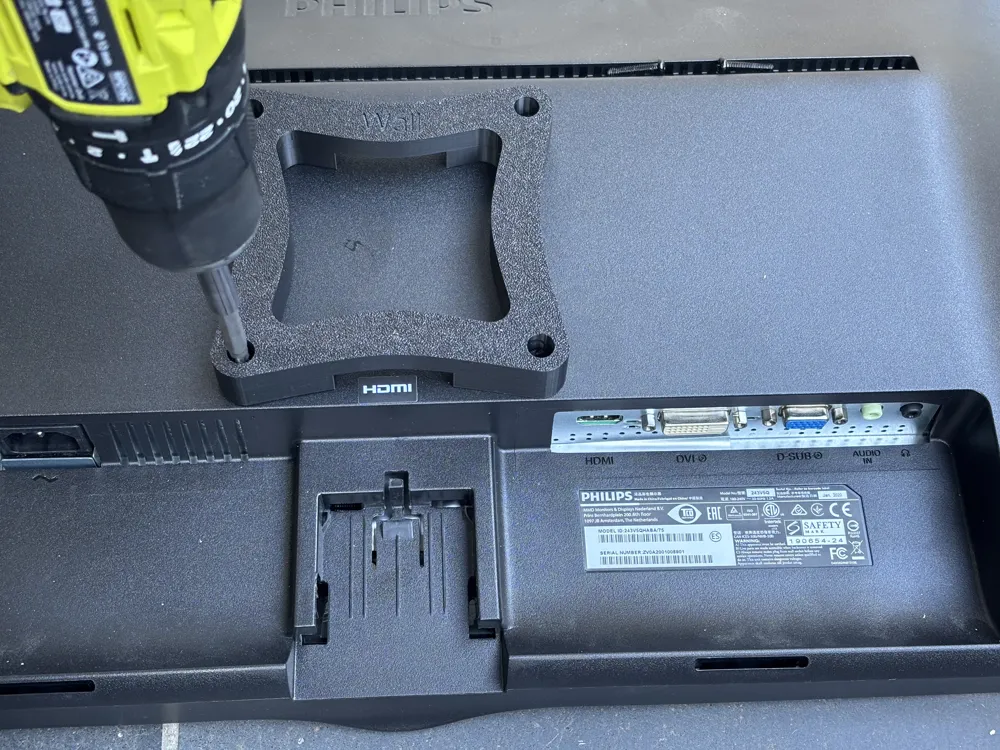

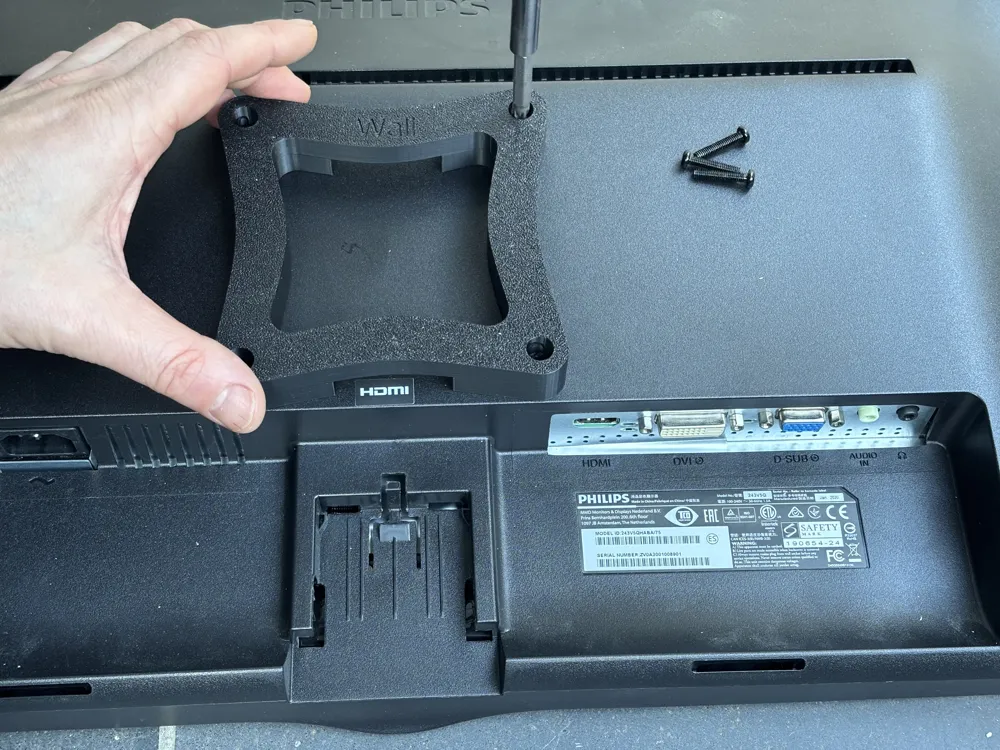

The display bolts are recessed by 10mm to ensure a neater finish and to support more commonly used short screws.

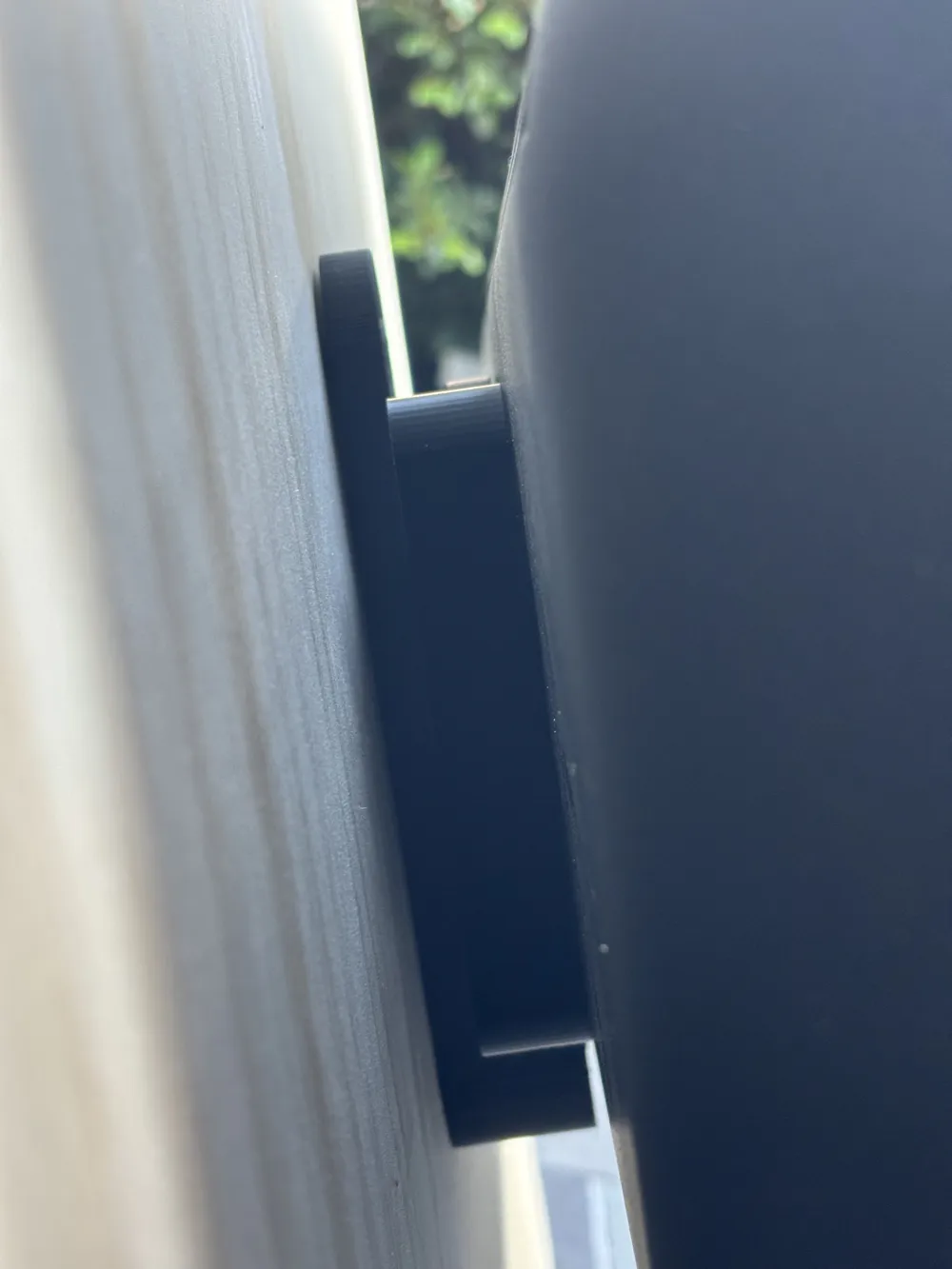

The display drops into the bracket by 24mm to ensure a stable mounting solution.
Need extra clearance?
I have 10mm, 20mm and 30mm VESA spacers available using the same design resulting in a neat solution.
