Magnetic Sliding Sign

Magnetic Sliding Sign – 3D Print Model

Keep your space organized and communication clear with this customizable Magnetic Sliding Sign, designed for easy 3D printing and functional assembly. Ideal for home, office, or shared environments, this versatile sign helps you indicate status at a glance.

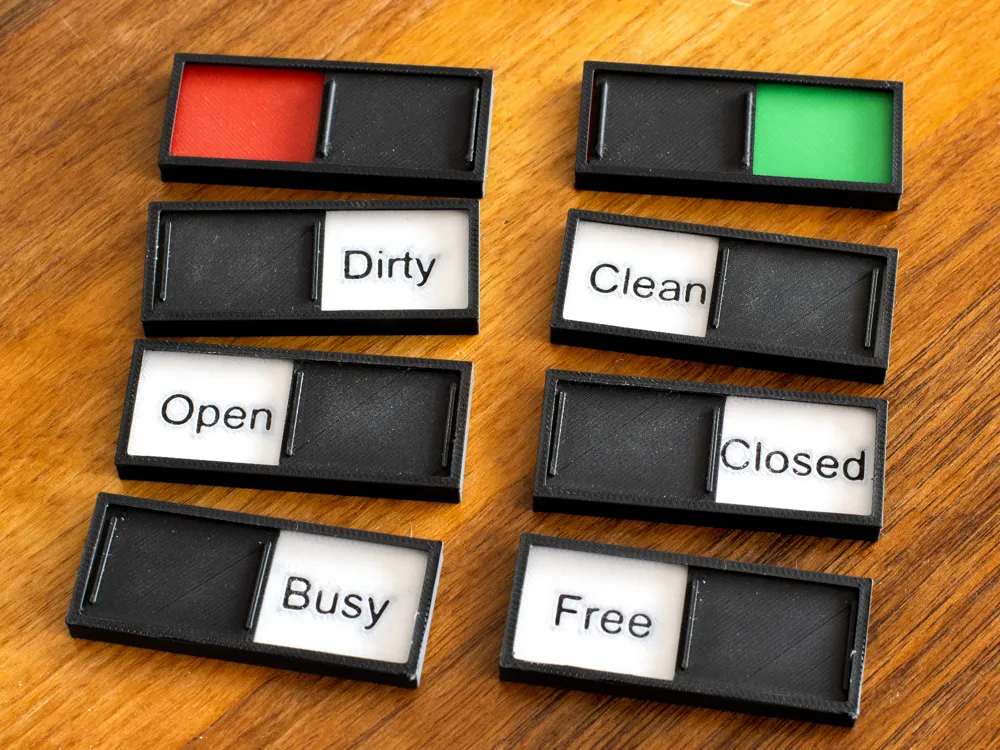

Available Variants:

• Red / Green
• Open / Closed
• Clean / Dirty
• Free / Busy

Each variant uses a sliding indicator mechanism that snaps smoothly between two positions, revealing the appropriate label through a window.

Features:

• Integrated design for 2 round magnets (5x2mm) that keep the slider securely in place.
• Assembly during print: The print profile includes preconfigured pauses to insert the slider and magnets at the correct stages.
• Designed with ease of use and durability in mind – no glue or screws required.

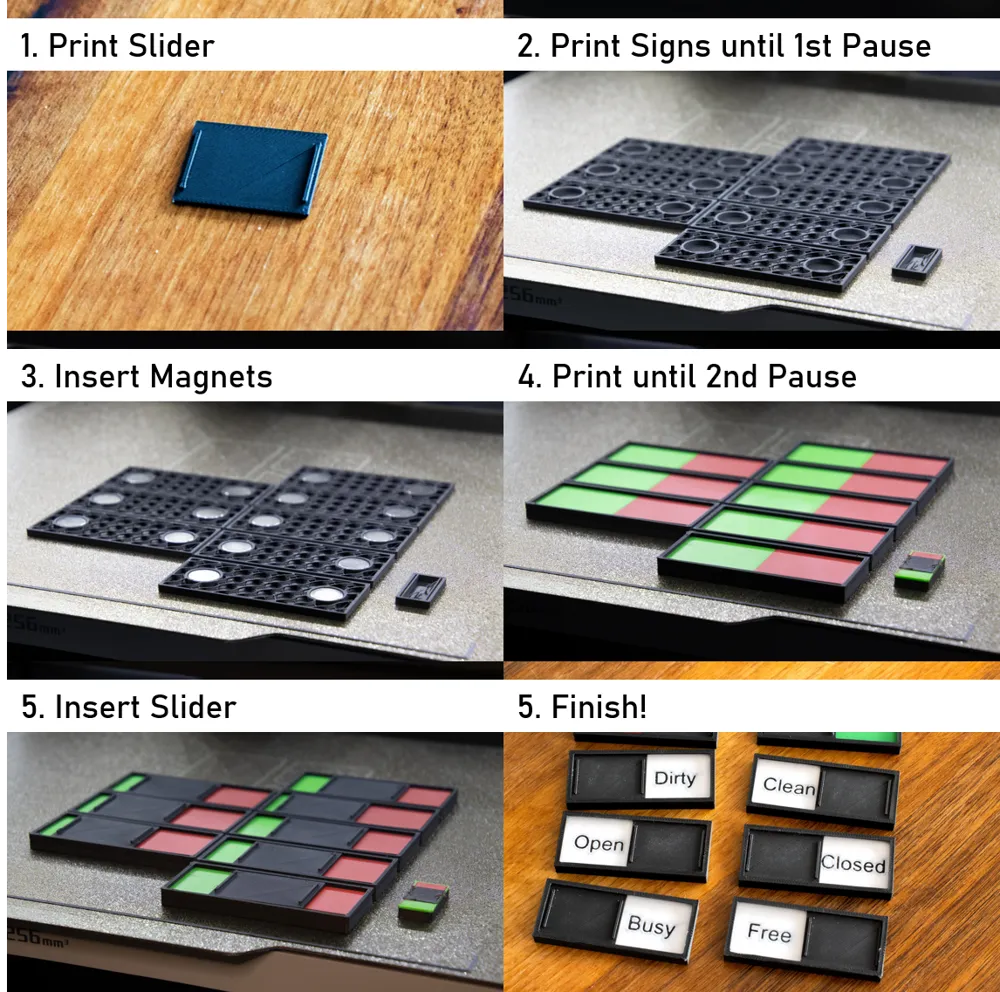

Printing & Assembly Instructions:

1. Print the slider first – this part is required during the main sign's print process.

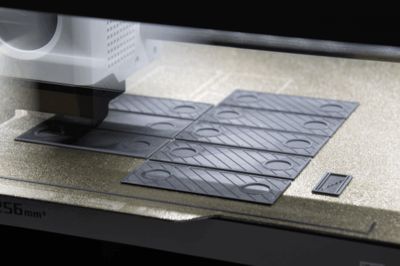

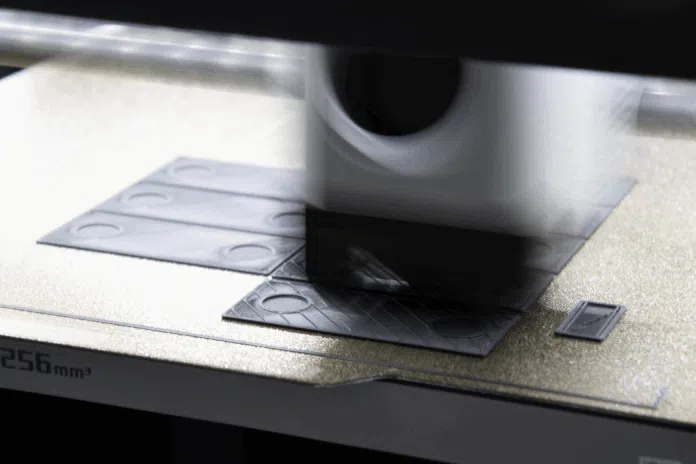

2. Start printing the selected sign model.
3. When the printer pauses:
   • Insert the pre-printed slider.
   • Place the two 5x2mm round magnets in their designated slots.
4. Resume printing – the remaining layers will seal everything in place.

⚠️ Important: Do not skip the slider print beforehand. The sign assembly relies on inserting the slider mid-print.
