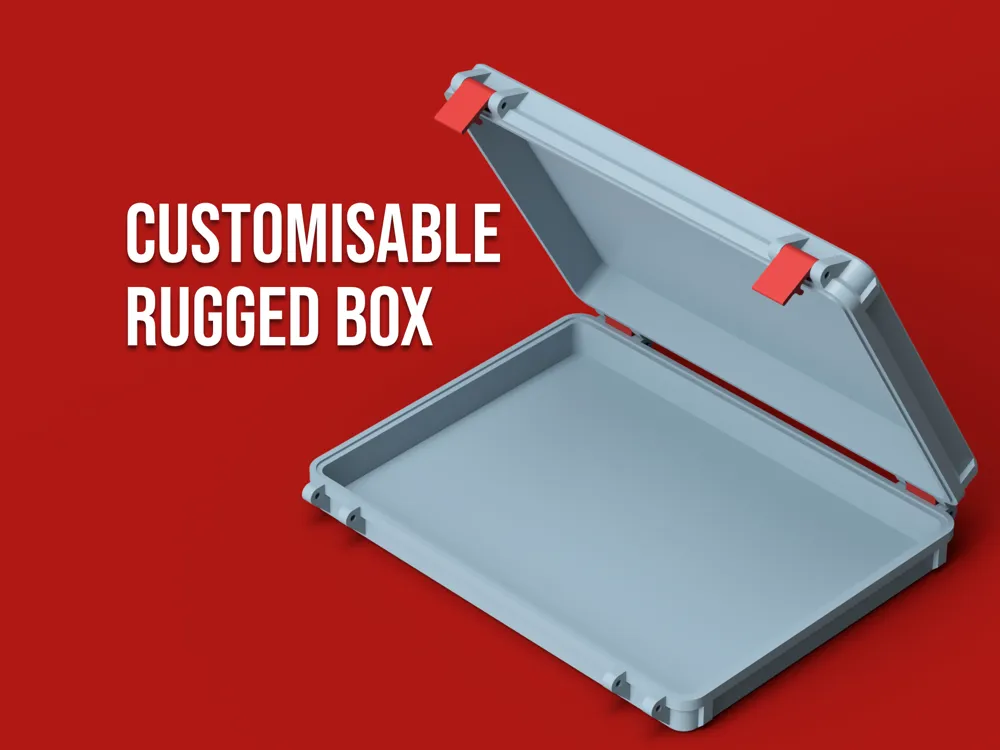

Customisable Rugged Box (Parametric)

Fully Parametric Rugged Box

Need trays? Checkout my parametric trays that fit this box perfectly:

Mono Grid - https://makerworld.com/en/models/1581330-parametric-sorting-trays-mono-grid

Multi Grid - https://makerworld.com/en/models/1581391-parametric-sorting-trays-multi-grid

Features:

• Fully parametric design, if you need a custom size, click “customize” and change the overall dimensions of your box.
  • If you make changes and plan on also printing my trays, please make note of the changes you made.
  • Tolerances have already been accounted for.
  • You can change
    • Base height
    • Top height
    • Width & length
    • Corner fillet radius (Internal)
    • Wall thickness
    • Bottom thickness
    • Screw size (M3, M4 etc.)
    • Screw length
• Default dimensions
  • By default the box dimensions are 200mm Wide x 150mm Long x 18mm tall
• Printing
  • On larger boxes I would recommend printing on the SuperTack plate to give the best chance of avoiding warping.
  • I would advise printing at 0.2mm layer height and higher to make adding the screws easier.

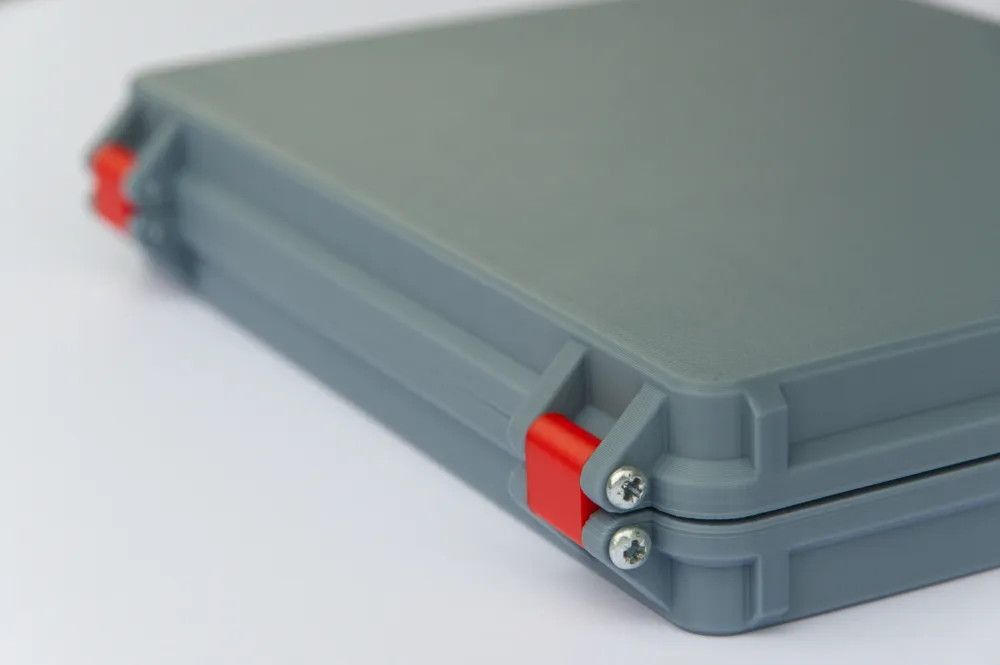

• Rugged design
  • Added plastic in the corners to provide drop protection
  • Quick print time, at the default size of 200x150x18 each tray takes approximatley 1 Hr 50 Min to print / 77g
  • Great for containing all your bits and pieces, just print and assembly
  • Uses x8 M3 Bolts by default, you don't have to use the Bambu screws below, as long as they are M3x25mm Machine screws (or match the changes you made in the customize window).
