Recessed Table Pedestal Base for Boats
IP Report
Print Profile(2)
LOTS OF SUPPORTS 0.2mm layer, 2 walls, 15% infill
Designer
6.7 h
1 plate
PETG with PLA support interface 0.2mm
Designer
6.5 h
1 plate
Open in Bambu Studio
Boost
15
38
0
1
9
2
Released
Description
Content has been automatically translated.

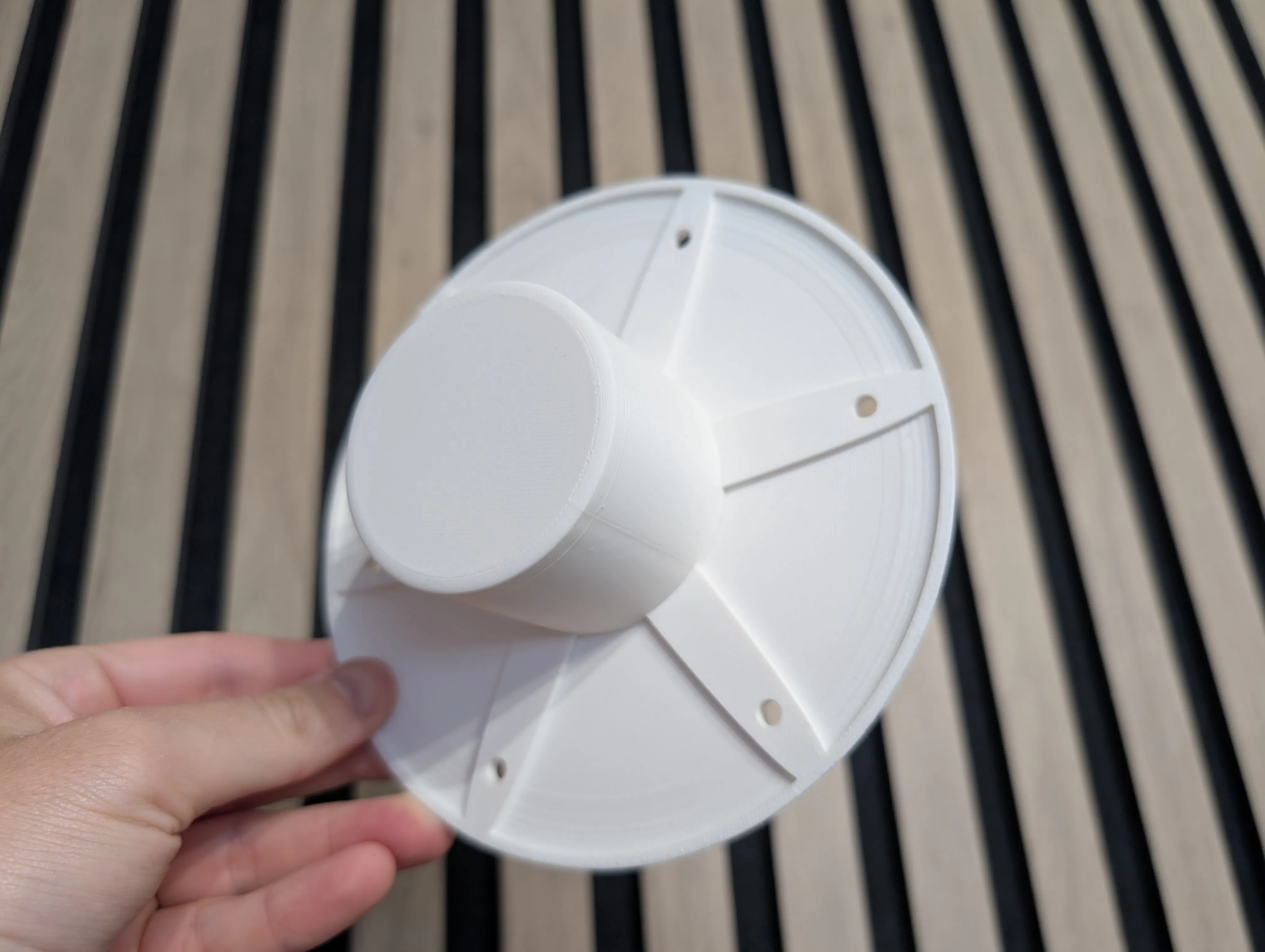

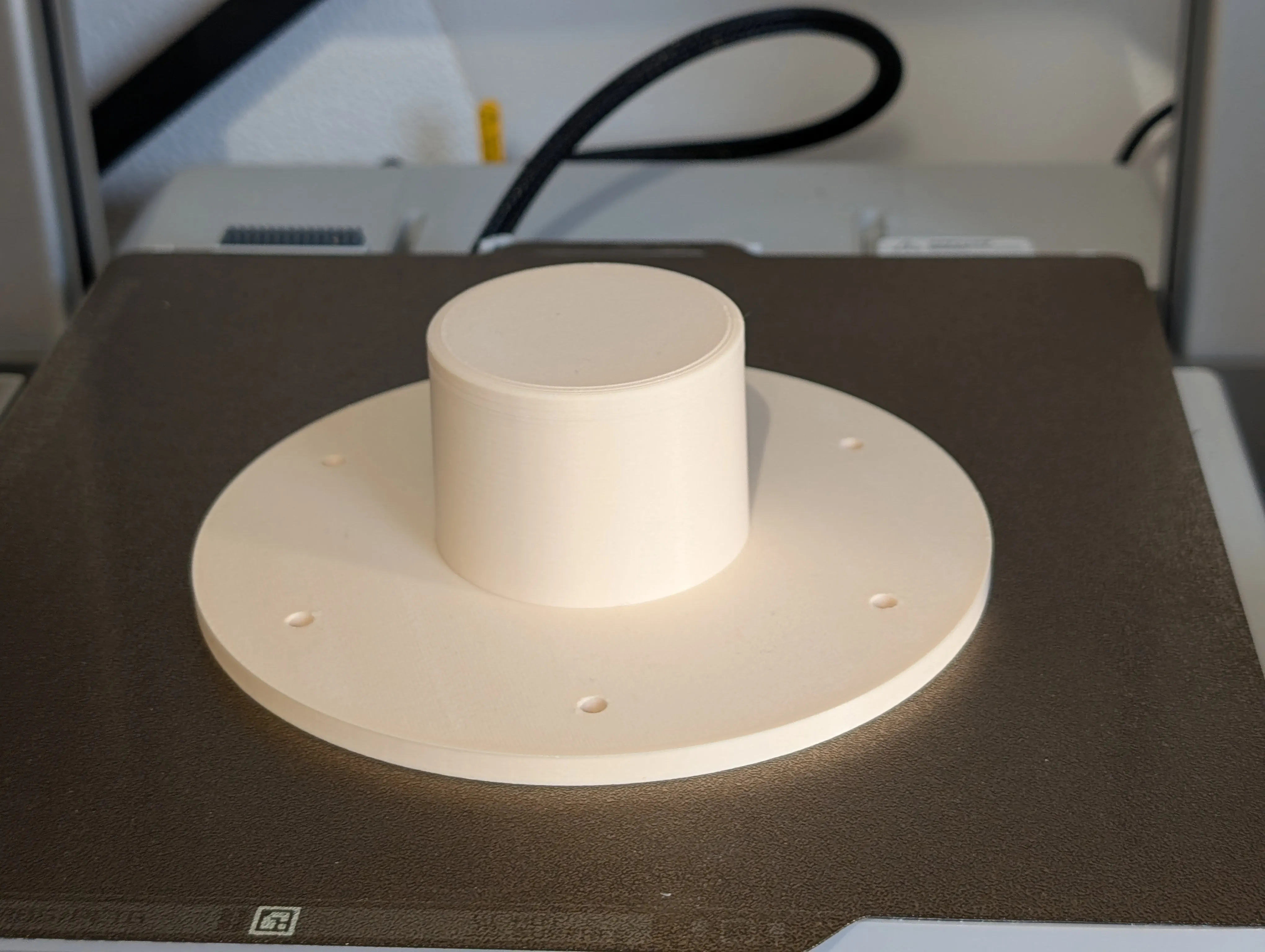

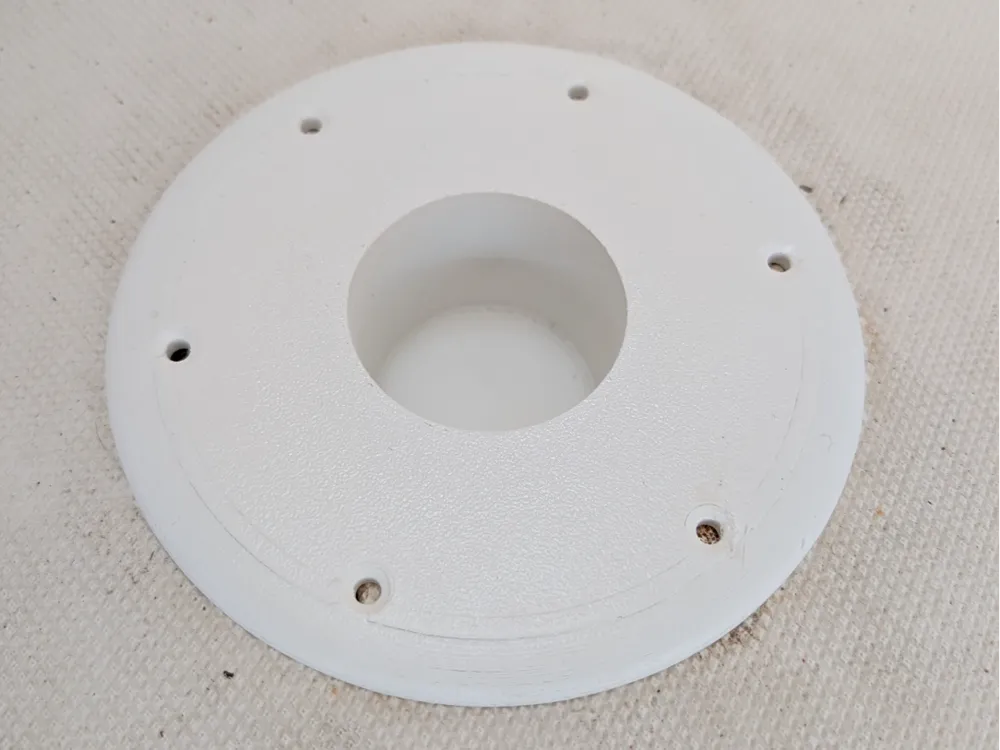

Flat flush-mount pedestal base for boats.
A stand-alone base for boat tables, designed to securely mount tables and other supports on boats and sailboats.
Dimensions:
- Outer diameter: 155 mm.
- Distance between holes: ~125 mm
- Inner diameter of the conical tube: 57 mm to 55 mm
THIS DESIGN REQUIRES AMS FOR PRINTING IN PETG WITH PLA SUPPORT INTERFACE FOR OPTIMAL QUALITY. IT IS A DESIGN THAT REQUIRES POST-PROCESSING AND MAY REQUIRE SOME SANDING DUE TO THE BEVELED EDGES.
I have uploaded a simpler profile that does not require AMS, but it uses extensive supports when printed upside down.
I HAVE UPLOADED A SIMPLER, EASIER-TO-PRINT FLAT DESIGN IF YOU DO NOT HAVE AMS OR DO NOT WISH TO POST-PROCESS:
Flat flush-mount pedestal base for boats:
