Yet another side spool holder X1C/P1S....
Print Profile(1)
Description
Hi,

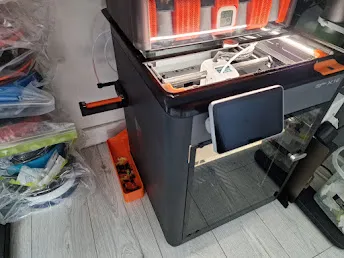

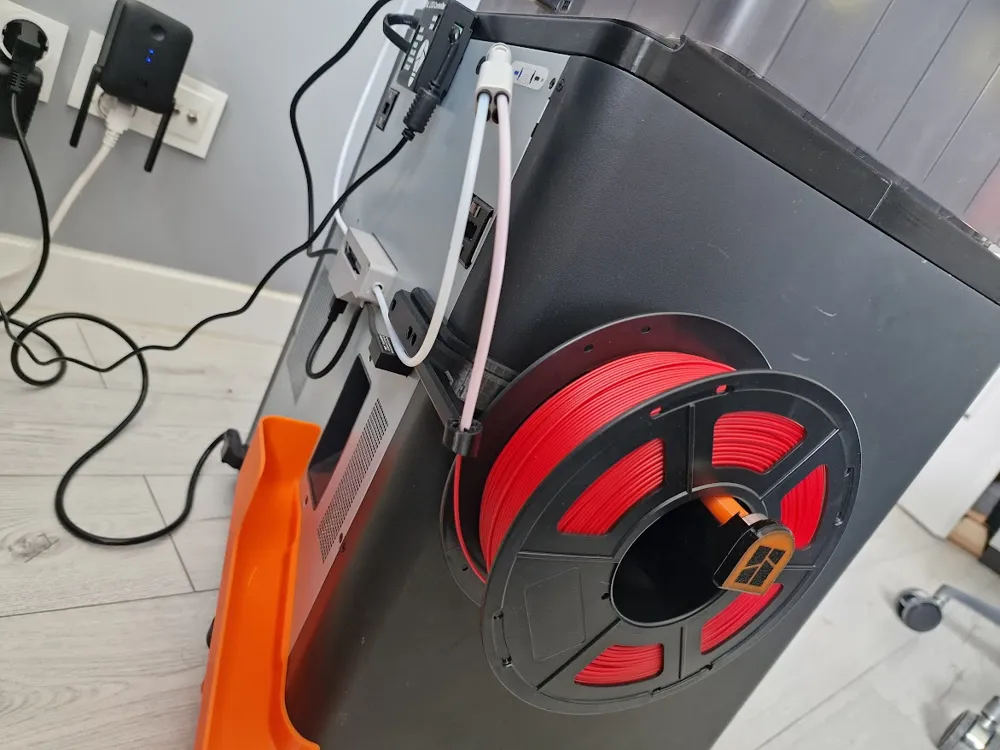

I wanted to share a model I designed for my X1C printer. None of the available ones quite met my needs, so I decided to create my own :)

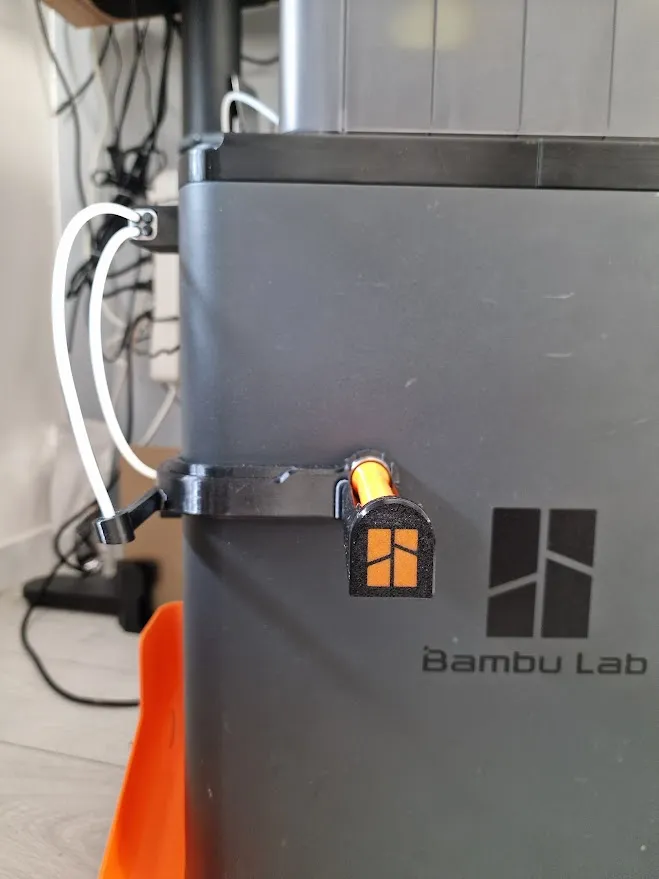

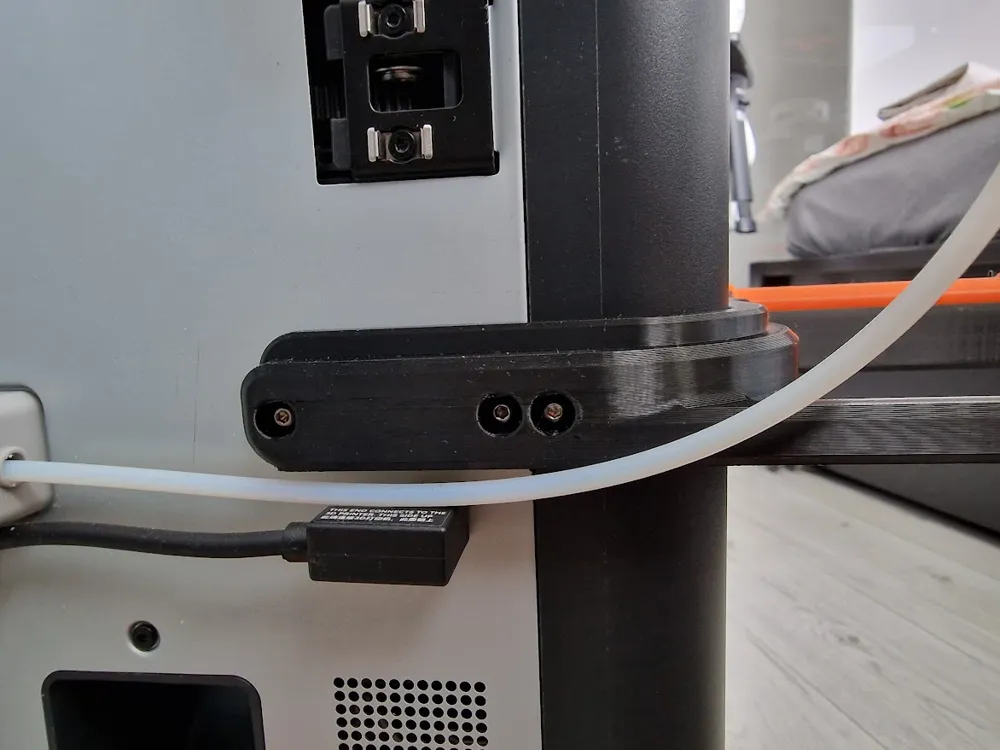

The model fits perfectly into the original mounting holes where the stock filament holder was installed.
To assemble it, you’ll need:
2–3 M3 16mm screws (you can use just 2 of the 3 mounting holes)
2x 608RS bearings
I printed the whole thing in PETG, with 5 perimeters and 35% infill. No supports required.

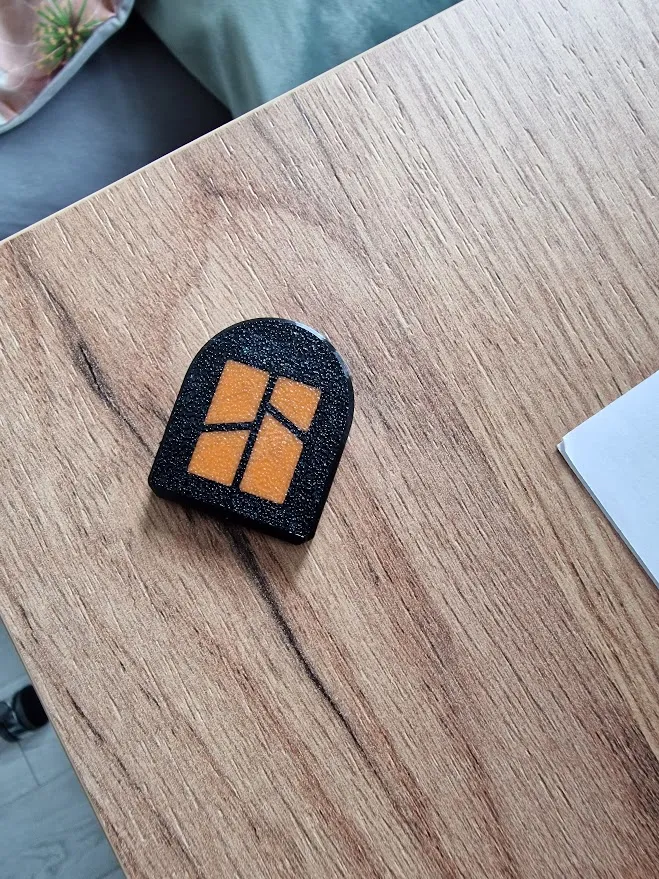

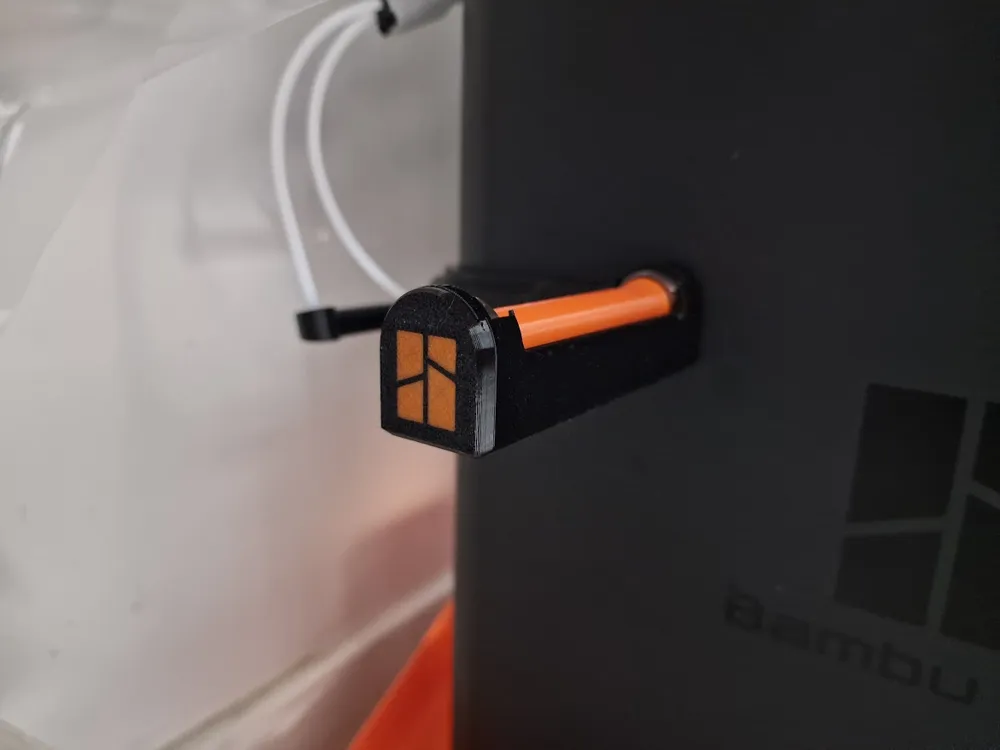

The front cover with the logo is a separate part to avoid unnecessary color changes ;)

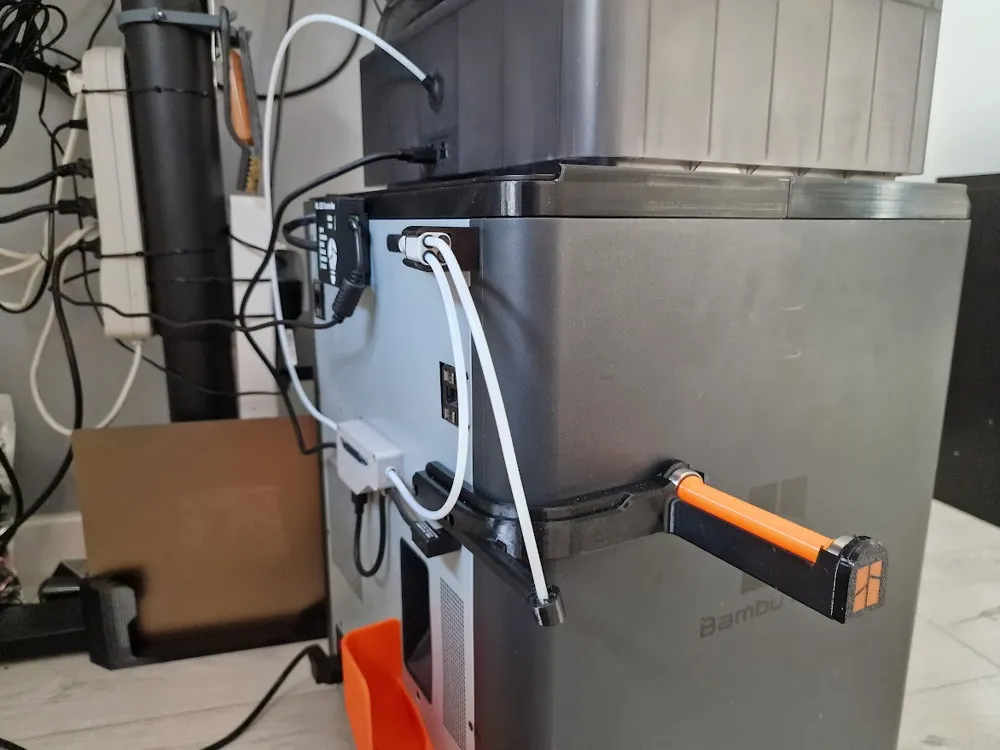

The holder also includes an integrated mount for a PTFE tube.
Cheers!
