Mechanical Lift Platform
Print Profile(1)
Description

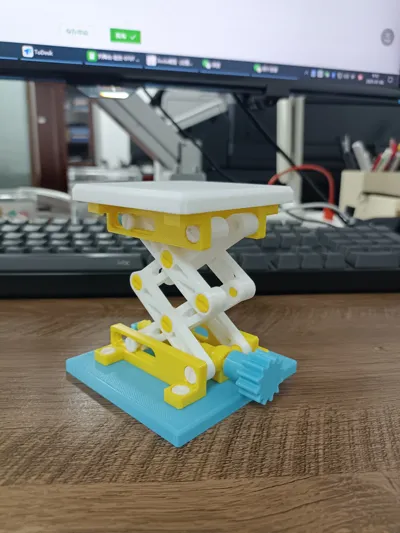

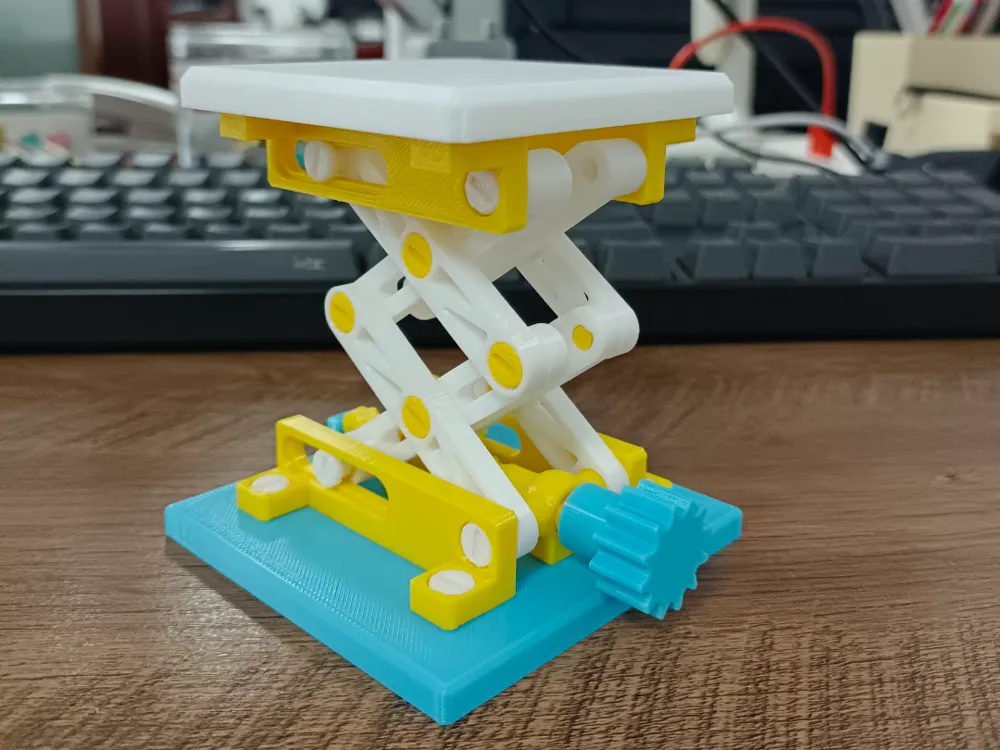

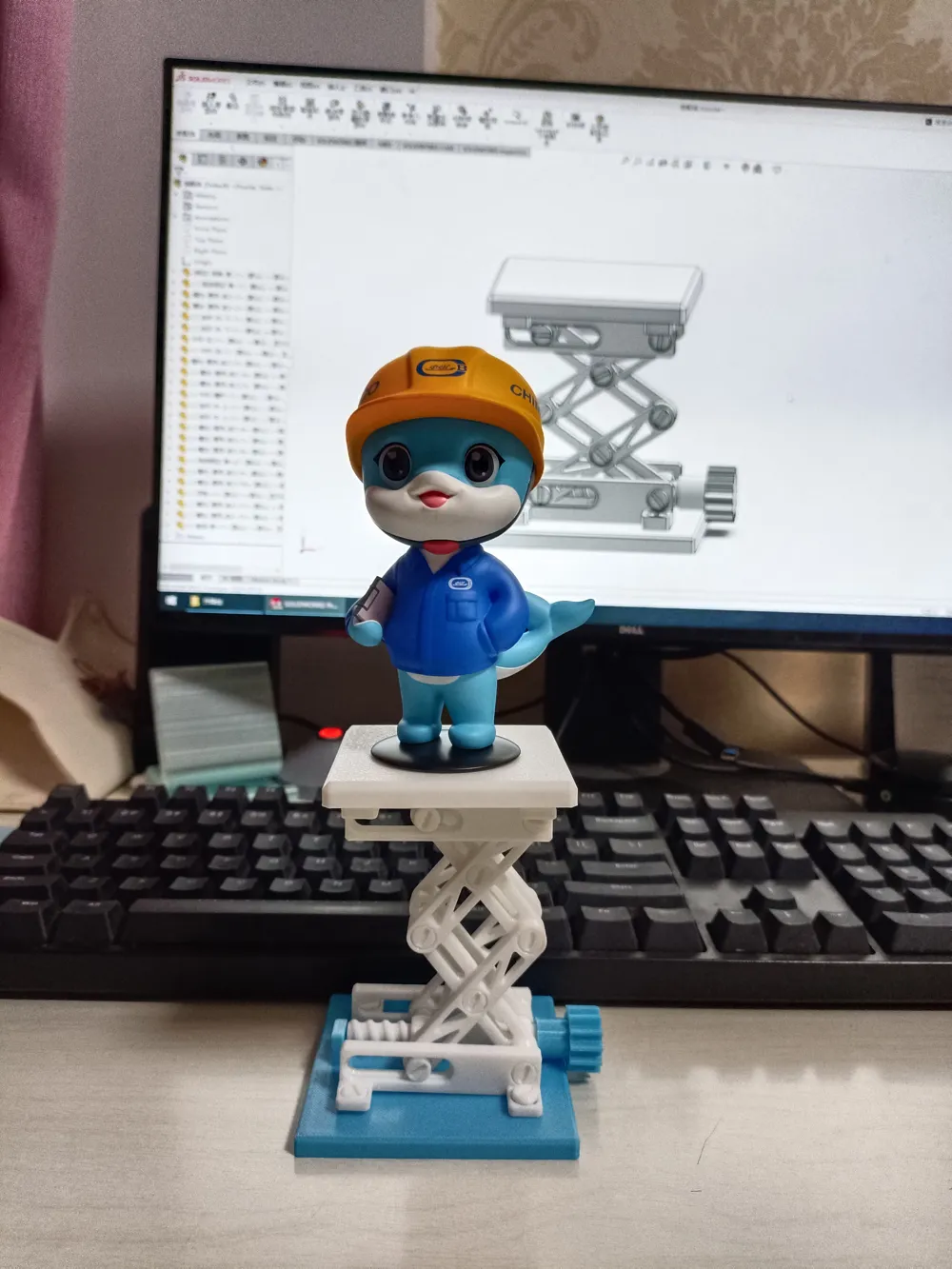

This is a mechanical lift platformRequiring no hardware, no adhesive, only a little patience

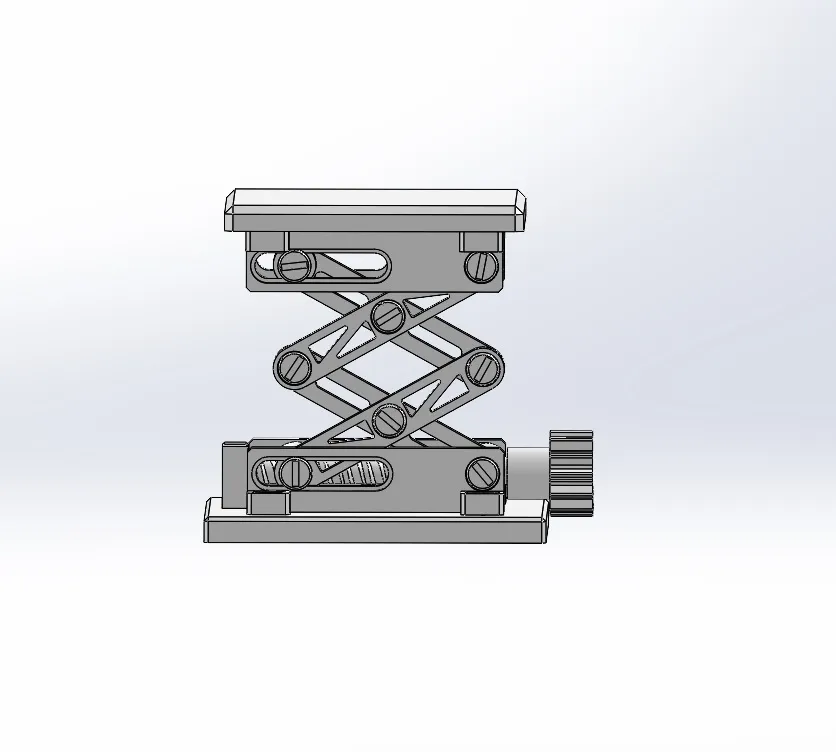

The base measures 80mm x 80mm, and the top 70mm x 70mm. Maximum lift height is 116mm, minimum height 50mm
Feel free to leave comments or suggestions
-------Assembly Instructions-------

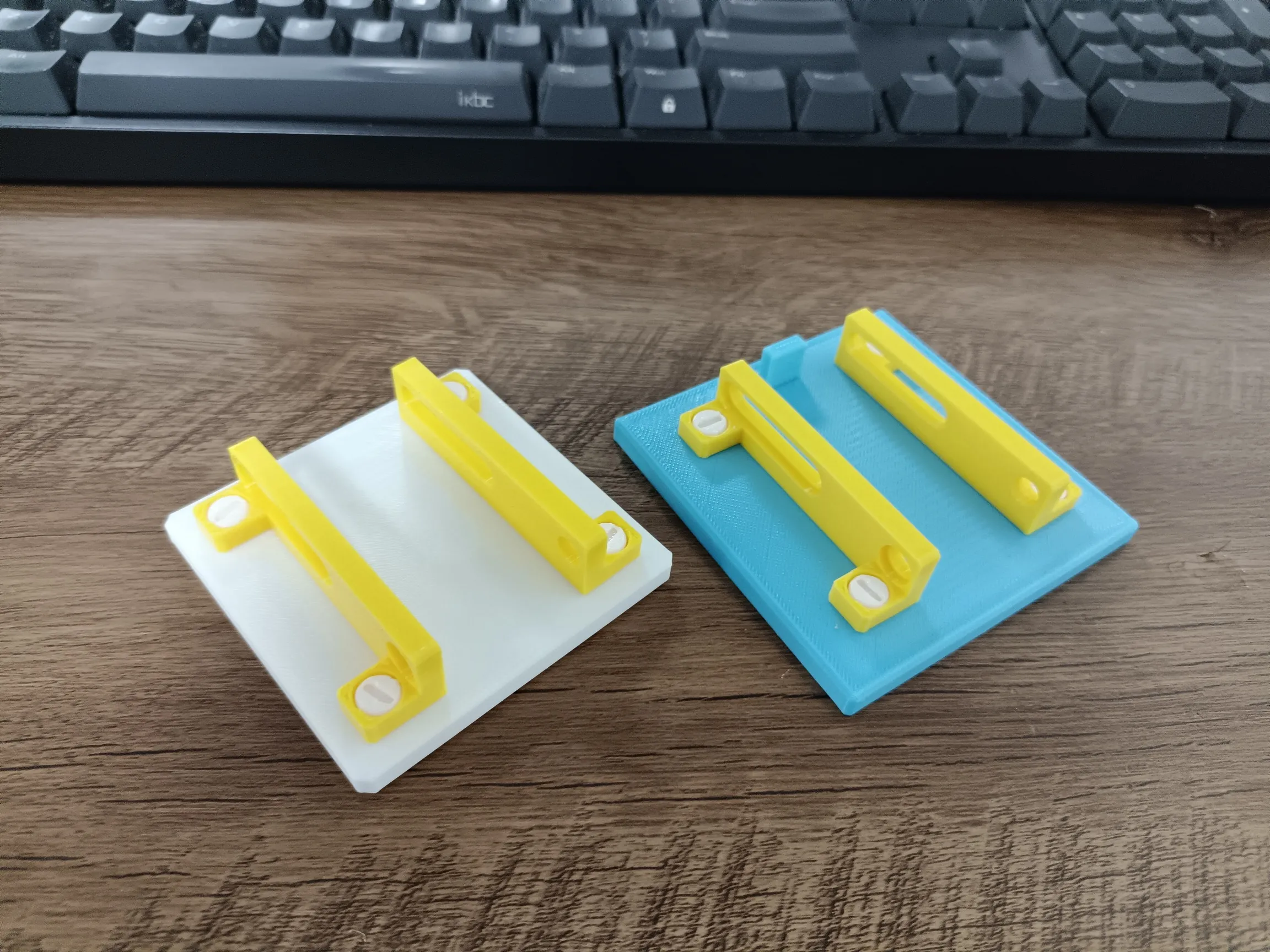

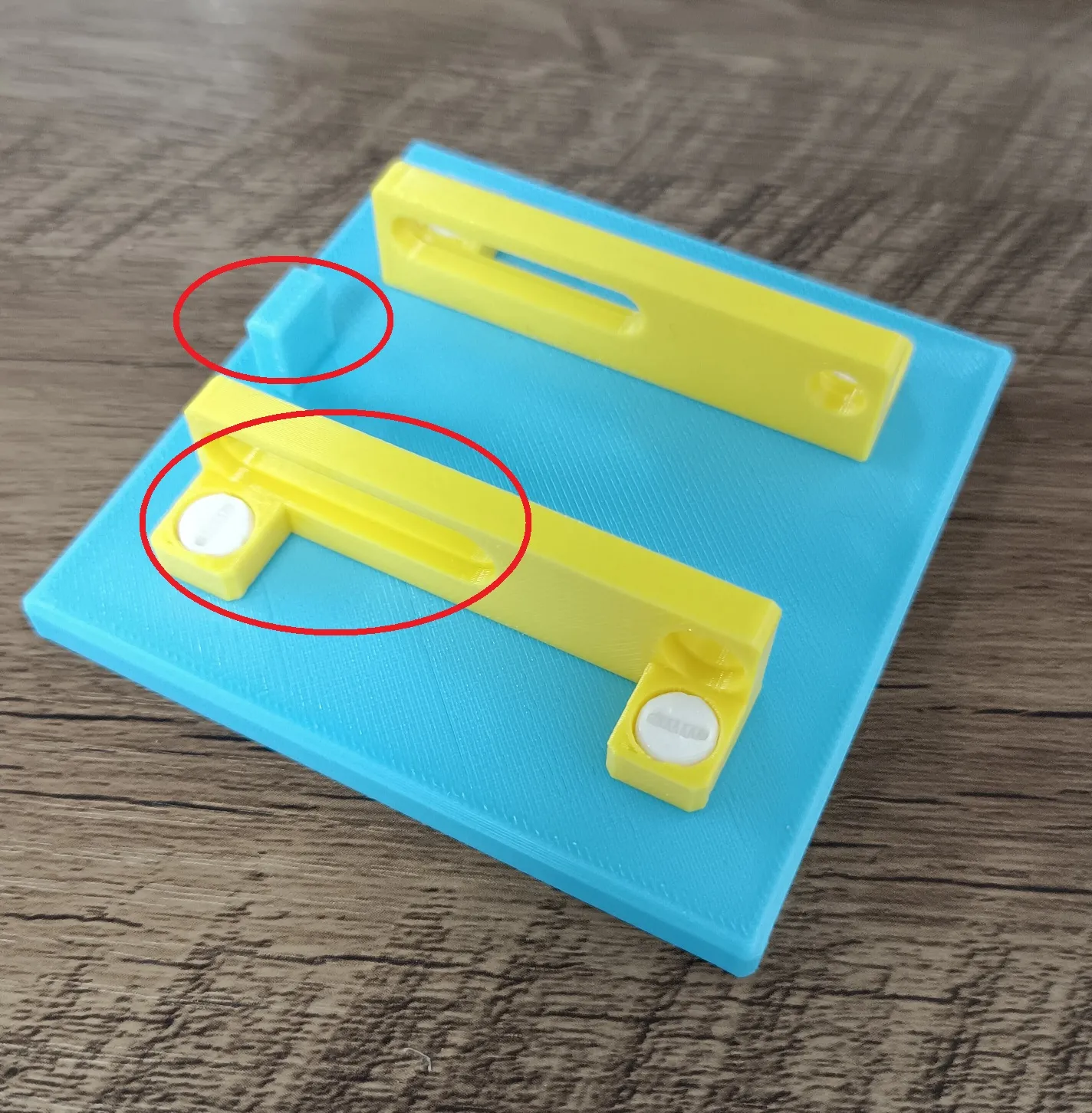

1.Top and bottom plates: The only detail to note is that the bottom plate's grooves must align with the top plate's protrusions
2.Support rods

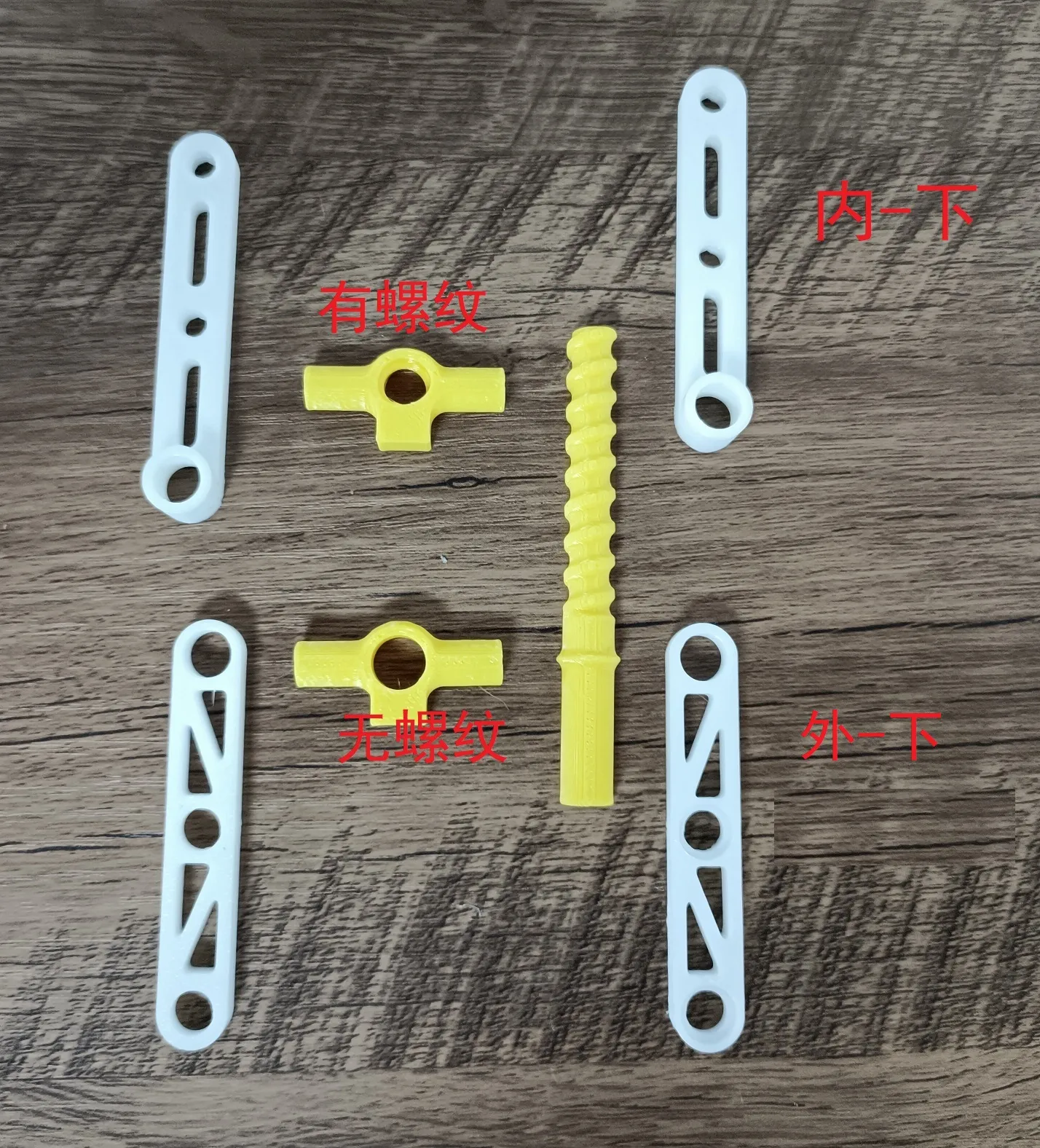

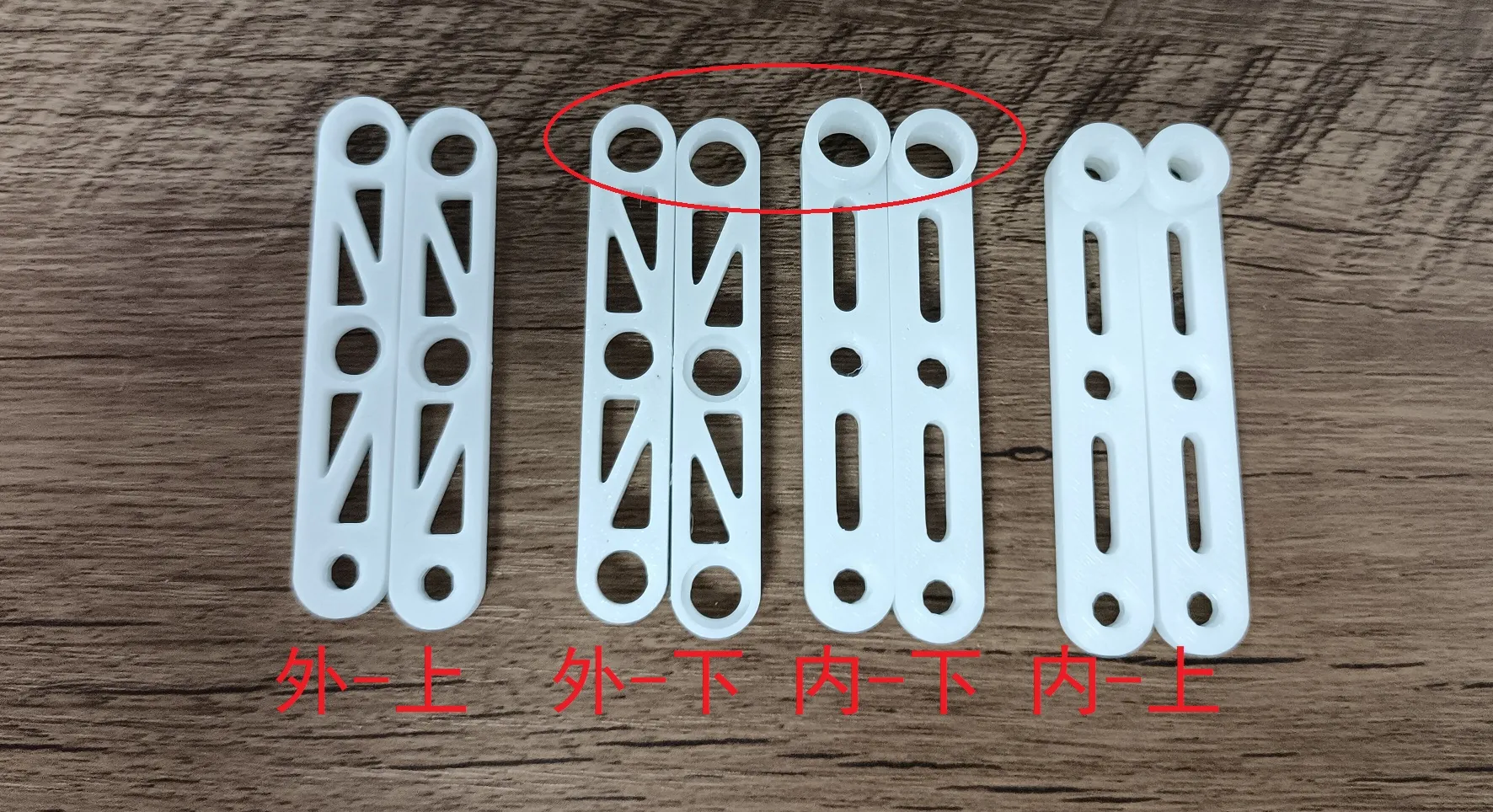

There are four types of support rods. Those on the underside have larger holes. The outer and inner support rods differ in their hollowing and shape, making them easily distinguishable

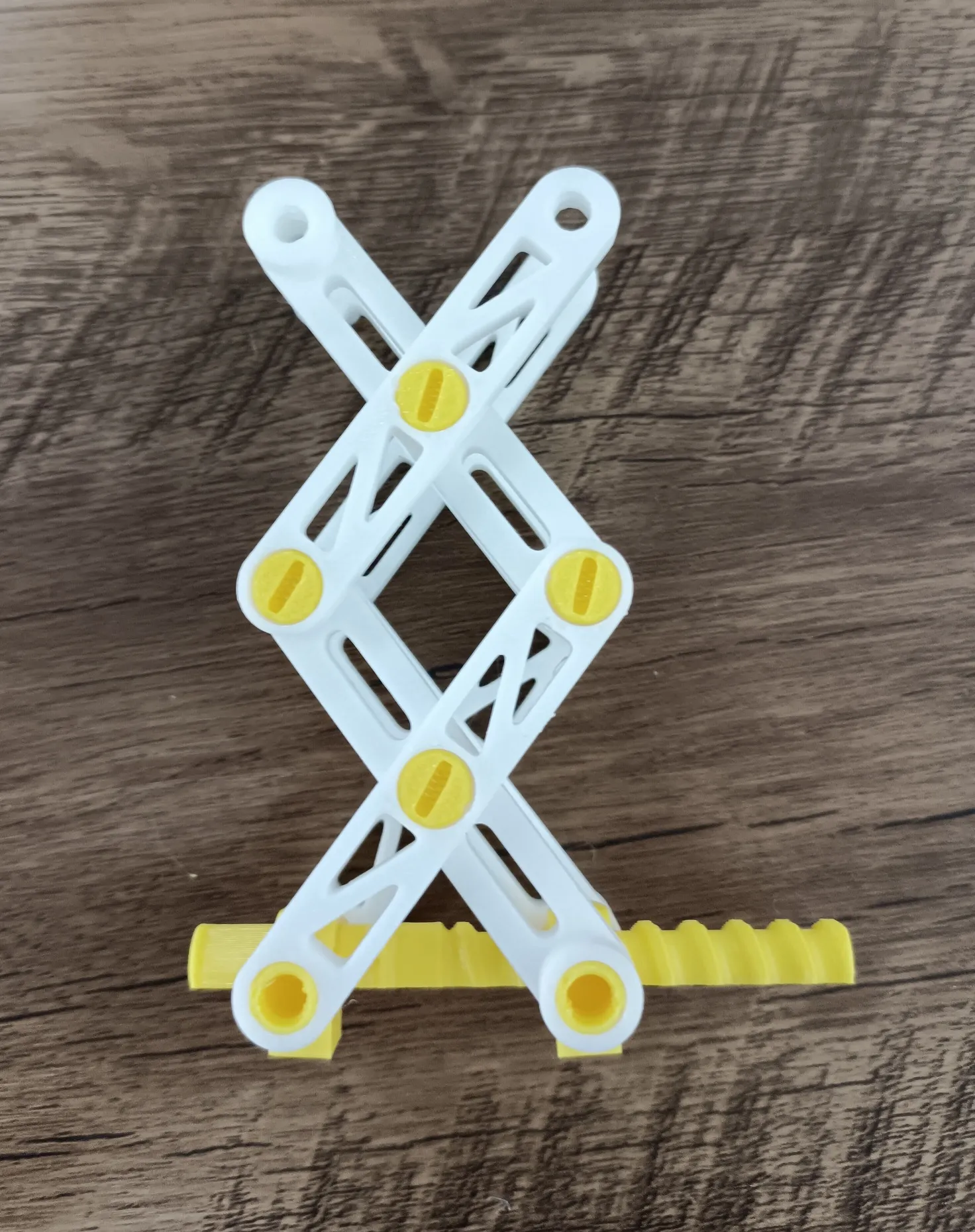

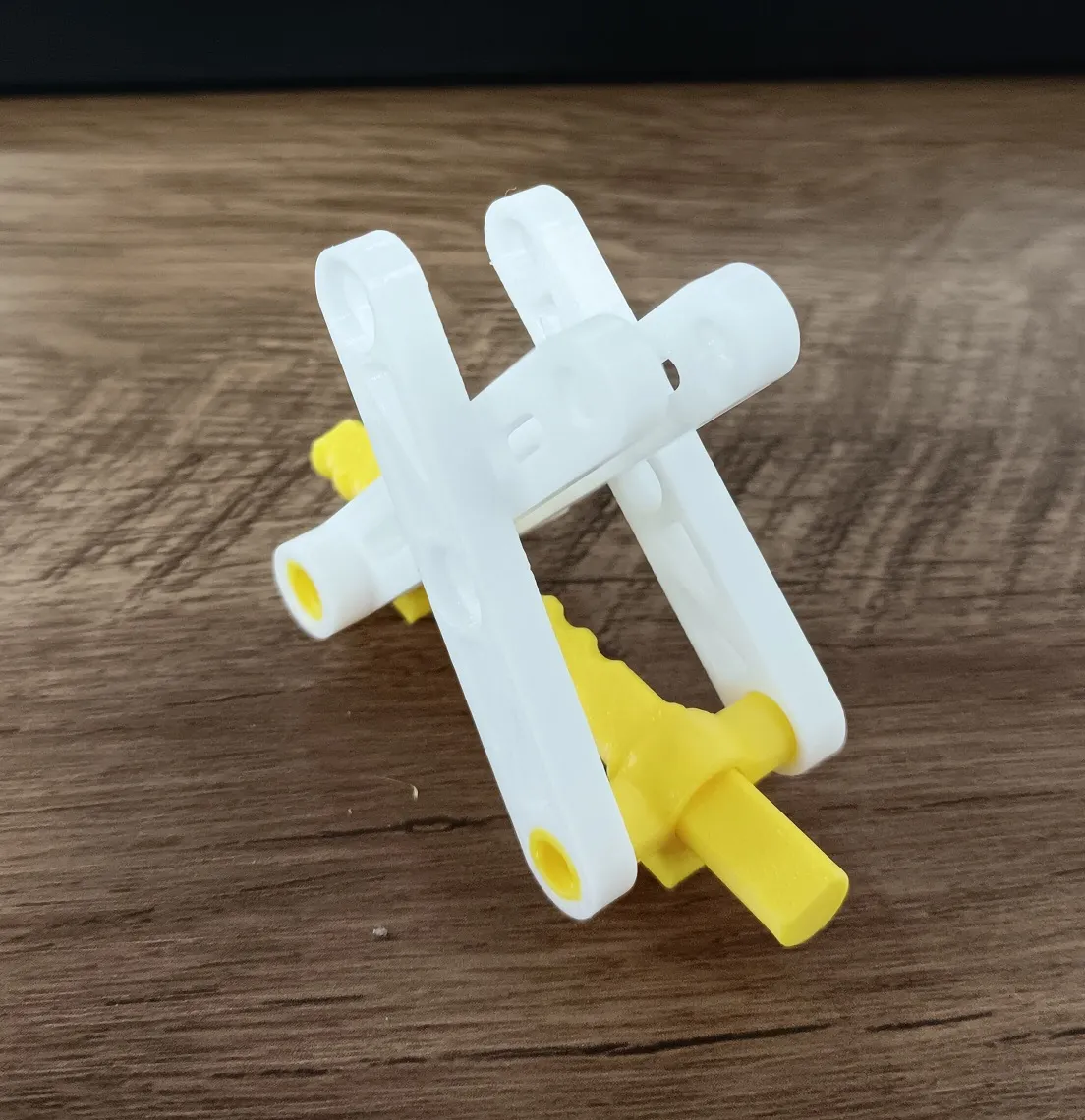

Once assembled in this configuration, tighten the screws until all support rods are secure
3.Assembly

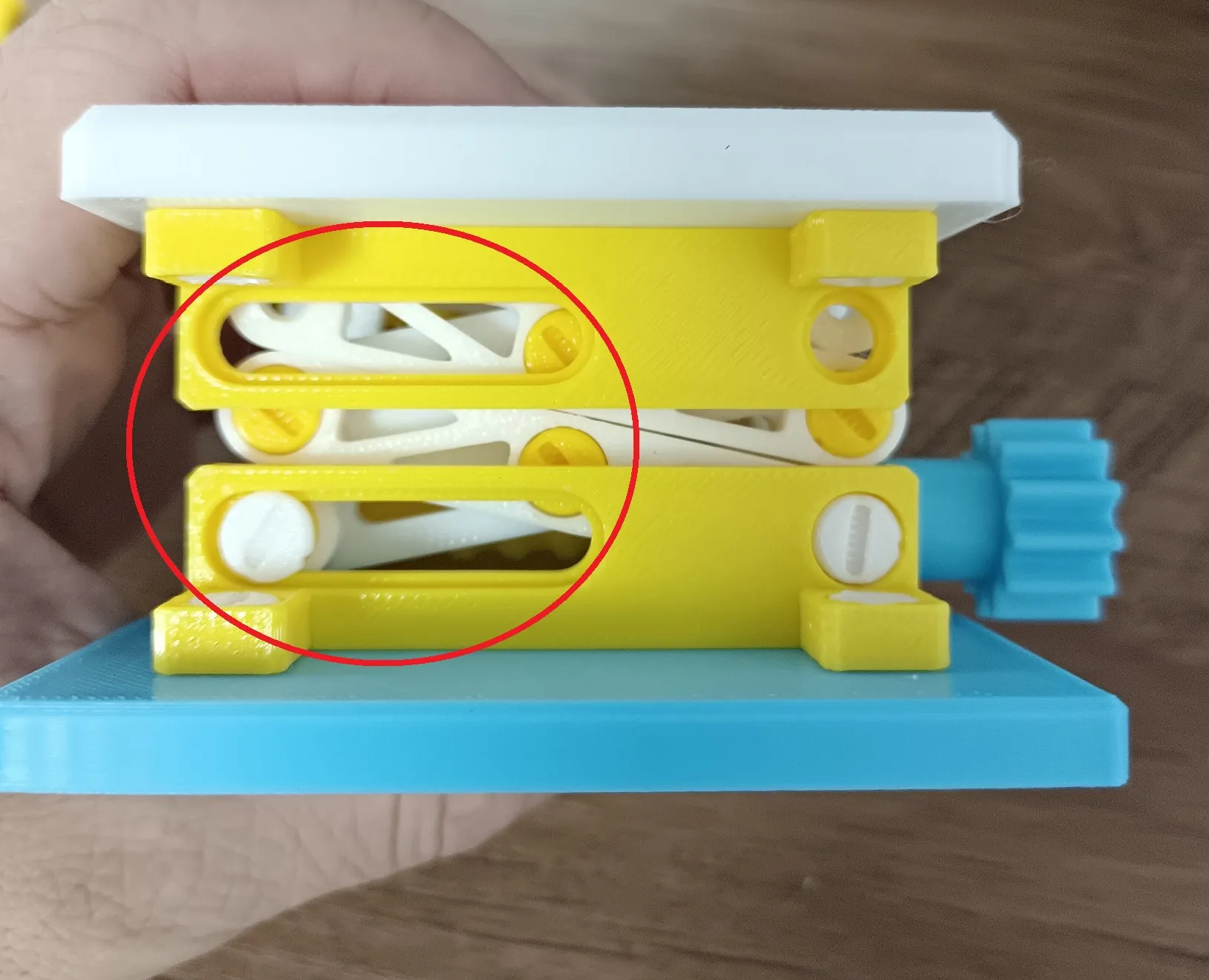

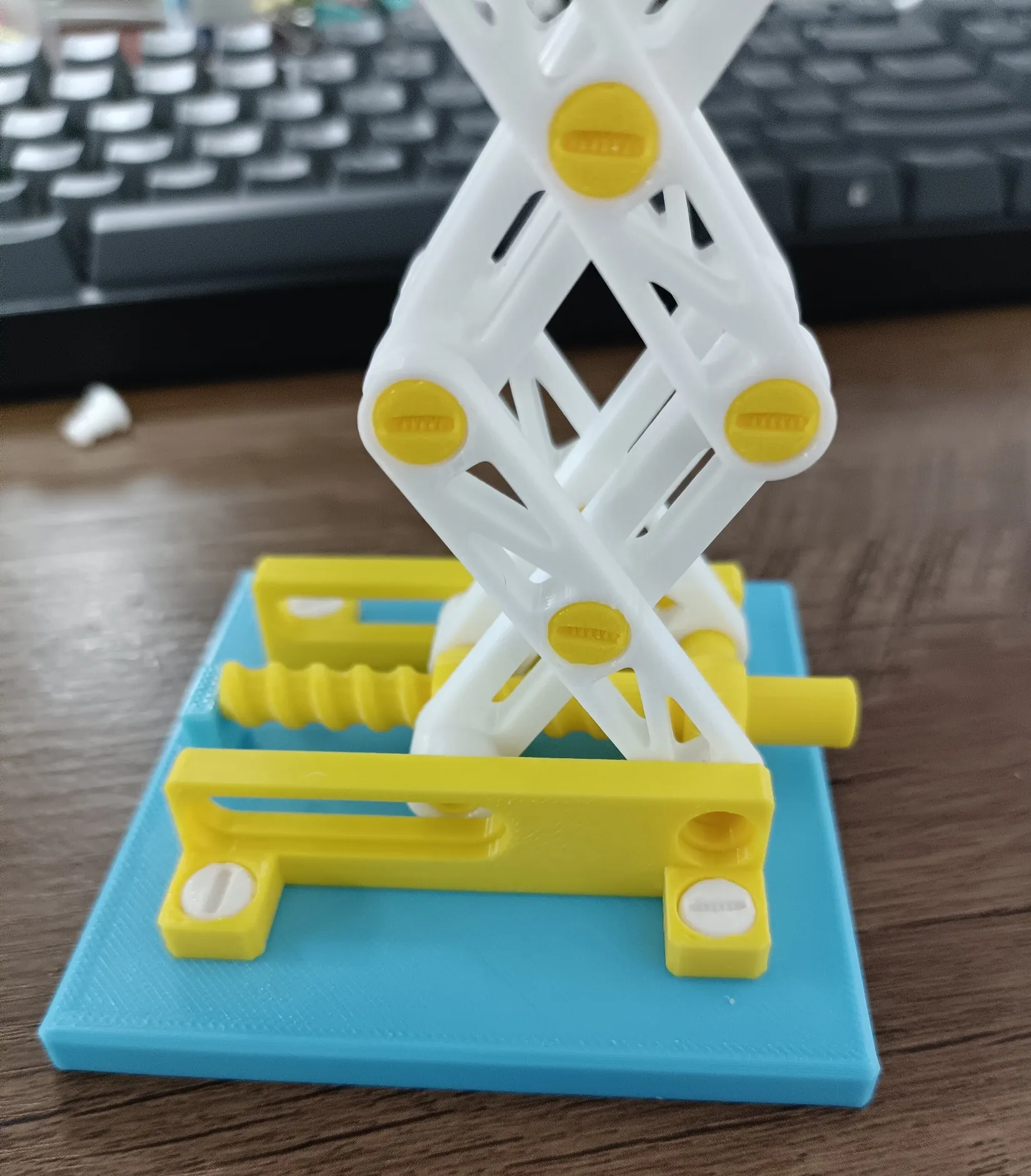

Assembling the top plate, bottom plate, and support rods is straightforward. The only point to remember is that the grooves must align

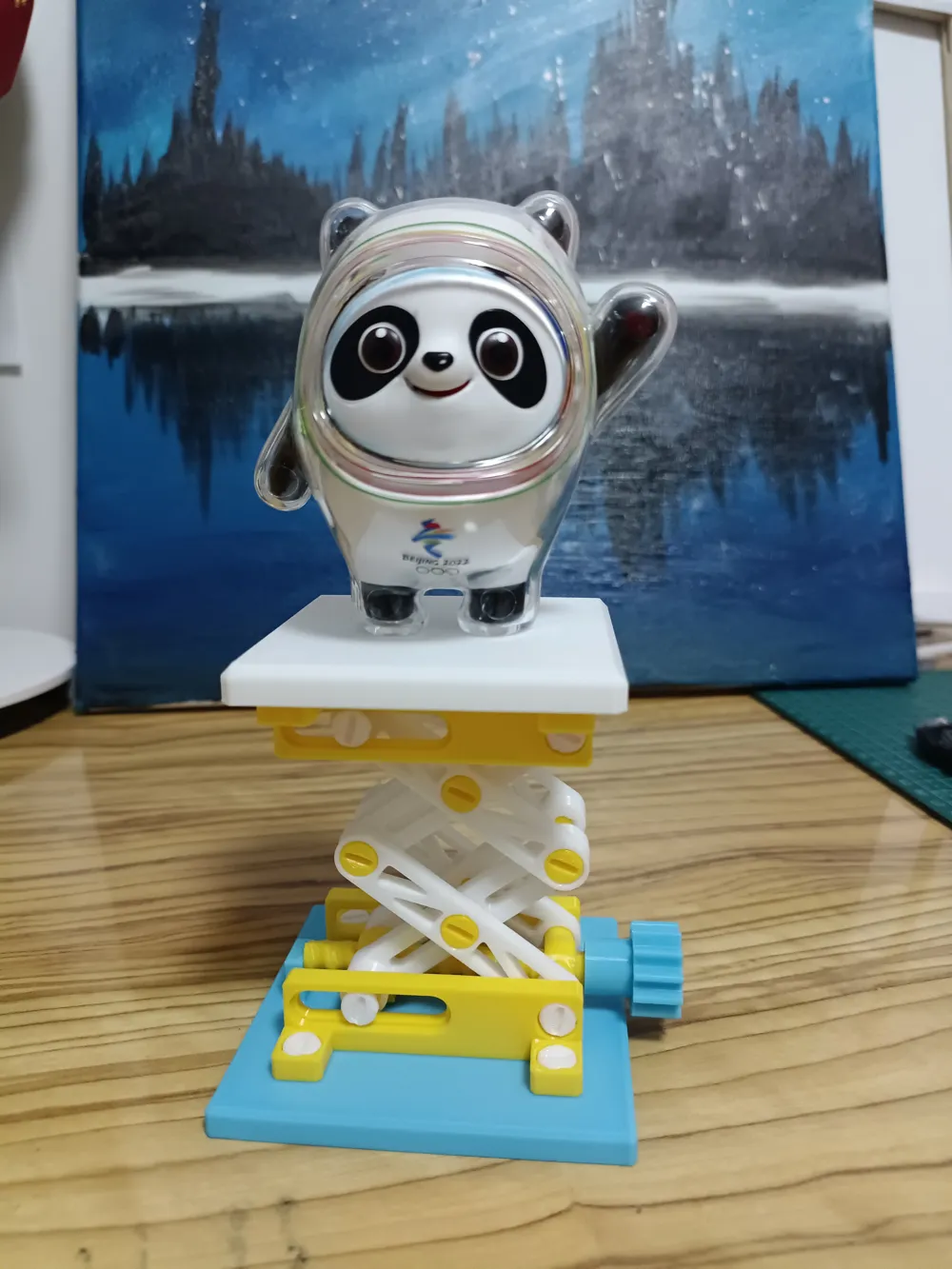

Finally, attach the knob to complete the assembly
