Bill of Materials

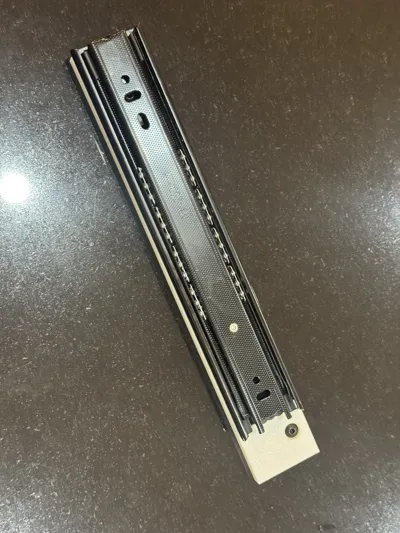

- Button Head Cap Screws M5x8 x 4: Screw outer-rail to bracket

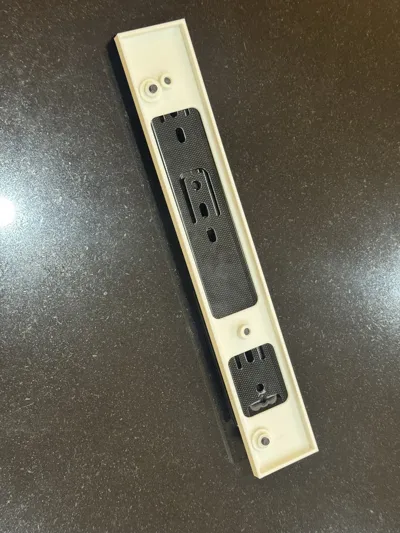

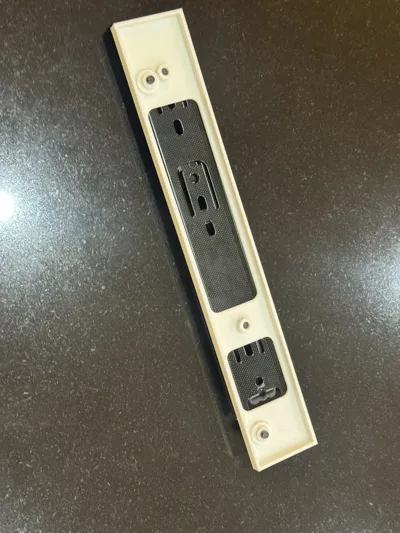

- Button Head Cap Screws M5x12 x 4: Screw through brackets to press-fit to existing holes in cupboard where adjustable shelf was

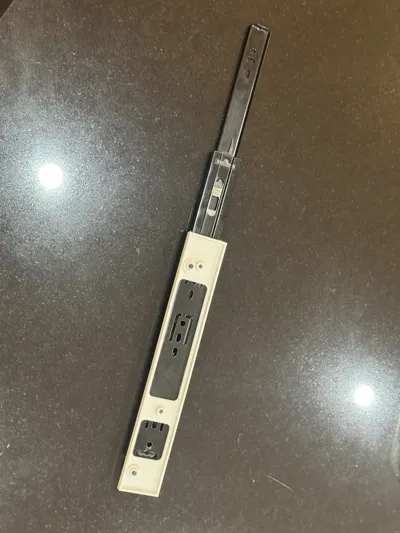

- Button Head Cap Screws M4x8 x 1: Screw inner-rail to box

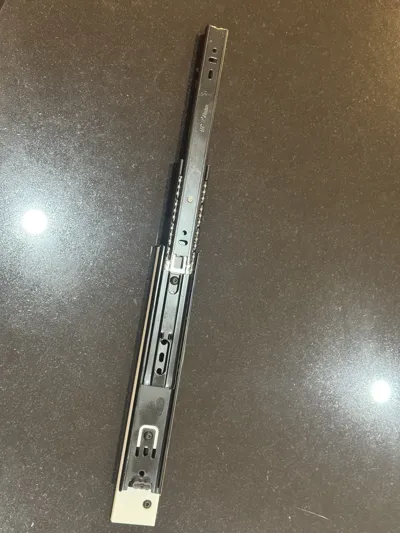

- Drawer Rail 3-Way Drawers Slide 200 mm (10 inch) x 1: https://www.aliexpress.com/item/1005008134754707.html
Description

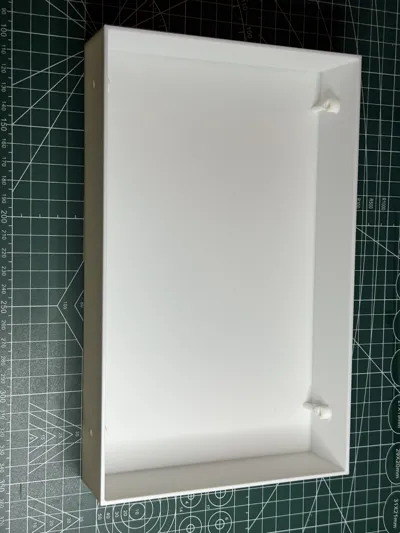

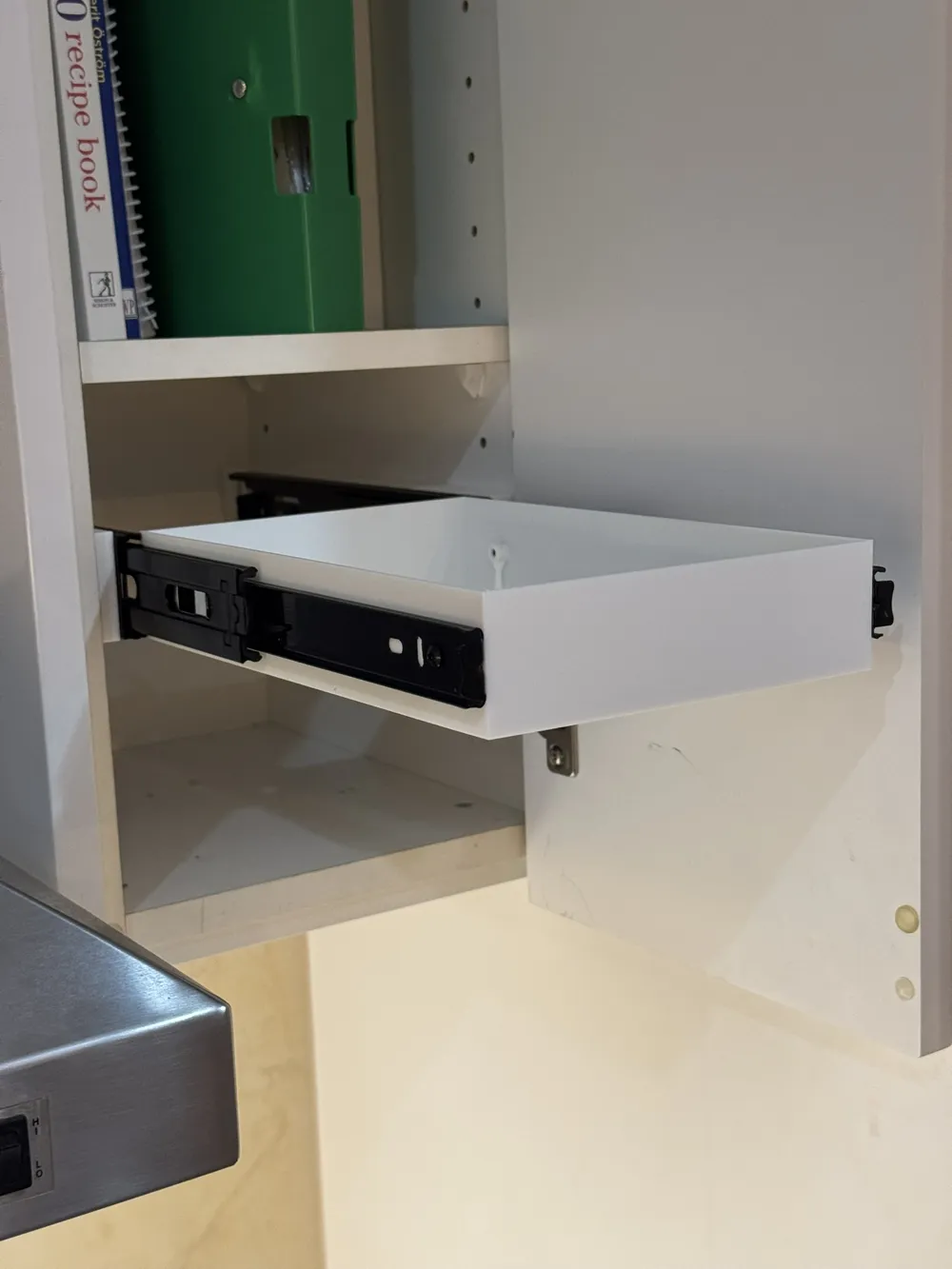

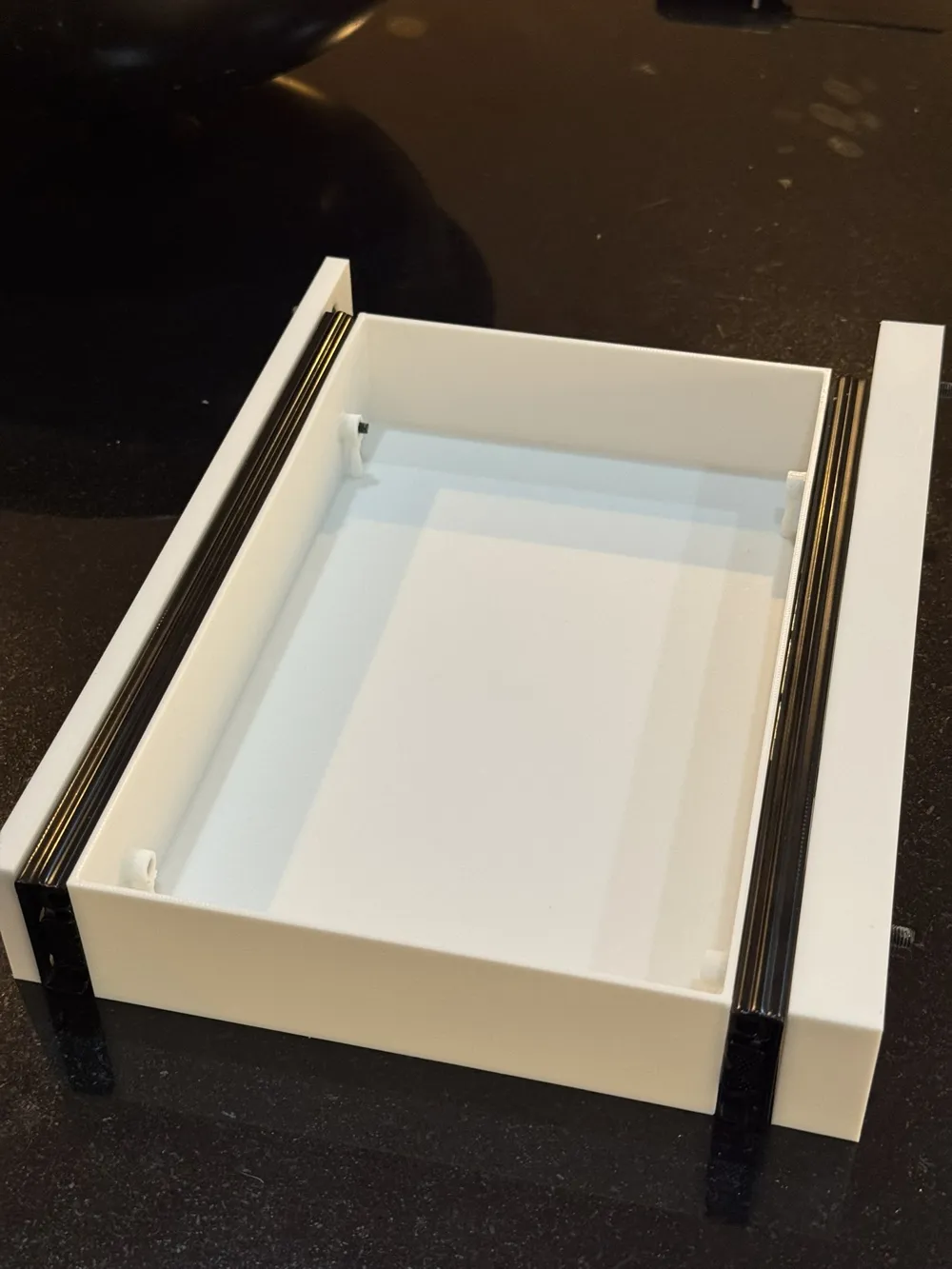

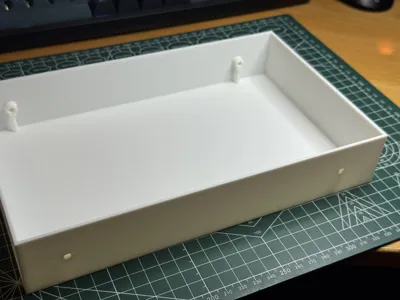

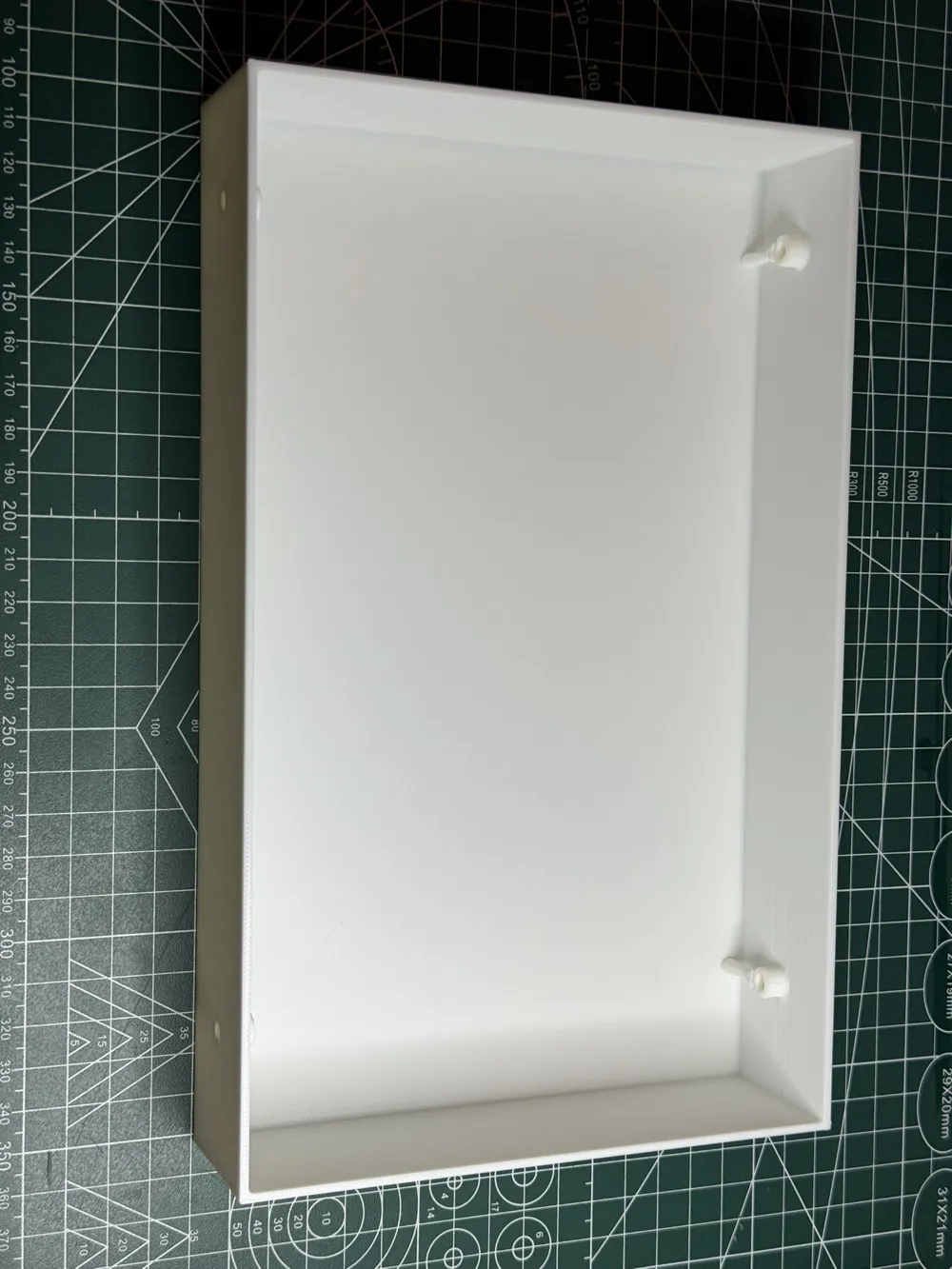

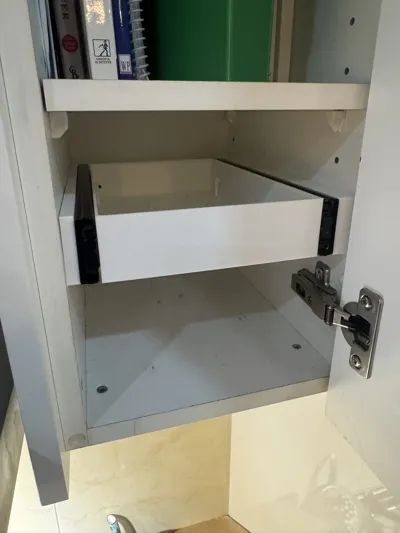

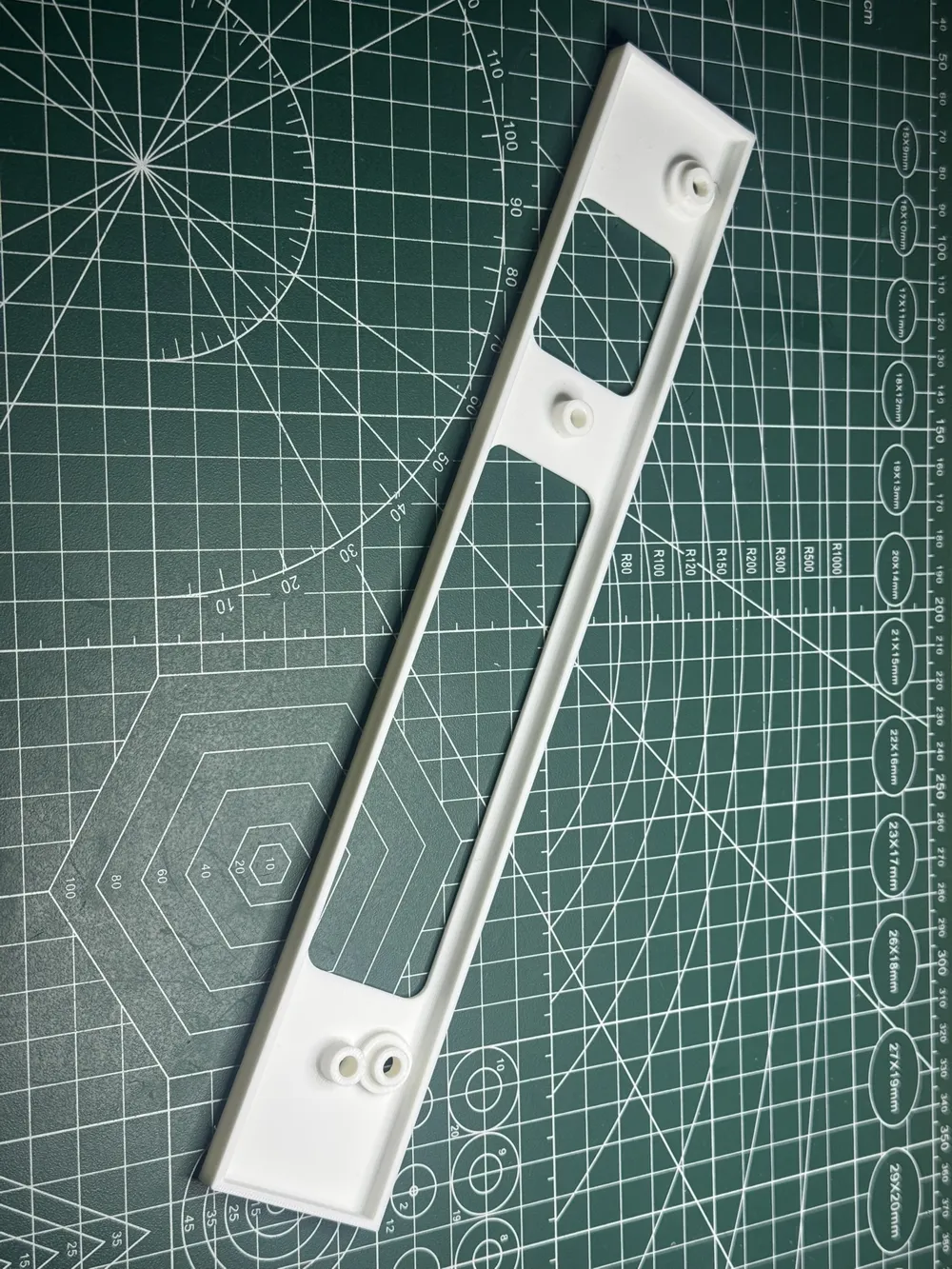

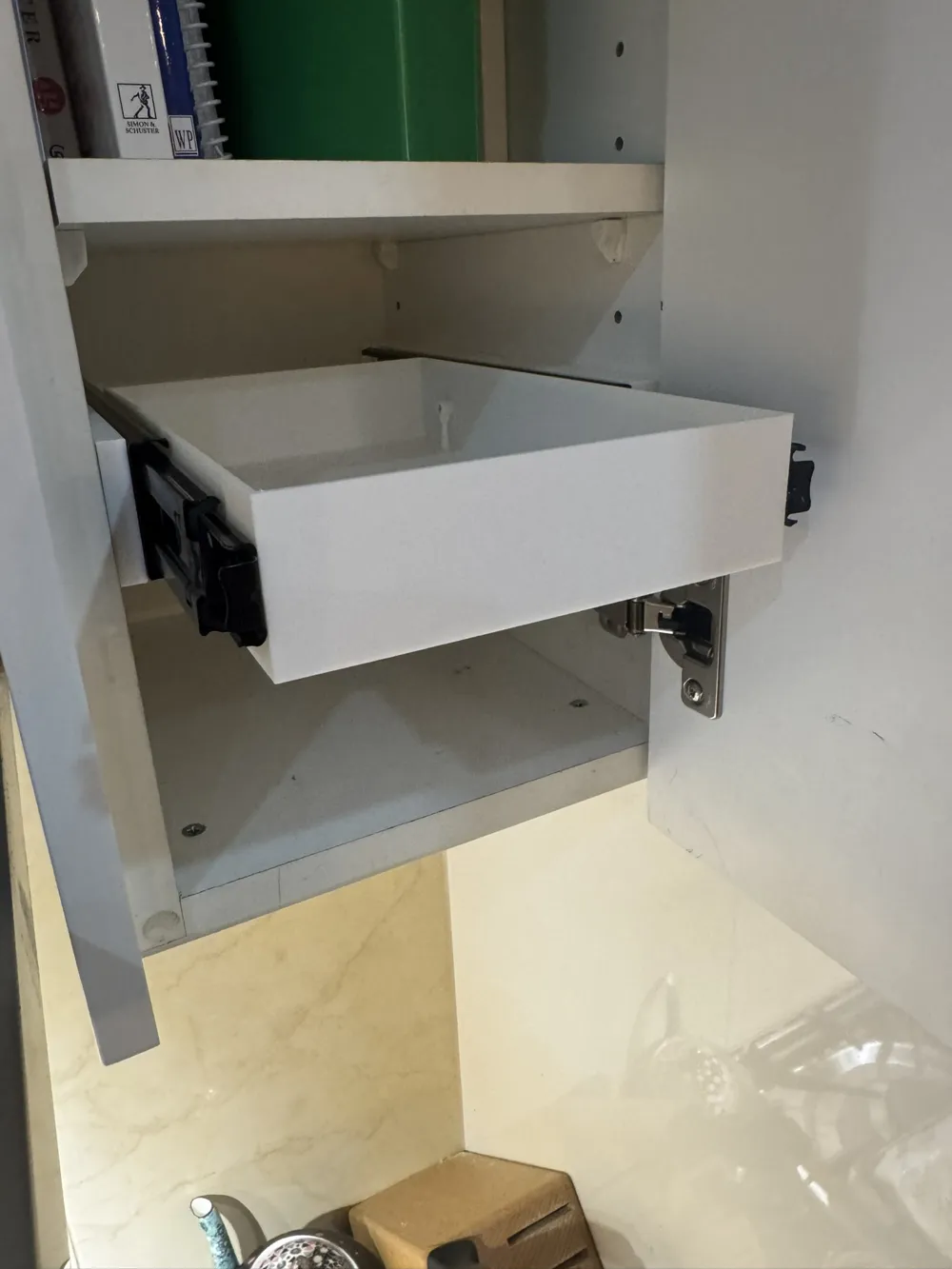

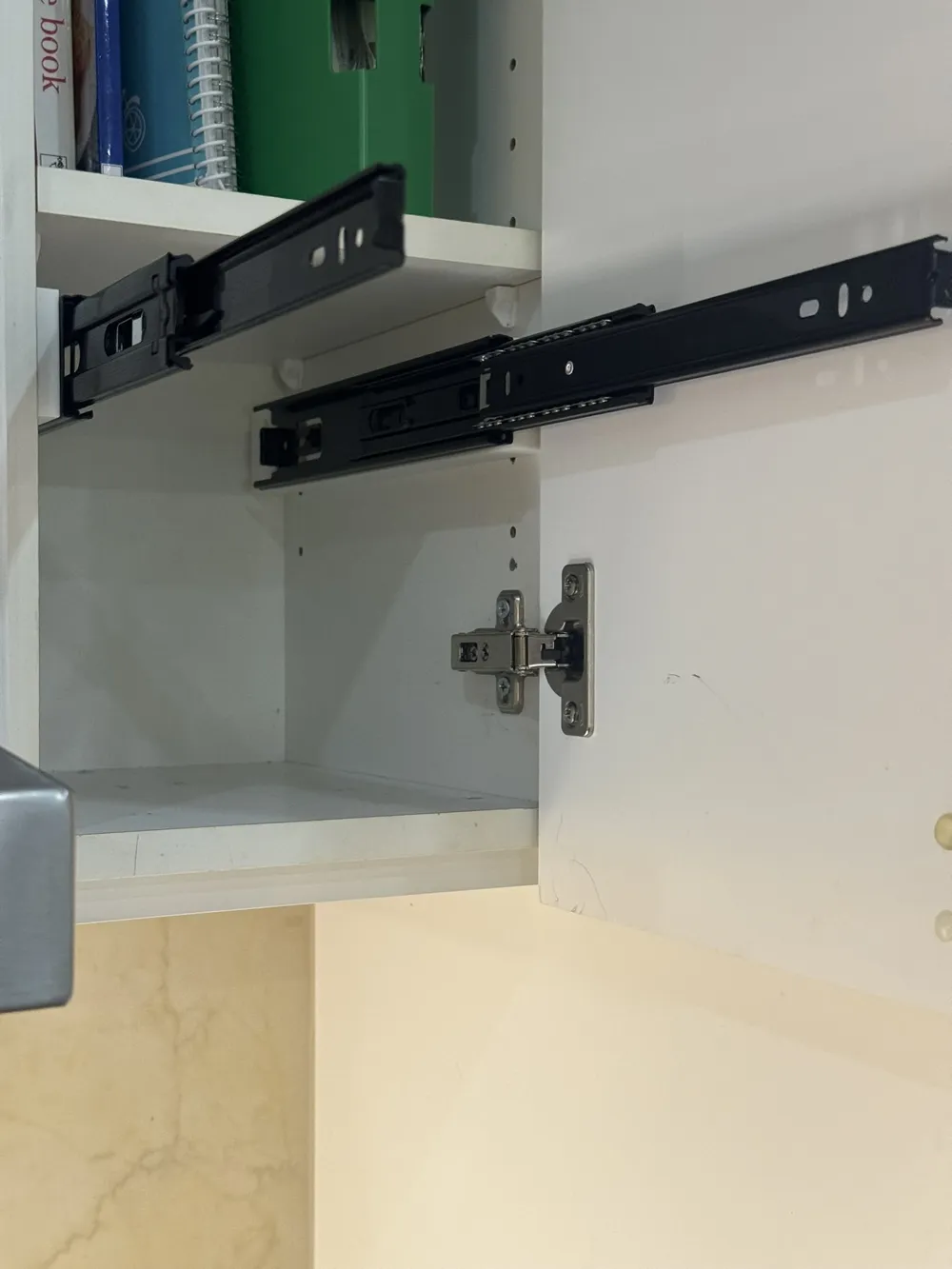

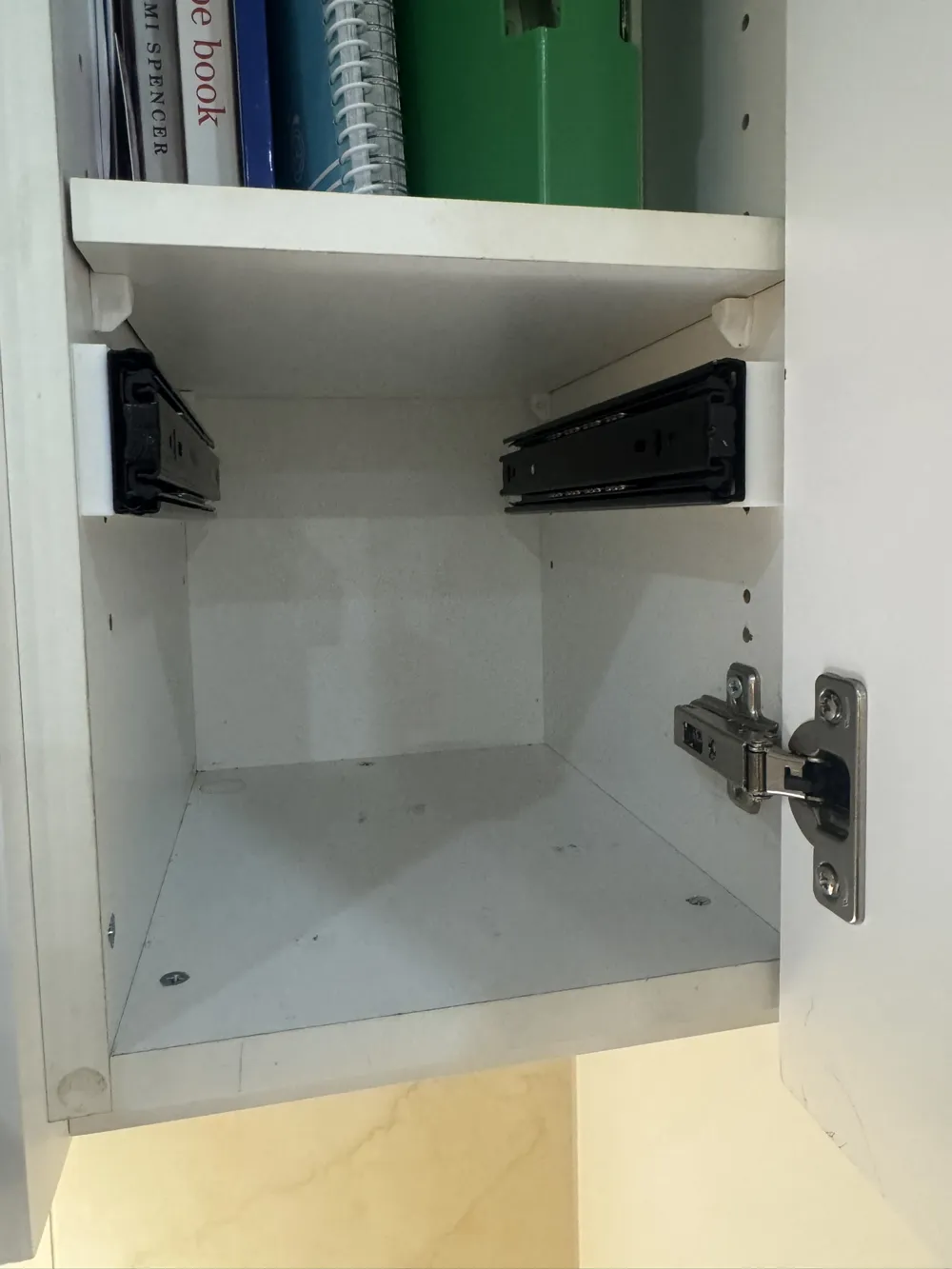

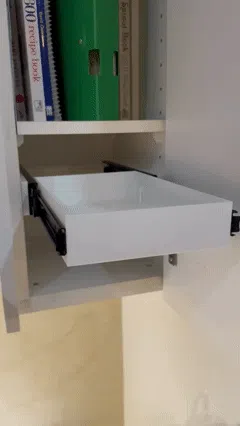

This model and the rail kit converts an adjustable shelf in a cupboard to a draw with a double-rail. It is a press-fit into the existing holes for the adjustable shelf, so no screwing into the cupboard and the height of the draw is completely adjustable according to the existing holes. The right side has a wider spacer so the draw won't foul on the hinges.
I have included the STL files so you can adjust the model according to the dimensions of your cupboard.
