Stackable organizers are cumbersome, while drawer-style organizers consume excessive material

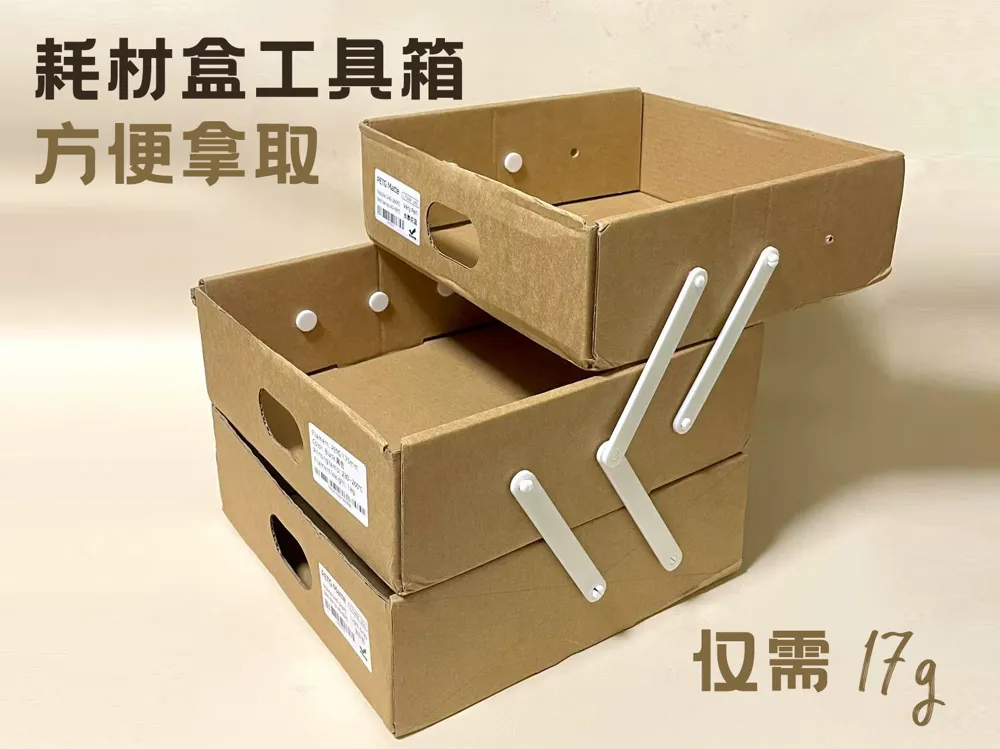

Therefore, I designed this filament storage box; the double-layer version weighs only 17g

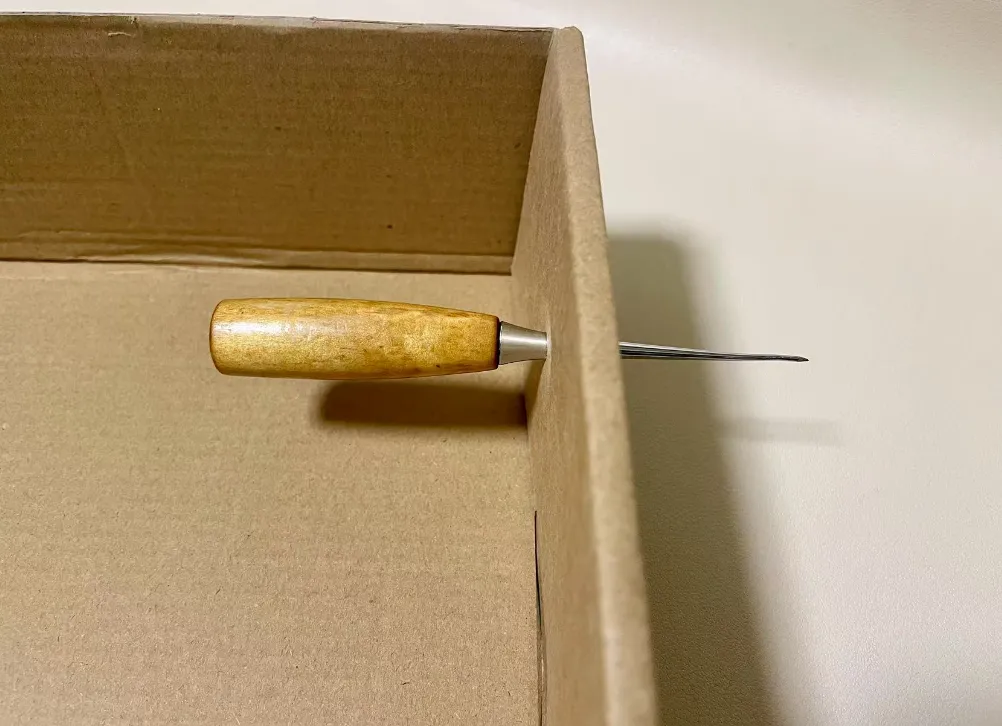

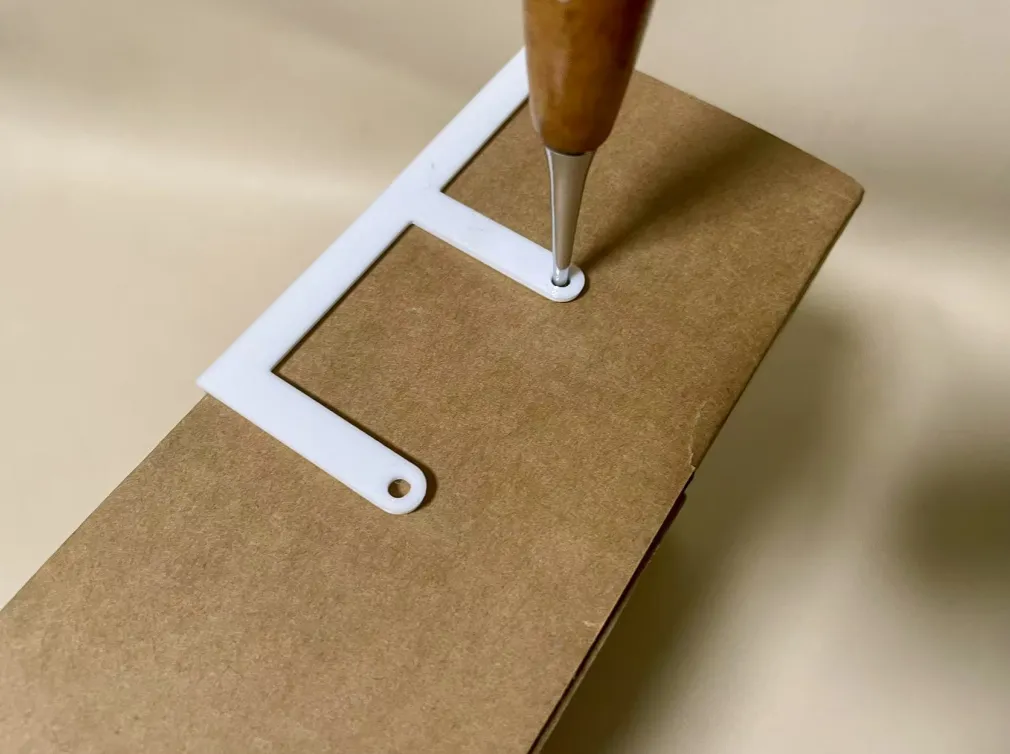

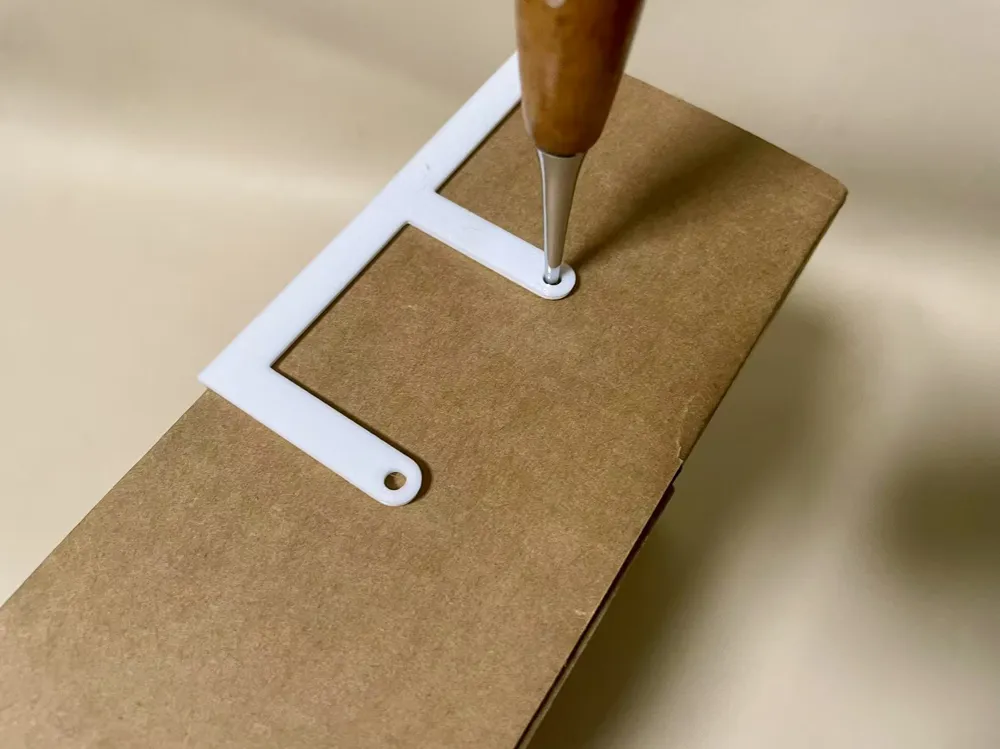

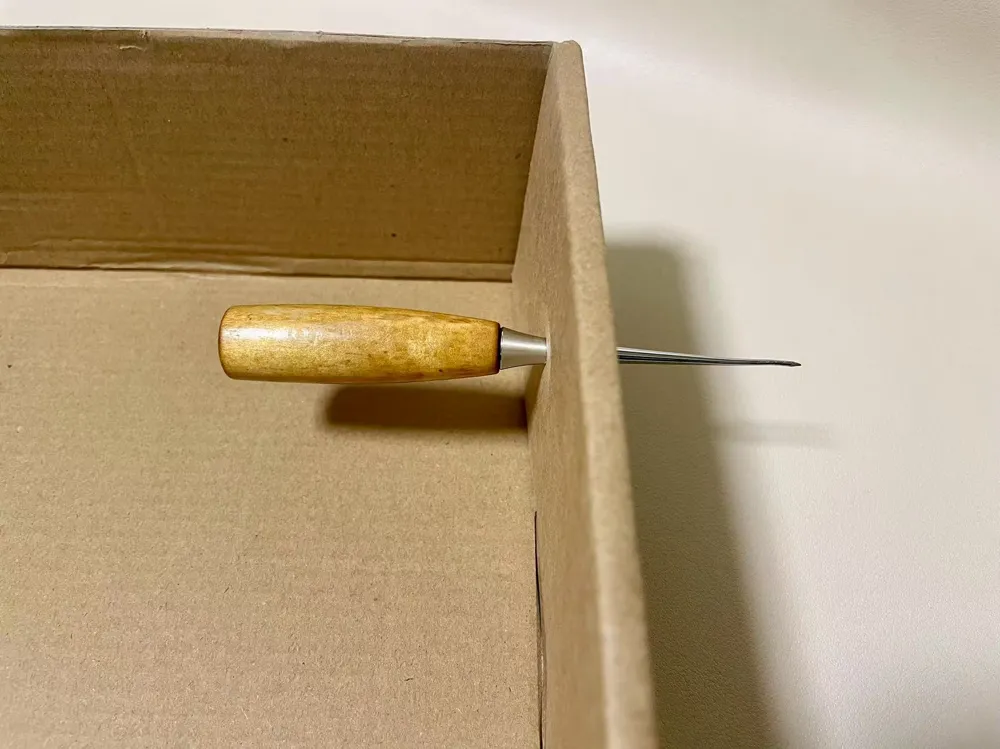

- It incorporates positioning pins. As shown, use an awl to pierce the outer wall, then widen the hole from the inside to approximately 6mm

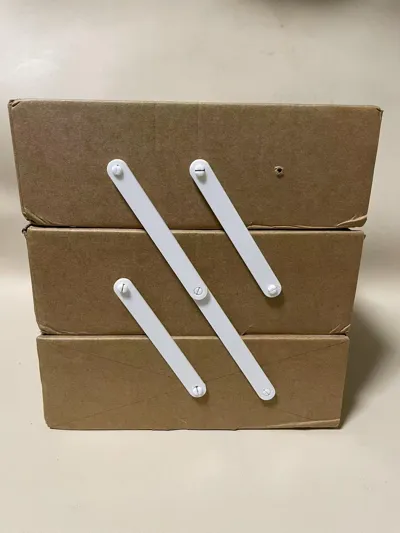

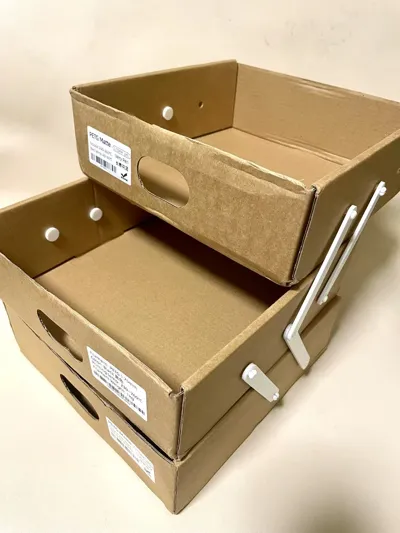

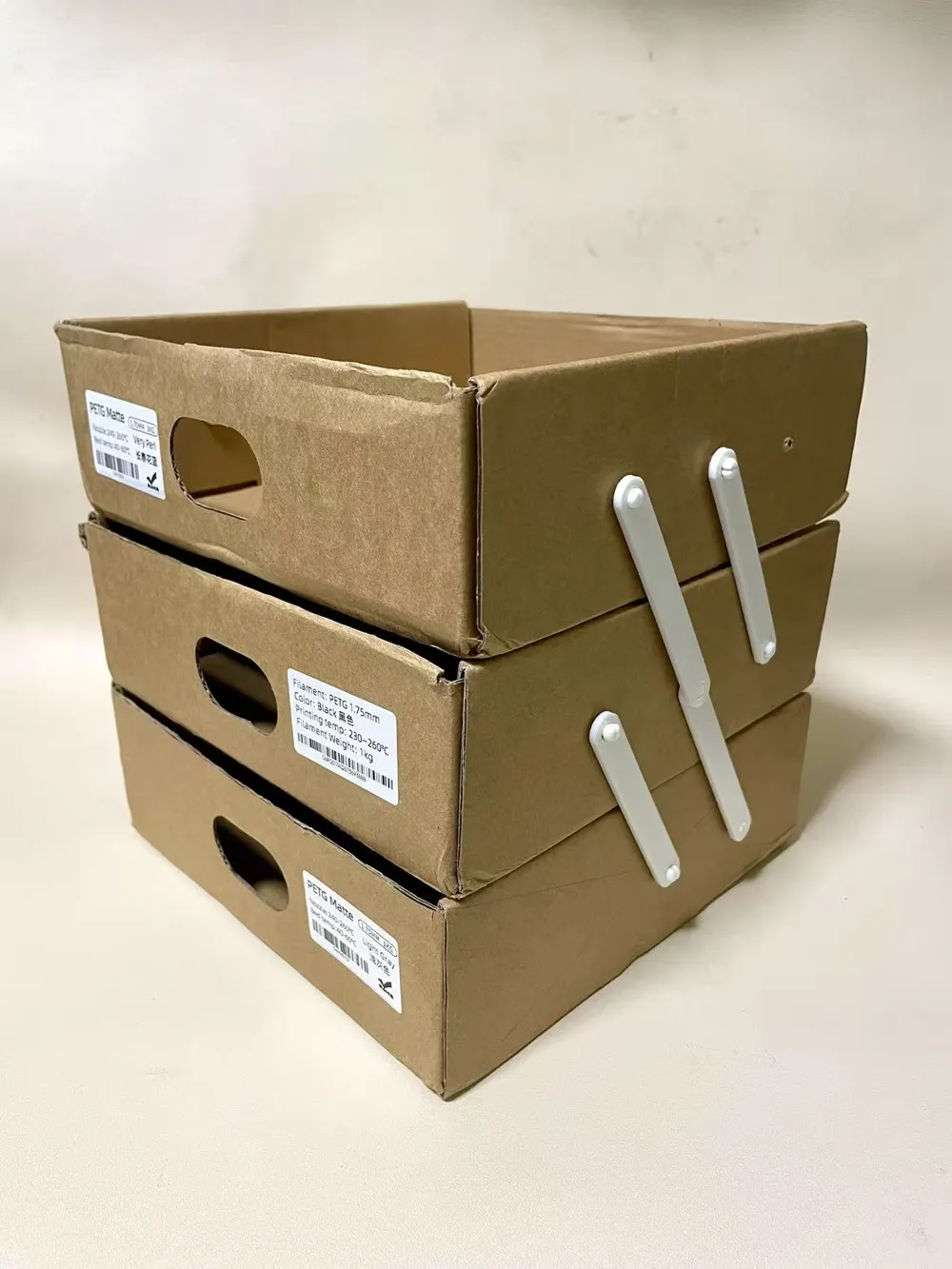

- Then assemble as shown in the main image, with the small clips inside and the long strips outside

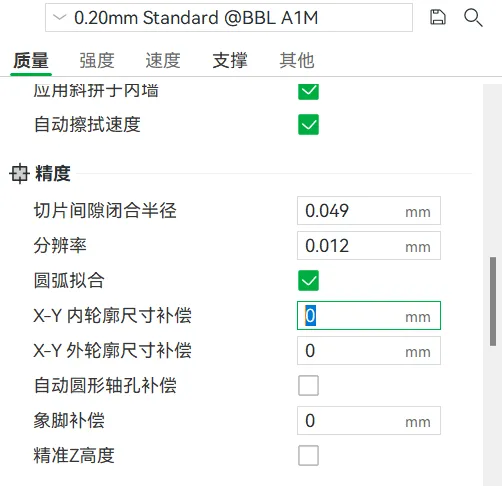

- If the clips are too tight or too loose, adjust the inner contour size compensation in your slicing software
- Too tight → positive value to enlarge the holes; too loose → negative value to reduce them; generally 0.05 is sufficient

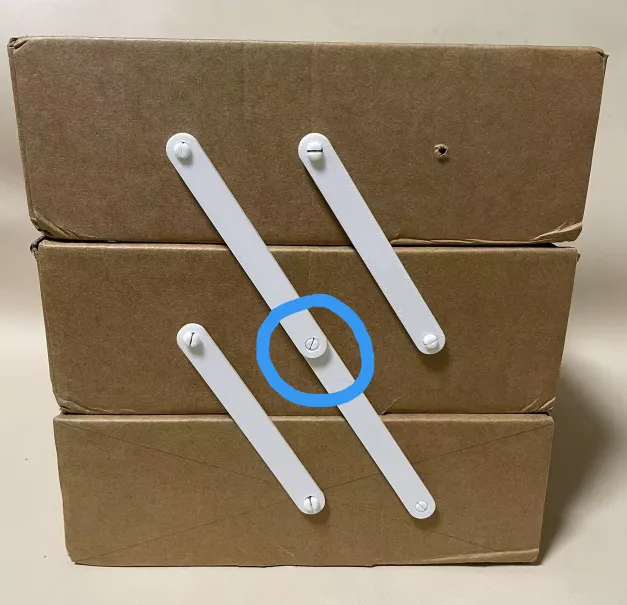

- For those with obsessive-compulsive tendencies, I've prepared short clips, as shown; use long clips in the middle and short clips elsewhere
- Two layers require: 8 clips, 4 strips (8 short clips)
- Three layers require: 8+6=14 clips, 4*2=8 strips (2 long clips, 12 short clips)
- Four layers require: 8+6*2=20 clips, 4*3=12 strips (4 long clips, 16 short clips) … and so on
-----------0709 Update-------------

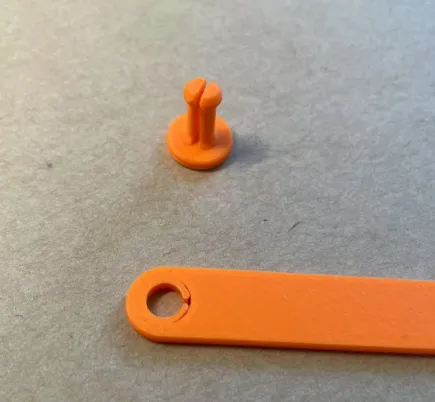

- The holes have been modified with a spring mechanism
I hope you enjoy my design! Don't forget to boost it!
