AstroPuccio3D

cover

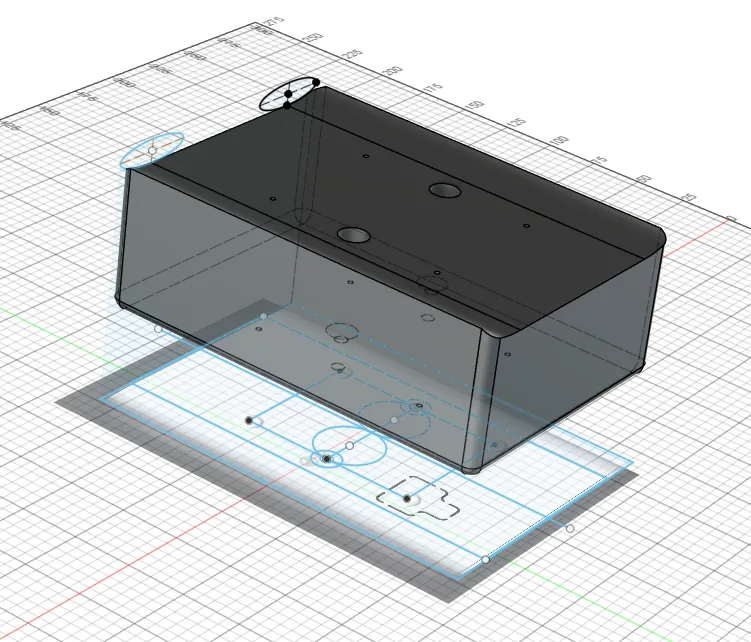

Support AJAX Curtain 60mm FUSION.png

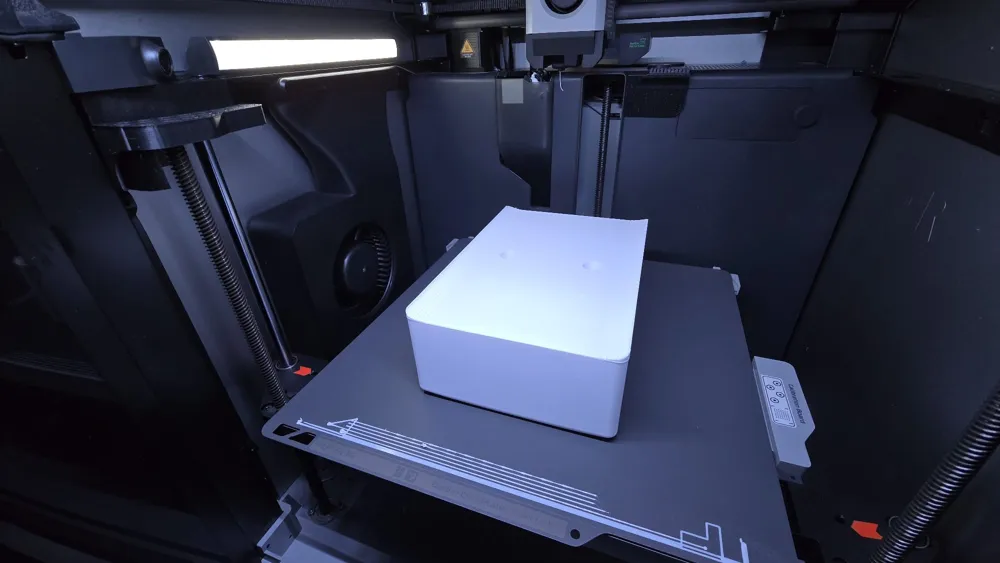

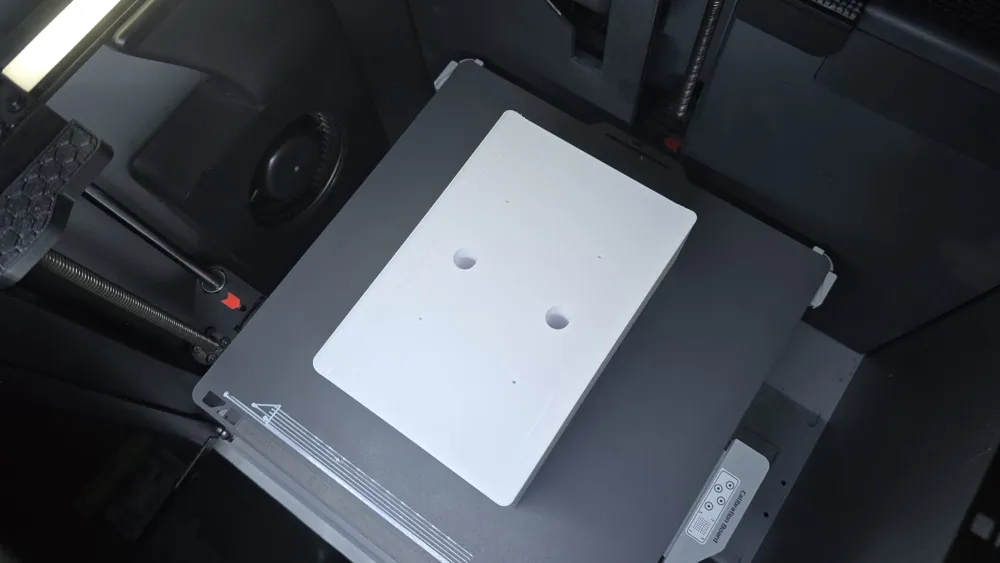

0.2mm nozzle, 0.14mm layer, 4 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

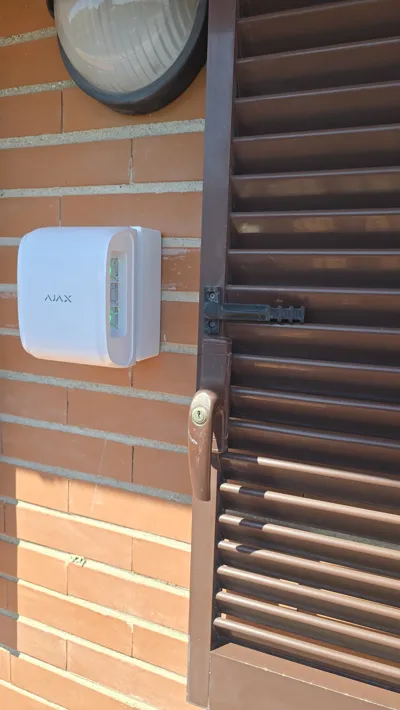

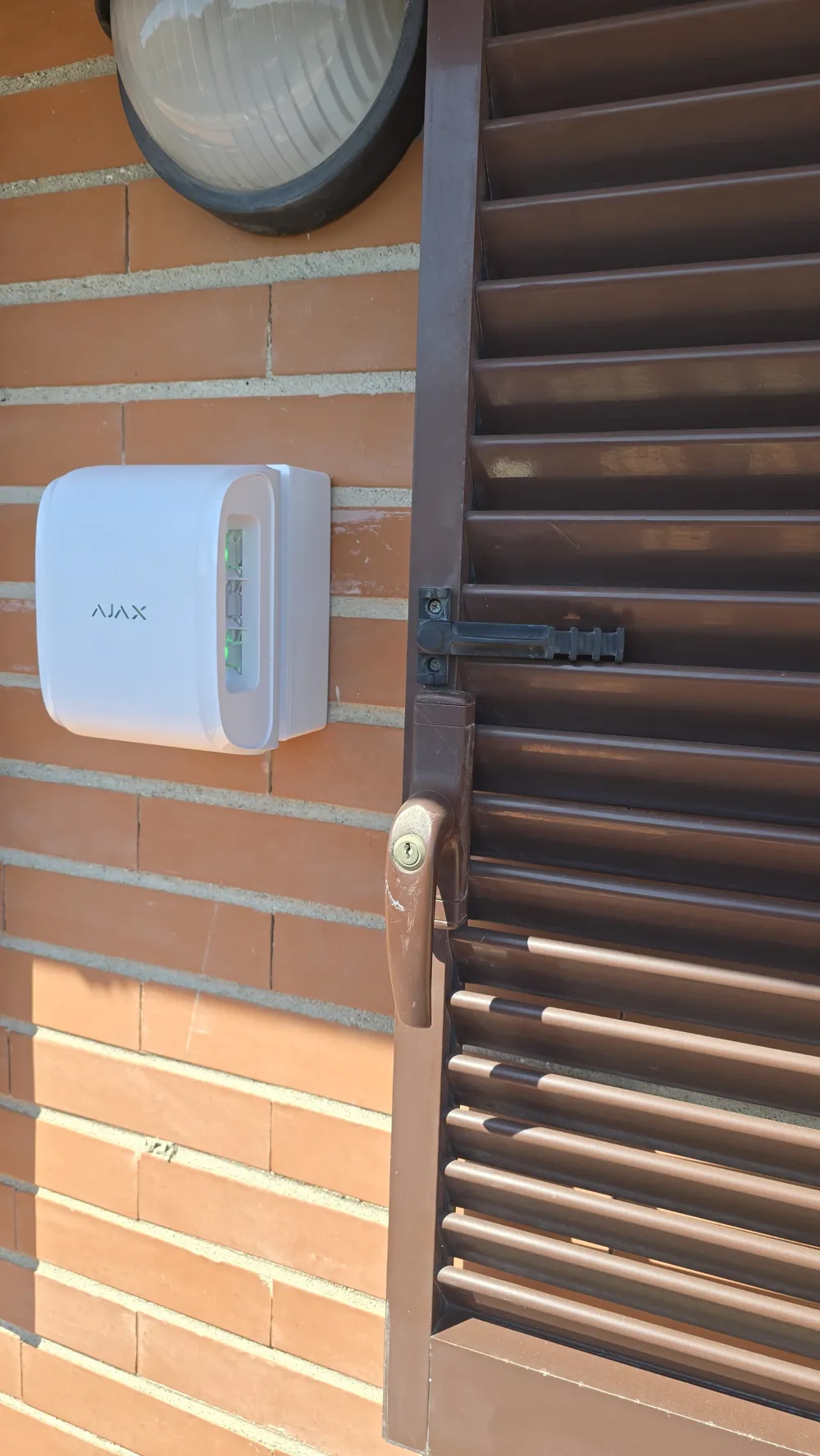

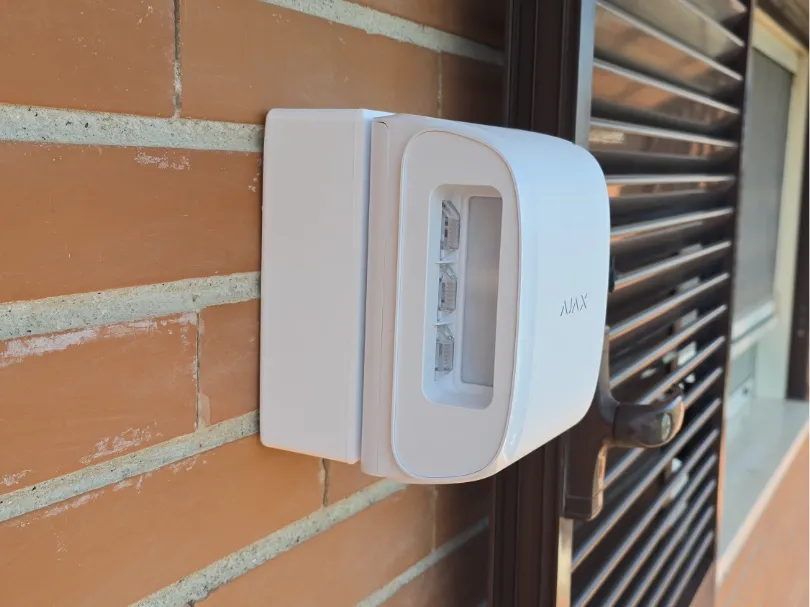

As per the title, a spacer support for the external curtain sensor of AJAX. Due to my needs, I had to design this support to be able to insert the external perimeter alarm even with fully opened shutters, without restricting its installation when the windows are closed. The support is 60mm with an output of rays at 100mm. I am also attaching a link for the 100mm support with an output of rays at 140mm.&nbsp;The solution ensures fastening with two inline stops to avoid damaging the customer&#39;s bricks.&nbsp;It is recommended to use non-self-tapping screws designed for metal to fasten the sensor to the support. But screws for stopping or wood of appropriate size.&nbsp;Your support is appreciated for creating new projects.&nbsp;Happy printing to everyone.&nbsp;------------------------------------------------------------------------------------------------------------------------------------------&nbsp;Come da titolo un supporto distanziatore per il sensore a tenda esterno dell&#39;AJAX. Per mia necessità ho dovuto disegnare questo supporto per riuscire a inserire l&#39;allarme esterno perimetrale anche con perziane totalmente aperte. senza vincolare l&#39;inserimento con le finestre chiuse. il supporto è di 60mm con uscita raggi a 100mm. Allego anche link per il supporto 100mm con uscita raggi a 140mm.&nbsp;La soluzione garantisce il fissaggio con due stop in linea per evitare di danneggiare i mattoni del cliente.&nbsp;Si consiglia viti non autoforanti usati per il ferro per il fissaggio del sensore al supoprto . Ma viti per stop o legno di adeguata misura.&nbsp;E&#39; gradito il vostro supporto per creare nuovi progetti.&nbsp;Buona stampa a tutti.

As the title suggests, this is a spacer support for the AJAX external curtain sensor. Designed to accommodate installation of the external perimeter alarm with fully open shutters, without impeding installation when windows are closed, this support measures 60mm with a 100mm beam projection. A link to a 100mm support with a 140mm beam projection is also provided.&nbsp;The design incorporates two inline stops to prevent damage to the customer's brickwork during fastening.&nbsp;Use of non-self-tapping screws designed for metal is recommended to secure the sensor to the support. However, suitable wood or stopping screws may also be used.&nbsp;Your support in creating new projects is greatly appreciated.&nbsp;Happy printing everyone.&nbsp;------------------------------------------------------------------------------------------------------------------------------------------&nbsp;As the title indicates, this is a spacer bracket for the AJAX external curtain sensor. Due to my requirements, this bracket was designed to allow insertion of the external perimeter alarm, even with fully open shutters, without hindering installation when the windows are closed. The bracket is 60mm with a 100mm beam projection. I am also including a link for a 100mm bracket with a 140mm beam projection.&nbsp;This solution ensures secure fastening using two inline stops to prevent damage to the customer's bricks.&nbsp;It is recommended to use non-self-tapping screws suitable for metal to fasten the sensor to the bracket. However, appropriately sized wood or stopping screws are also acceptable.&nbsp;Your support in creating new projects is welcome.&nbsp;Happy printing to all.

Ajax Curtain Outdoor Spacer Support 60mm
