Manual Filament Spool Rewinder for Rice Bucket (Easiest Manual Rewinder)

Many users, myself included, repurpose rice bins or storage containers as filament boxes. After a print concludes and filament retracts, excess filament often needs to be manually rewound; otherwise, tangling and jamming can occur (I learned this the hard way—skipping the rewind step resulted in a frustrating jam and wasted print). Repeatedly opening and closing the bin's lid is inconvenient and compromises moisture protection. While many ingenious automated and passive rewind solutions exist, I already own eight rice bins with built-in rollers, and replacing them wasn't feasible. Furthermore, rewind is only necessary post-print; continuous roller engagement presents synchronization challenges. My solution focuses on a simple modification to my existing bins. The goal: effortless filament rewinding after a print, without opening the lid, simply by reversing the spool. After exploring various complex options, I realized a simpler approach was possible. The result is a remarkably effective, straightforward rewind mechanism. The spool's weight readily facilitates rewinding when full; slippage is inconsequential as rewinding isn't needed when the spool is nearly empty.

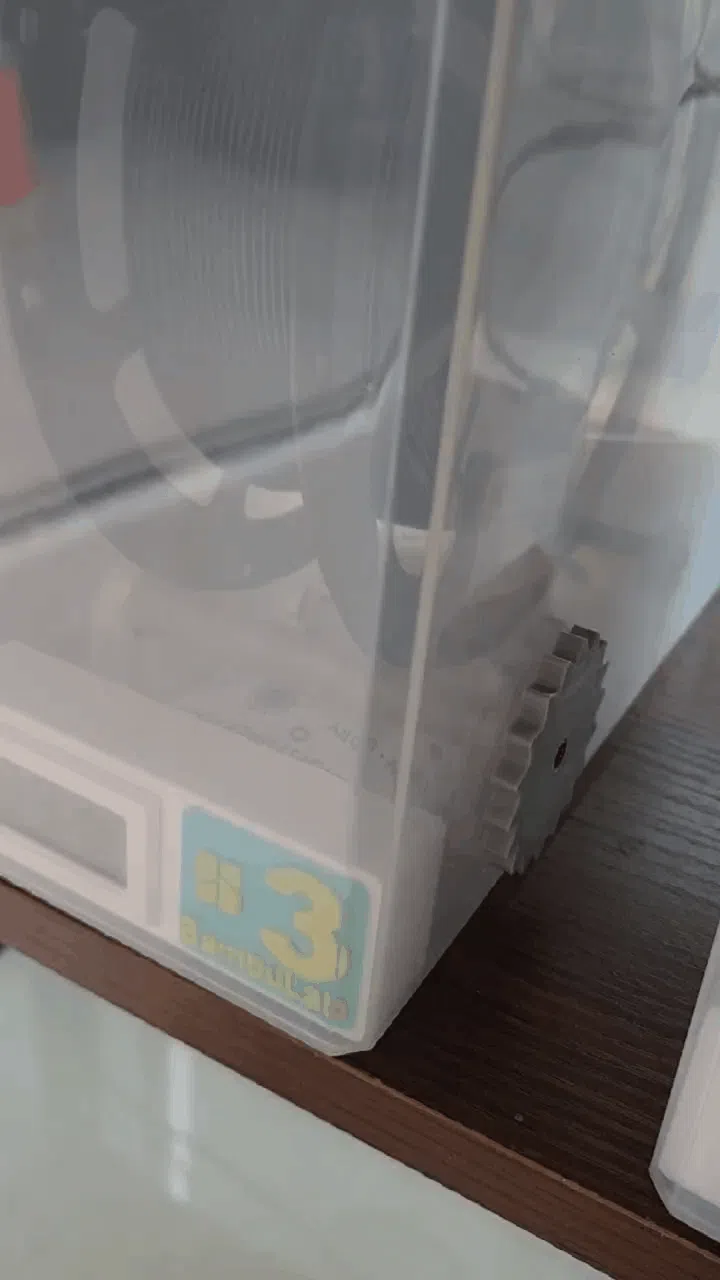

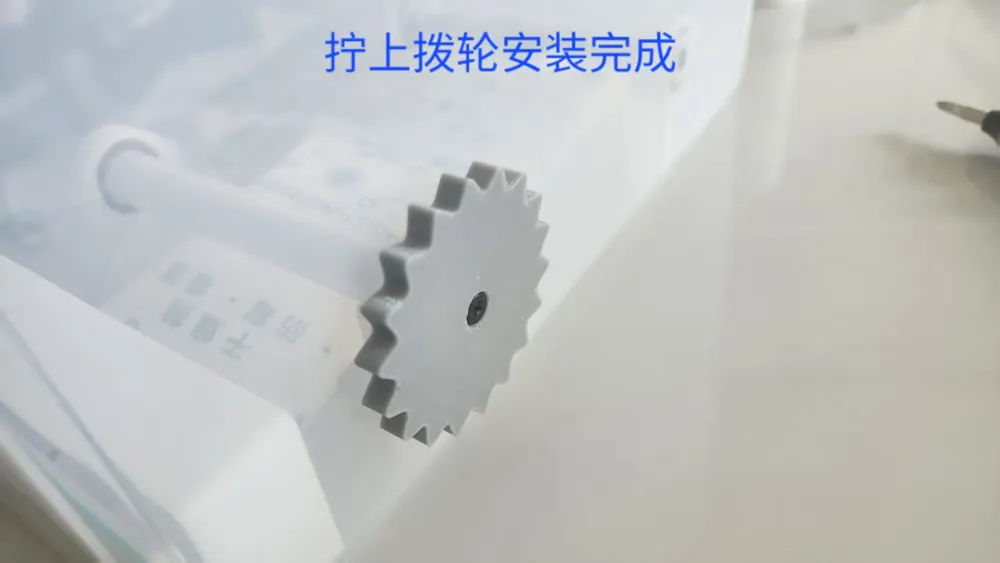

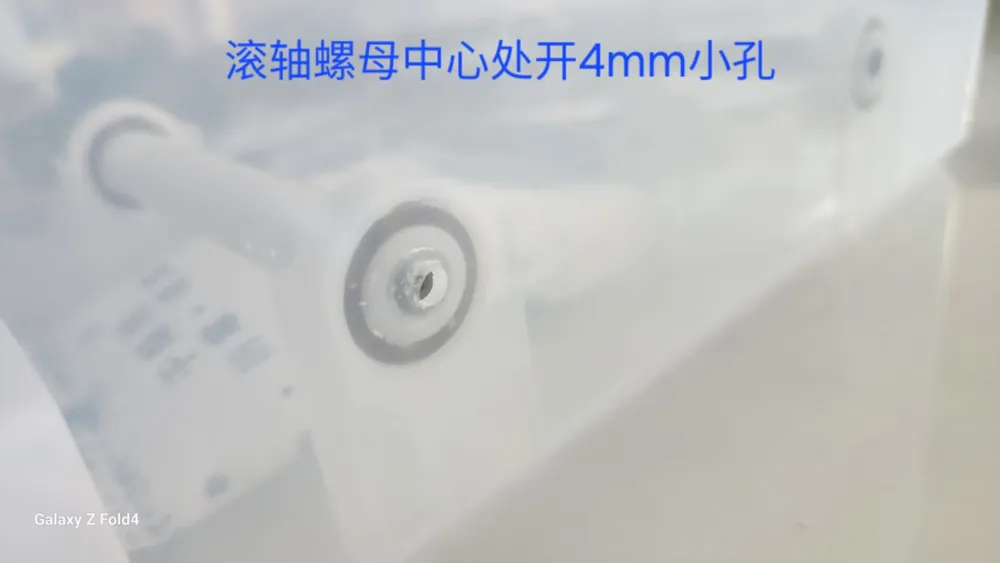

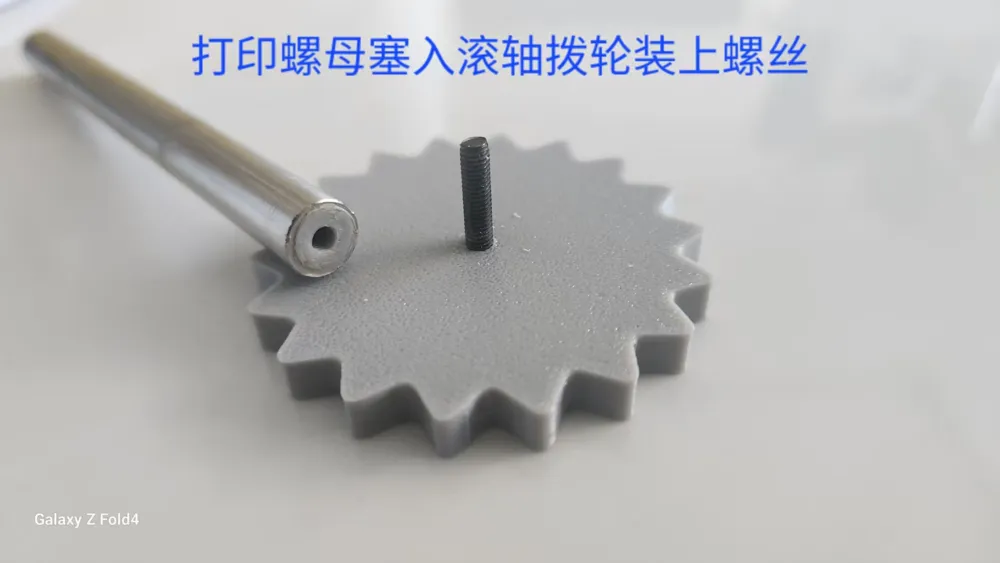

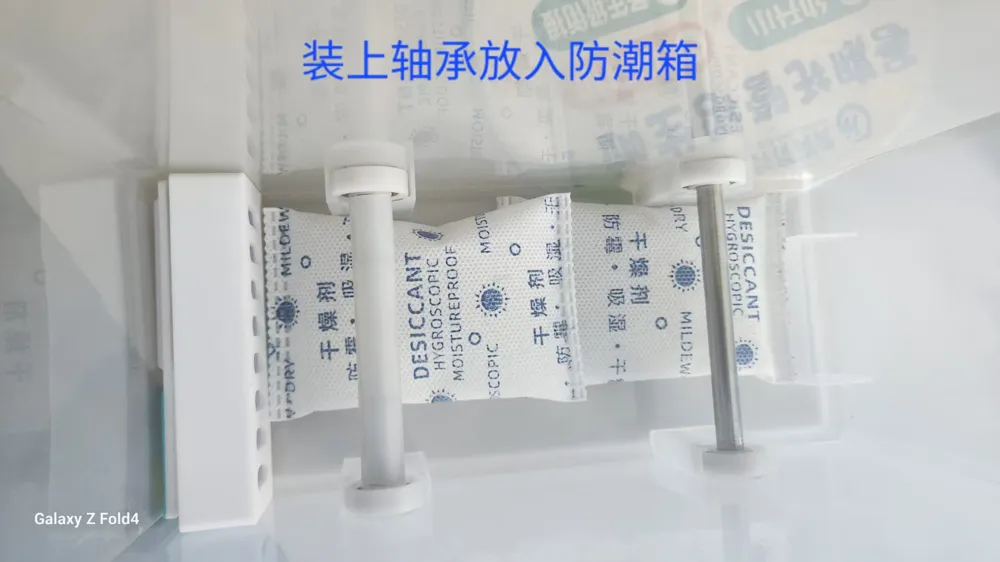

The principle is straightforward: the spool rests on lower rollers. I enhanced friction by adding a 2mm-thick rubber tube to these rollers. A 3D-printed nut is inserted into one side of the roller, while a 4mm hole is drilled in the bin's central roller axis. An M3*16 screw secures a winding wheel. During printing, the roller and wheel rotate seamlessly without affecting the printer. Post-print, manually rotating the wheel reverses the spool, rewinding the excess filament.

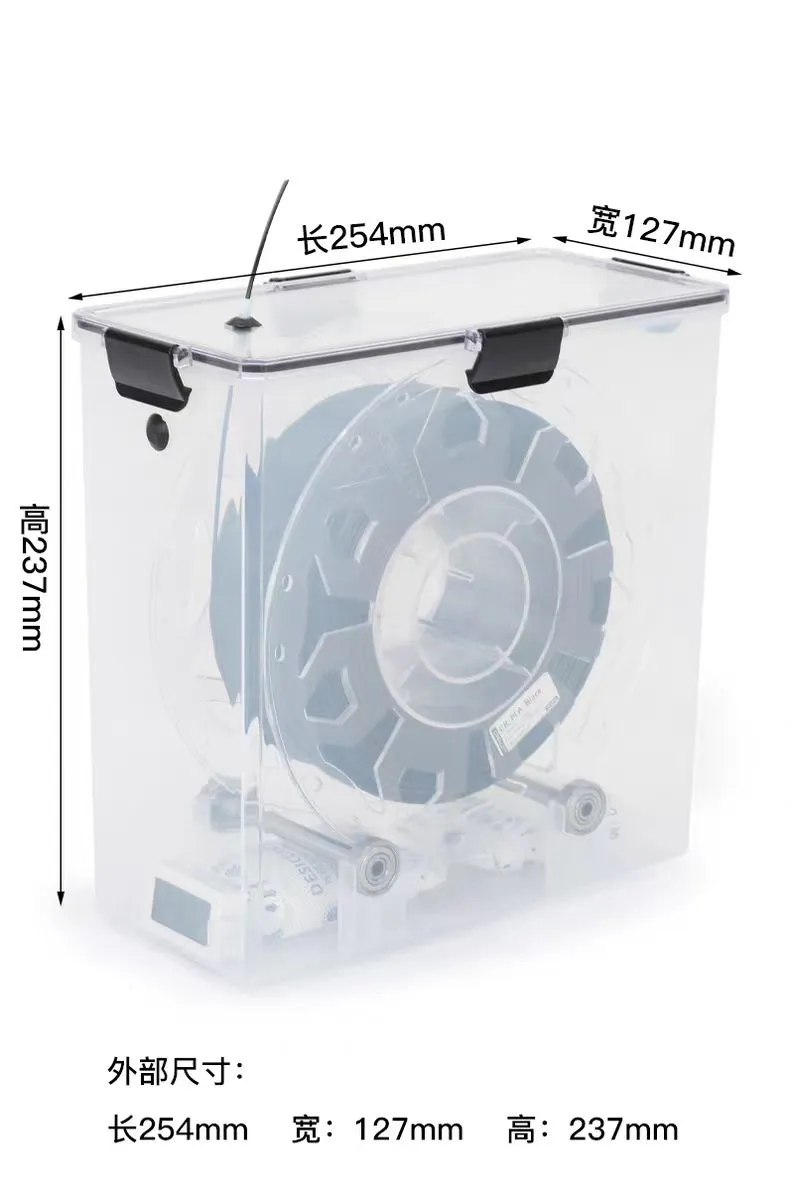

This design is currently compatible with rice bins of this type; theoretically adaptable to most similar containers. The roller's outer diameter is 8mm, requiring an 8mm inner diameter, 12mm outer diameter, and 2mm thick rubber tubing. A single meter costs approximately $1.8 including shipping on certain online marketplaces. An M3*16 screw is also needed. Users with different roller diameters should adjust accordingly. (Purchase appropriately sized tubing; I initially underestimated the rubber's elasticity, ordering tubing 2mm too small, resulting in significant hand blisters before I could even fit it on!).
