Mechanical Structure 15 - Crank-Slider Mechanism
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
44 min
1 plate
Open in Bambu Studio
Boost
19
41
0
1
62
23
Released
Description
Content has been automatically translated.
A Beginner's Guide to Mechanical Structures

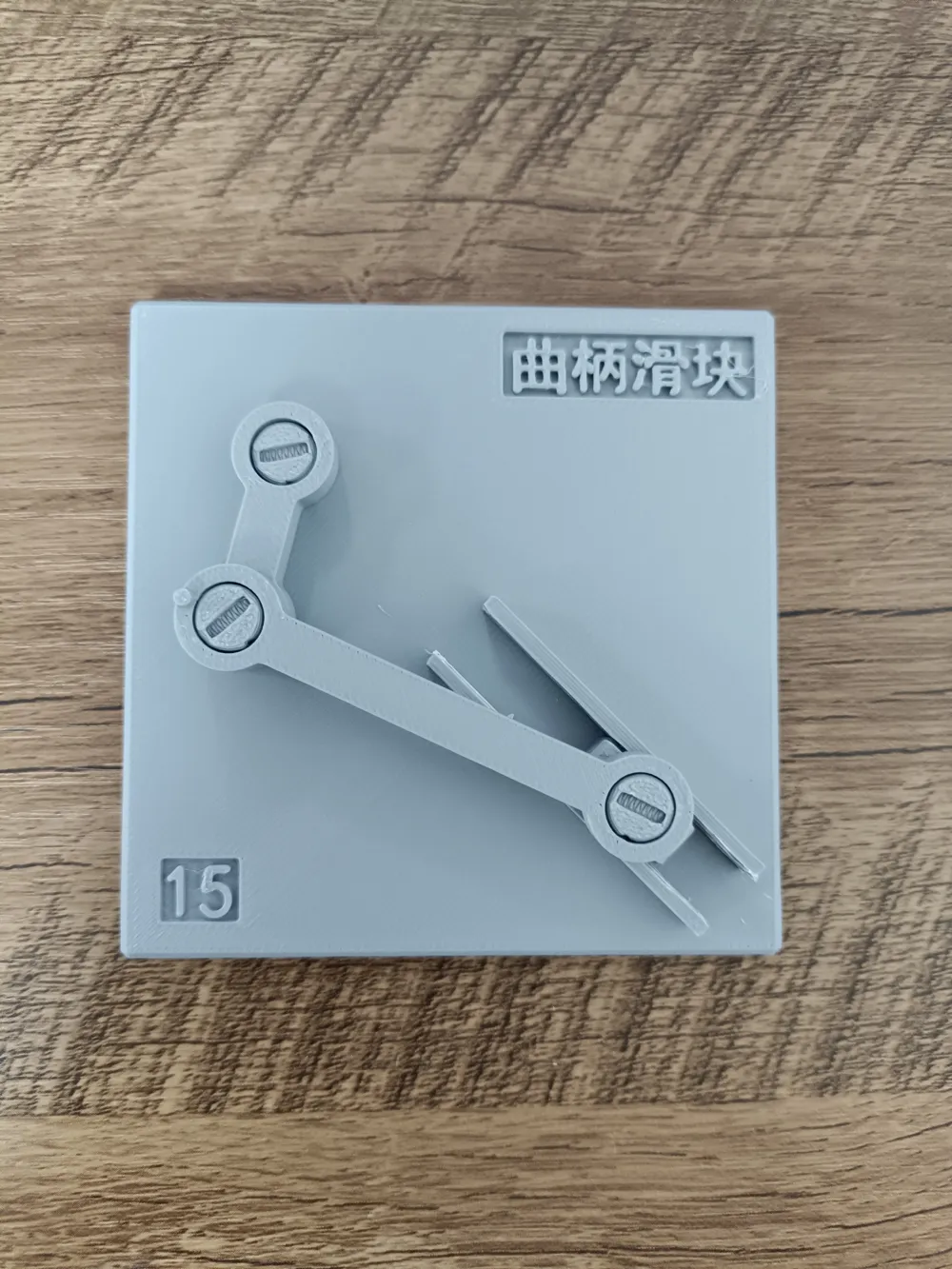

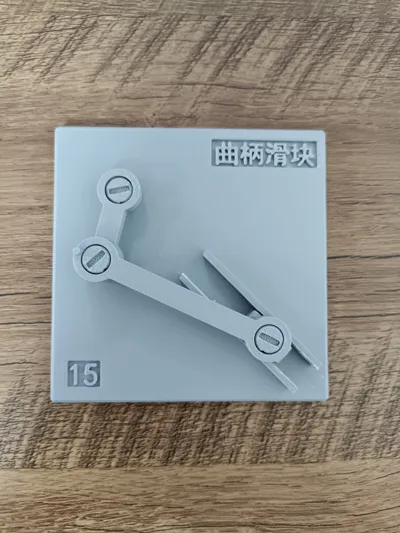

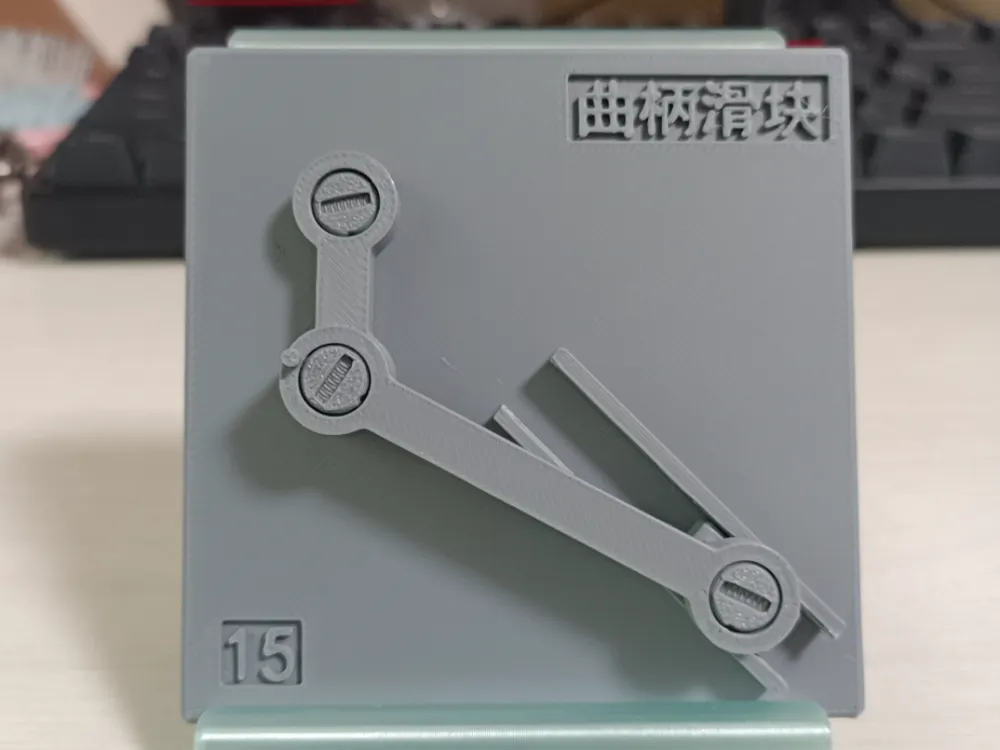

15. Crank-Slider Mechanism
The crank-slider mechanism is a classic example of a structure that converts rotary motion into reciprocating linear motion.
The most quintessential engineering application is the piston.
