BNC Antenna Adapter Mount
Print Profile(2)
Bill of Materials
Description

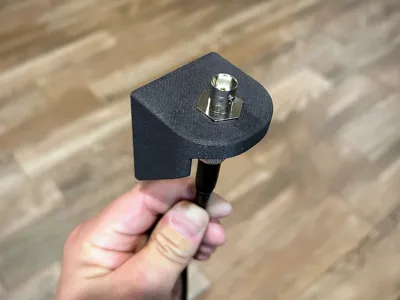

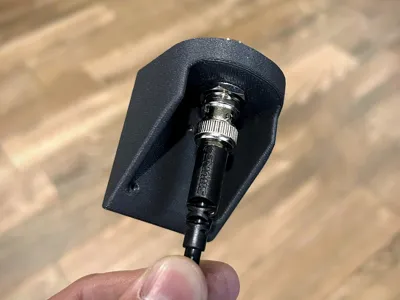

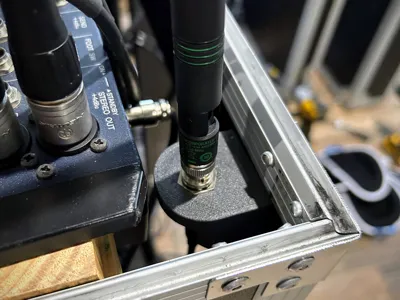

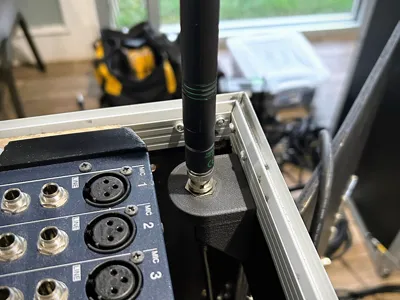

I was installing a new antenna distributor in a mixing/audio rack and the stock location of the BNC bulkhead adapters would put the antennas in a far from ideal position. Mixing with your hands in-between two antennas would be terrible and obstructing the antennas would almost defeat the purpose of the distributor. So I made these mounts to relocate them at the top and rear of the rack (facing the stage)! Works wonderfully and stows away very neatly 👌
These mounts were modeled using adapters from Shure but I'm “shure” they would work with other brands… 🤓
I printed mine in the photos with Bambulab PETG-CF but standard PETG would do just fine in a roadcase like mine. Definitely would not use PLA. The mounts would sag overtime and from the heat.
I hope you find this print useful and please post your makes!
Material: PETG or stronger / more durable material.
Perimeters/Walls: 4 for more strength all-over - especially for the screw holes.
Infill: 15% Cubic
Brim: Not Necessary
