Shock Reservoir Support for Roll Bar Mounting
Print Profile(0)
Description

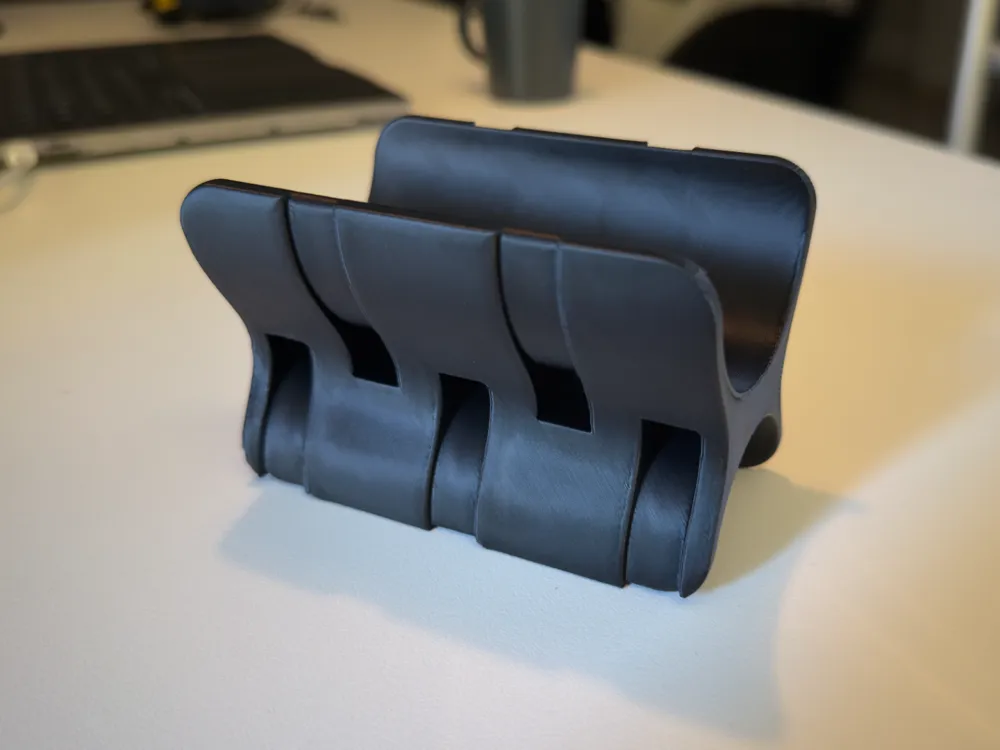

This 3D-printed support bracket is designed to securely mount a single shock absorber reservoir to a 40 mm diameter roll bar. It is optimized for rally and off-road use, ensuring durability and consistent performance under extreme conditions.
Key Specifications:
- Roll Bar Diameter Compatibility: 40 mm
- Reservoir Diameter Compatibility: 52 mm
- Reservoir Length Compatibility: 150 mm
- Material: High-strength ABS plastic
The bracket includes a 2 mm clearance between the mount and the tubes to accommodate adhesive rubber matting, enhancing grip and vibration isolation. Installation is quick and secure using either metal hose clamps or plastic zip ties.
Ideal for rally teams seeking a lightweight, reliable mounting solution for shock reservoirs in demanding environments.
