Boosts help me to make more designs like this. If you enjoy this poster, please consider giving me a comment, like, or boost! :)
“One does not simply walk into Mordor.”
— Boromir, The Fellowship of the Ring

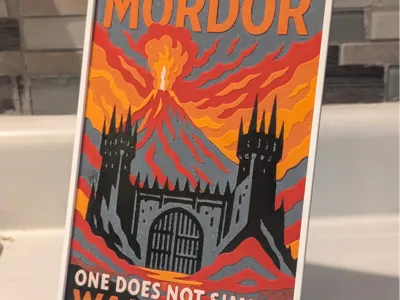

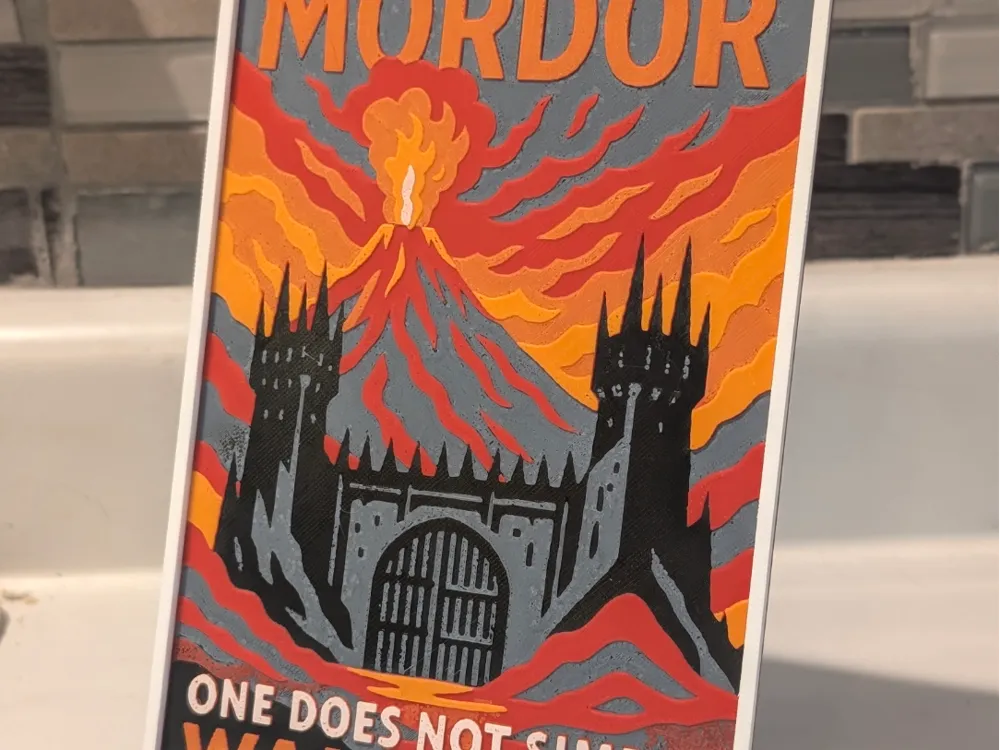

…and the postcard agrees! This travel postcard-style print features the Black Gate of Mordor, entrance to Sauron's realm in The Lord of the Rings, with Mount Doom of course in the distance.
It’s the perfect blend of Tolkien fandom and tongue-in-cheek humor, great for anyone who knows that some vacations are better left unexplored.
This is a five color design, so if using the AMS you may need to either have multiple units, or alternatively you can map the first color to print (black) to the same slot as one of the later colors (like white) then manually swap the spools while the other colors are printing. I used blue gray filament for the shading, however as it only prints in a single layer, any darker gray filament can be used for the same effect.
Each print is 133.33x200mm and requires only four colors.

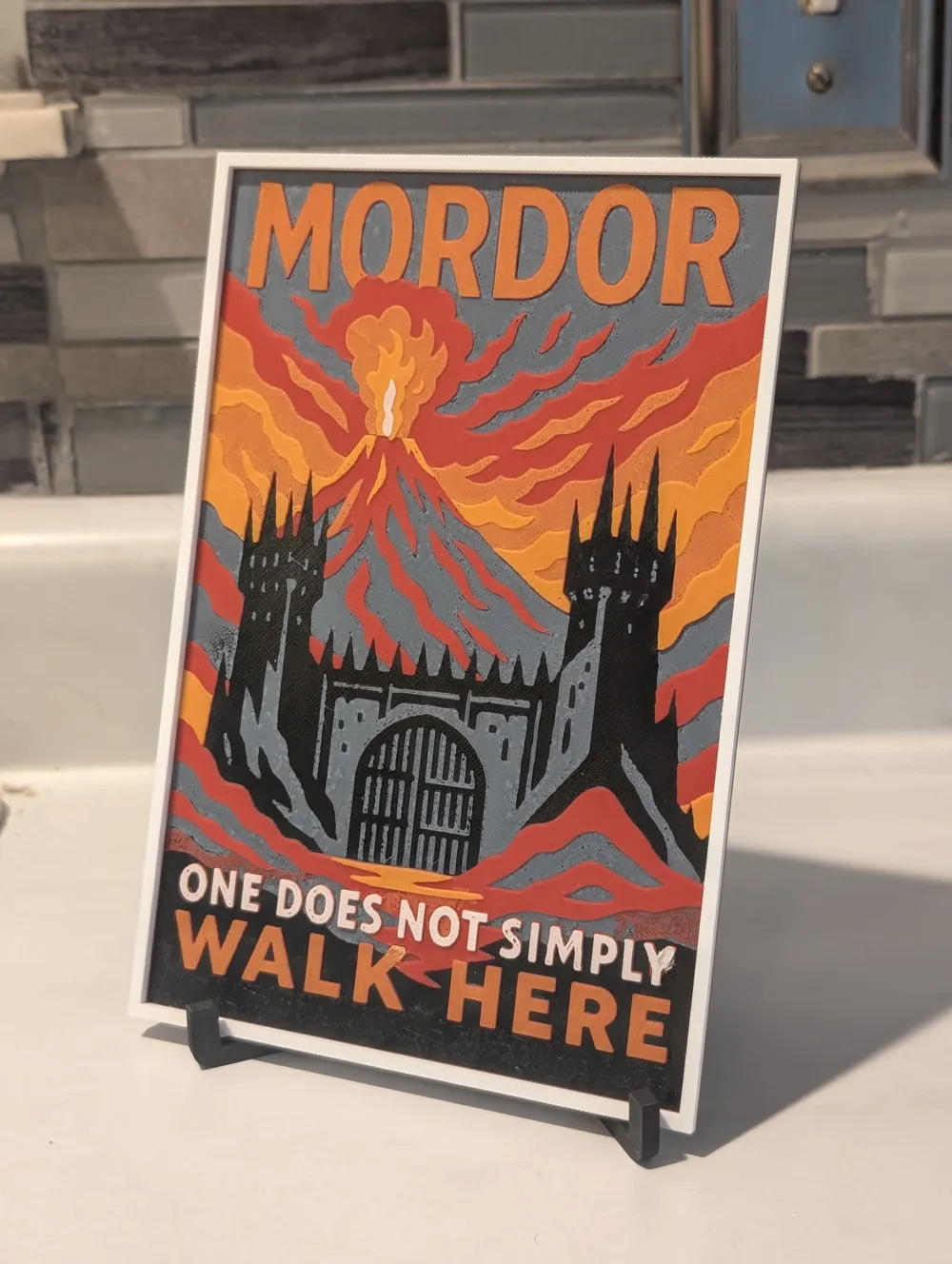

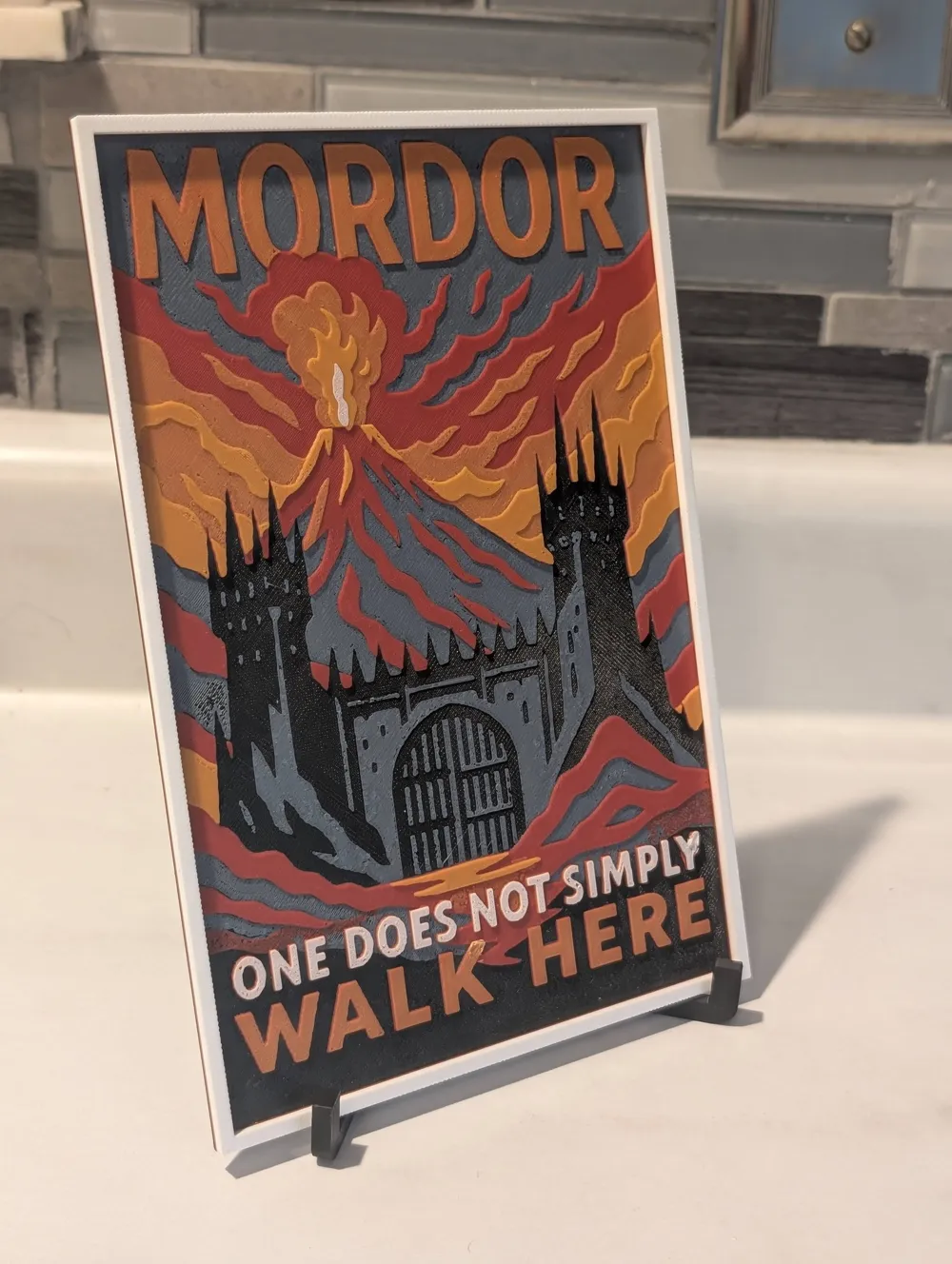

These prints display wonderfully with a 3d printed HueForge stand, such as the middle size shown here (as shown in the print photos):
https://makerworld.com/en/models/153050-3-collapsable-stand-sizes-hueforge-etc?from=search#profileId-167215
Project: Mordor5Color.hfp
Print at 100% infill with a layer height of 0.08mm with a base layer of 0.16mm
The Model is 133.33x200mm in size
You may print at higher layer heights below the Base Thickness of 0.48mm
The Max allowed Thickness is 2.24mm and the Actual Thickness is 1.91998mm
Filaments Used:
- PLA BambuLab Basic Black Transmission Distance: 0.6
- PLA BambuLab Basic Blue Gray Transmission Distance: 3
- PLA BambuLab Basic Red Transmission Distance: 4
- PLA BambuLab Basic Pumpkin Orange Transmission Distance: 5.5
- PLA BambuLab Basic Jade White Transmission Distance: 5
This print uses 5 unique filaments
Swap Instructions:
- Start with BambuLab Basic Black
- At layer #9 (0.8mm) swap to BambuLab Basic Blue Gray
- At layer #10 (0.88mm) swap to BambuLab Basic Red
- At layer #14 (1.2mm) swap to BambuLab Basic Pumpkin Orange
- At layer #19 (1.6mm) swap to BambuLab Basic Jade White for the rest
