Roborock Water Tank Funnel 2.6g
Print Profile(1)
Description
Boost Me (for free)
Did it stop the spills? Help me make more solutions!

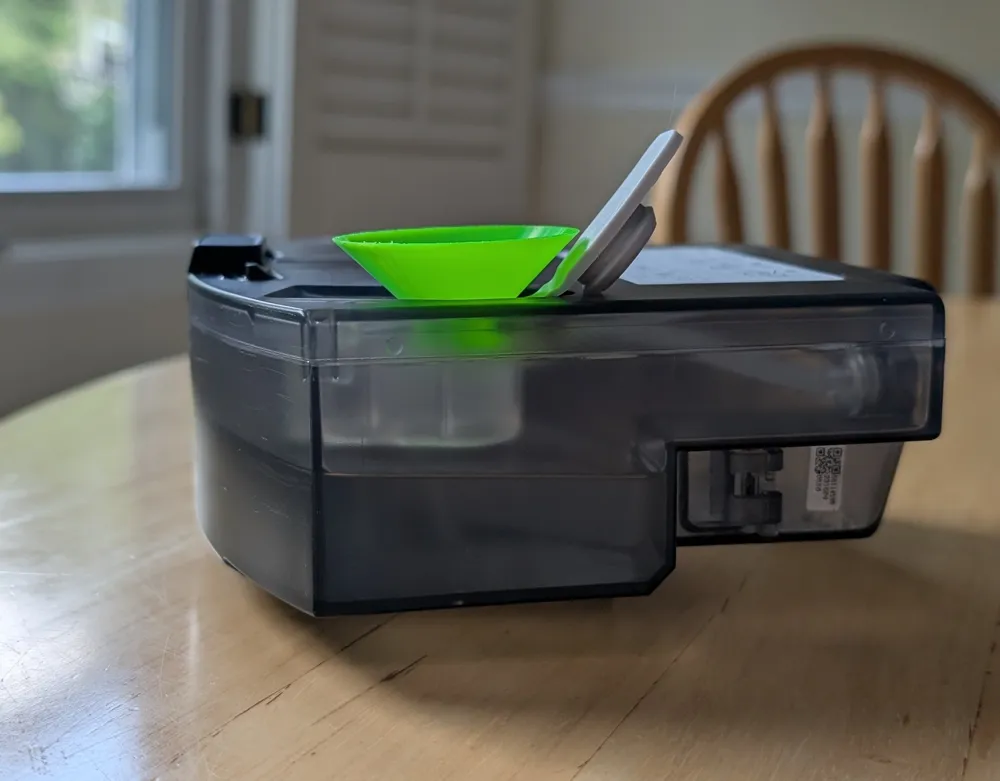

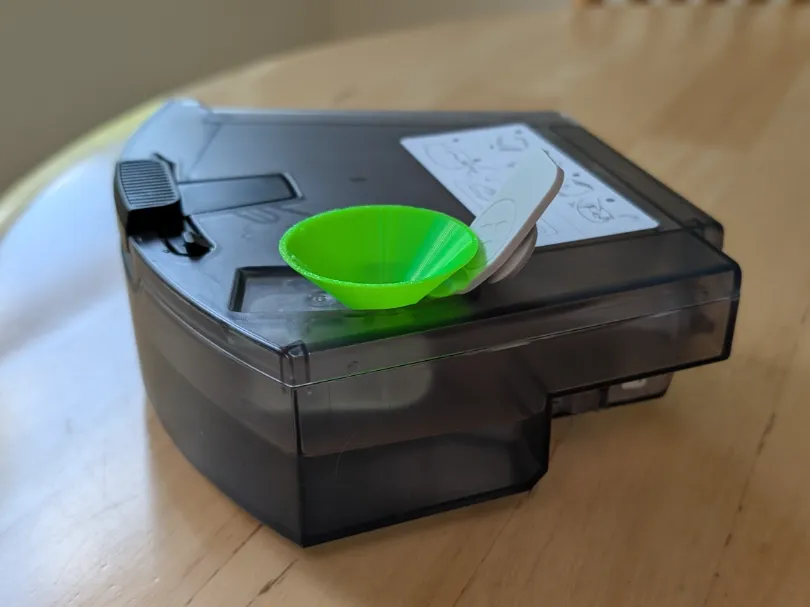

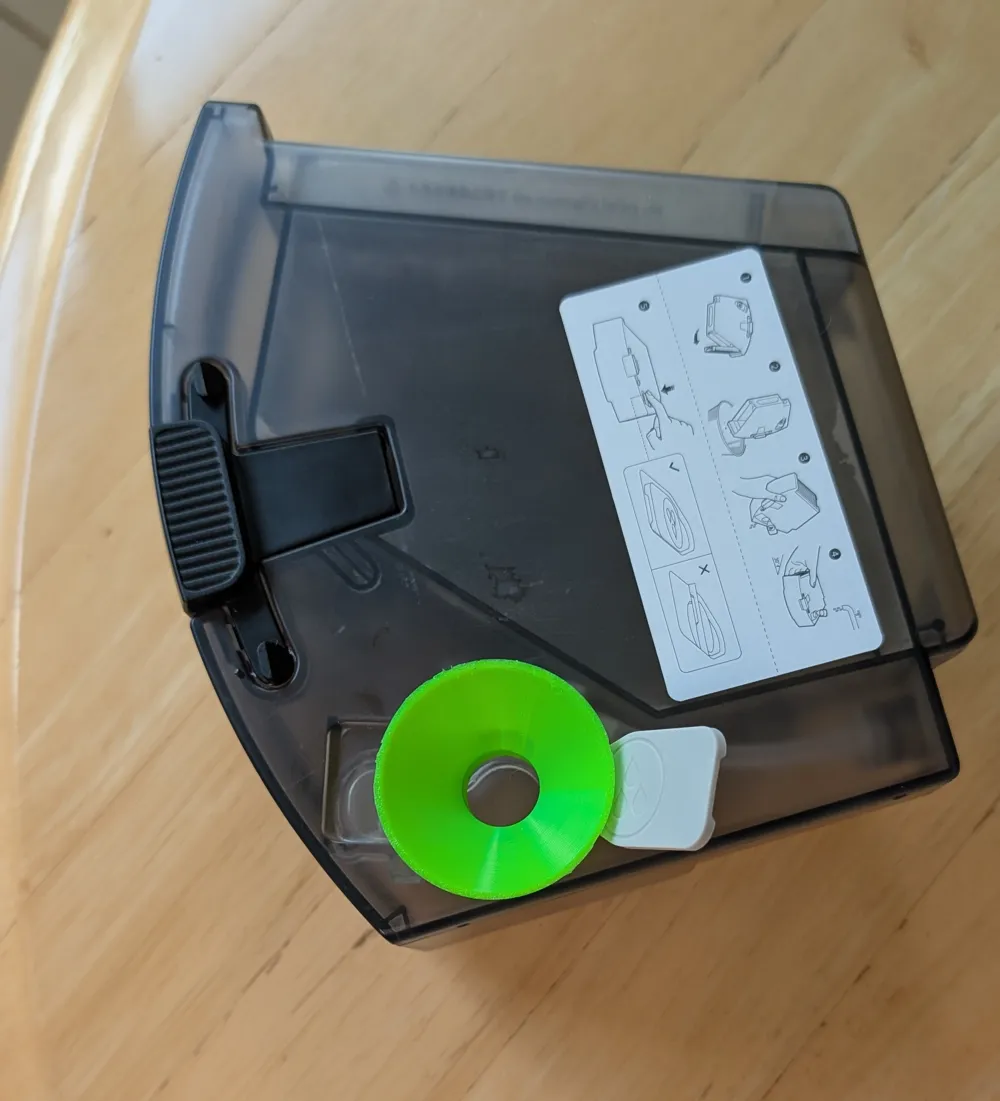

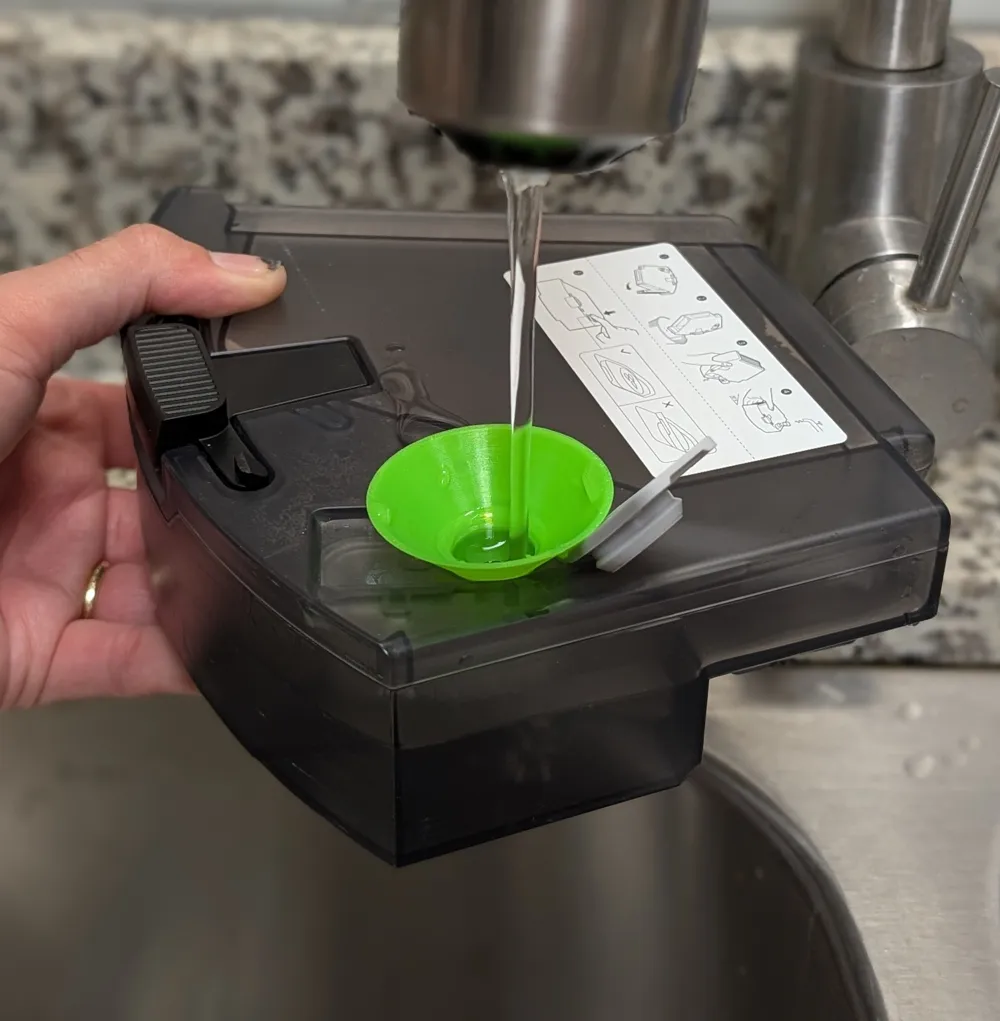

The water tank opening on the Roborock water tank is just a hole in the tank, always kept having issues filling up the tank without making a mess. Made a small funnel that seats perfectly into the water tank opening for easier filling!
- Angle of the funnel is designed to not interfere with the rubber cover when the cover is rotated 180 degrees.
- Funnel neck is sized to sit securly in the opening to prevent wobbling.
- A simple, lightweight, low profile and compact design using only 2.6g of filament.
This was tested on the Roborock Q8 Max, but should fit on other models such as the S5-7 and Q5-8 as well. If not, let know!

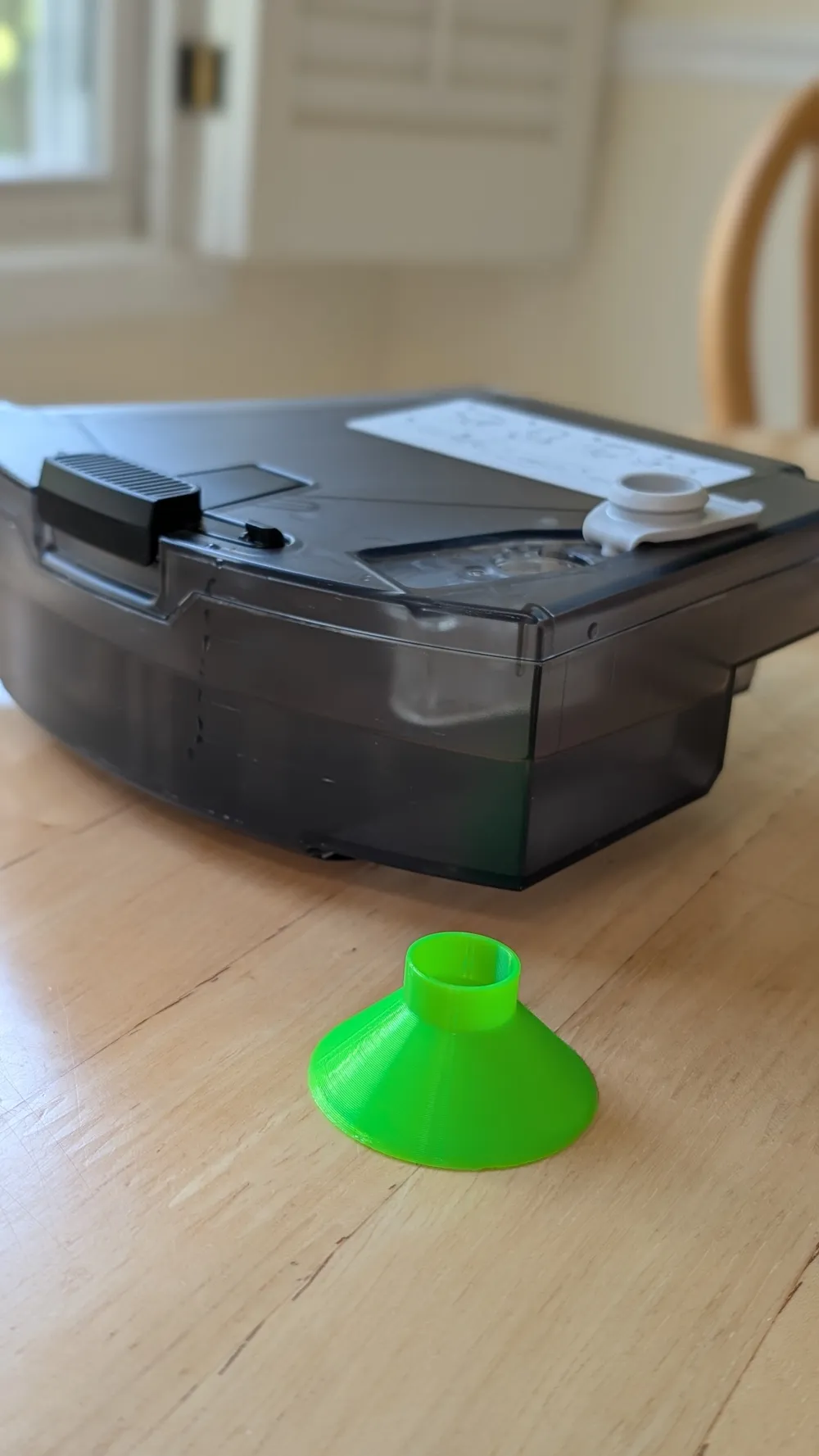

Prints upside down with the wide end of the funnel at the bottom allowing for better adhesion and no need for supports. Due to its size, should not need a brim. I printed a couple without a brim without issues.
Printed in PETG
