Magnetic Window Screen Vent Kit

Disclaimer: Please ensure that there is no risk of high-altitude falling objects or other hazards; this model is not responsible for such issues~

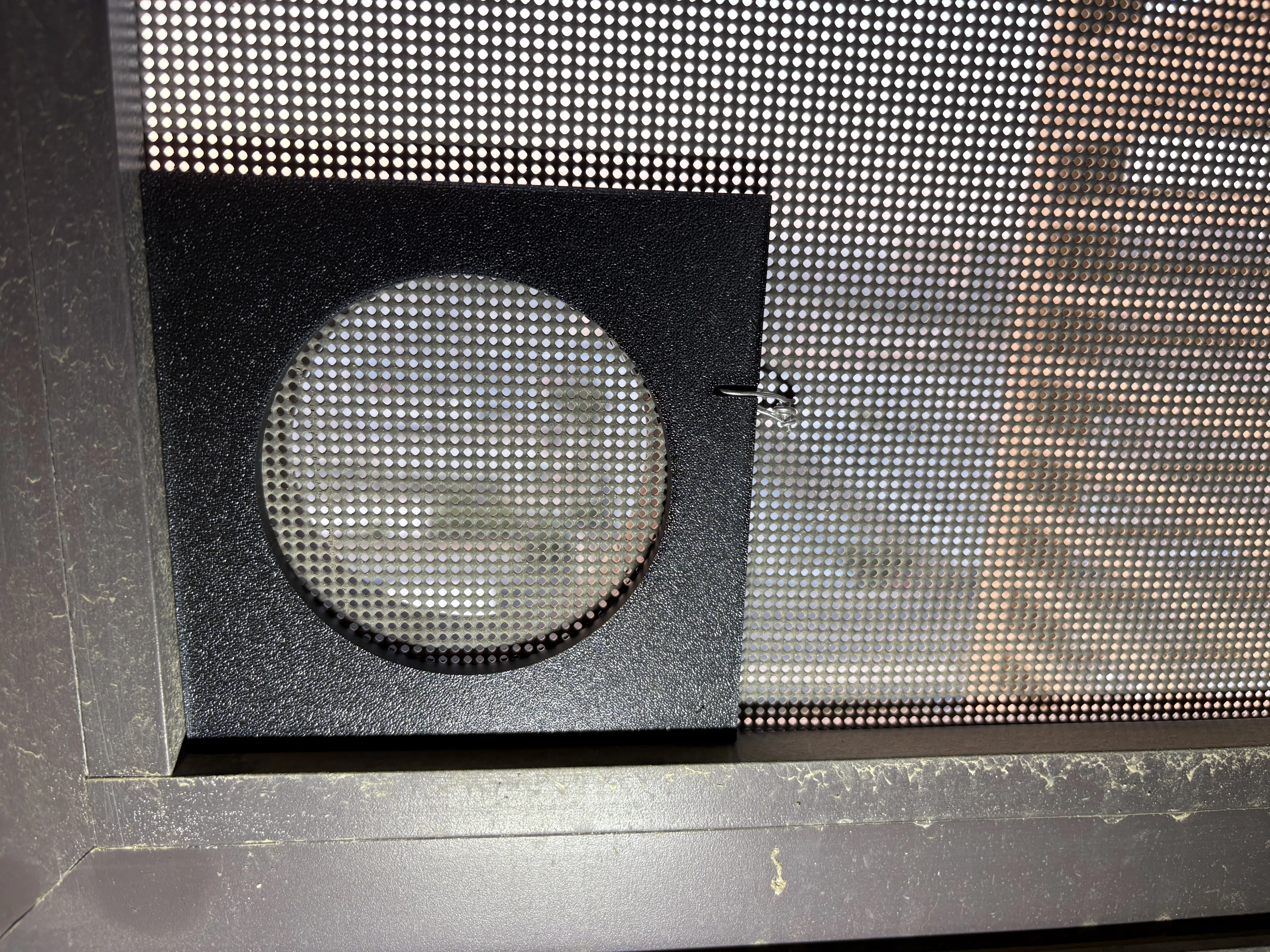

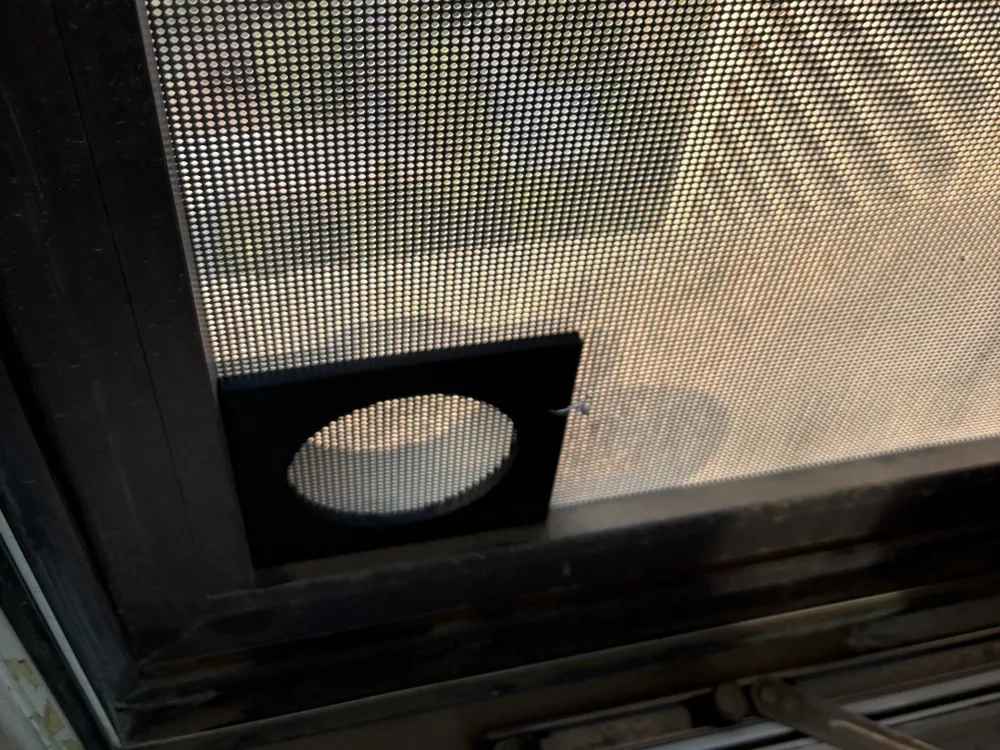

Magnetic screen mesh kit, one outer screen mesh piece, two inner screen mesh pieces, with rectangular vent (A) | Screen mesh | Flat shape | Installation sequence of the one with rectangular vent (B)

Materials:

24 x 10mm diameter strong magnets (can be reduced)

80mm inner diameter vent pipe (clamps required)

Adhesive (for attaching magnets)

Use 1mm wire to reinforce the outer and inner parts of the screen mesh to prevent high-altitude falling objects (pre-drilled holes and wire routing provided)

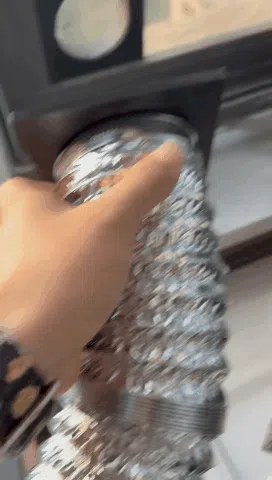

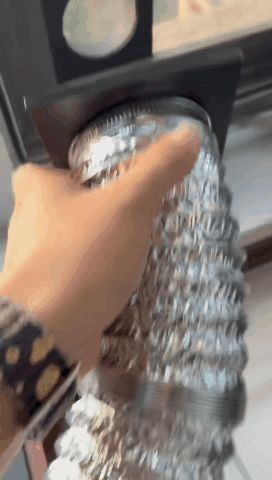

Note the magnetic polarity: the flat magnets face the screen mesh, attracting the screen mesh vent (A), and repelling the rectangular vent (B); the rectangular vent (B) connects to the vent pipe

Can be combined with my other derivative model (Desktop Polishing Vacuum Cleaner_1.8 Rear Cover Modification) to form an exhaust system.
