poop bin belt conveyor for bambulab p1/x1/p2
Print Profile(7)
Bill of Materials
Description
updated version wifi conveyor with touch screen : https://makerworld.com/cs/models/2594649-wifi-smart-poop-conveyor-for-bambu-lab-p1s-p2s#profileId-2863193

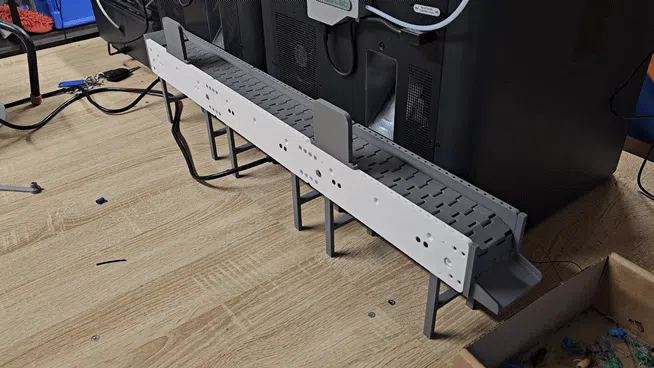

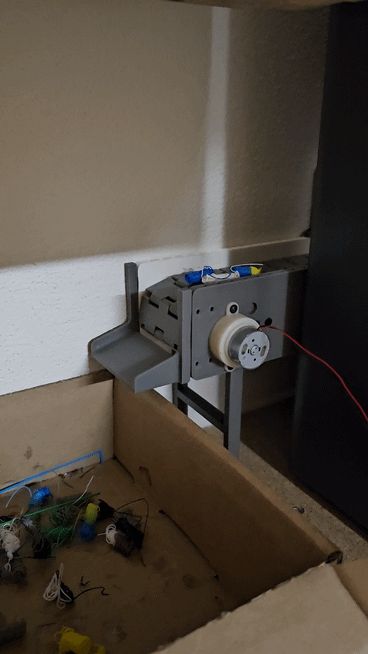

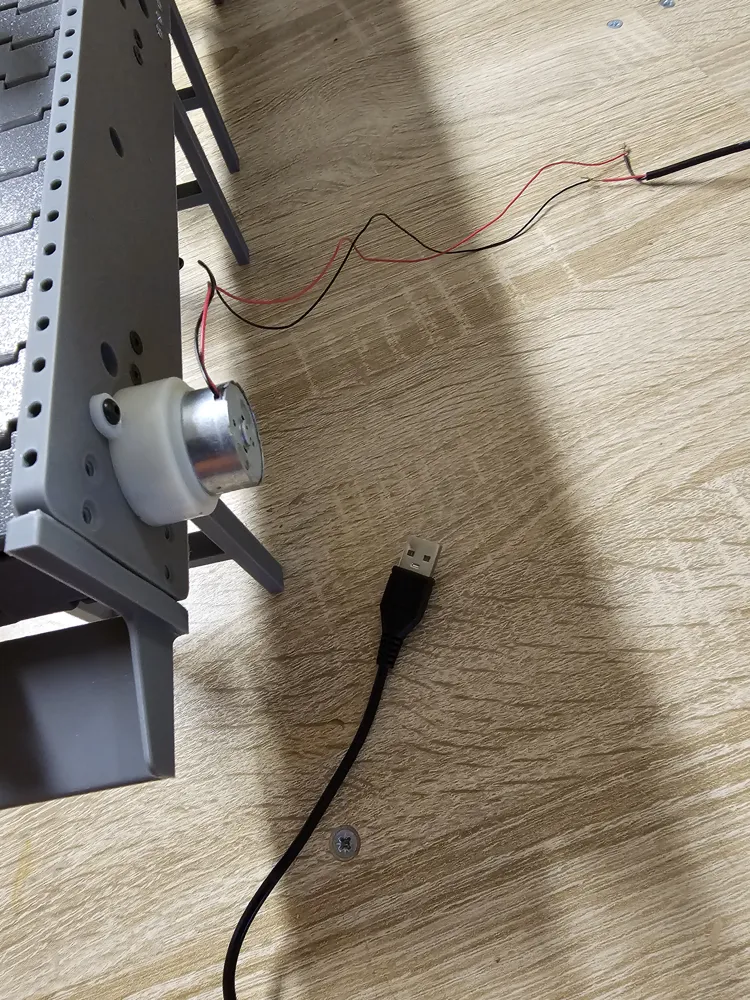

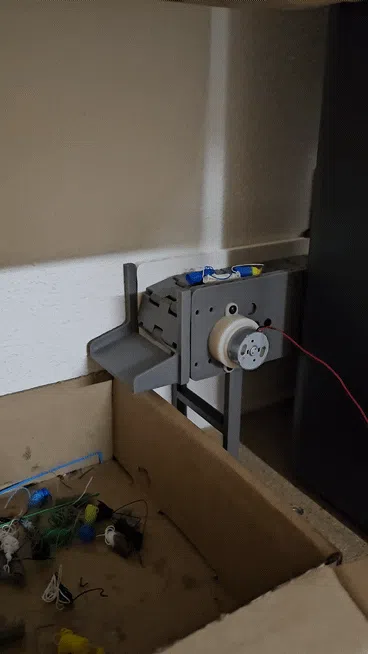

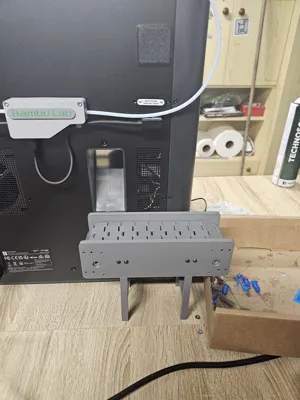

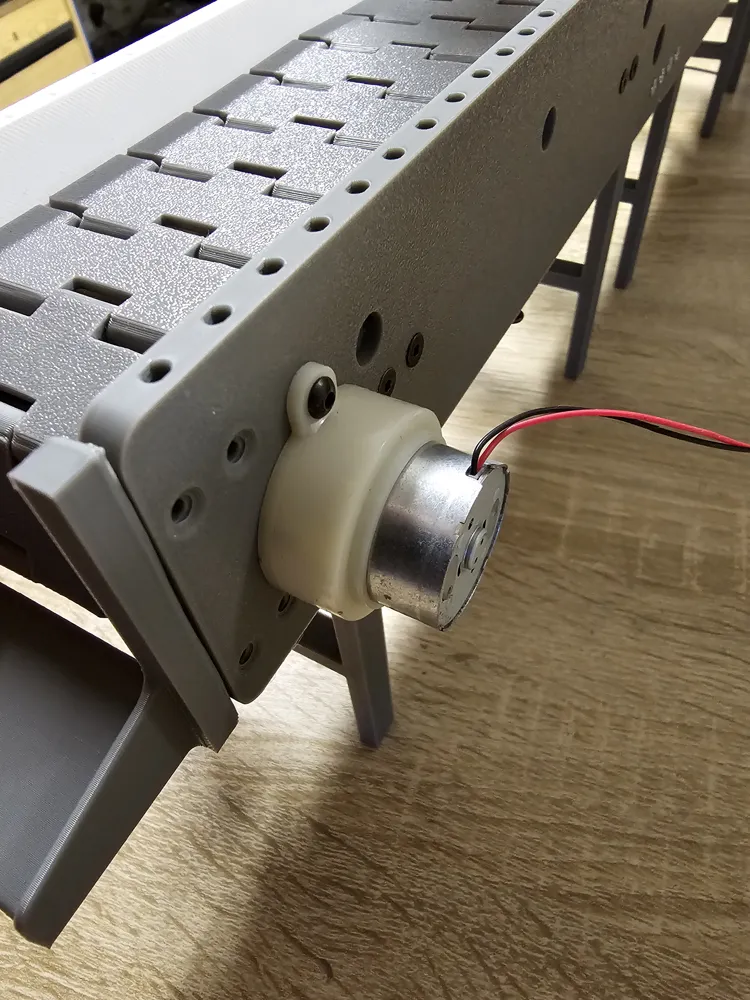

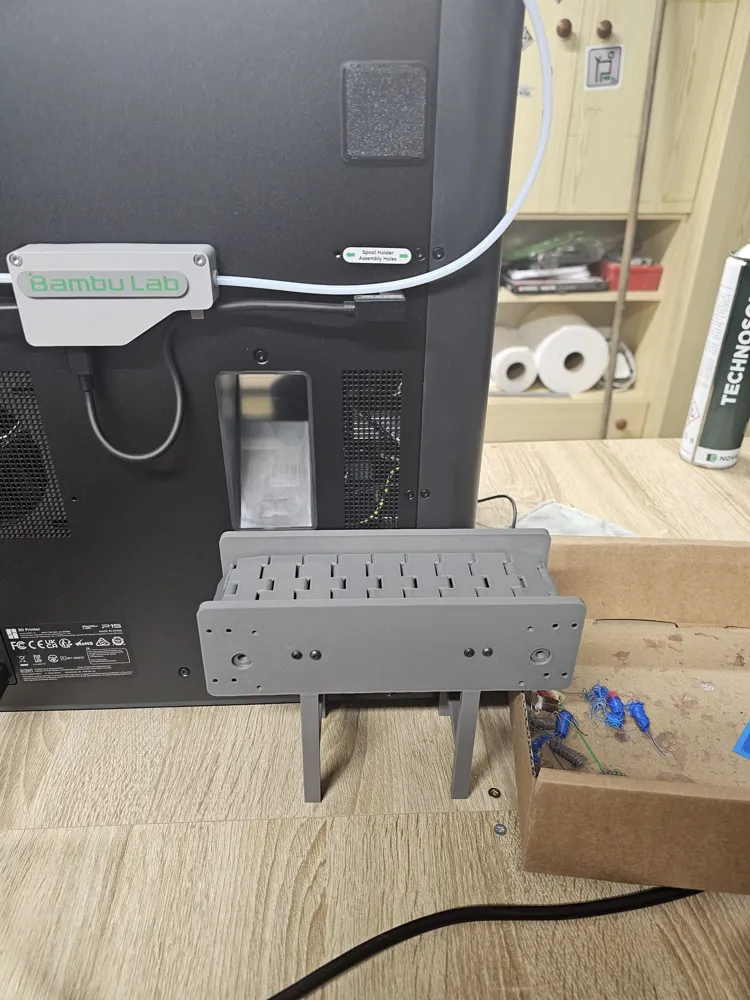

Due to lack of space, I was forced to create a belt conveyor to remove poop bins from printers. The conveyor is driven by a 5V motor powered by USB. You can connect the USB either to a smart socket, a phone power supply or directly to the USB socket in the printer.

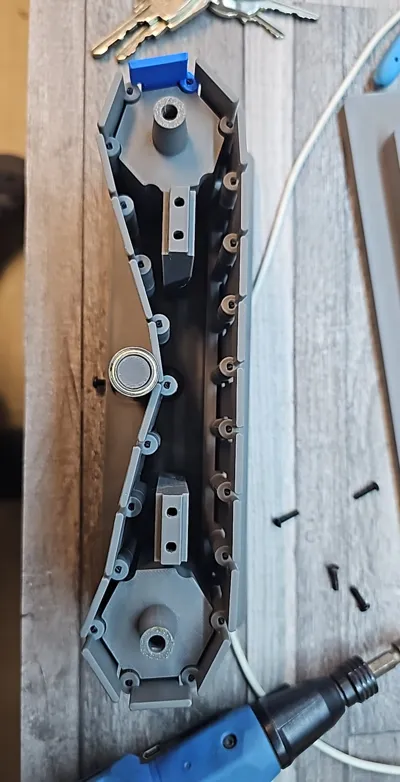

The moving parts of the conveyor are fitted with 15x10x4 bearings for less resistance and wear. The body is connected with M3x4mm and M3x16mm countersunk head screws.

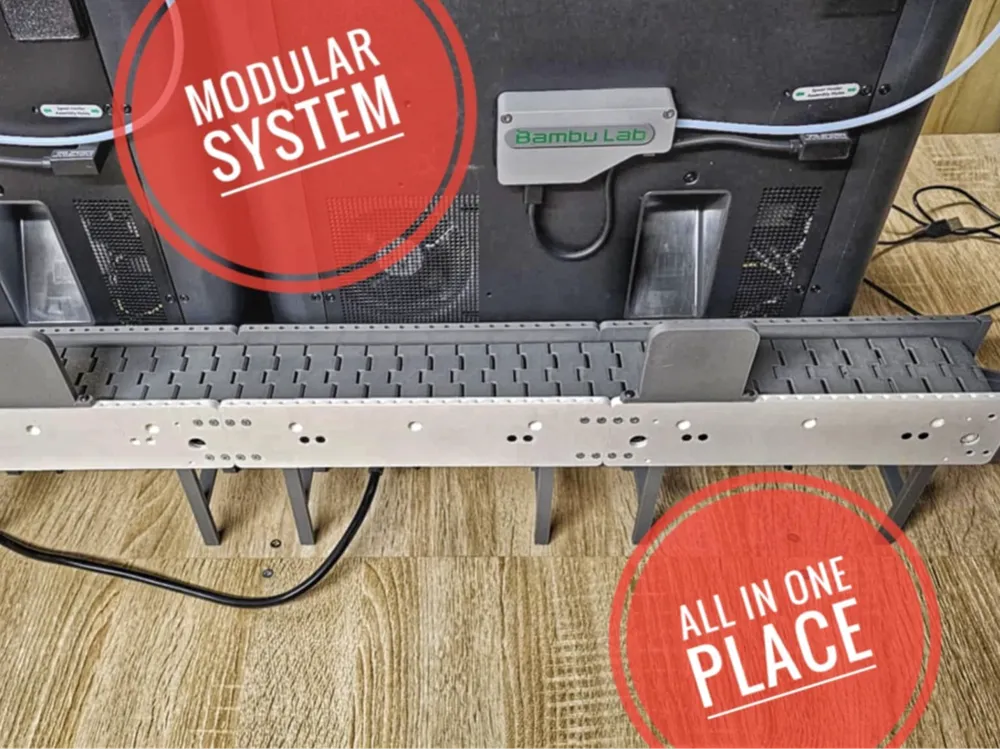

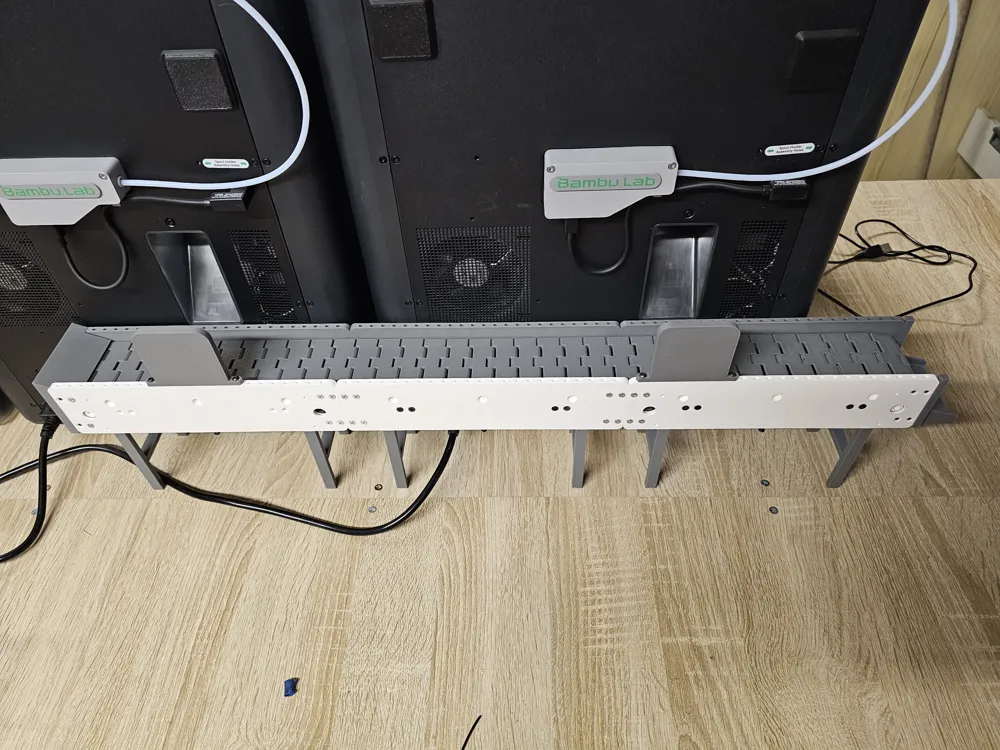

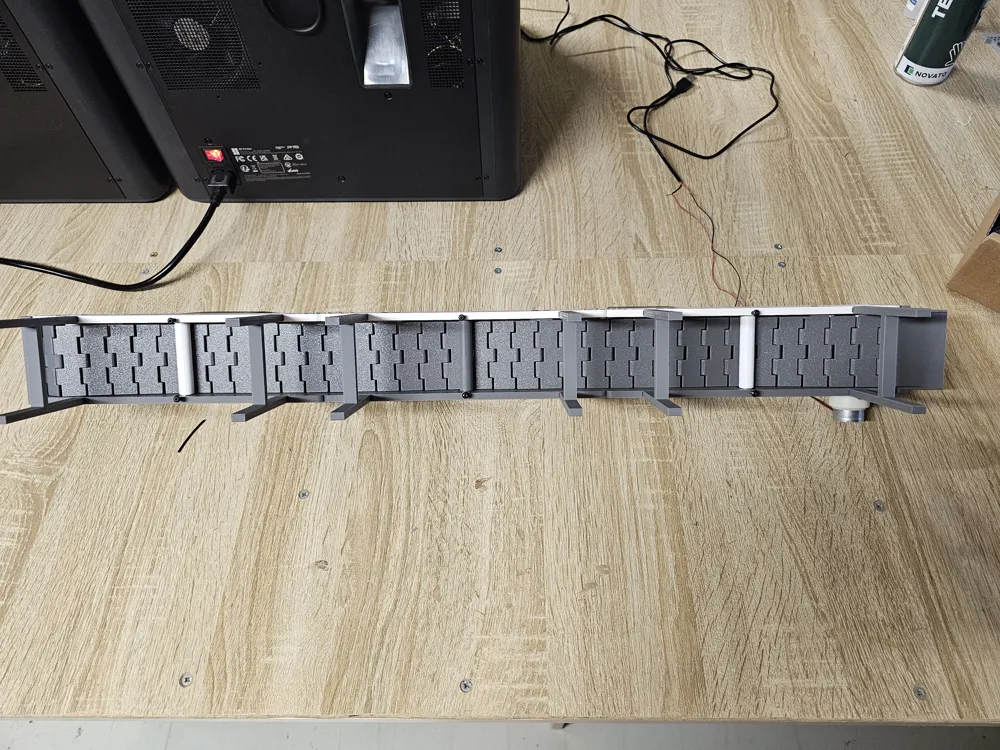

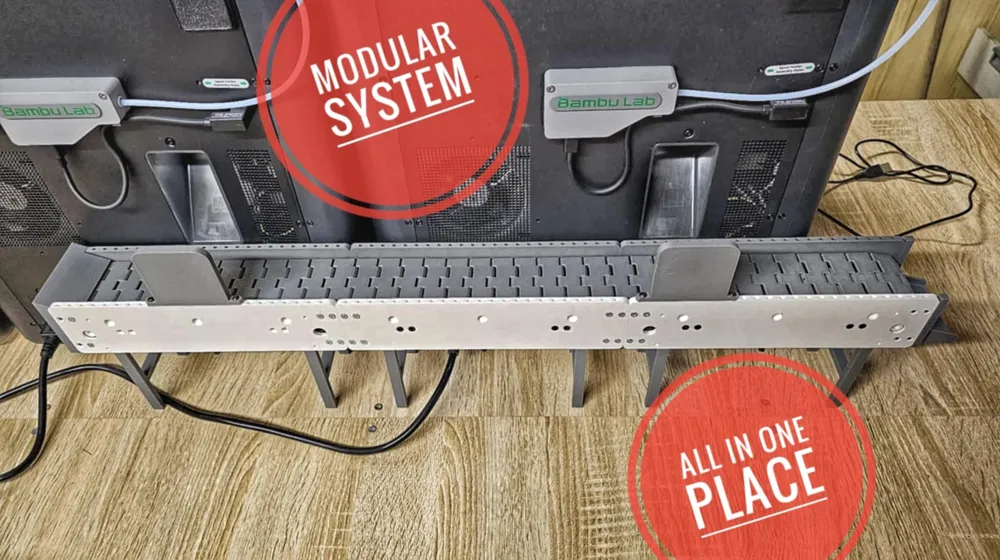

The belt conveyor is modular, the length of one module is 24 cm and it is up to you how many you create. For my printer, 3 modules and 73 belt segments were needed. The segments are connected by a piece of filament.
Boost Me (for free)
if you like my model boost me
link to sensor control: https://makerworld.com/en/models/1663547-coveyor-belt-with-sensor#profileId-1760207
In the near future, I want to try to attach sensors to the conveyor for automatic start.
If anyone needs any modifications, please let me know, I will be happy to help.
link to used parts:
motor: https://a.aliexpress.com/_EJex4Yw
