Universal Item Rack - Make your Customizable Rack
Print Profile(1)
Description
Boost Me (for free)
Like this customizable design? Boost this design to show your appreciation and support

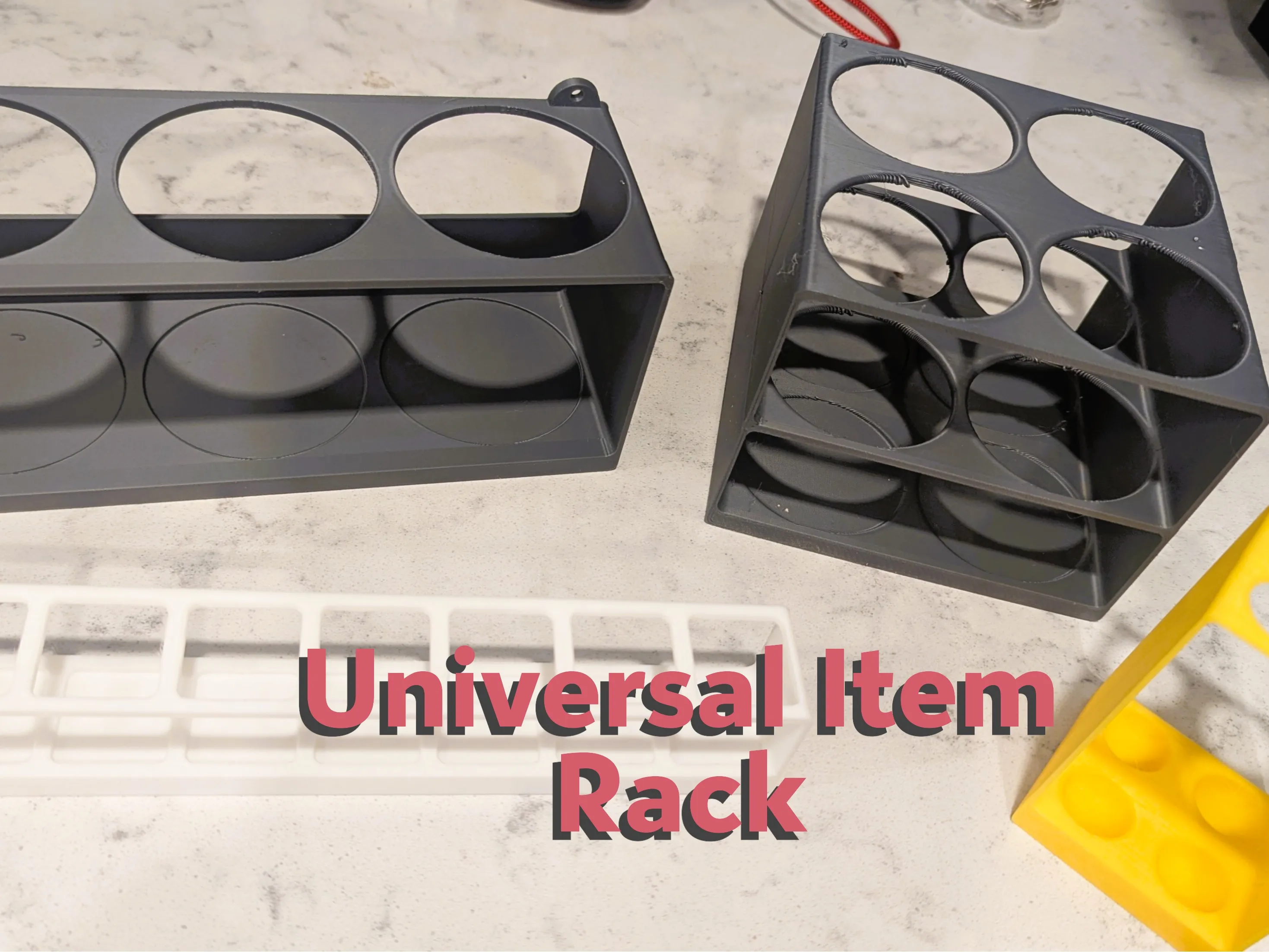

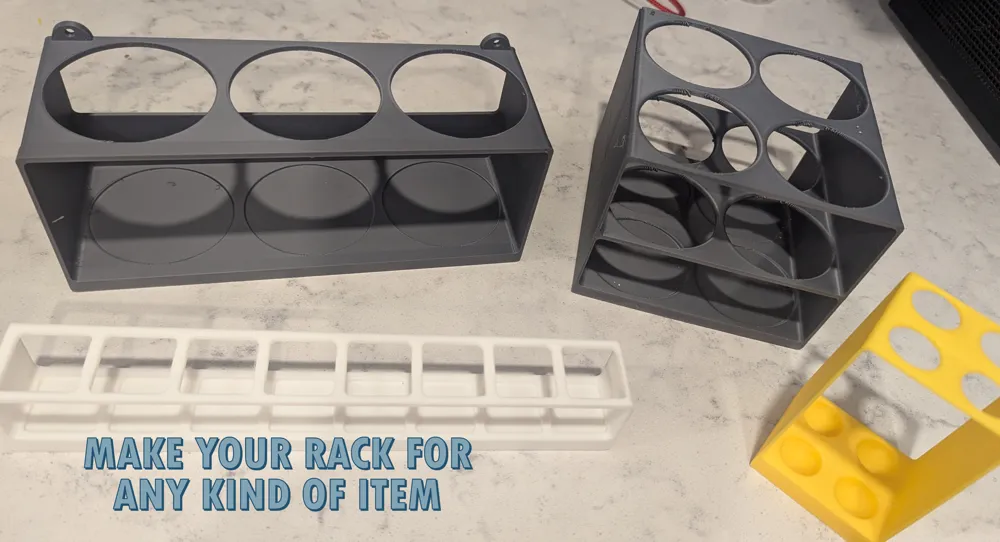

Universal Item Rack - Fully Customizable
The universal Item Rack is a multi-purpose rack/holder for a wide range of different items. With the provided customizer tool, you can specify to hold things as small as minature paint bottles to as wide a spray cans (or larger!). You can even choose how many rows and items per row you can specify your rack to be. The power of a customizable rack is you can make it fit exactly to your item and your space you want to put it in. No more compromises in off-the-shelf racks.
Sample Use-Cases
Spice Rack

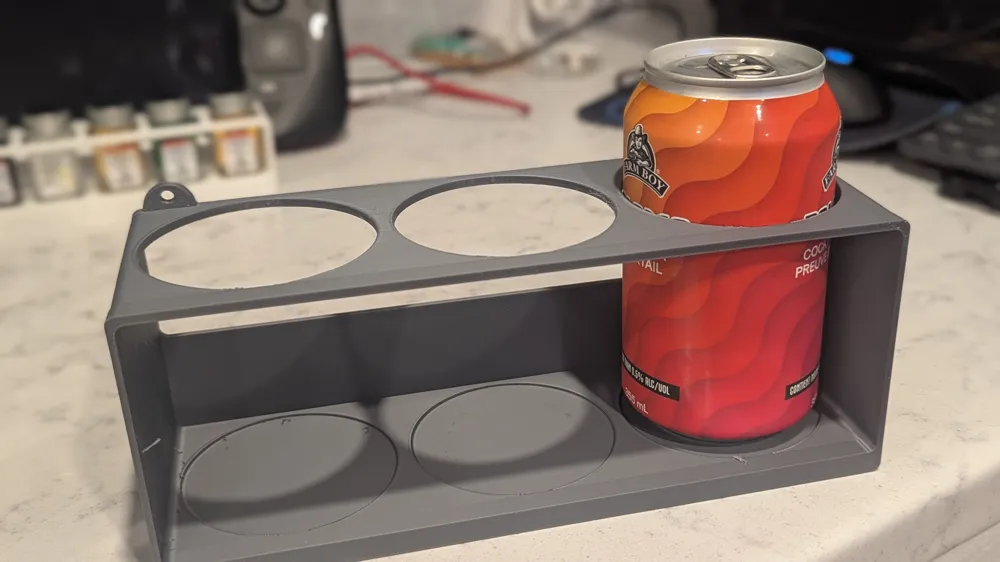

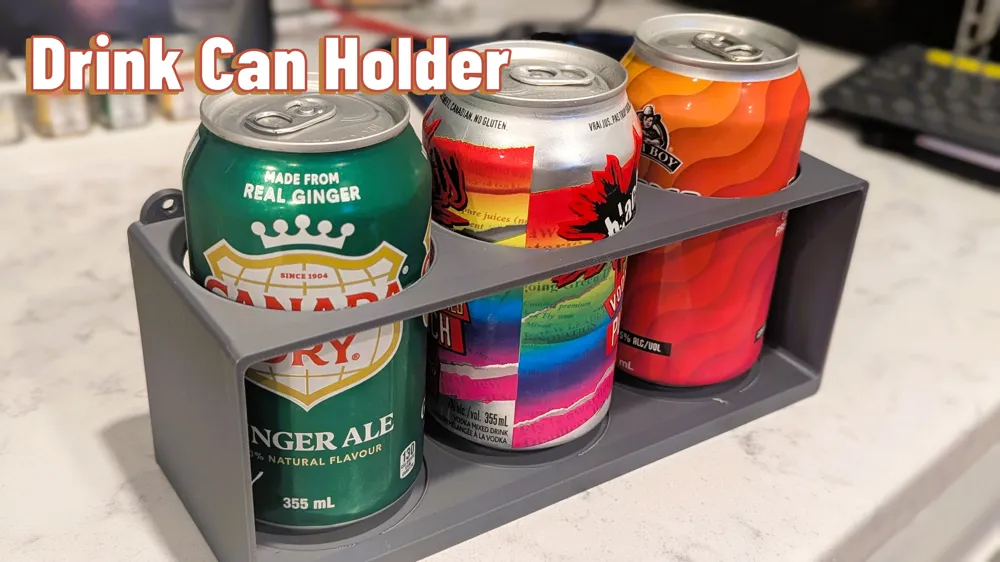

Beer Can Holder for Fridge

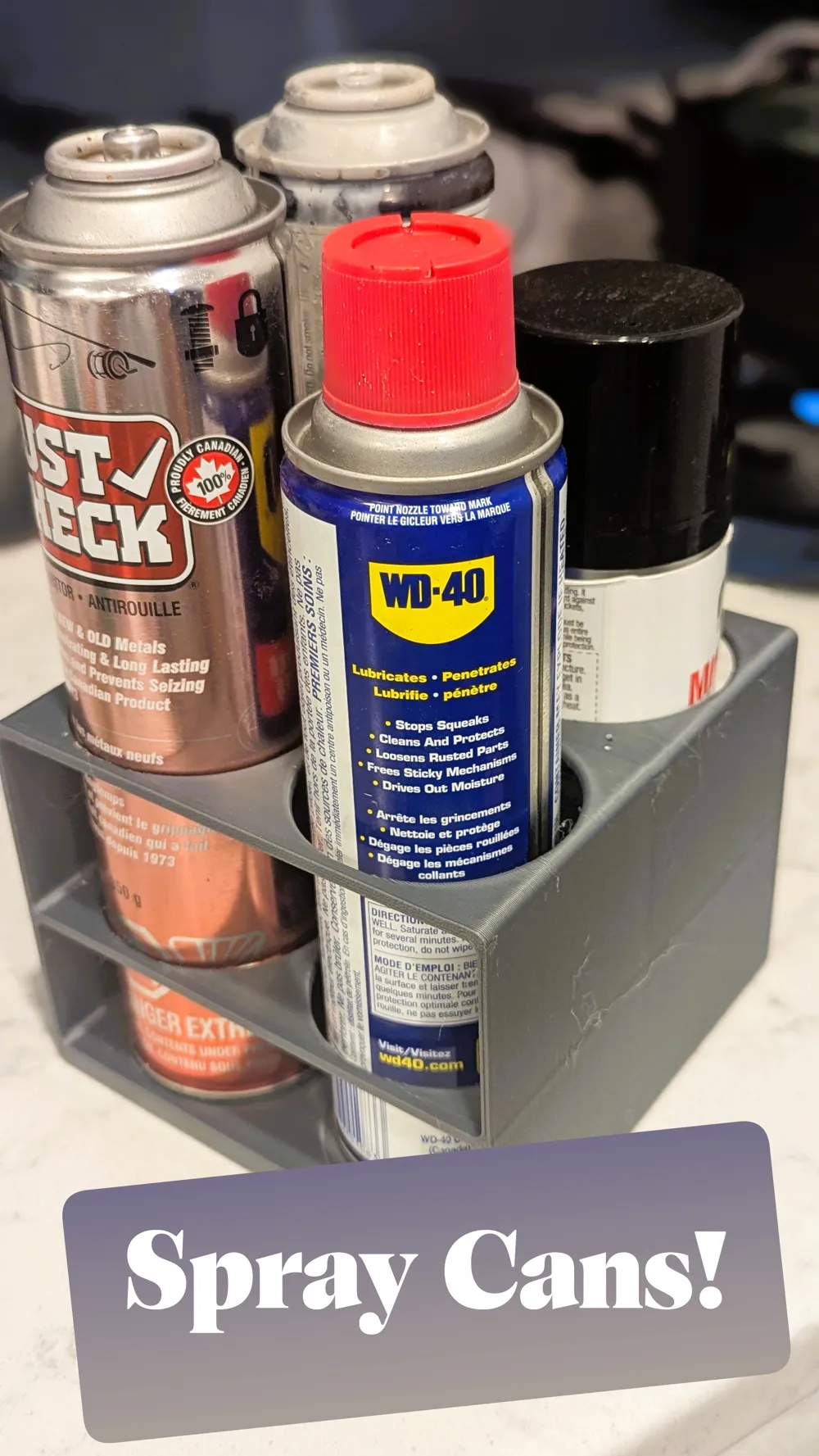

Wall-Mounted Spray Can Holder

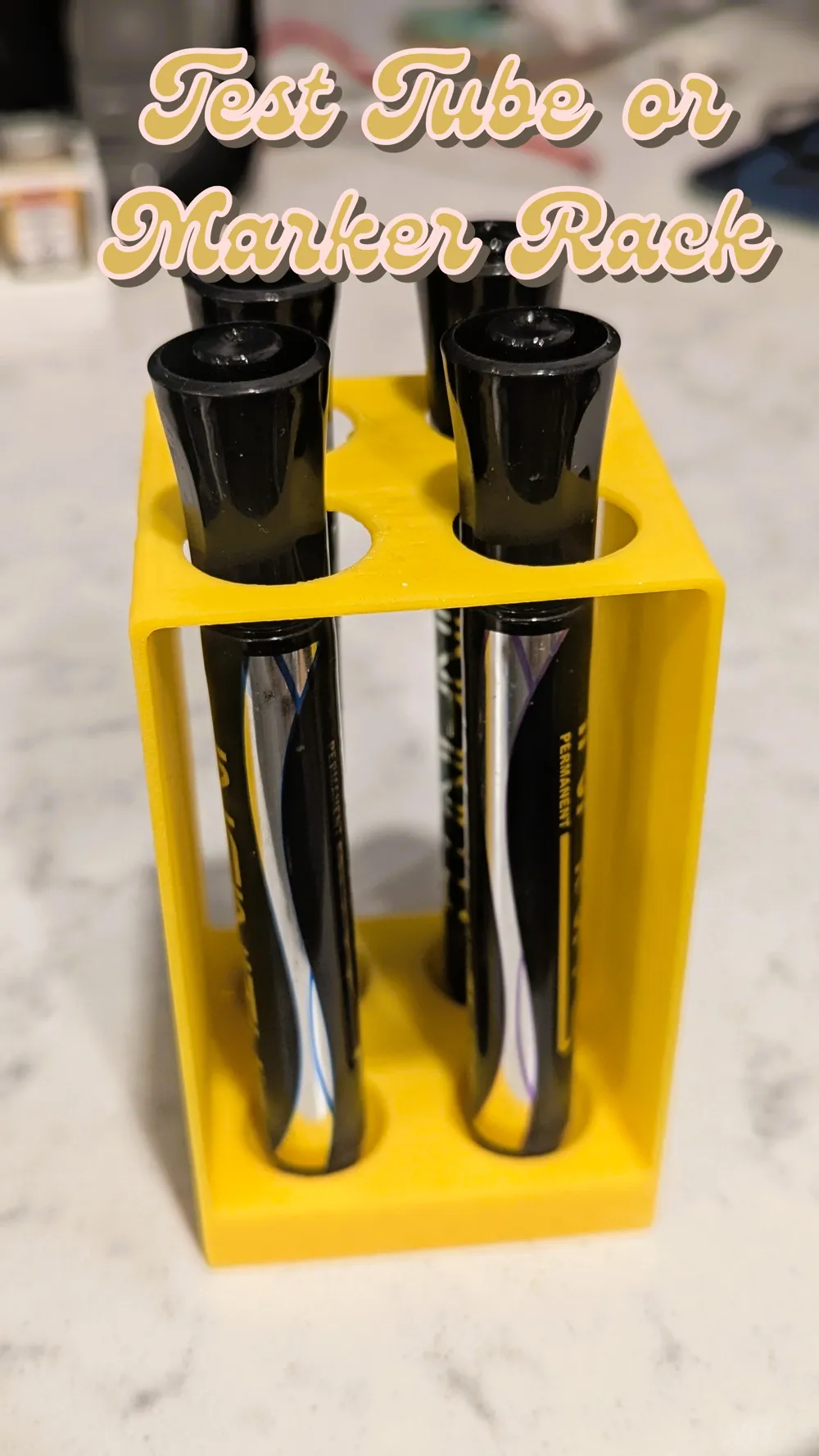

Test Tube Rack

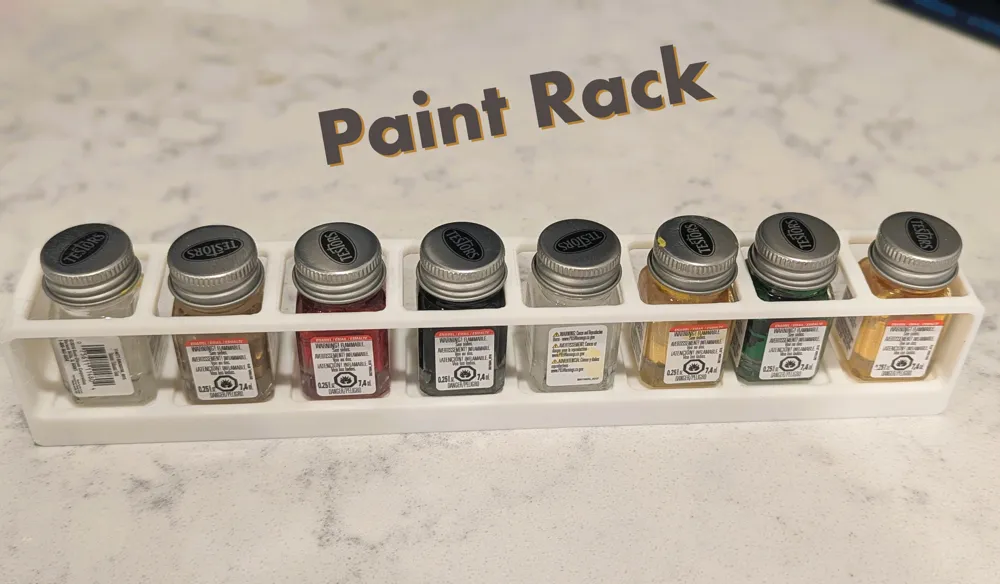

Miniature Paint Rack
Marker Rack
…. and many more!
Features
Circular or Square rack holes
Adjustable Item Diameter/Width of rack openings
Changeable Items per Rack and Rack Rows (limited only by printer plate size)
Adjustable Height
Optional Back panel (partial and half height)
Optional Middle rack for more stabilty
Optional screw holes (bottom and top) for wall mounting
How to Make Your Own Rack
The default print profile includes some sample items you can print without using the customizer. But the real power is in using the customizer to make your own rack exactly to what you need! Press the customize button above to get started

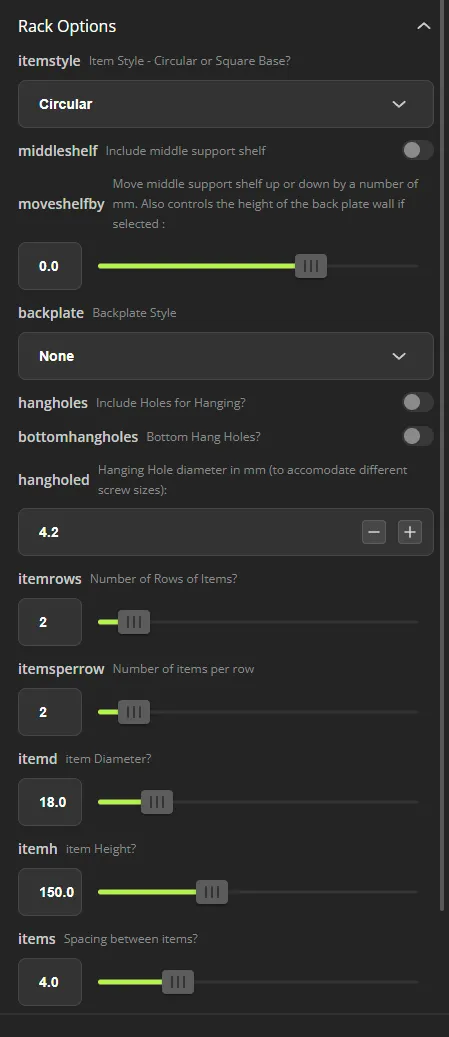

Customizer Parameters
Printing Tips
Most racks can be printed without using supports so long as it resting on it's side.
For larger Racks, 0.6mm Nozzles work well to print quicker
Large square hole racks will require supports but Bridging possible on smaller ones
Print standing up if you want to leverage your printers vertical height for larger racks (use supports)
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
