This coupling is NOT compatible with the Gardena system !
A GARDENA-system compatible version can be found at the following link:

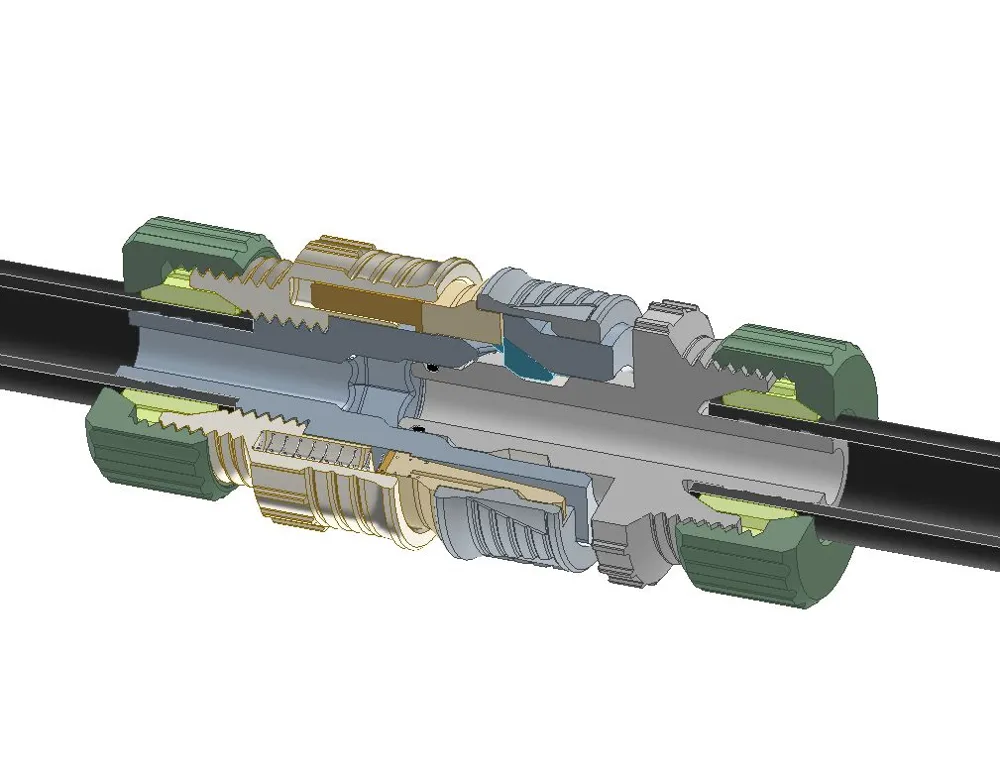

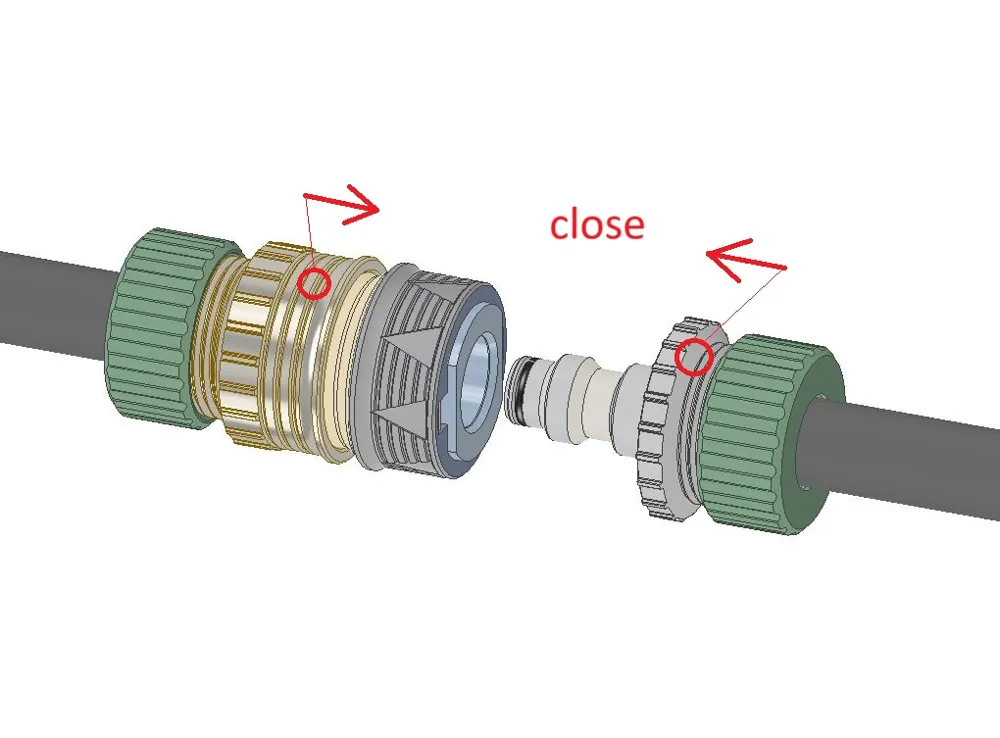

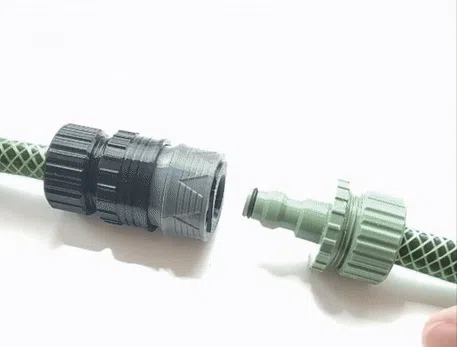

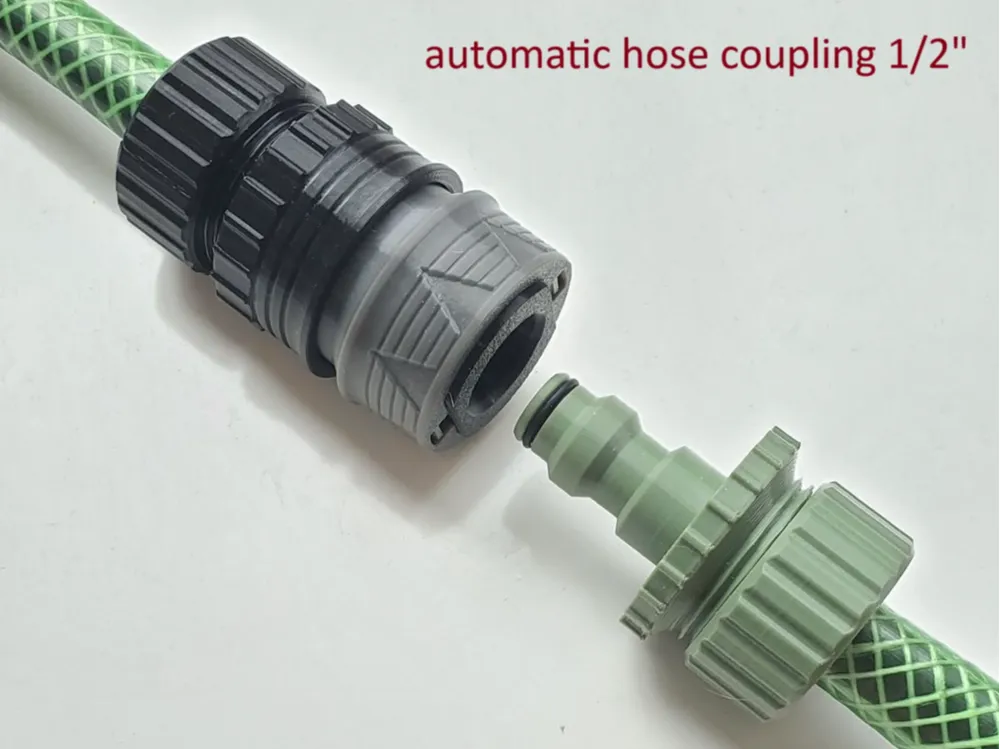

This quick-coupling automatically locks when the two coupling parts are pushed together,
and automatically separates them again by pulling them apart

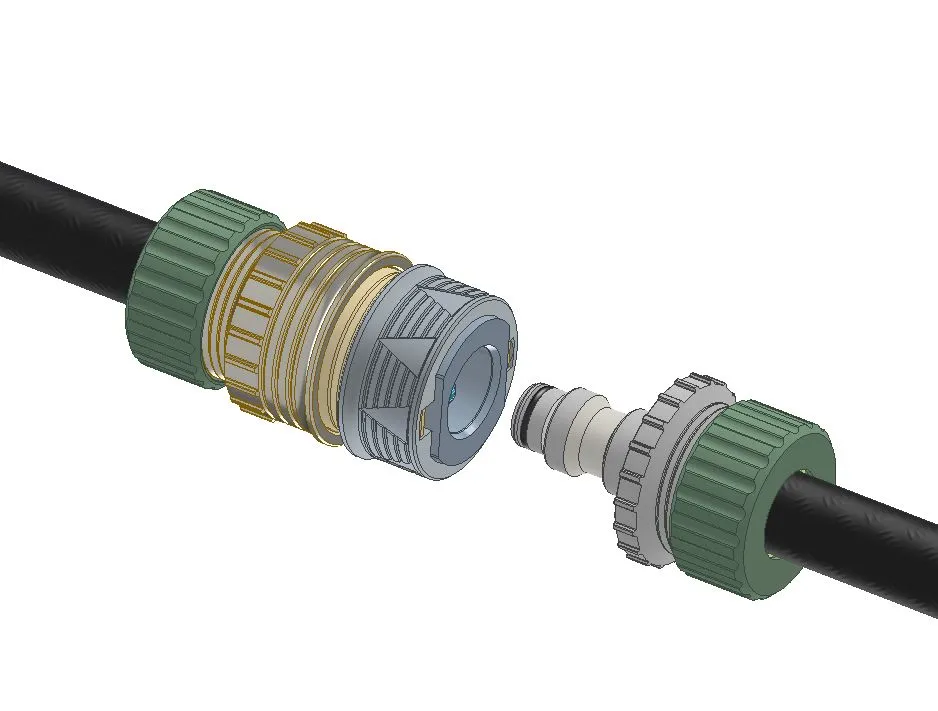

The coupling and the corresponding hose connector are split into two separate 3D print profiles,
as different quantities may be required
Both prints are necessary for a complete coupling
Depending on the requirements, other adapters can also be used instead of the hose connector
Further suitable connector adapters can be found under the link:
https://makerworld.com/de/models/1620311-quick-coupling-adapter#profileId-1710301

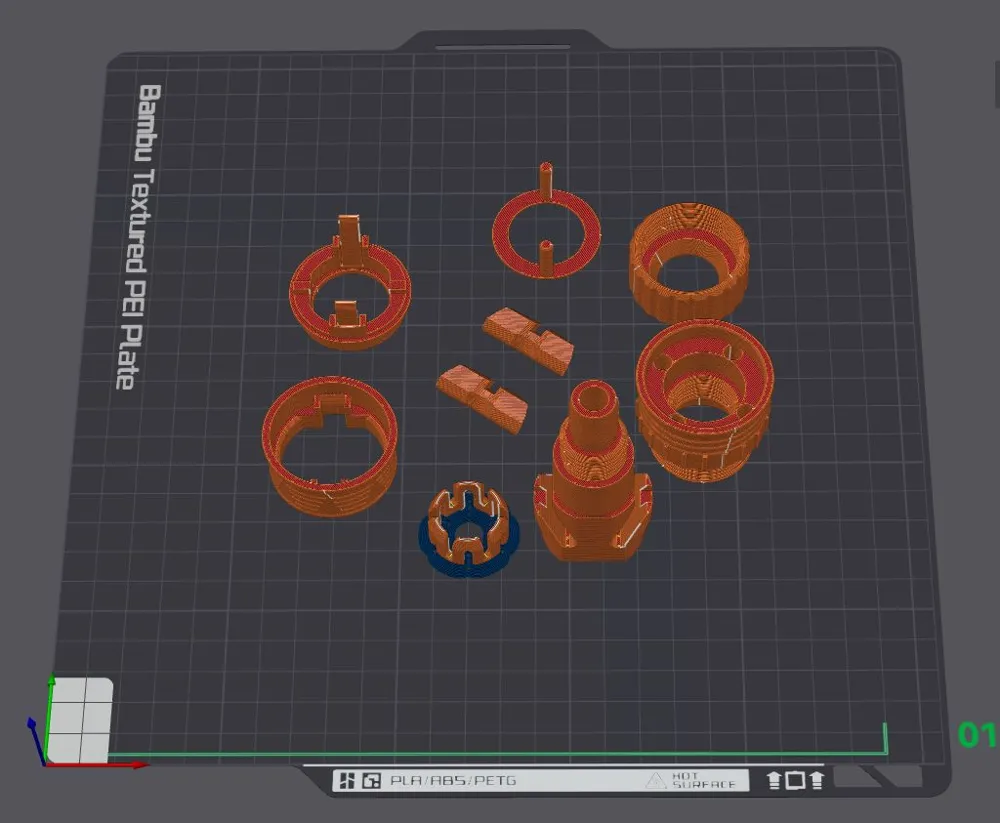

It was printed with Sunlu-PETG, as good layer adhesion can be achieved with it and it is weather-resistant
The collet for clamping the garden hose is included as 3D-CAD (STEP),
so it can be adapted to different hose dimensions
Additional parts required:
2x ballpoint pen springs with 4mm outer diameter and 25mm length, 0.4mm wire diameter
(shorter springs could be stretched or lengthened accordingly)
1x O-ring, 10x1.5mm (inner diameter x cord thickness)
For assembly, see PDF in the appendix
On both of the locking slides shown in the assembly instructions (illustrated in cyan color)
the surfaces should be slightly smoothed before installation (e.g., with a fine file),
otherwise the assembled mechanism could run too roughly
