LED Clock Enclosure for DIY Soldering Kits
Print Profile(1)
Description

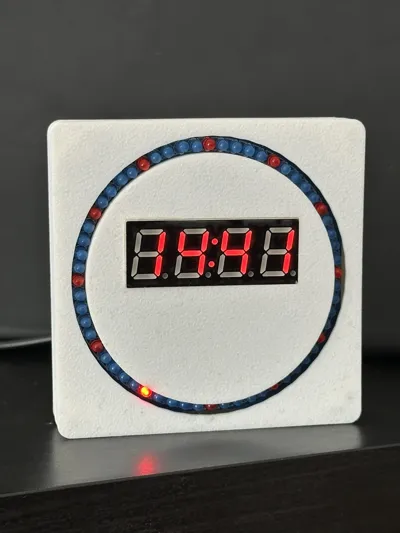

This is a 3D-printable enclosure for DIY digital LED clocks, typically found in beginner-friendly soldering kits like the ones below. If you’re just getting into soldering or want to level up your project with a sleek case – this model is for you!
🔗 Compatible kits (examples):
🛠️ Features
- Designed for standard LED clock soldering kits
- Sleek, minimal look — hides messy PCB traces
- Three-part enclosure:

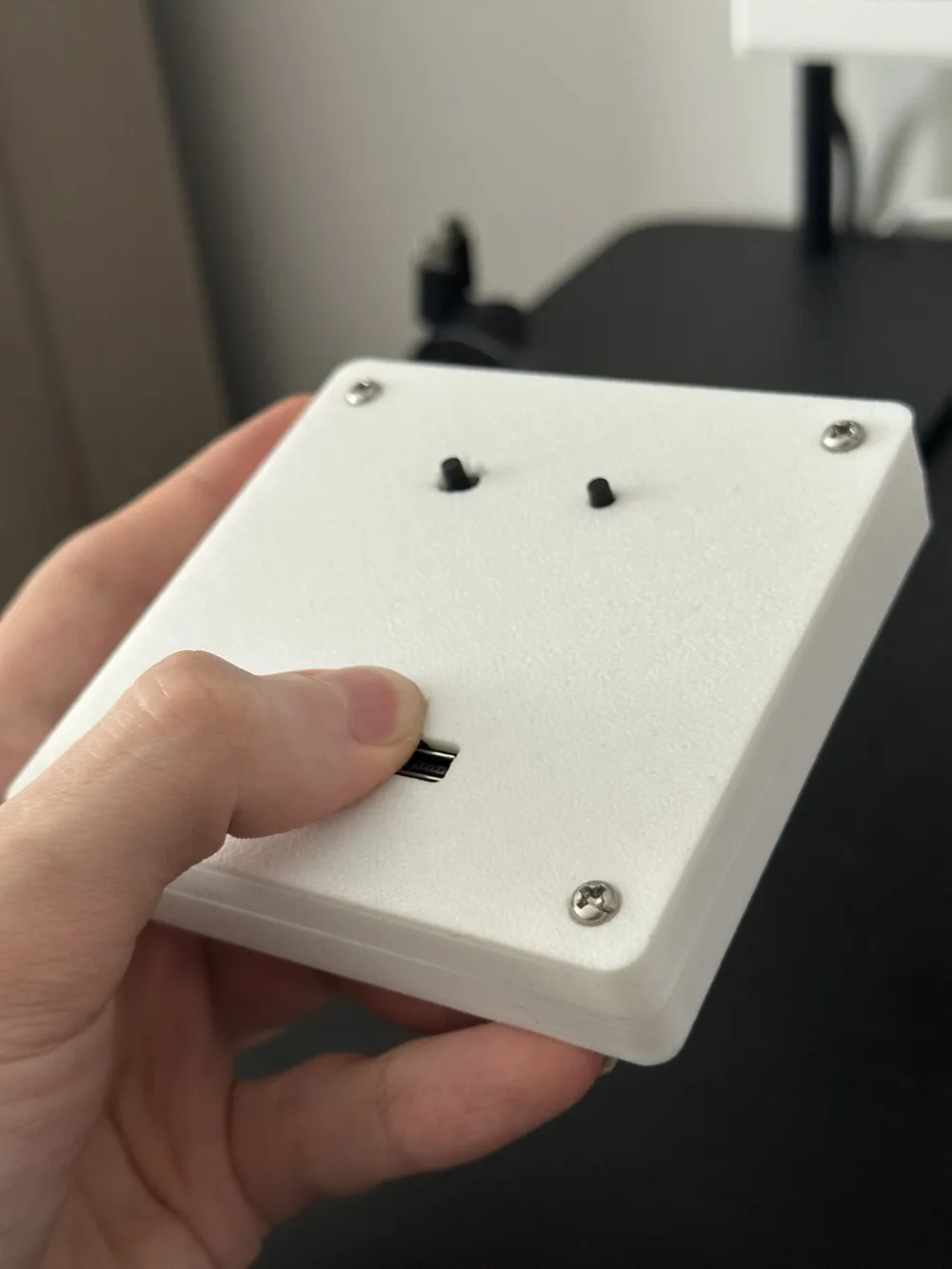

- Back cover – with holes for buttons and power cable
- Front cover – mounts with 4× M3 screws
- Snap-on LED ring bezel – cleanly covers the display edges
- No glue required — easy to print, easy to assemble
⚙️ Assembly
- Place the completed clock PCB between the front and back covers.
- Align screw holes and fasten with 4× M3 screws.
- Route the power cable and ensure button access through the dedicated cutouts on the back part.

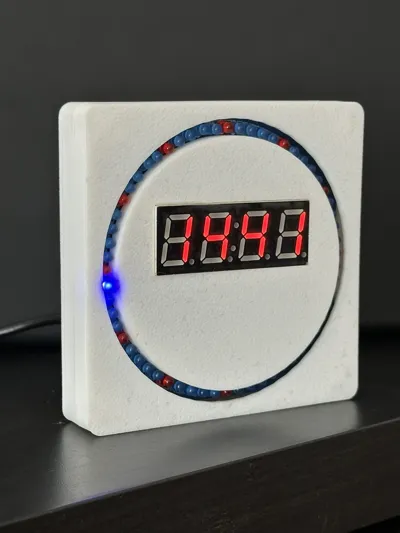

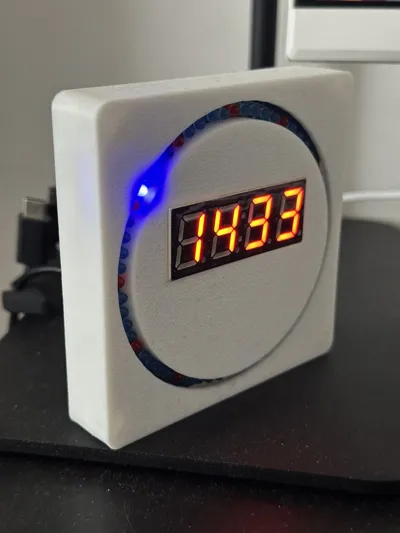

- Press the round front ring onto the LED display — it will cover the PCB edges and click snugly into place.
That’s it — your LED clock is now desk-ready and looks way more polished!
