[Self-developed] Fourth-generation remote-controlled miniature "Fighting J"!
Print Profile(3)
Description
Video Link:
Reference Configurations for Three Versions:

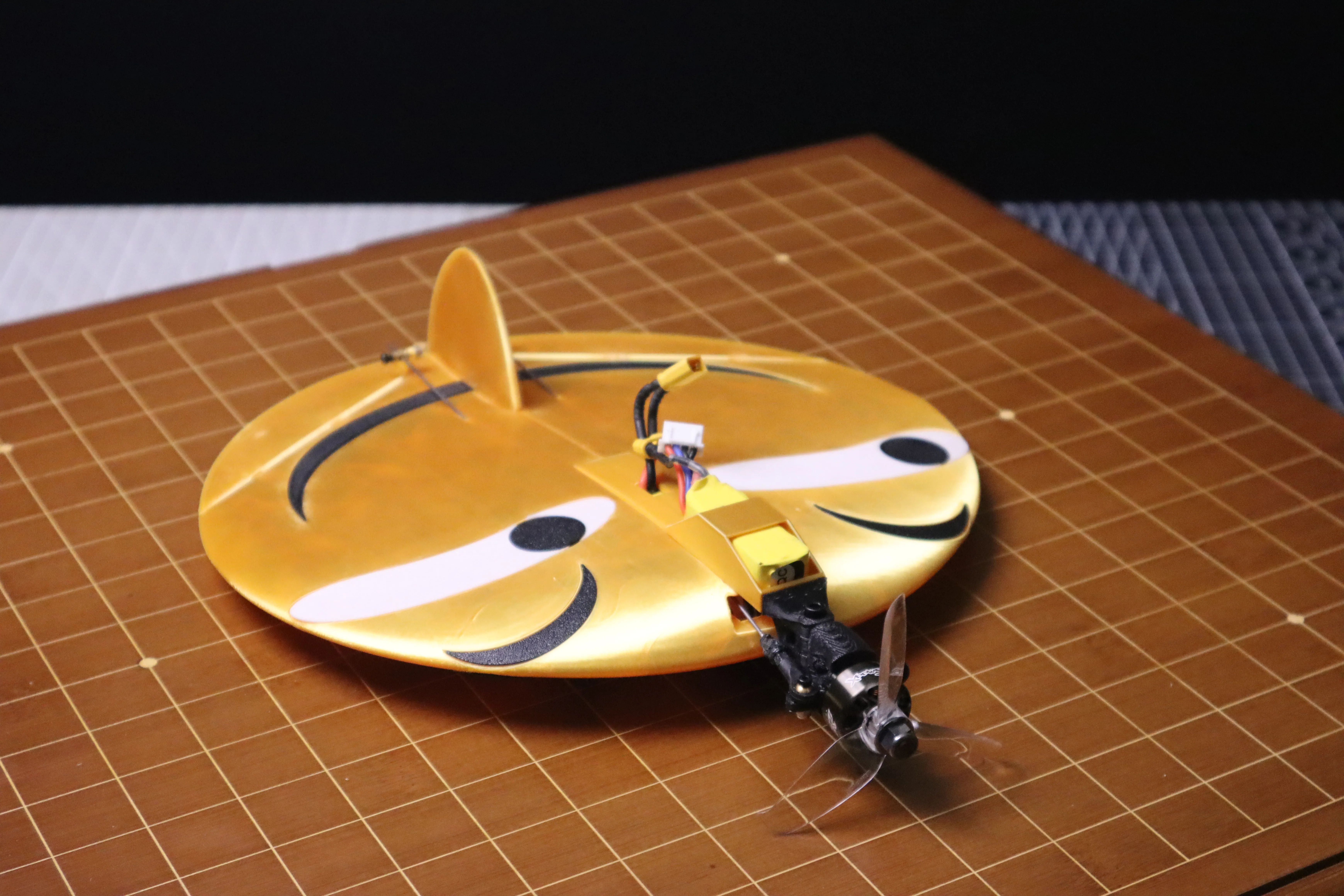

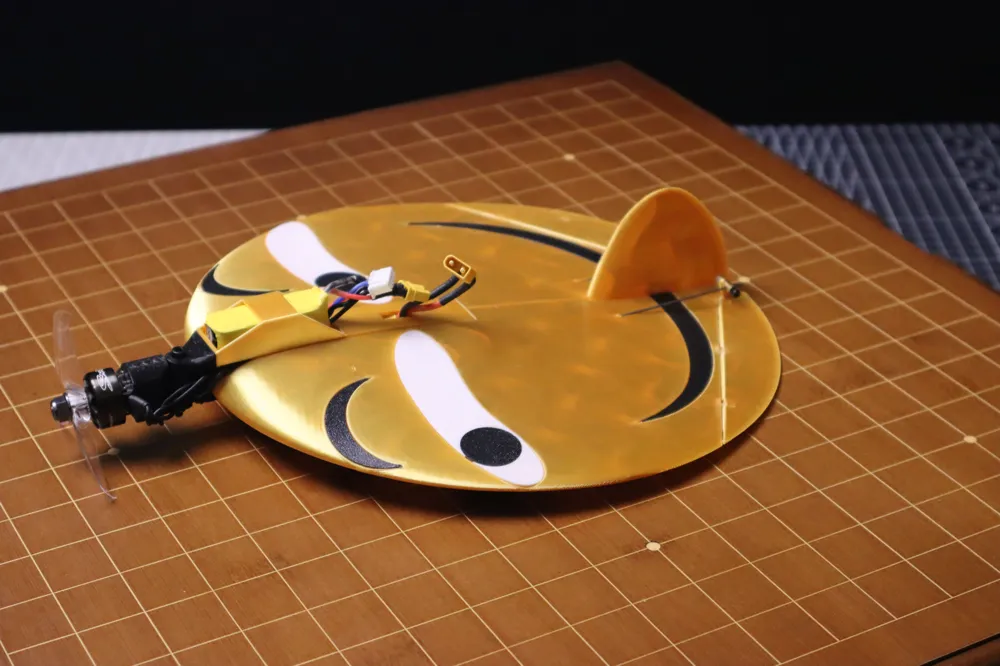

【1】Humorous Single-Motor Vector Version:
*4-channel or higher RC transmitter and receiver
*3-channel or higher gyro (optional, depending on requirements)
*1507 or lower brushless motor x1
*3-inch propeller x1
*20A brushless ESC x1
*3S 180-300MAH 30c or higher LiPo battery
*9g metal servo x3
*0.8-1mm steel wire ball-head linkage components
*Model airplane quick connectors (2.1mm) x3
*Super glue
*3mm carbon rod
*5x2mm cylindrical magnets x4

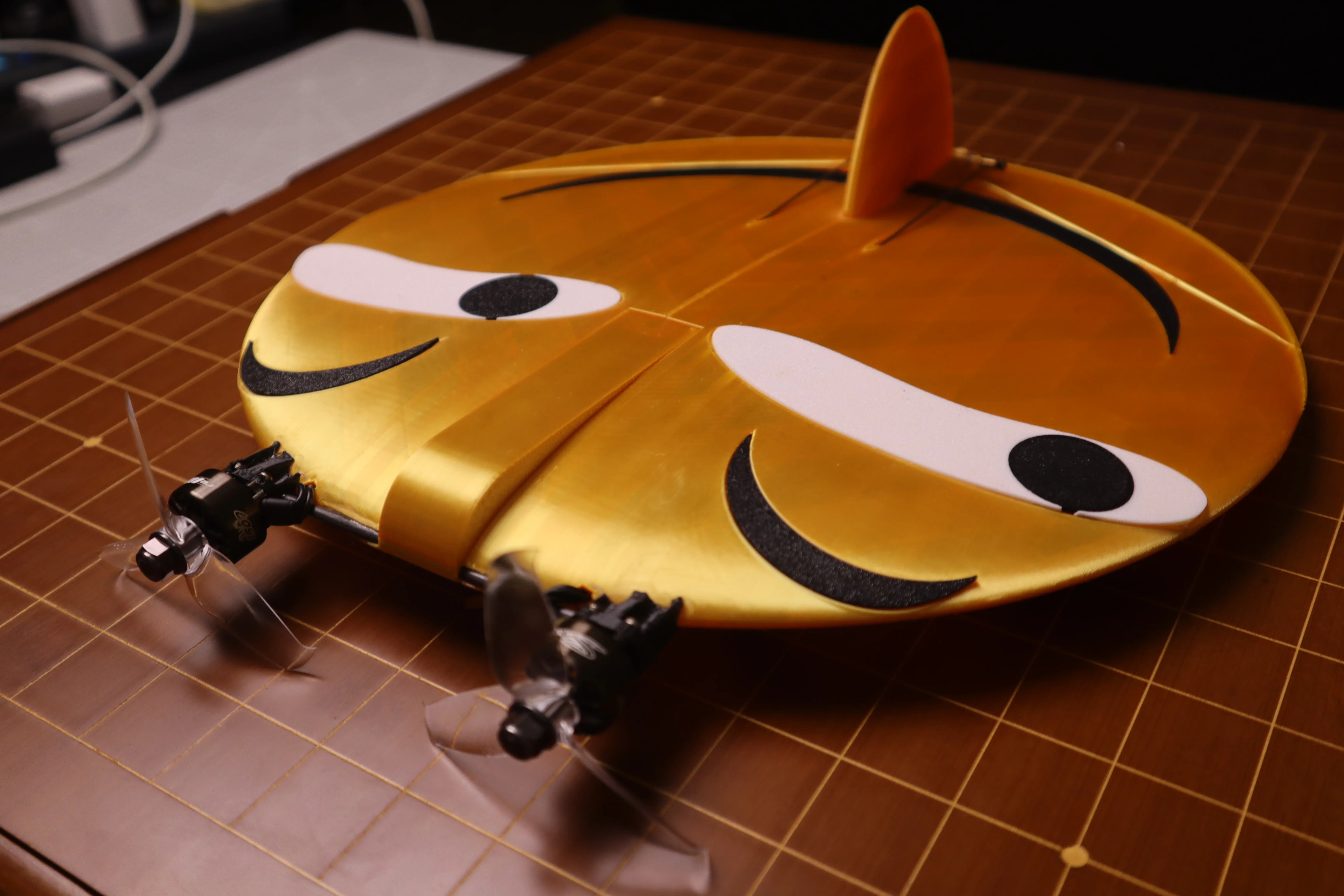

【2】Humorous Dual-Motor Max Version:
*4-channel or higher RC transmitter and receiver
*3-channel or higher gyro (optional, depending on requirements)
*1507 or lower brushless motor x2
*Pair of 3-inch propellers
*20A brushless ESC x2
*3S 300-500MAH 30c or higher LiPo battery
*9g metal servo x2
*0.8-1mm steel wire ball-head linkage components
*Model airplane quick connectors (2.1mm) x2
*Super glue
*3mm carbon rod
*5x2mm cylindrical magnets x2
【3】Humorous Dual-Motor Mini Version:
*Integrated dual 5A brushed ESC receiver x1
*8520 hollow cup brushed motor x2
*Pair of 65mm propellers
*2.7g servo
*1S (HV) 200-350MAH LiPo battery
*0.6-0.8mm hard steel wire
*Super glue
*2mm carbon rod
*5x2mm cylindrical magnets x2

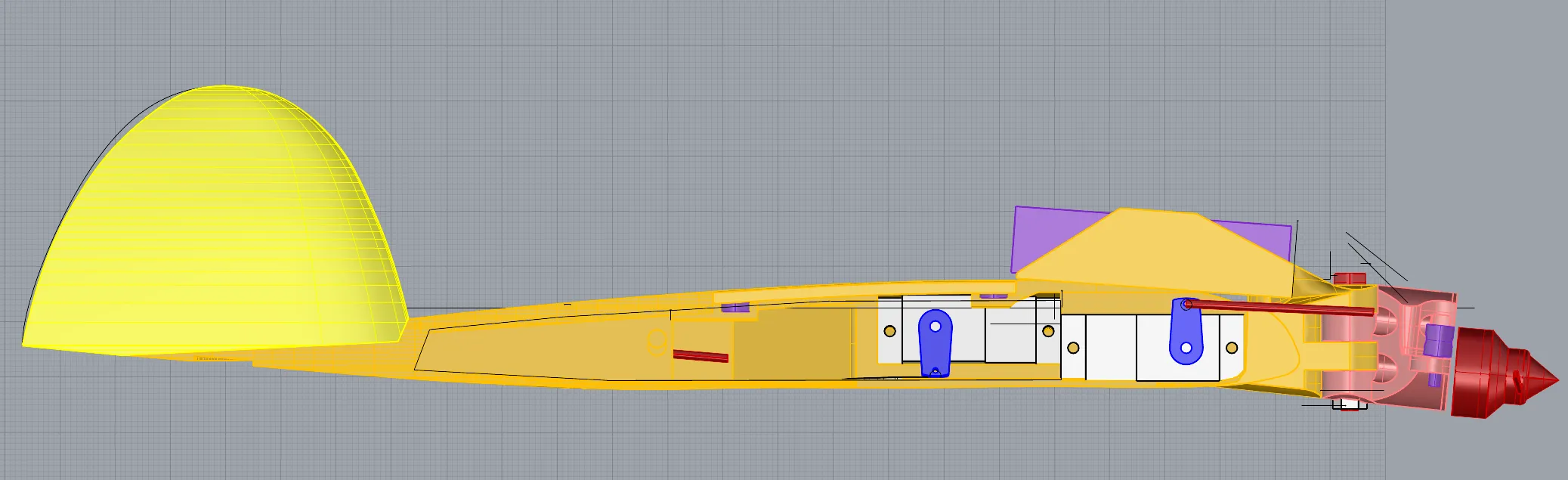

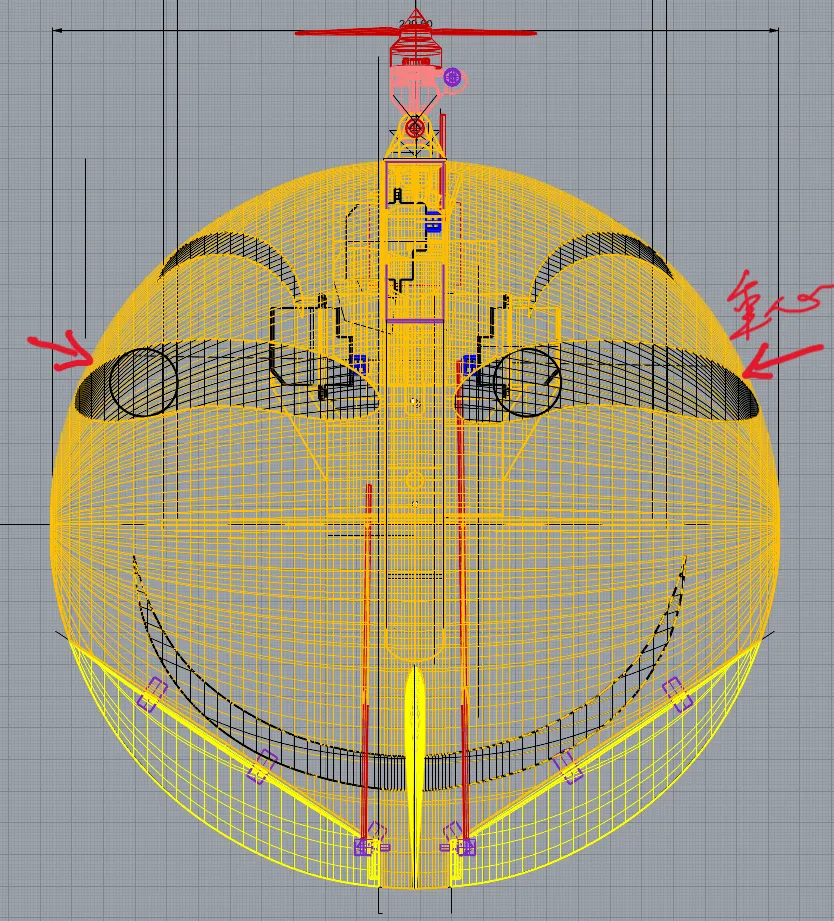

Internal Component Installation and Center of Gravity (Vector Version Example):
