TMF2-2 RhB scale G locomotive
Print Profile(2)
Bill of Materials
- ESP8266 Nodemcu x 1: https://www.aliexpress.com/item/1005006889833004.html?spm=a2g0o.productlist.main.3.2f842a68Q4hQFD&algo_pvid=a46444b2-a525-4b4c-a8c4-d00637fad9a3&algo_exp_id=a46444b2-a525-4b4c-a8c4-d00637fad9a3-2&pdp_ext_f=%7B%22order%22%3A%221222%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%212.33%212.18%21%21%212.86%212.67%21%40211b629217525882594645931e4046%2112000038628898661%21sea%21CH%212279045587%21X&curPageLogUid=mIjgpkUlY94j&utparam-url=scene%3Asearch%7Cquery_from%3A
- L9110S H-bridge Stepper Motor Dual DC Stepper x 1: https://www.aliexpress.com/item/1005007606147009.html?spm=a2g0o.productlist.main.20.12815cb8dwBBR4&algo_pvid=d8eba33d-4003-4b5c-b7ee-e5412426ce15&algo_exp_id=d8eba33d-4003-4b5c-b7ee-e5412426ce15-19&pdp_ext_f=%7B%22order%22%3A%2224%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%211.75%211.02%21%21%2115.39%218.93%21%40211b81a317526057037736944e672f%2112000041479563188%21sea%21CH%212279045587%21X&curPageLogUid=W6QE17MQfNU3&utparam-url=scene%3Asearch%7Cquery_from%3A
- Mini Rocker Switch x 1: https://www.aliexpress.com/item/4000973563250.html?spm=a2g0o.productlist.main.17.73712958agsrsV&algo_pvid=6c7cab0d-fd27-4e22-a651-c5ac3c5e6fdb&algo_exp_id=6c7cab0d-fd27-4e22-a651-c5ac3c5e6fdb-16&pdp_ext_f=%7B%22order%22%3A%224278%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%210.89%210.86%21%21%211.09%211.05%21%402103835c17526058727463205e7f1c%2112000036659982728%21sea%21CH%212279045587%21X&curPageLogUid=F4ANKNIVJrwR&utparam-url=scene%3Asearch%7Cquery_from%3A
- Screws x 1: https://www.aliexpress.com/item/1005006984047820.html?spm=a2g0o.productlist.main.12.5c75jhW7jhW7mQ&algo_pvid=6c4411c2-adc6-4894-89e6-33d133678f9a&algo_exp_id=6c4411c2-adc6-4894-89e6-33d133678f9a-11&pdp_ext_f=%7B%22order%22%3A%224882%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%217.98%213.75%21%21%2170.35%2133.06%21%402103835c17525960804327645e7f14%2112000038943295561%21sea%21CH%212279045587%21X&curPageLogUid=tvofUzF4dvtQ&utparam-url=scene%3Asearch%7Cquery_from%3A
- Cables x 1: https://www.aliexpress.com/item/1005009358657650.html?spm=a2g0o.productlist.main.17.594671c4zwe3Gi&algo_pvid=028fb2ff-6b5e-4534-835f-44c3636649a4&algo_exp_id=028fb2ff-6b5e-4534-835f-44c3636649a4-16&pdp_ext_f=%7B%22order%22%3A%2228%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%2117.38%218.51%21%21%21153.15%2175.04%21%40211b876717526061754481802e417f%2112000048858790448%21sea%21CH%212279045587%21X&curPageLogUid=pqnoEx0LLS3r&utparam-url=scene%3Asearch%7Cquery_from%3A
- Battery Holder 18650 x 1: https://www.aliexpress.com/item/1005005915316572.html?spm=a2g0o.order_list.order_list_main.658.40ec1802HEkfxo
- M2 6mm screw x 4: https://www.aliexpress.com/item/10000183209605.html?spm=a2g0o.order_list.order_list_main.703.40ec1802HEkfxo
- M2 Nuts x 4: https://www.aliexpress.com/item/4000602853448.html?spm=a2g0o.productlist.main.4.3b141eedt8FPqg&algo_pvid=f0a8c27b-498f-49af-9be1-1deef949b1cd&algo_exp_id=f0a8c27b-498f-49af-9be1-1deef949b1cd-3&pdp_ext_f=%7B%22order%22%3A%223060%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%211.08%211.05%21%21%211.33%211.29%21%40210391a017526063433052888eb708%2110000003767007634%21sea%21CH%212279045587%21X&curPageLogUid=cMhy5phk8MX5&utparam-url=scene%3Asearch%7Cquery_from%3A
Description
This is a remote-controlled locomotive that can be operated via a NodeMCU ESP8266.
Remote Controller:
Link to the remote controller: https://makerworld.com/en/models/1609494-remote-control-for-the-g-scale-locomotive#profileId-1697623
Tracks:
curves: https://makerworld.com/en/models/1608501-g-scale-train-tracks#profileId-1696464
straight tracks: https://makerworld.com/en/models/1608589-straight-g-scale-train-tracks#profileId-1696575
left-hand switche: https://makerworld.com/en/models/1608801-left-switch-track-scale-g#profileId-1696815
right-hand switche: https://makerworld.com/en/models/1608777-right-switch-track-scale-g#profileId-1696788
Videos:
Build Instructions for the 3D Printed G-Scale Train System

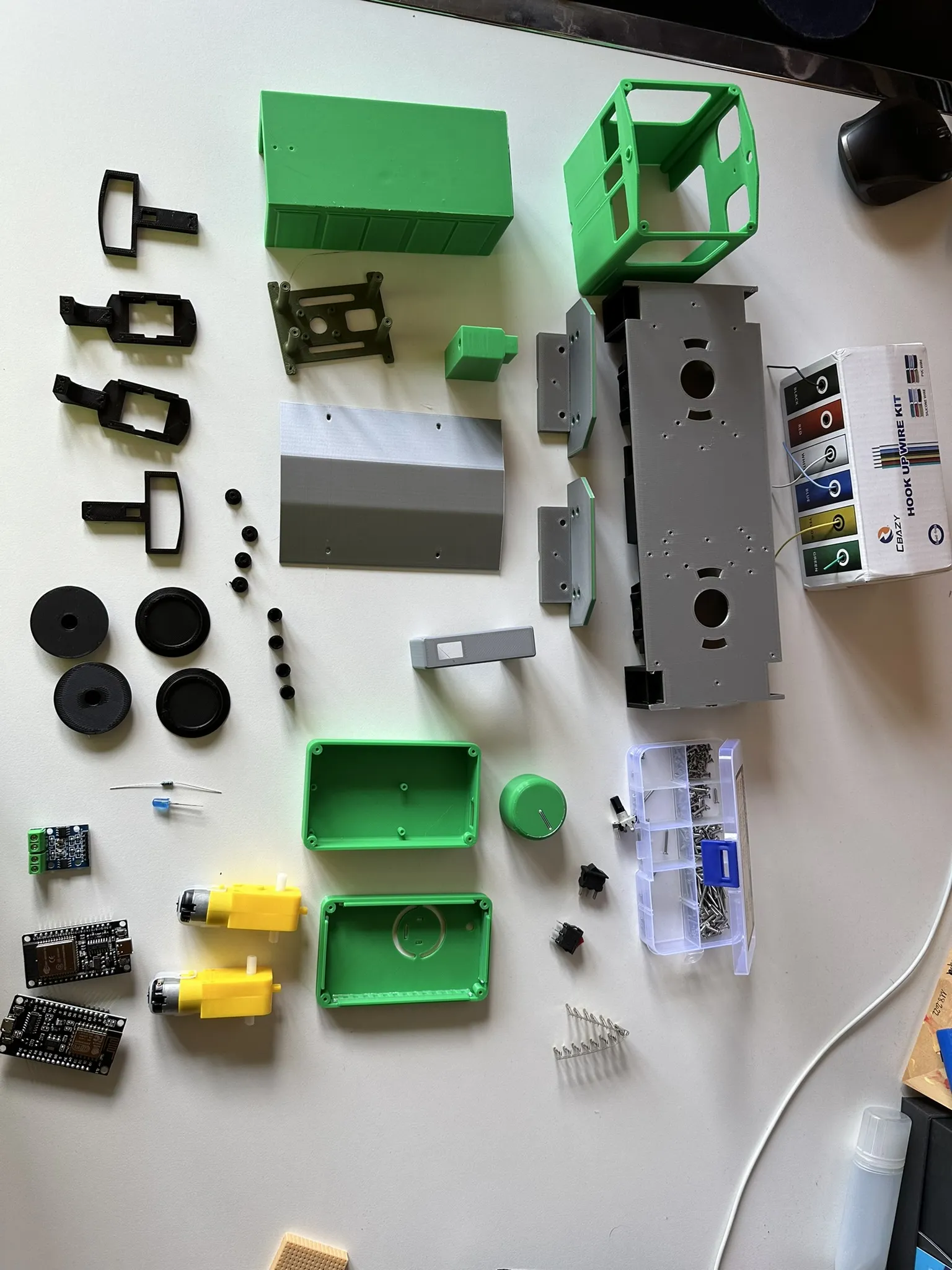

All of these parts should be 3D printed.

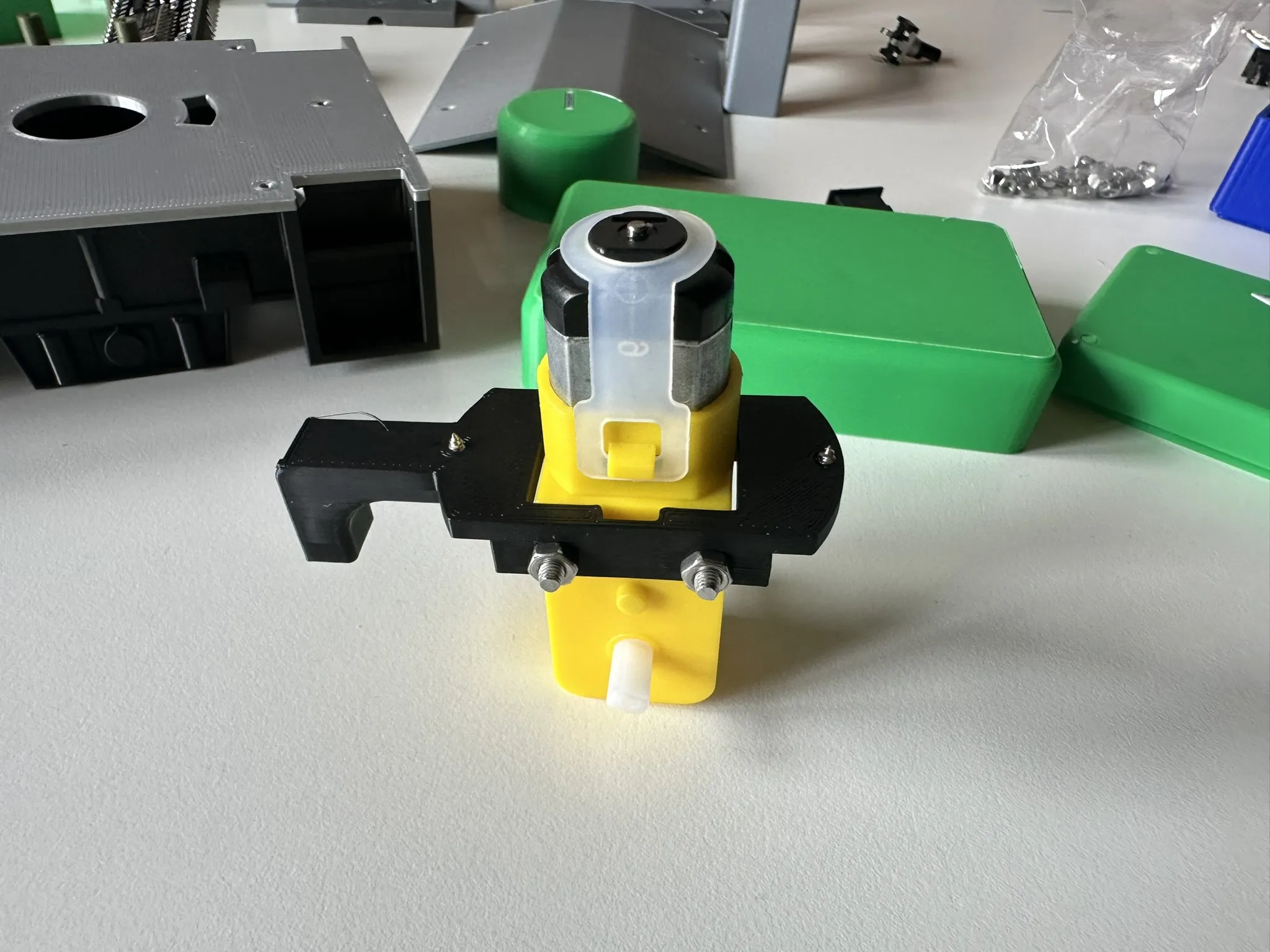

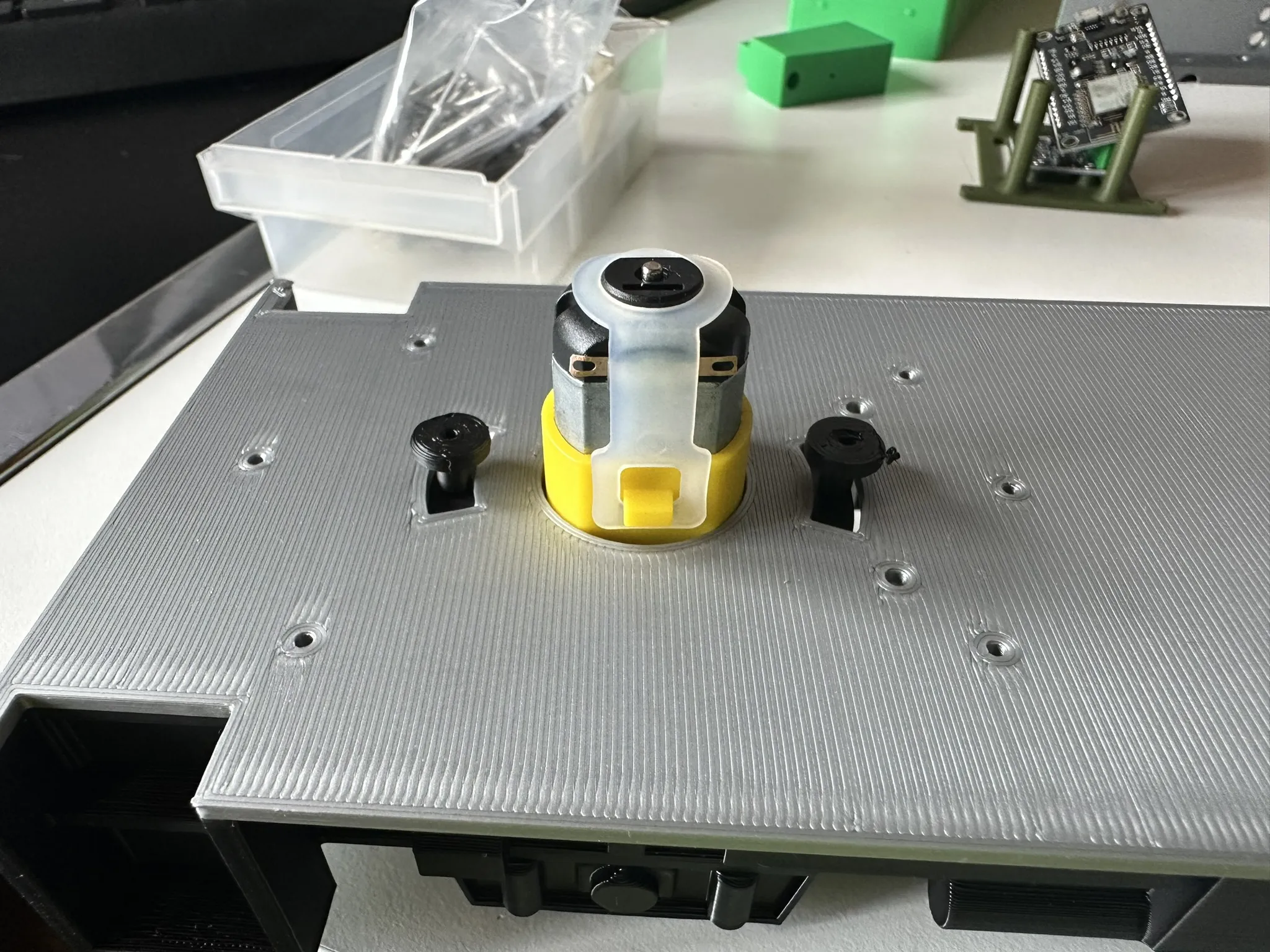

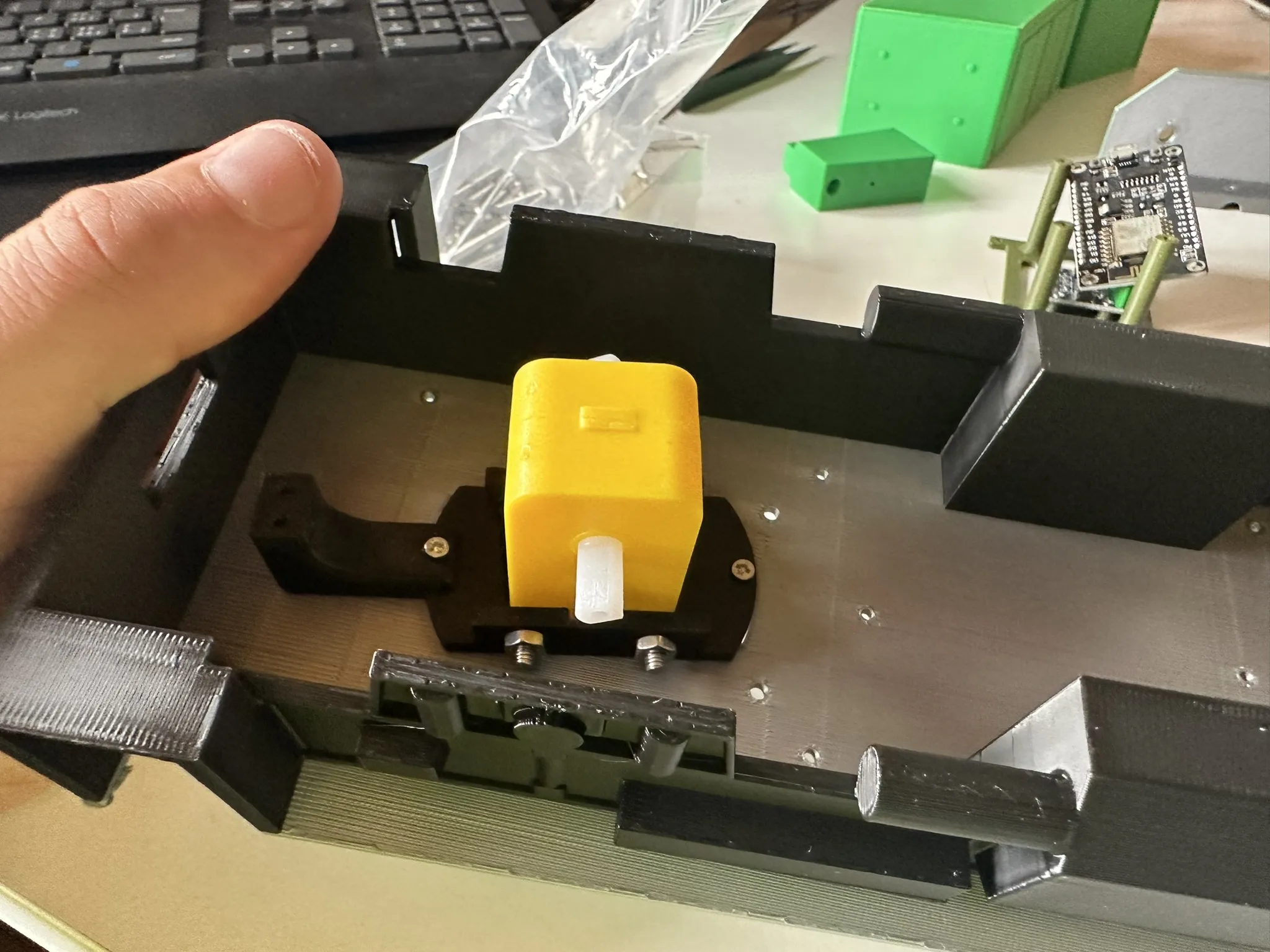

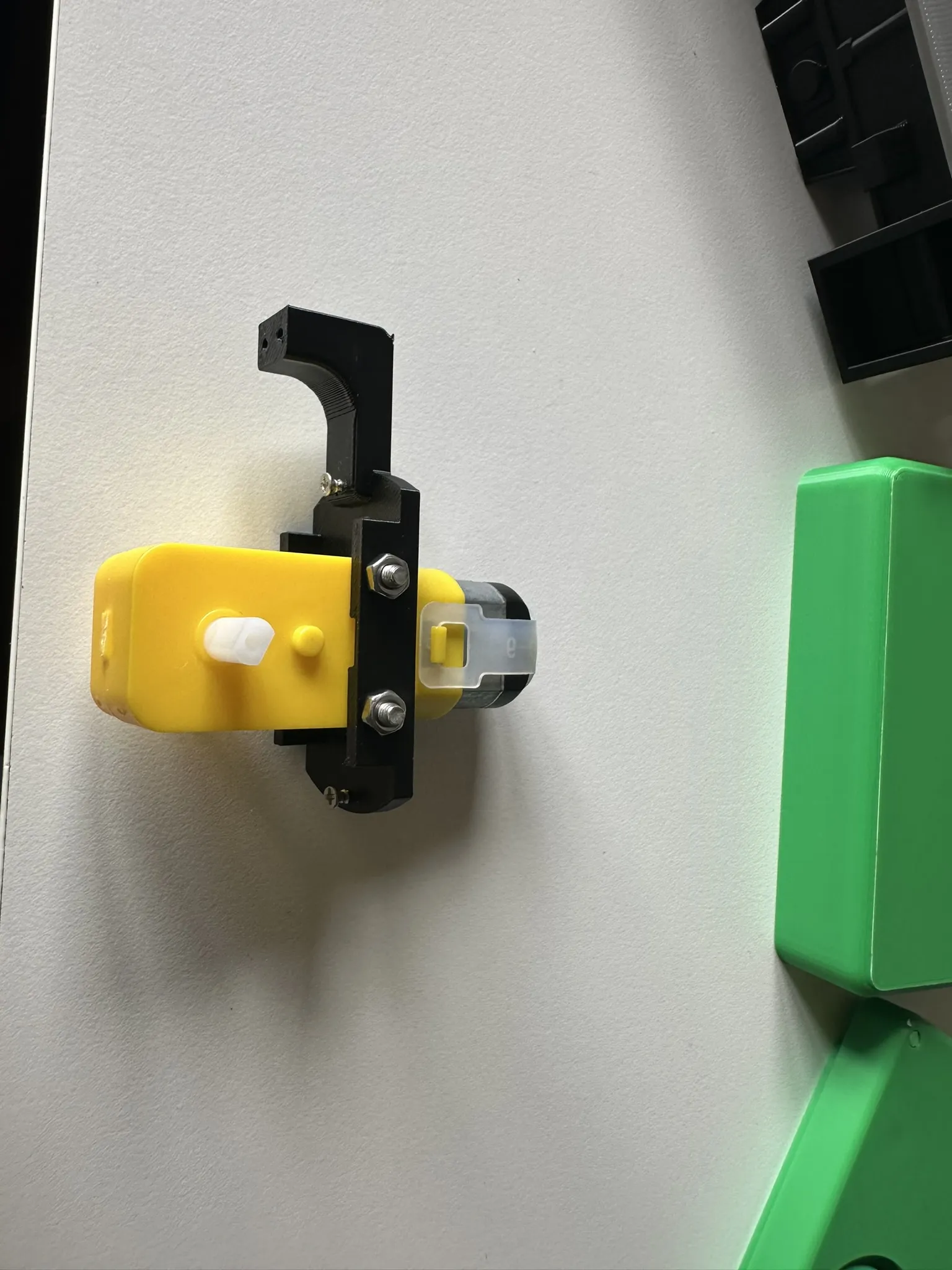

- Take the base plate and install the motors as follows:
- Flash the NodeMCU with the following firmware so that you can upload the Arduino code: How to Flash NodeMCU Firmware in ESP8266 : 7 Steps - Instructables
- Upload the train_system.ino code to the NodeMCU: Train_Control_System/train_system/train_system.ino at main · CarviFPV/Train_Control_System
a. You can do this as follows: How to Setup and Program NodeMCU ESP8266–Complete Guide - You should now be able to access the interface. The Wi-Fi SSID is: TrainAP and the password is: 12345678

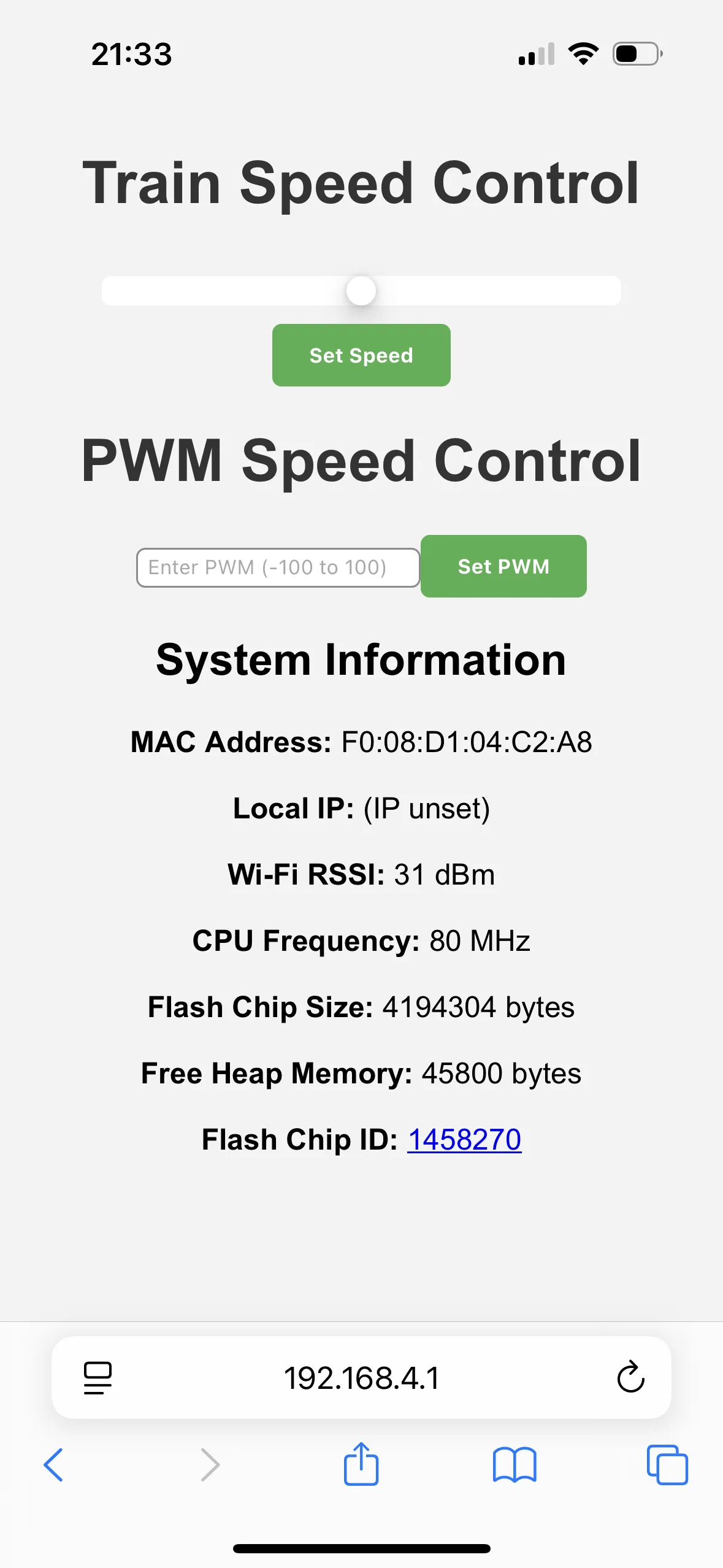

- You should now see this interface on http://192.168.4.1:
- Wire the pins between the NodeMCU and the motor driver (L9110S H-bridge Stepper) as follows:
- motor1A = D1
- motor1B = D2
- motor2A = D4
- motor2B = D3

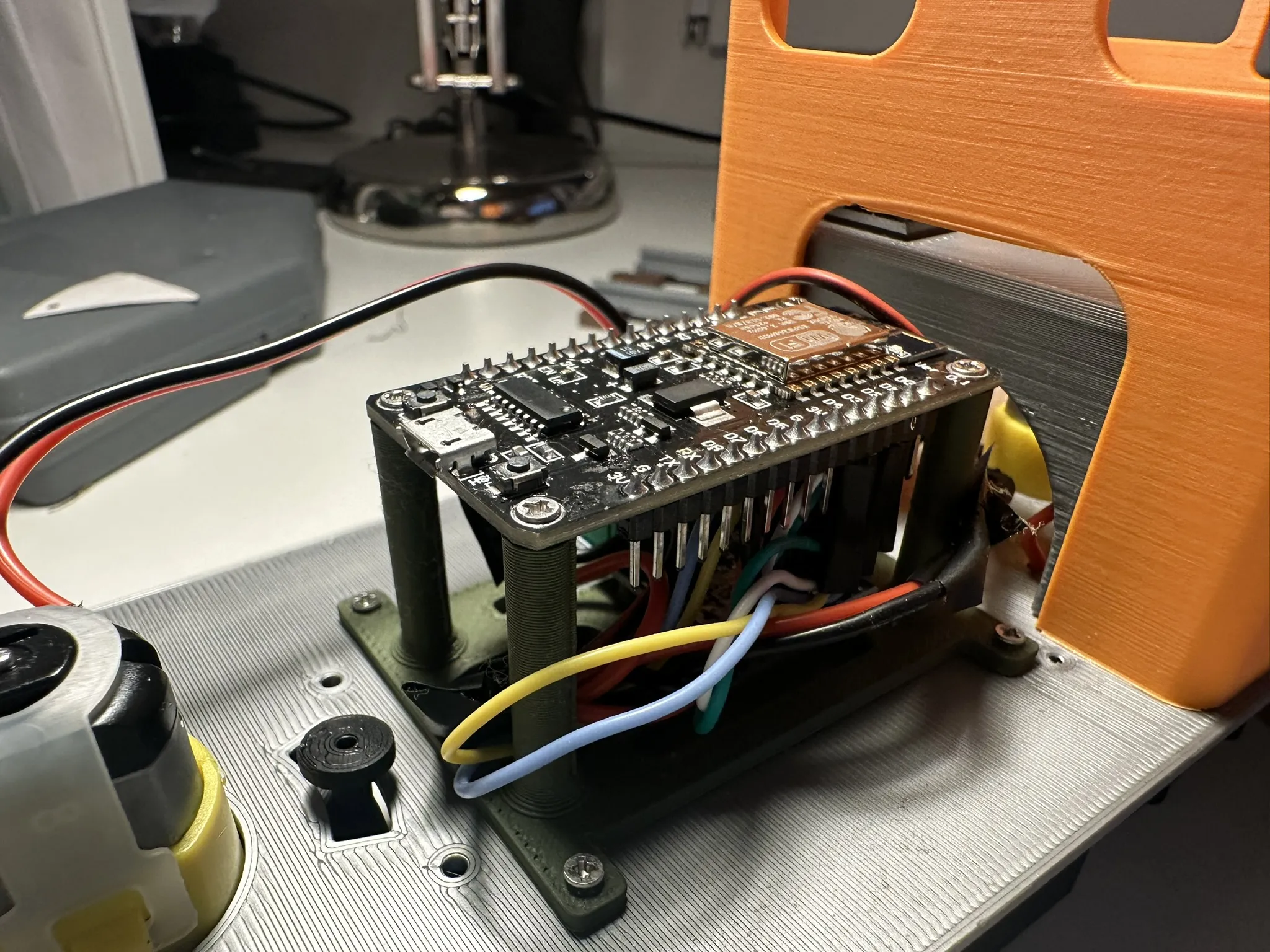

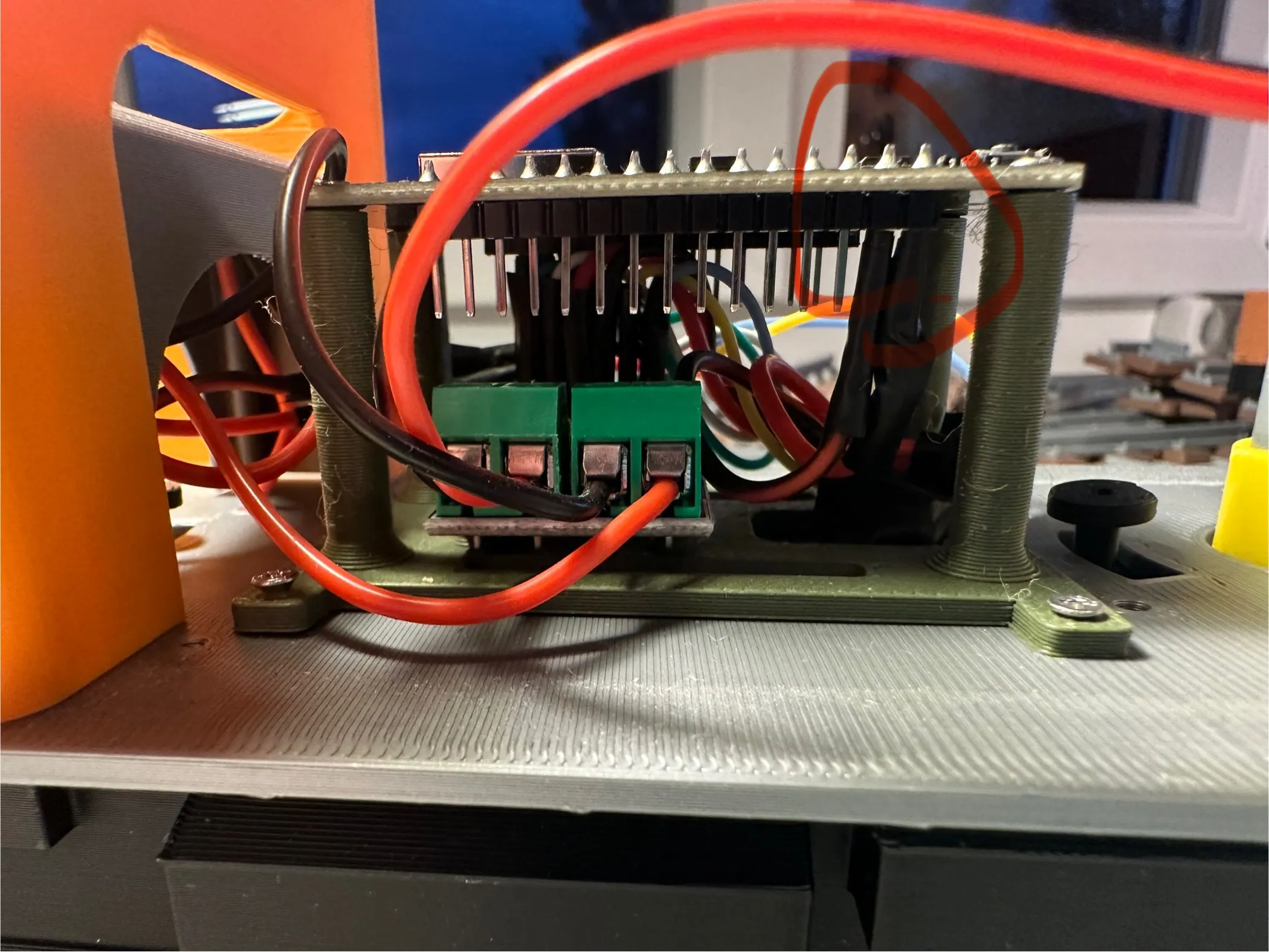

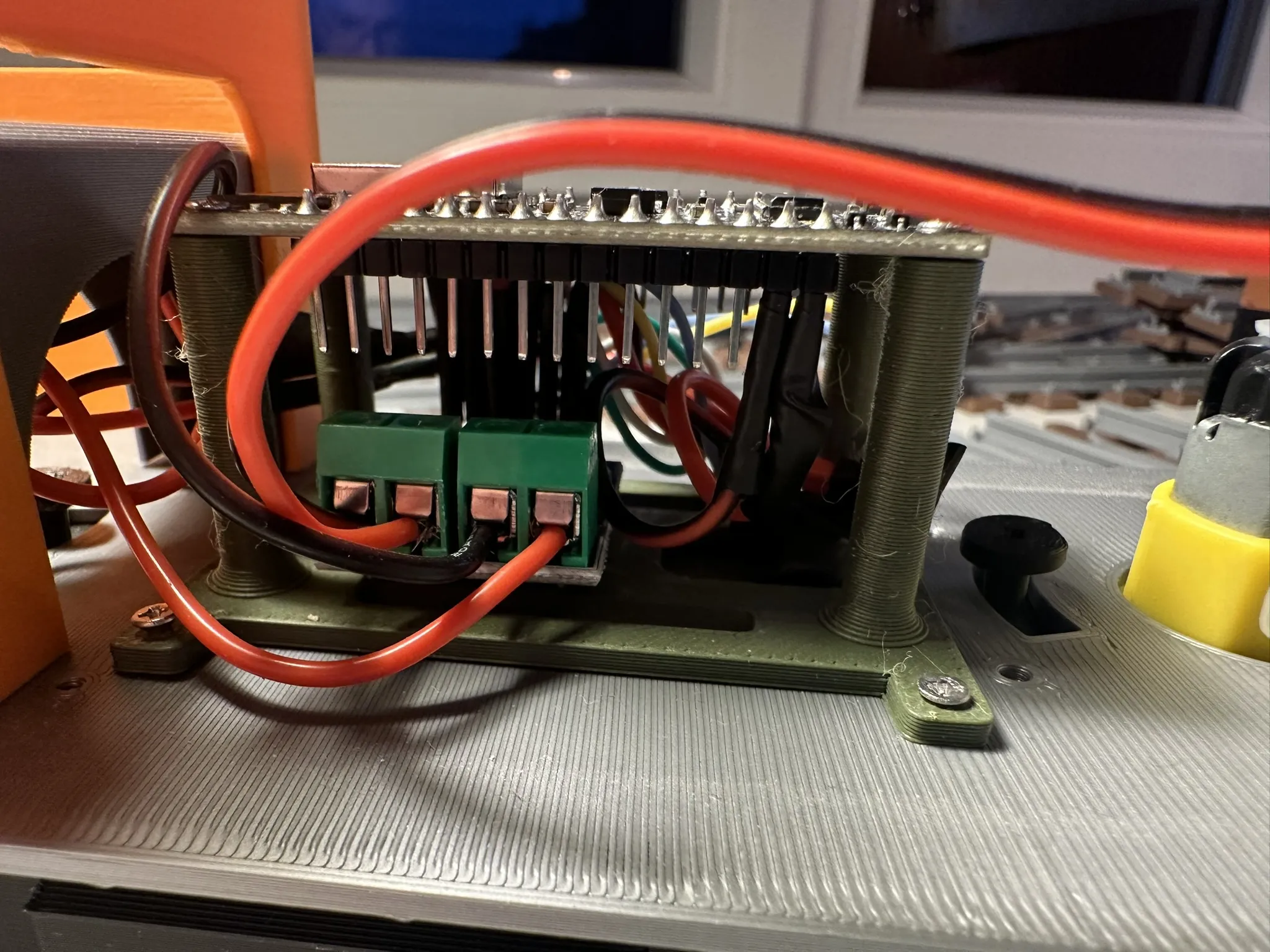

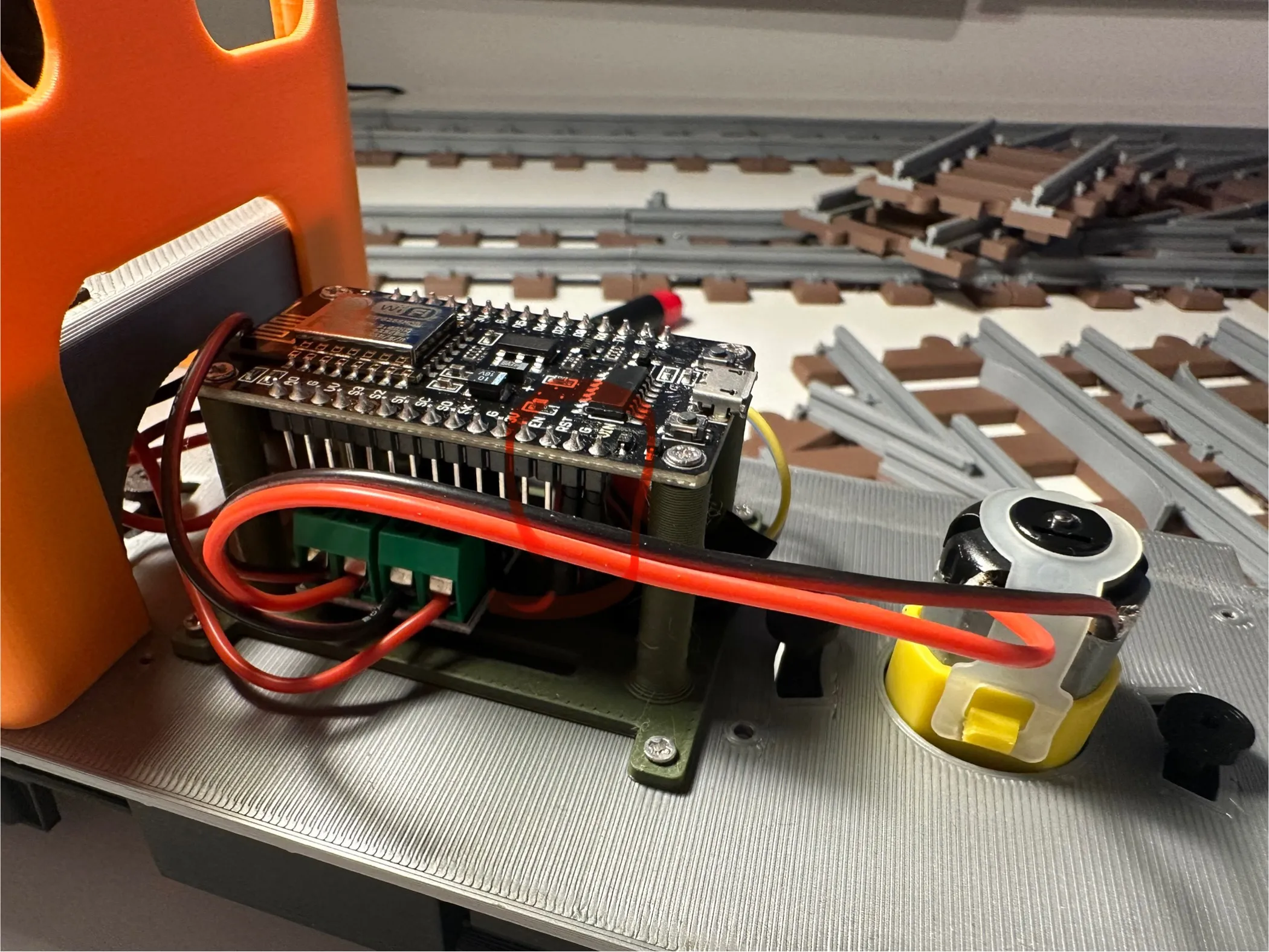

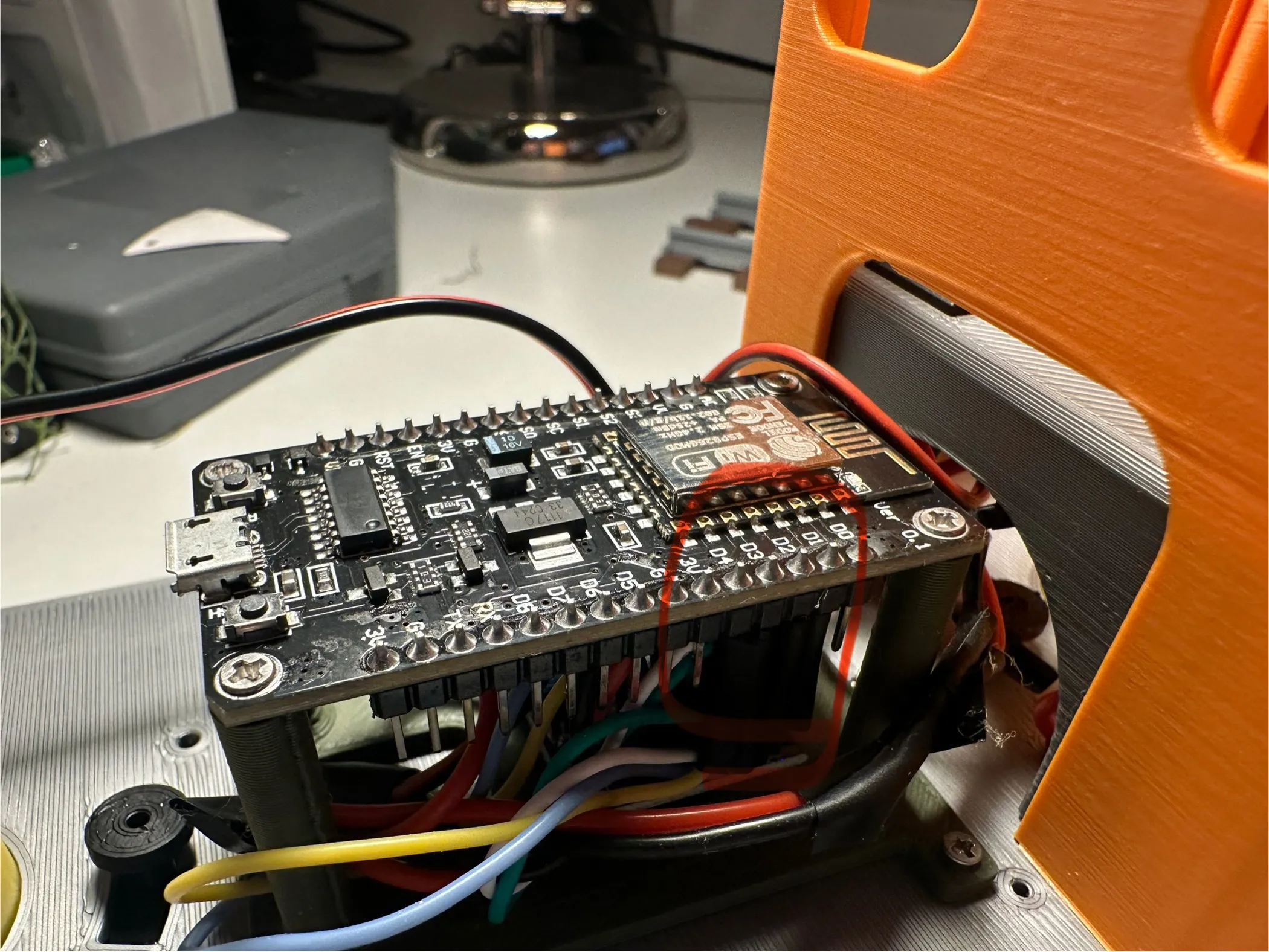

- Here are a few more pictures of the wiring

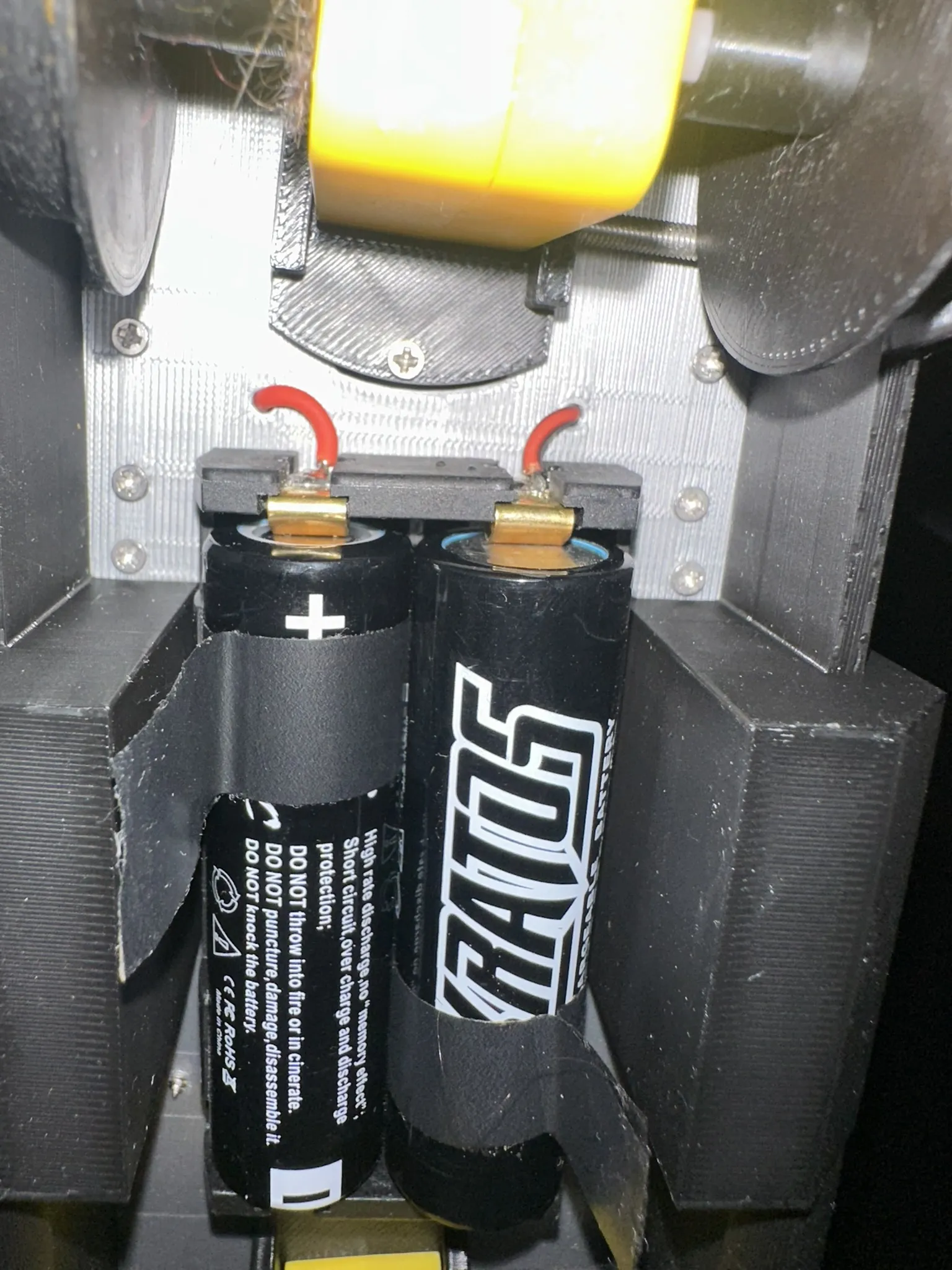

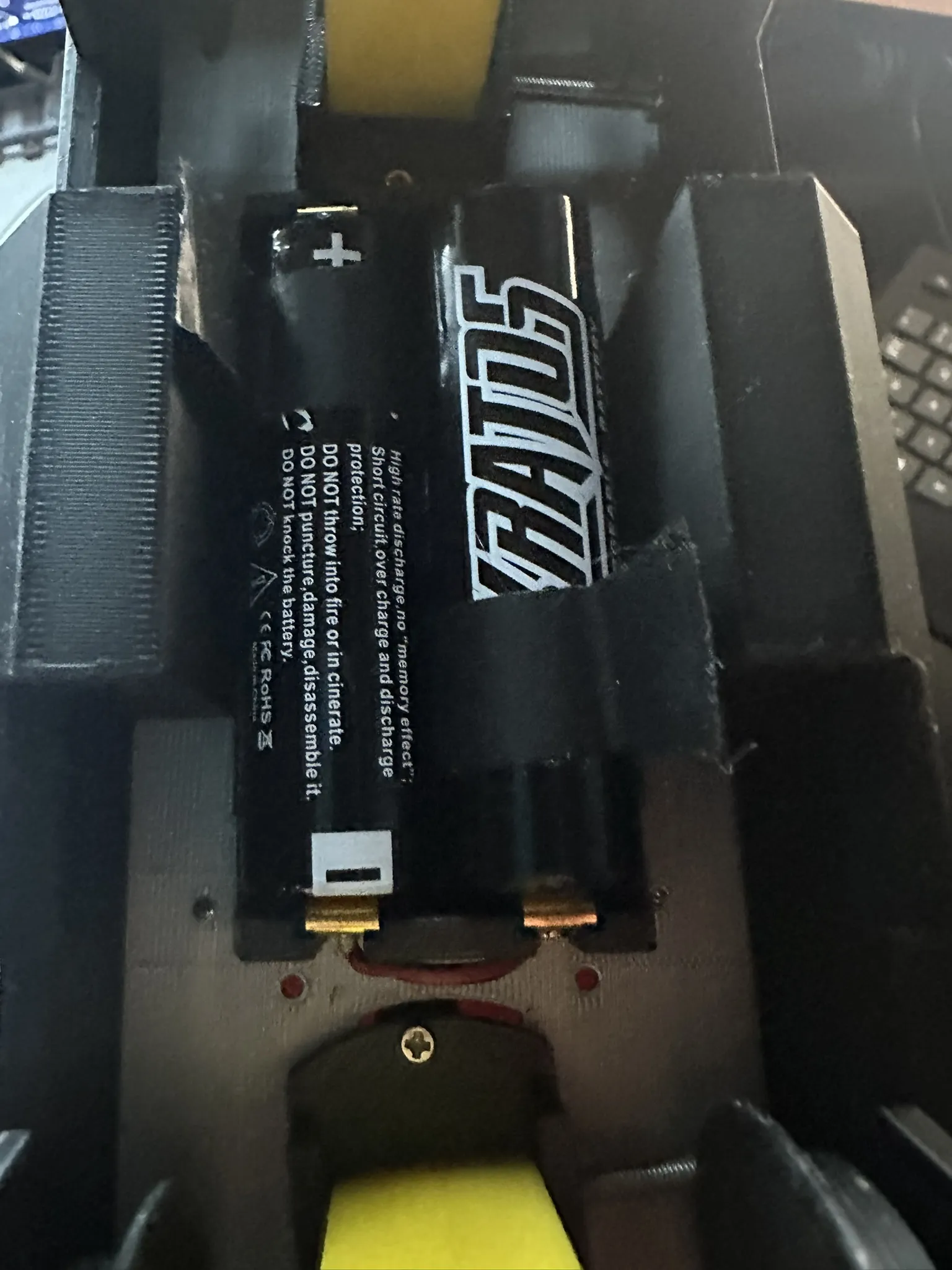

- The battery holder goes underneath the locomotive as follows:

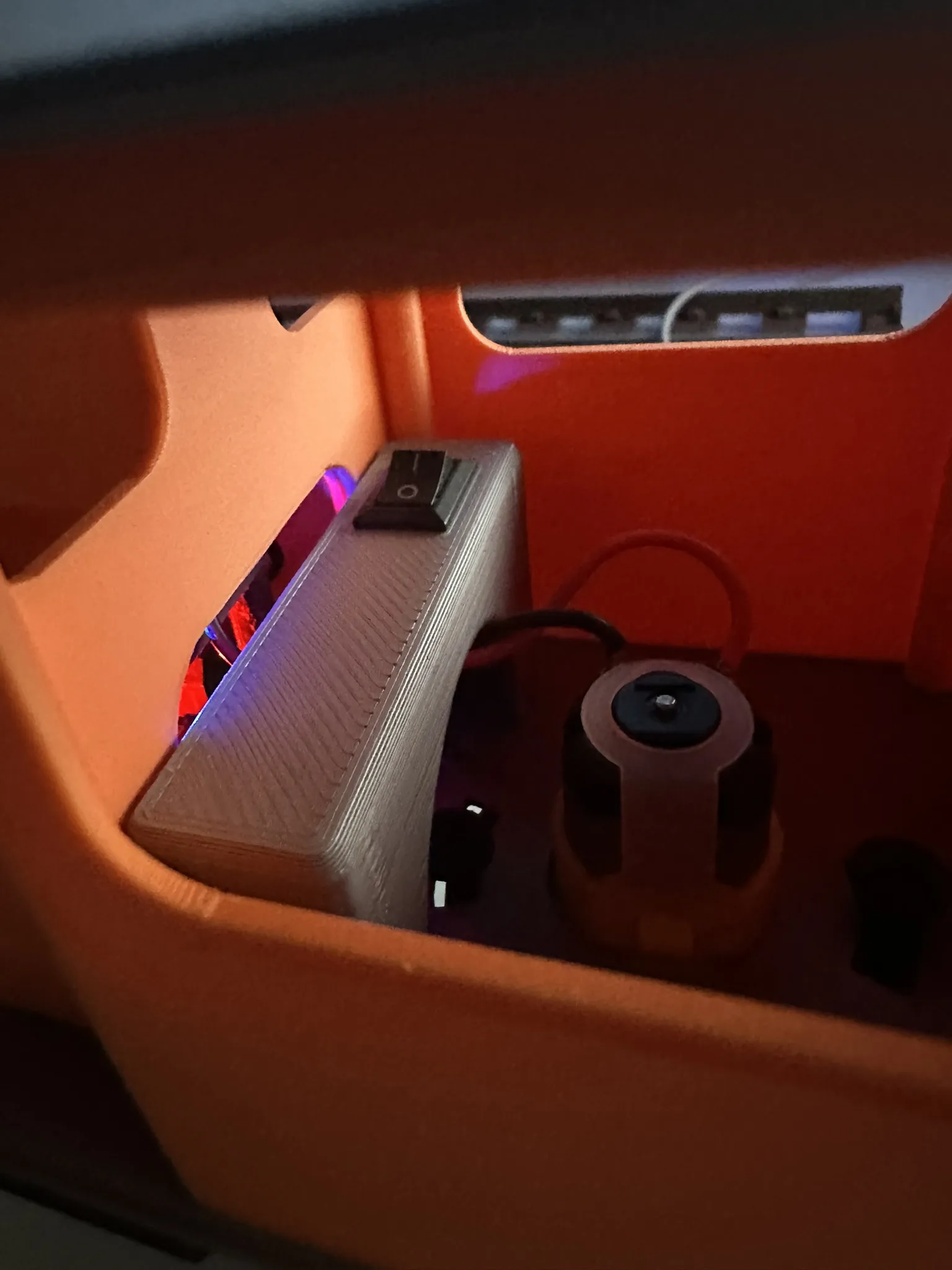

- The cockpit can be used to install an on/off switch.

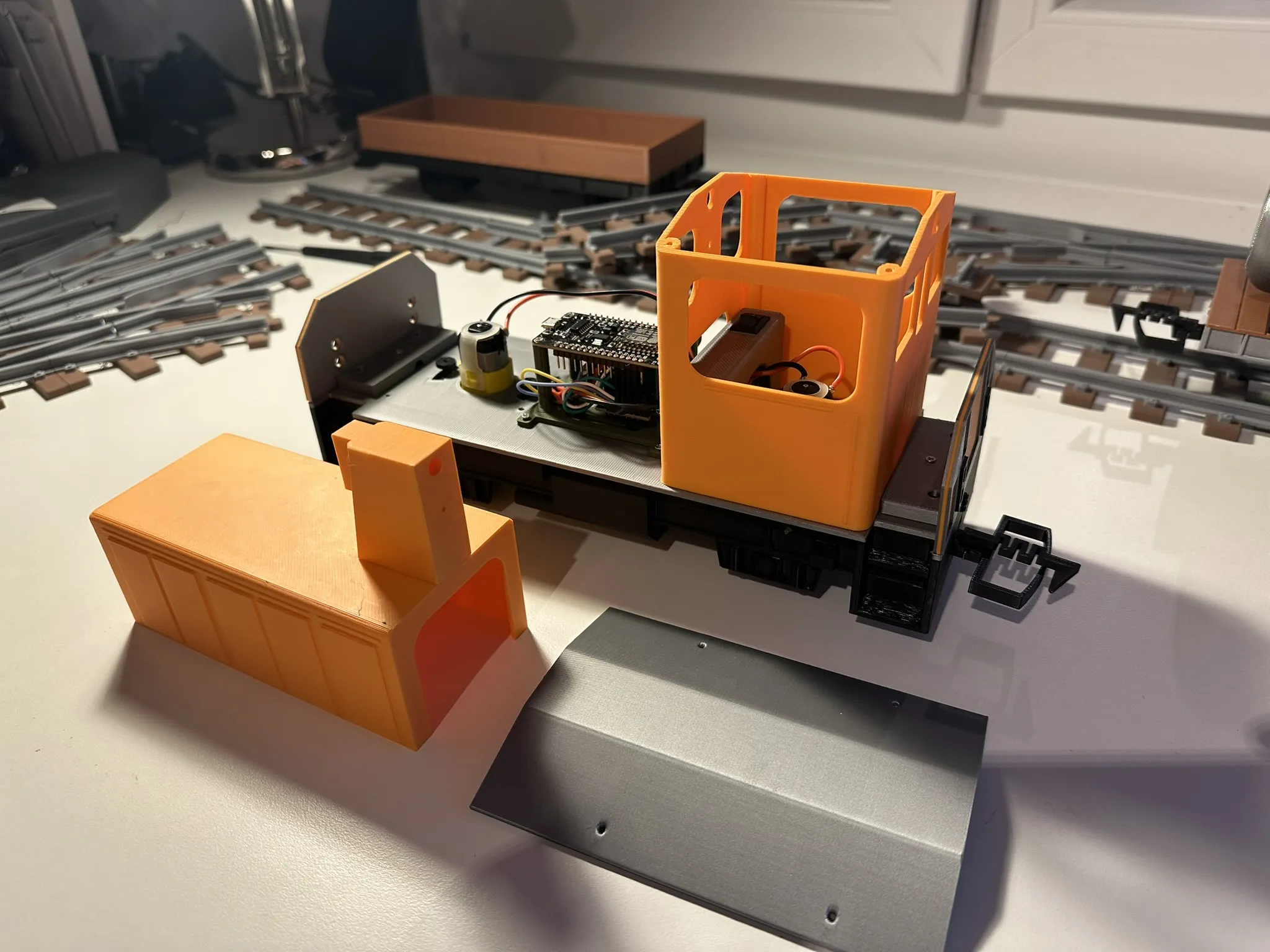

- Screw the remaining parts together.

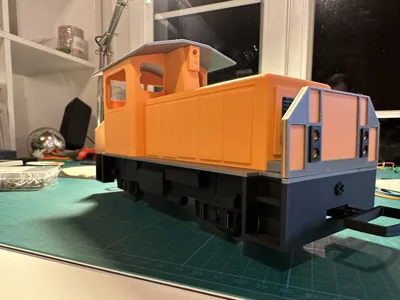

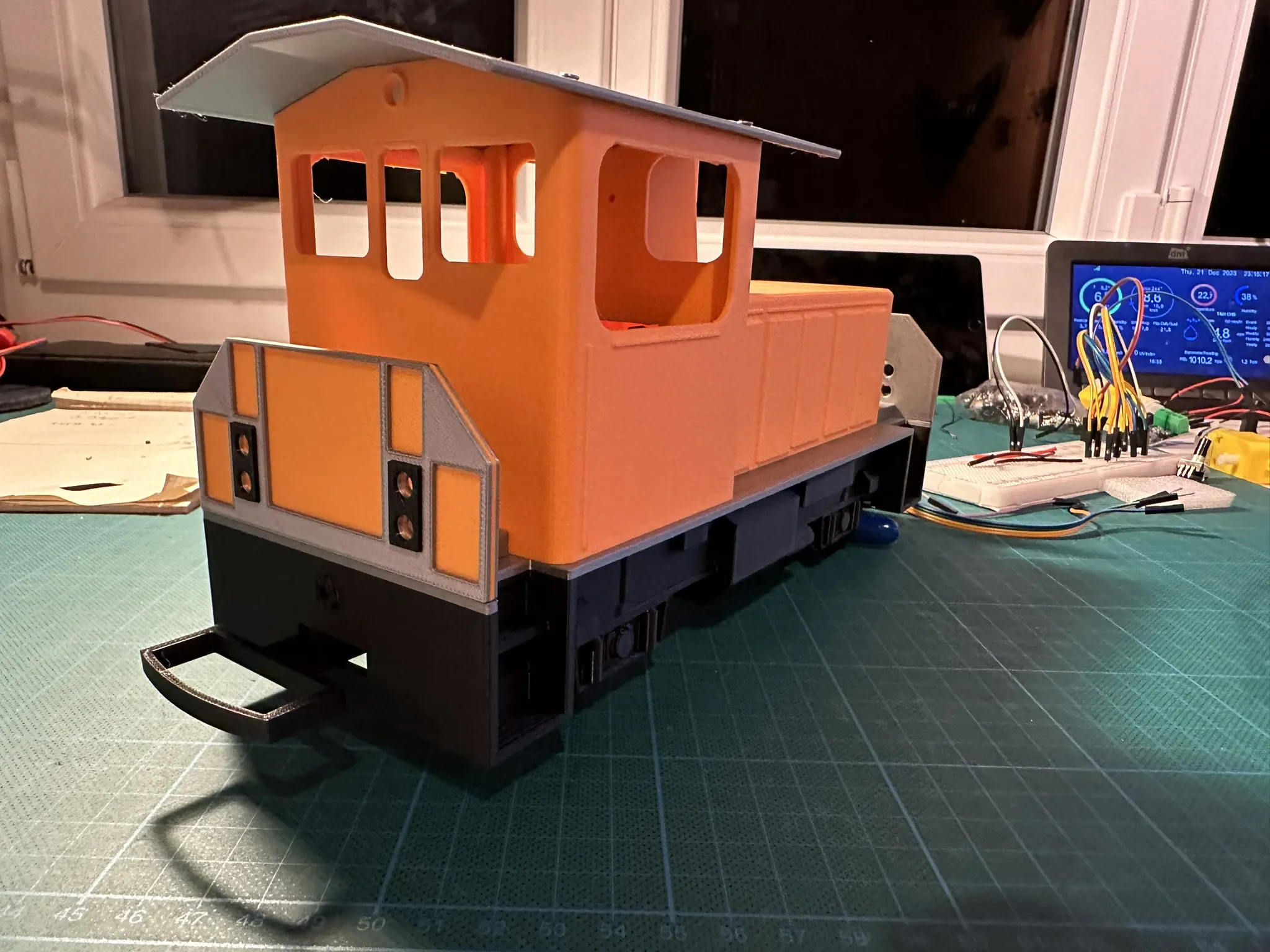

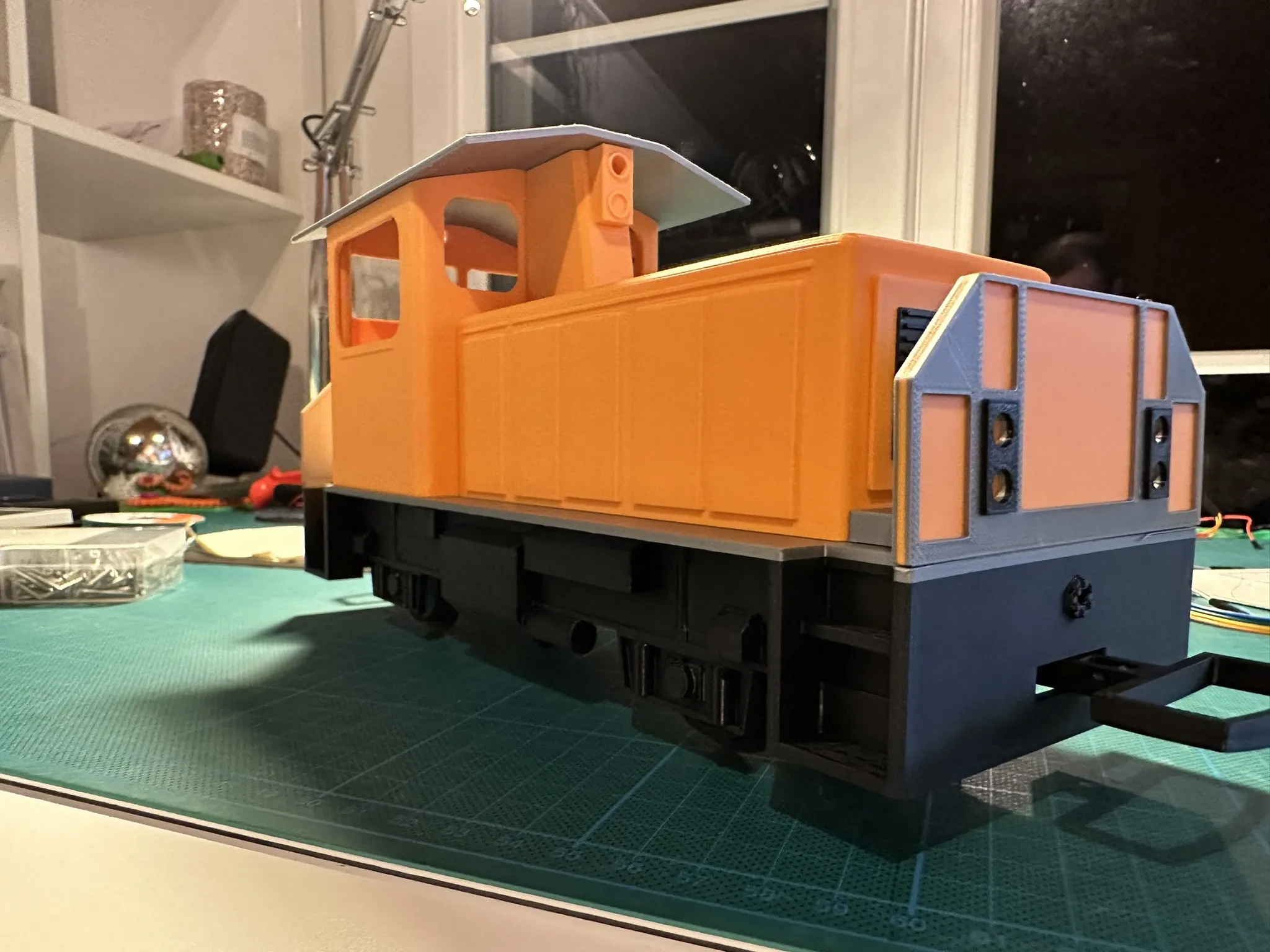

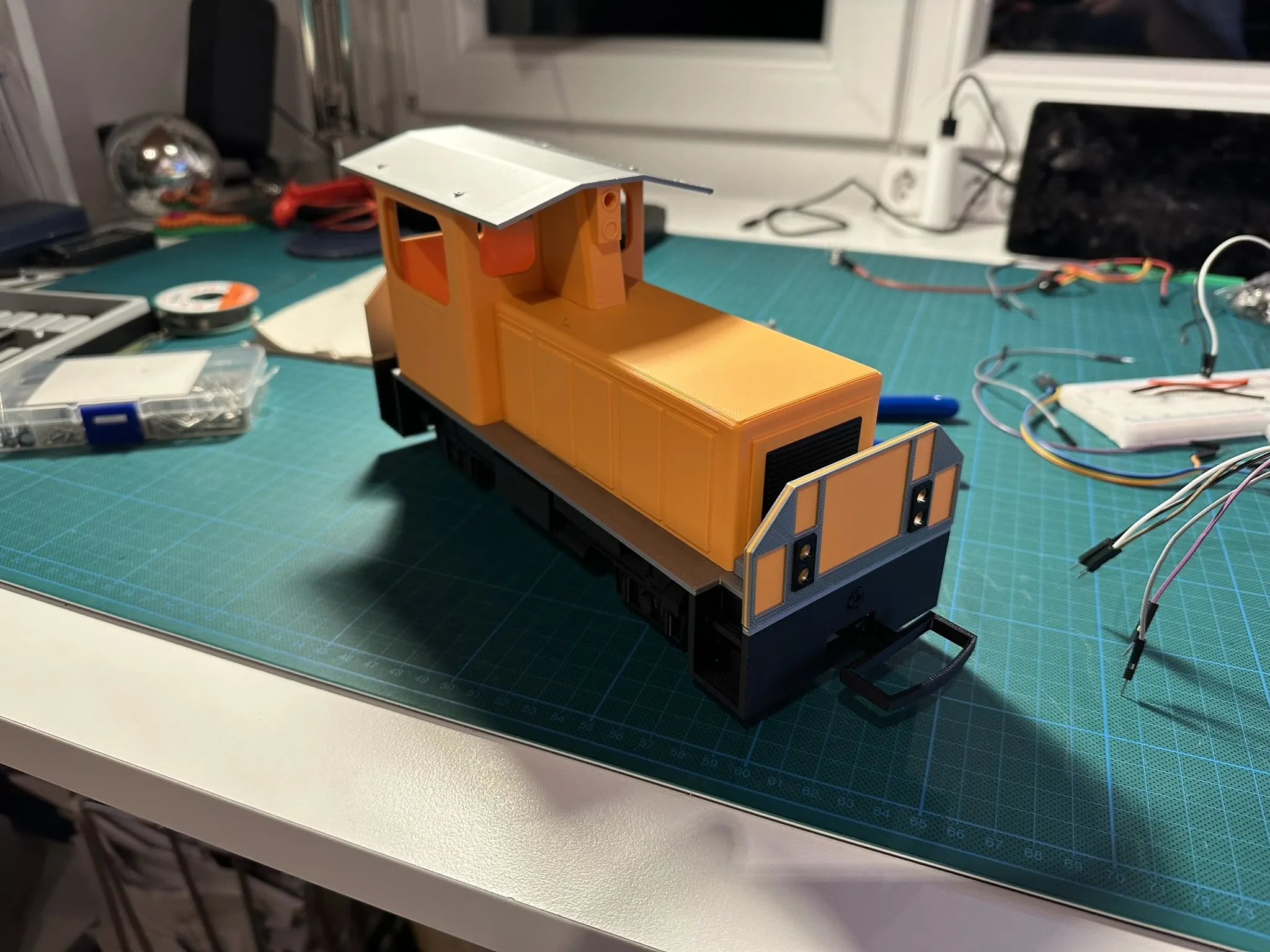

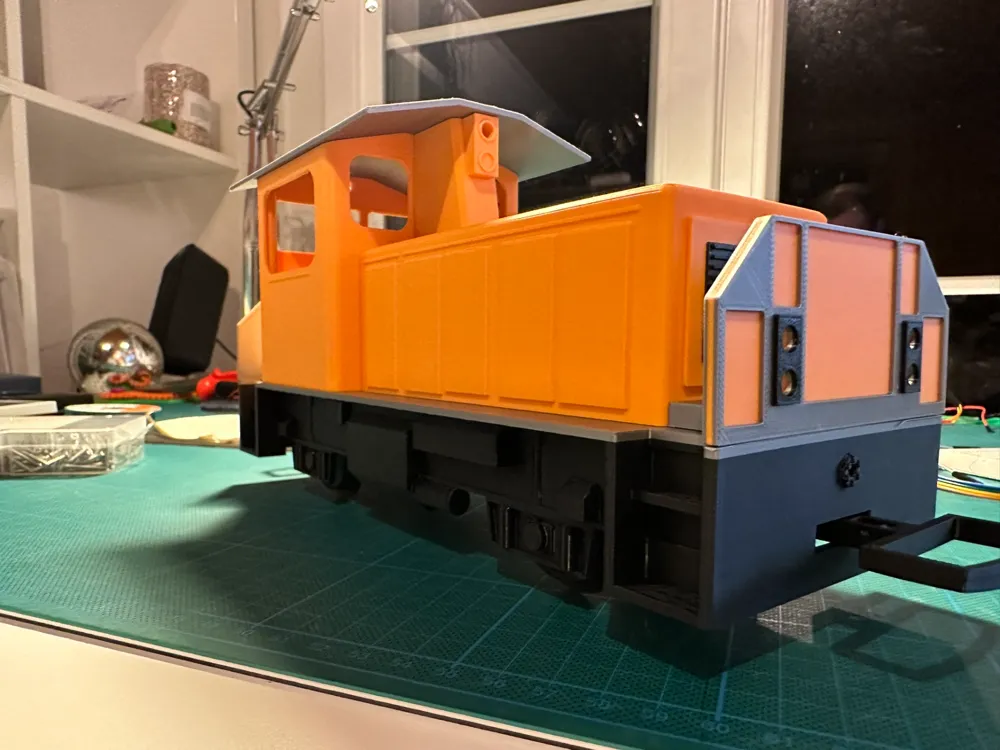

- It should now look like this:
My GitHub repository where the code is stored: CarviFPV/Train_Control_System: Remote Control System for Modell Trains with Nodemcu
