Remote control for the G-scale locomotive
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
1.7 h
1 plate
0.2mm layer, 2 walls, 15% infill
Designer
46 min
1 plate
Open in Bambu Studio
Boost
27
50
6
0
20
14
Released
Bill of Materials
List other parts
- ESP8266 Nodemcu x 1: https://www.aliexpress.com/item/1005006889833004.html?spm=a2g0o.productlist.main.3.2f842a68Q4hQFD&algo_pvid=a46444b2-a525-4b4c-a8c4-d00637fad9a3&algo_exp_id=a46444b2-a525-4b4c-a8c4-d00637fad9a3-2&pdp_ext_f=%7B%22order%22%3A%221222%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%212.33%212.18%21%21%212.86%212.67%21%40211b629217525882594645931e4046%2112000038628898661%21sea%21CH%212279045587%21X&curPageLogUid=mIjgpkUlY94j&utparam-url=scene%3Asearch%7Cquery_from%3A
- Screws x 1: https://www.aliexpress.com/item/1005006984047820.html?spm=a2g0o.productlist.main.12.5c75jhW7jhW7mQ&algo_pvid=6c4411c2-adc6-4894-89e6-33d133678f9a&algo_exp_id=6c4411c2-adc6-4894-89e6-33d133678f9a-11&pdp_ext_f=%7B%22order%22%3A%224882%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%217.98%213.75%21%21%2170.35%2133.06%21%402103835c17525960804327645e7f14%2112000038943295561%21sea%21CH%212279045587%21X&curPageLogUid=tvofUzF4dvtQ&utparam-url=scene%3Asearch%7Cquery_from%3A
- LED 3mm x 1: https://de.aliexpress.com/item/1005005996146570.html?spm=a2g0o.productlist.main.13.53d2672dvN4axd&algo_pvid=1aee5c67-49a5-4318-9d53-63a96658e529&algo_exp_id=1aee5c67-49a5-4318-9d53-63a96658e529-12&pdp_ext_f=%7B%22order%22%3A%223055%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%212.02%211.33%21%21%2117.80%2111.75%21%40211b6c1917526108150248967e1531%2112000035228334406%21sea%21CH%212279045587%21X&curPageLogUid=0FJ6Gn2mXXCD&utparam-url=scene%3Asearch%7Cquery_from%3A
- EC12 360 rotary encoder x 1: https://de.aliexpress.com/item/1005003637804908.html?spm=a2g0o.productlist.main.20.c498493cwOKb0I&algo_pvid=9960f6ef-41dd-4b20-aef0-d16fd048cb31&algo_exp_id=9960f6ef-41dd-4b20-aef0-d16fd048cb31-19&pdp_ext_f=%7B%22order%22%3A%226%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%212.03%211.62%21%21%2117.86%2114.29%21%402103917f17526109063696956ef203%2112000026599230003%21sea%21CH%212279045587%21X&curPageLogUid=MXPr5JxTnnb2&utparam-url=scene%3Asearch%7Cquery_from%3A
- Battery Holder x 1: https://de.aliexpress.com/item/1005005978622306.html?spm=a2g0o.productlist.main.43.f8cd1544eddDhf&algo_pvid=5ebe71d2-63dd-4816-9c1c-7f4eac4f0a9e&algo_exp_id=5ebe71d2-63dd-4816-9c1c-7f4eac4f0a9e-42&pdp_ext_f=%7B%22order%22%3A%224%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%212.11%210.95%21%21%2118.58%218.36%21%402103956a17526115039255747e61f7%2112000035146192642%21sea%21CH%212279045587%21X&curPageLogUid=EKpA7JpIprZ5&utparam-url=scene%3Asearch%7Cquery_from%3A
- Mini Rocker Switch x 1: https://www.aliexpress.com/item/4000973563250.html?spm=a2g0o.productlist.main.17.73712958agsrsV&algo_pvid=6c7cab0d-fd27-4e22-a651-c5ac3c5e6fdb&algo_exp_id=6c7cab0d-fd27-4e22-a651-c5ac3c5e6fdb-16&pdp_ext_f=%7B%22order%22%3A%224278%22%2C%22eval%22%3A%221%22%7D&pdp_npi=4%40dis%21CHF%210.89%210.86%21%21%211.09%211.05%21%402103835c17526058727463205e7f1c%2112000036659982728%21sea%21CH%212279045587%21X&curPageLogUid=F4ANKNIVJrwR&utparam-url=scene%3Asearch%7Cquery_from%3A
Description

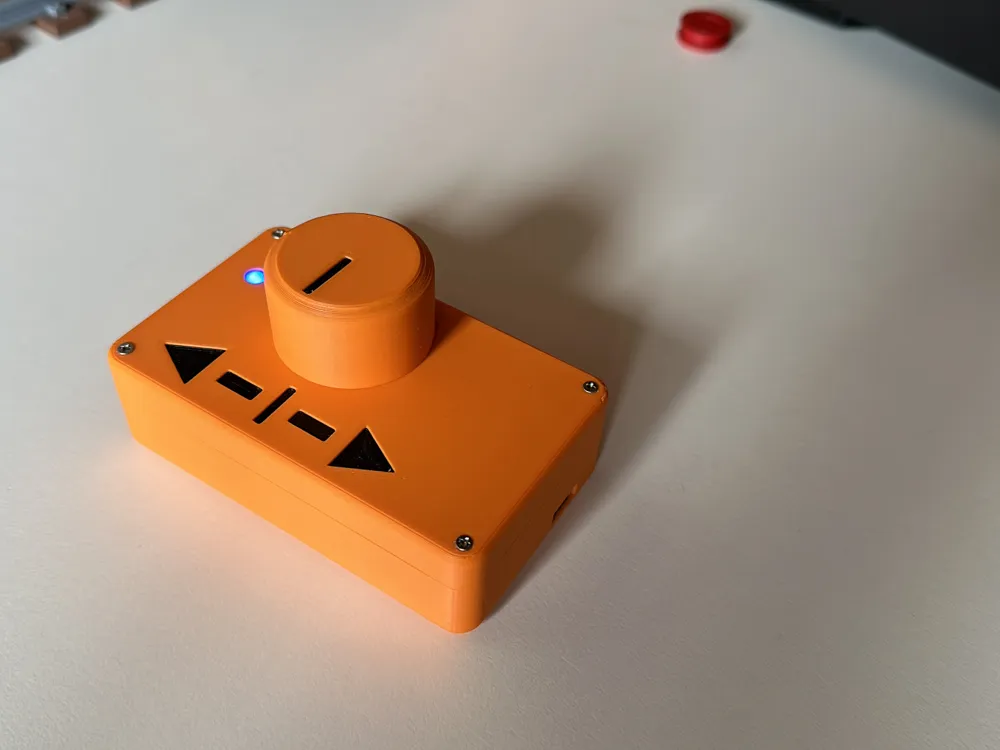

This remote control is used to operate the TMF2-2 G-scale locomotive using a NodeMCU and a rotary encoder.
Video:
Build Instructions:
- Print all parts of the remote control.
- Flash the NodeMCU with the specified firmware so that you can upload the Arduino code
- Upload the Train_controller.in code to the NodeMCU: Train_Control_System/Train_controller/Train_controller.ino at main · CarviFPV/Train_Control_System
- You can do this as follows: How to Setup and Program NodeMCU ESP8266–Complete Guide
- Connect the rotary encoder as follows:
a. // Rotary encoder pins
b. D6 // CLK
D5 // DT
c. D7 // SW - Connect the WiFi LED as follows:
ledWifi = D0; // WiFi status LED - The LED will light up as soon as a connection to the locomotive has been established.

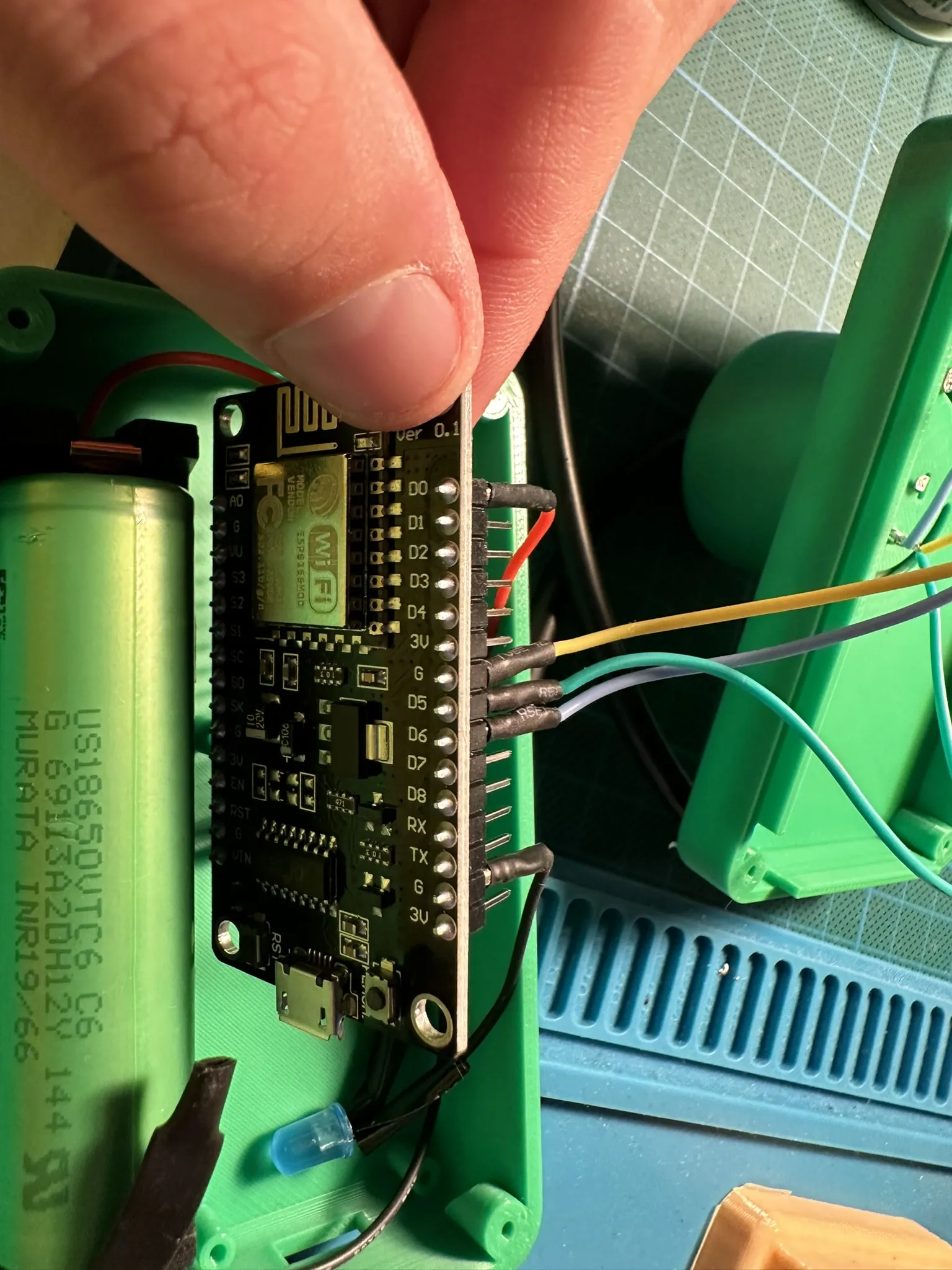

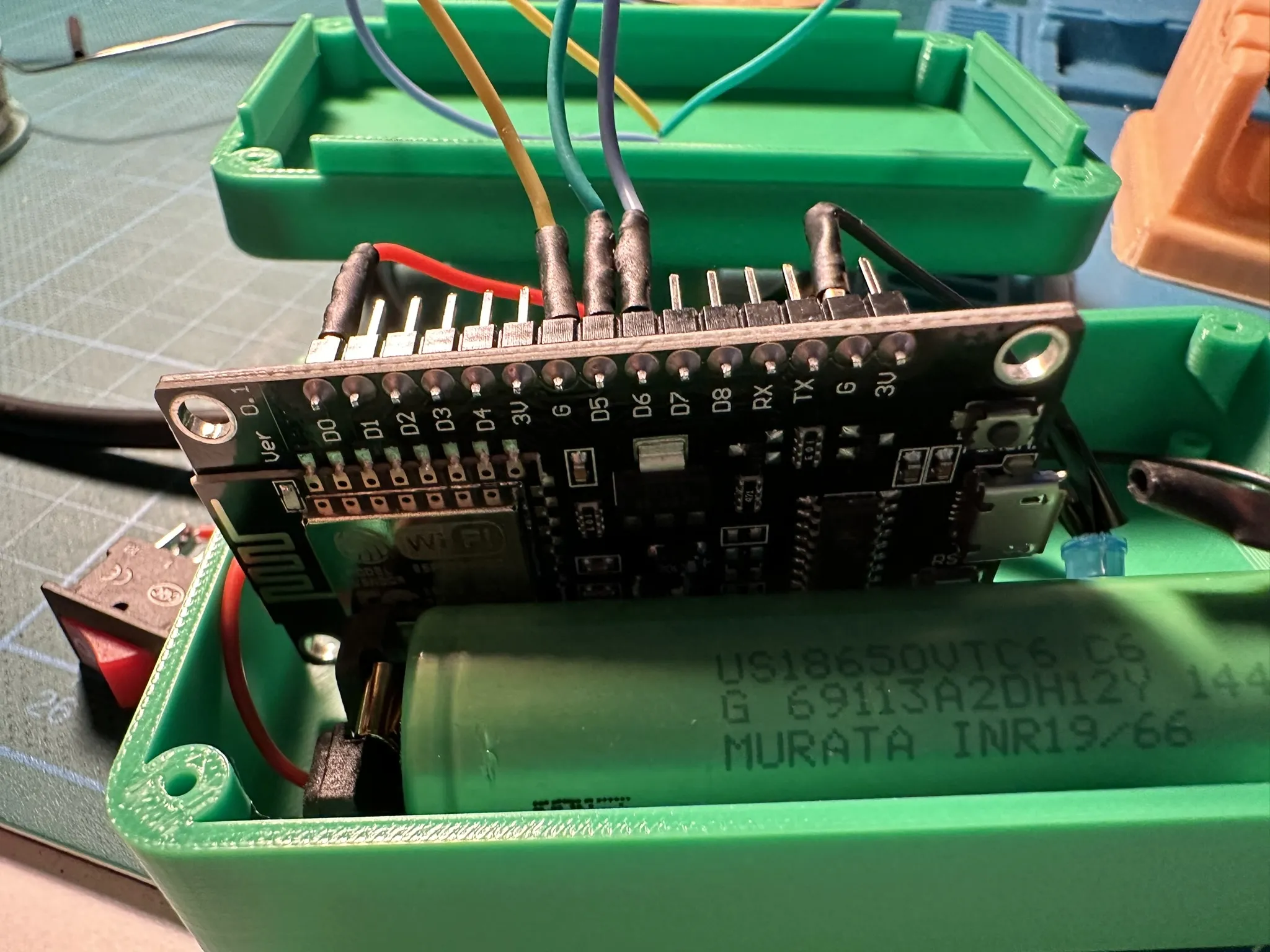

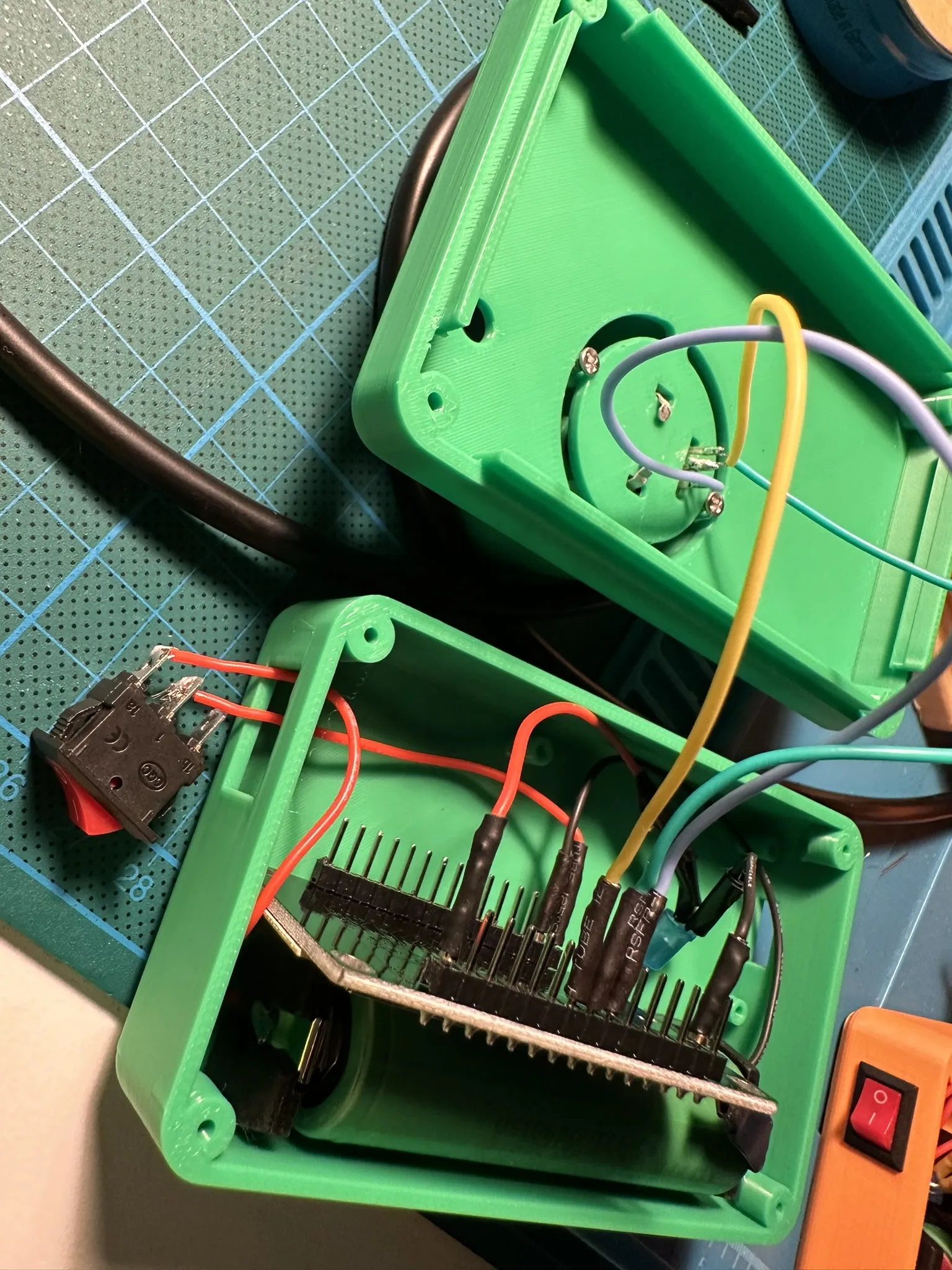

- Here are a few examples of the wiring:
My GitHub repository where the code is stored: CarviFPV/Train_Control_System: Remote Control System for Modell Trains with Nodemcu
