ITX Mini PC Case NAS Case Dual 3.5-Inch Drive Bays
Print Profile(1)
Description

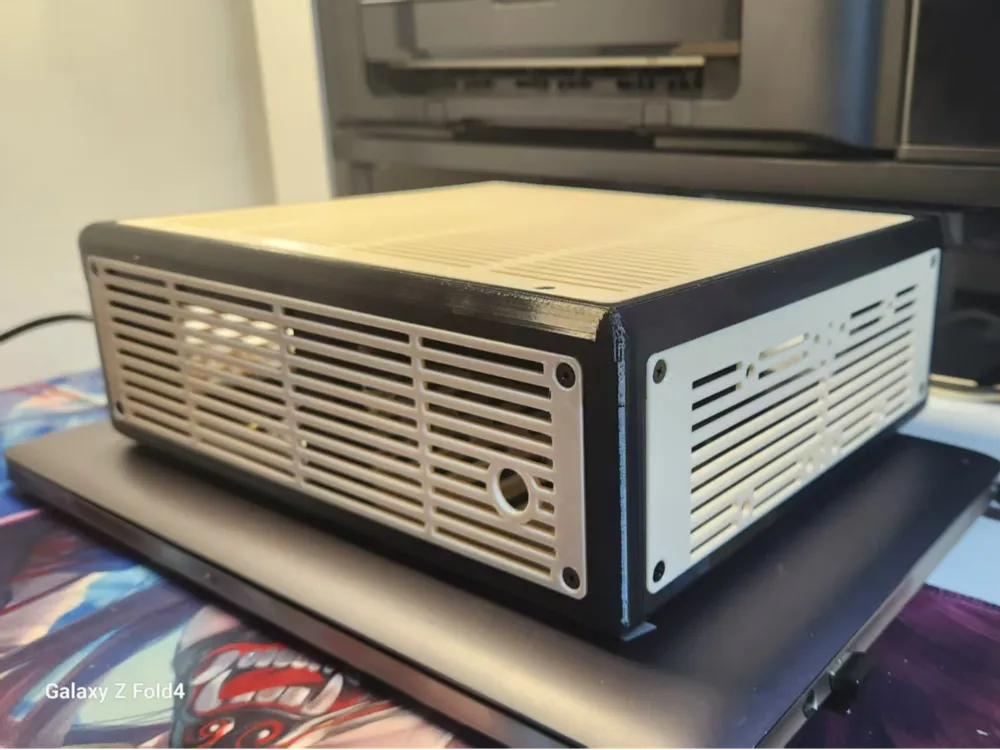

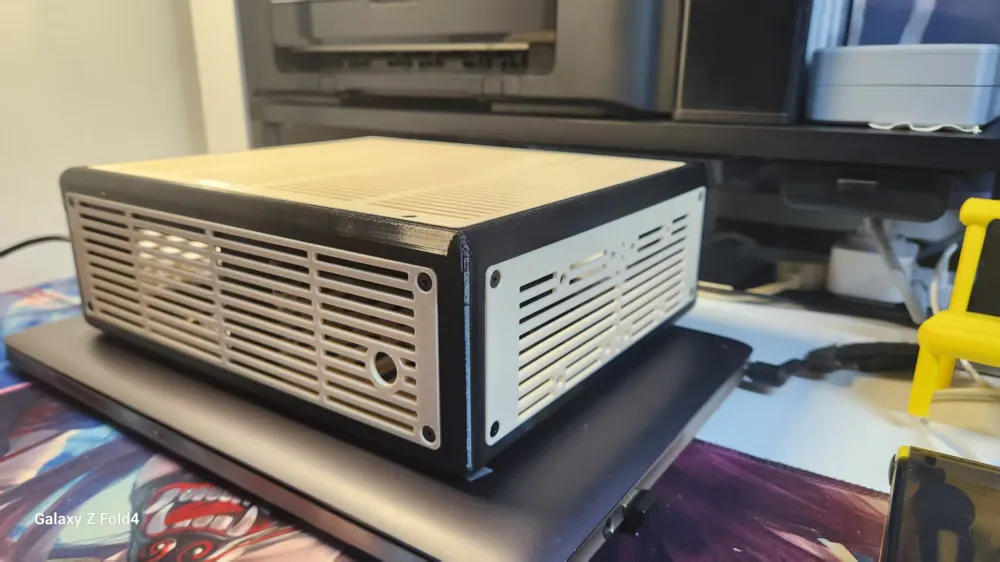

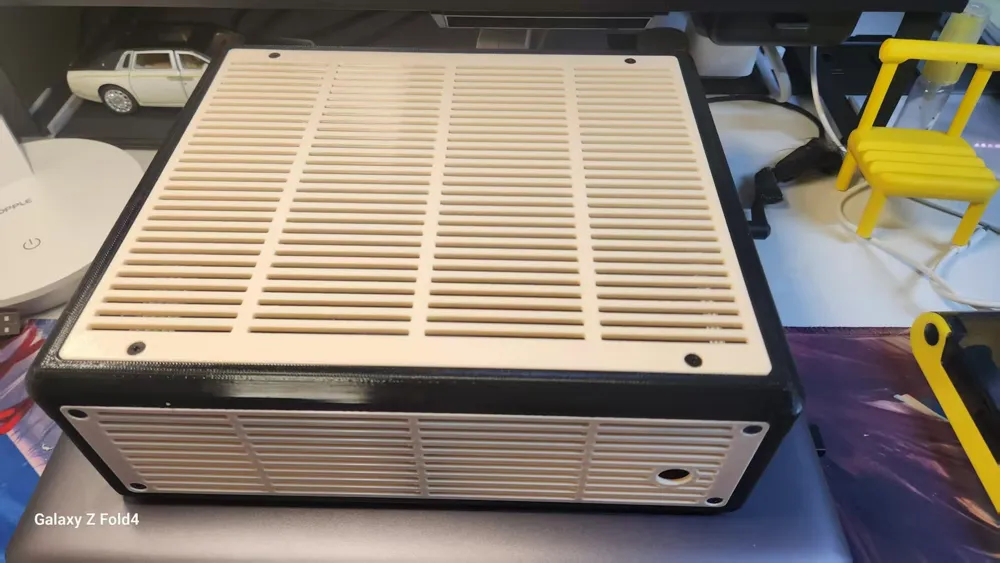

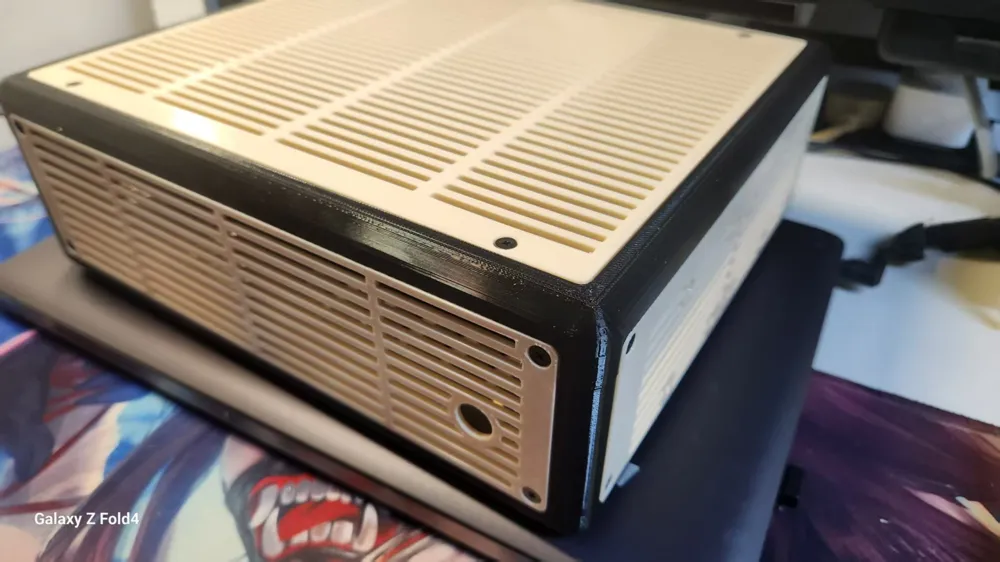

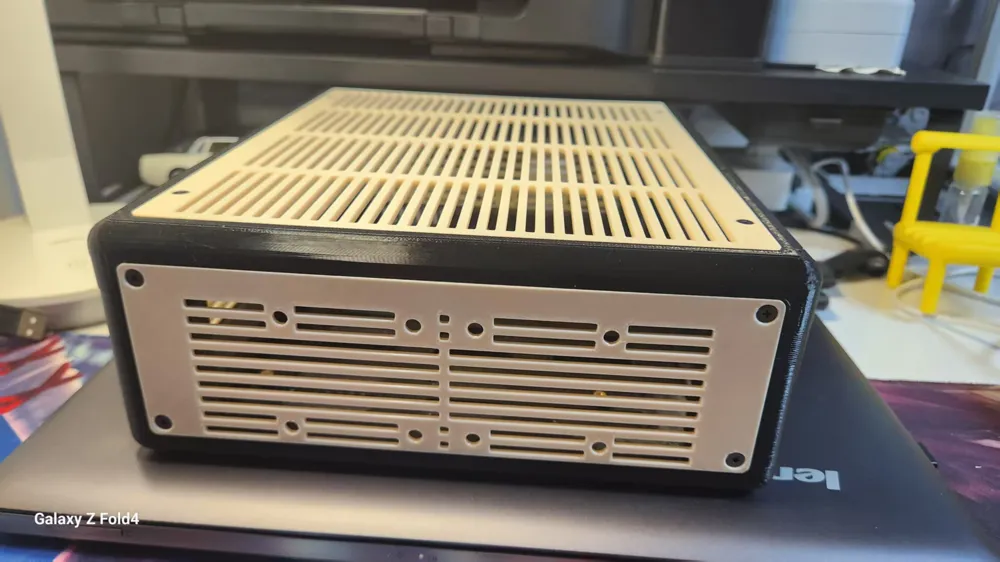

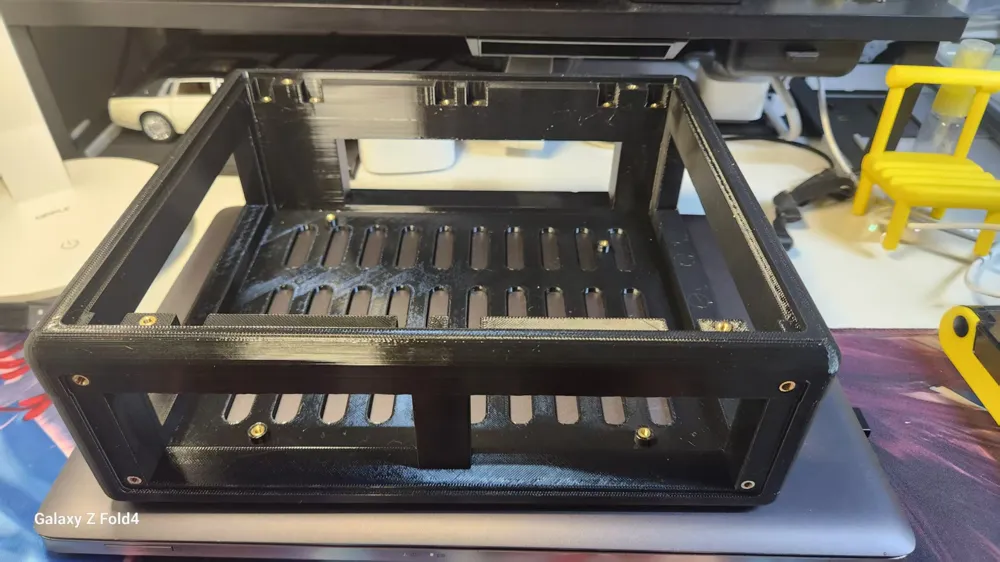

A custom-designed desktop PC case tailored to my needs, suitable for both living room PCs and media NAS systems. It's arguably the smallest dual 3.5-inch drive bay case currently available, measuring 255*220*85MM. Printable on A1 and larger printers, its one-piece frame is robust and durable, and the fully perforated panel ensures excellent heat dissipation.
Supported hardware: ITX motherboard and ultra-thin heatsinks under 35MM (17*19mm heatsinks are also compatible if the mounting holes align with 17*17mm), full-height backplate, four 5510 fans, external DC power supply, two 2.5 or 3.5-inch hard drives (any combination), and a 12MM opening for the power button.
Required accessories: four 10*4mm self-adhesive feet, thirty-two 5*5 M3 knurled nuts, sixteen M3*6 pan head screws, and eight M3*14 pan head screws (hard drive and motherboard screws not included).
I am releasing this model for personal DIY use only. Commercial use and sale of printed copies are strictly prohibited. Thank you!
