Velux Skylight Adapter Air Outlet Air Conditioner
Print Profile(1)
Description

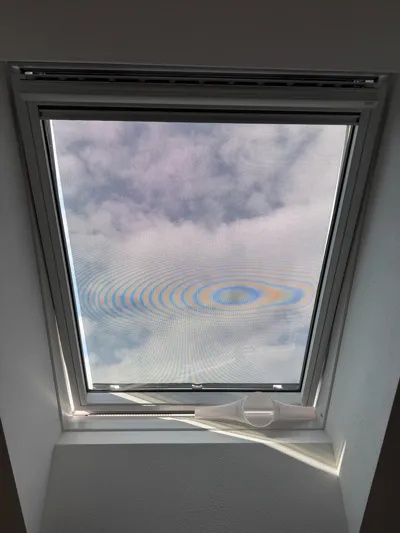

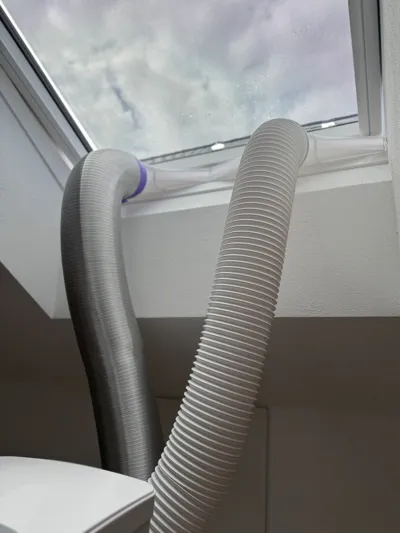

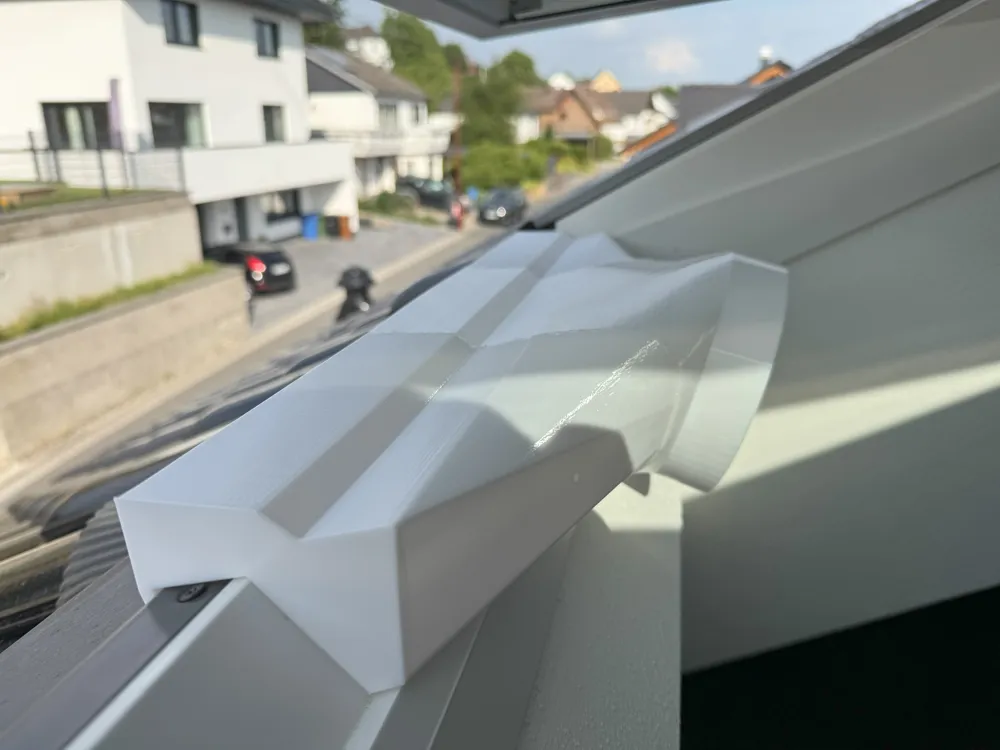

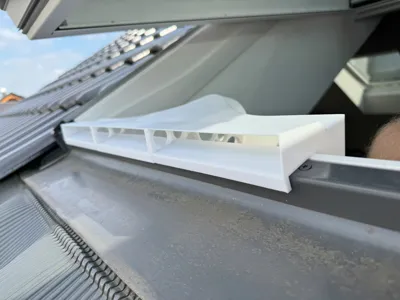

This is an adapter for a Velux roof window (GLU SK08 or GGU) to guide an exhaust hose from a mobile air conditioner to the outside. The adapter allows the roof window to be locked in its first opened position (see last image). Two adapters fit side-by-side on my window, enabling the attachment of both supply and exhaust hoses. The original air hose of a Climia CMK 2600 fits directly onto the air outlet.
Roof Window Specifications:
Manufacturer: Velux
Model: GLU (GGU is identical)
Size: SK08 114 x 140 cm
Print Part Specifications:
Spigot Inner Diameter: 130.7 mm (134 cm²)
Spigot Outer Diameter: 134.7 mm
Air Outlet: 92.4 cm²
Printing Recommendations:
Supports are necessary. Removing supports from the left and right parts proved challenging; I used pliers.
The three printed parts must be glued together. I used hot glue.
