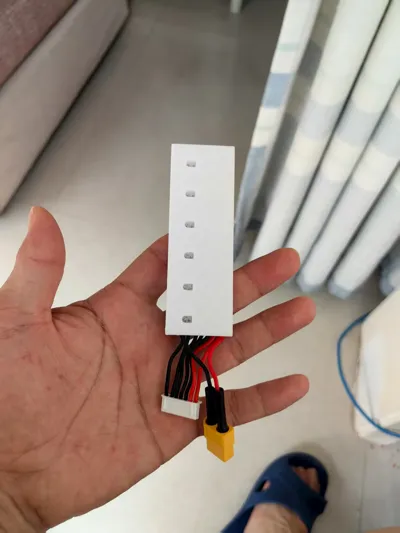

6S1P Battery Parallel Charging Board - Ultra Budget Version

This model is designed for charging 1S batteries with a low cost solution; it is particularly useful given that 1S battery chargers are often expensive and only capable of charging, not discharging.

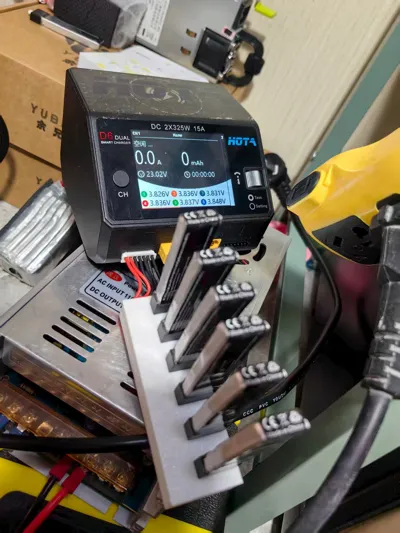

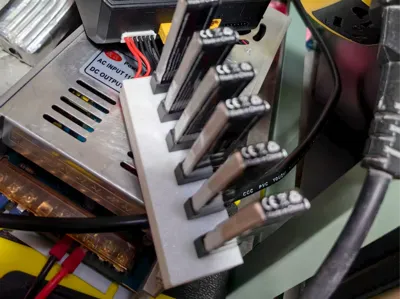

It can charge and discharge six 1S batteries simultaneously (for those needing to charge four batteries, please visit my homepage).

1. One 7P balance charging plug is required.

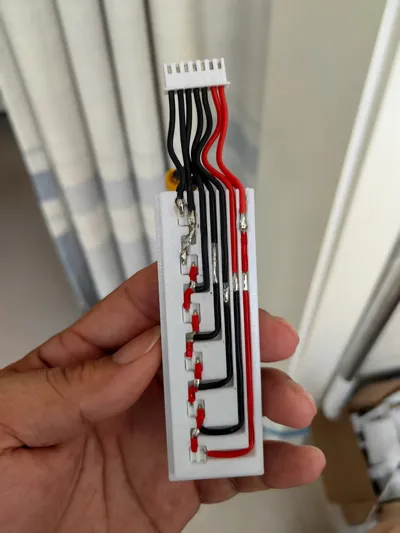

2. Silicone wires with one end terminated with 2.54mm connectors; six black and one red (20AWG or 22AWG) plus several short wires.

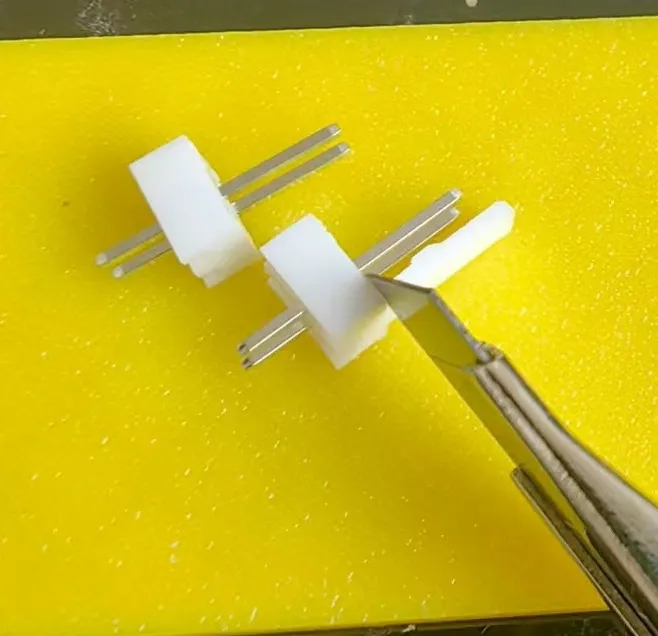

3. Six 2P 2.54mm straight pins are needed (these are inexpensive; buying more is recommended as they are easily deformed during high-temperature soldering. Alternatively, soldering can be skipped, and the silicone wires can be directly inserted as shown below. Cut off the excess with a knife).

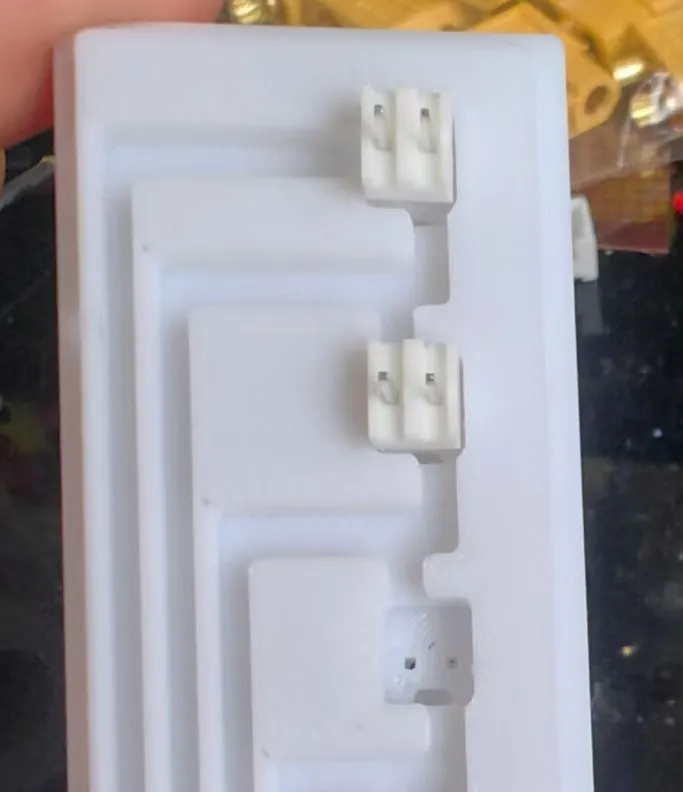

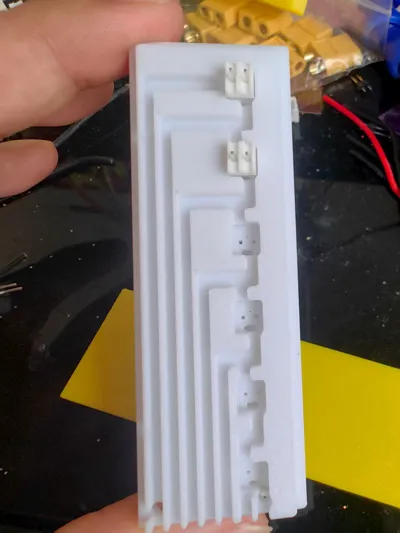

4. Insert the cut end into the corresponding recess.

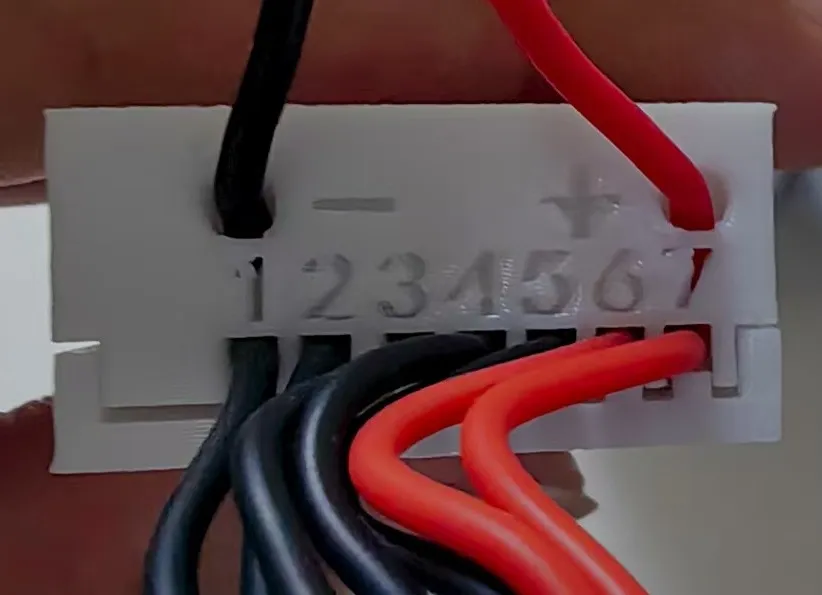

5. The order is -1234567+; reverse connection is strictly prohibited.

Finally, always ensure that someone is present when charging batteries, and prioritize charging safety.

Wishing all pilots smooth and safe flights!
