4-in-1 1S Battery Serial Charging Board - Ultra Budget Version
Print Profile(1)
Description
This model is designed for ultra-low-cost serial charging, addressing the issue of 1S battery chargers being incapable of discharging and relatively expensive.

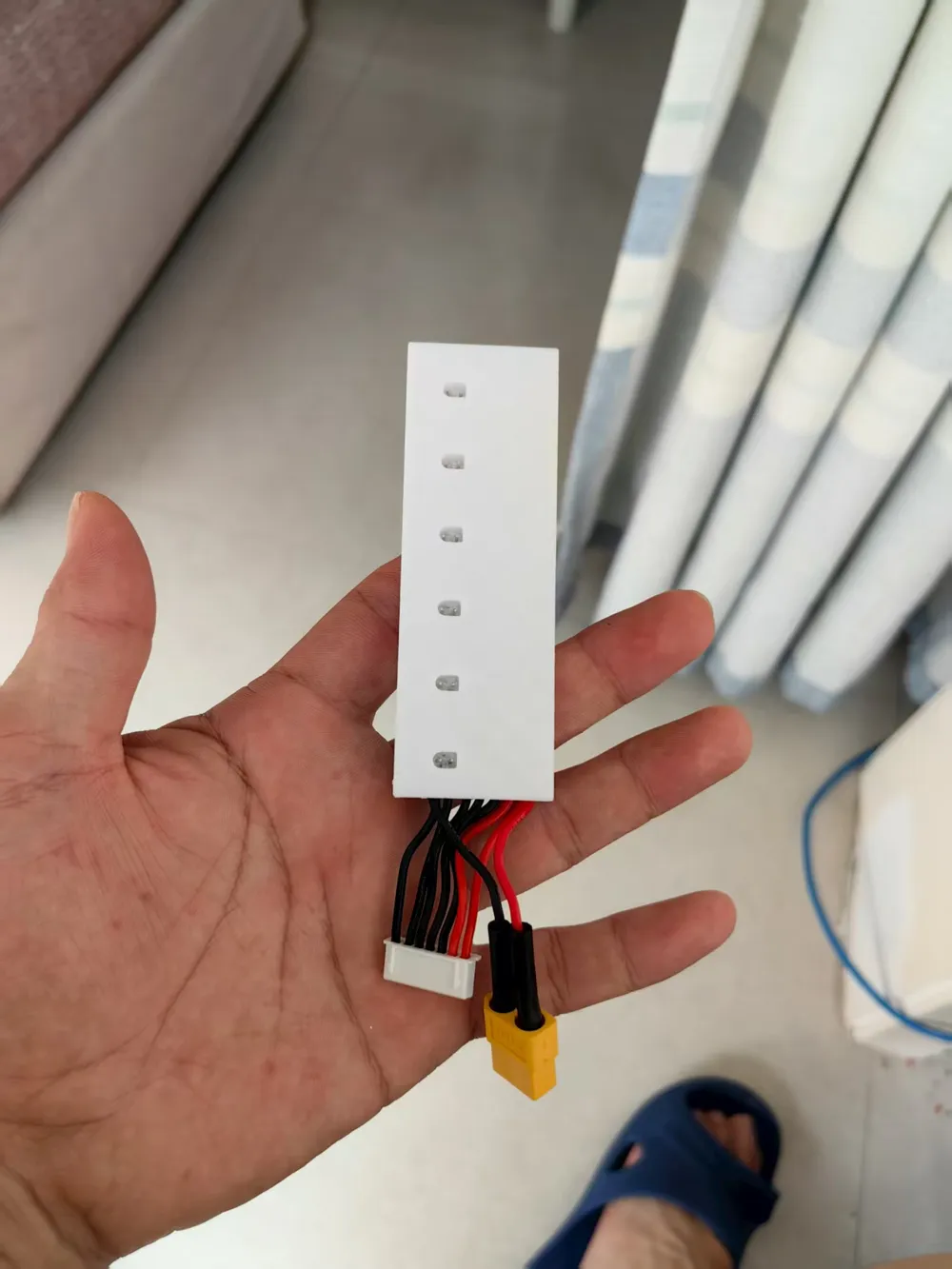

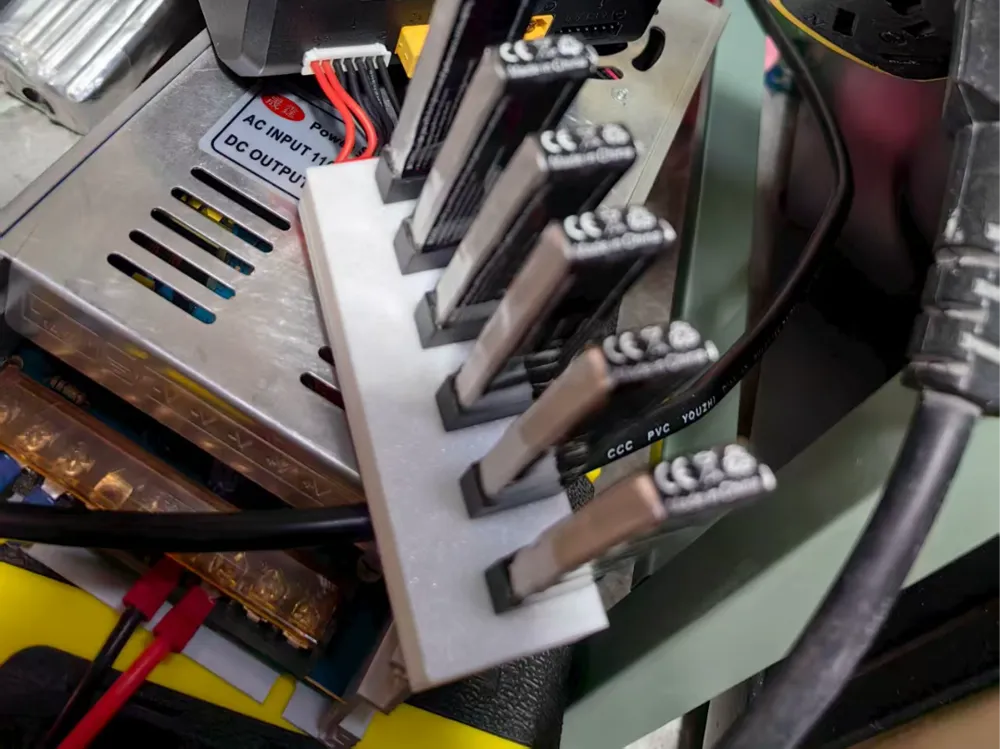

It can simultaneously charge and discharge four 1S batteries (users needing to charge six batteries can visit my homepage).
1. Requires one 7P balance charging connector
2. Silicone wire with 2.54 terminals (4 black, 1 red), and several short wires (20AWG or 22AWG)

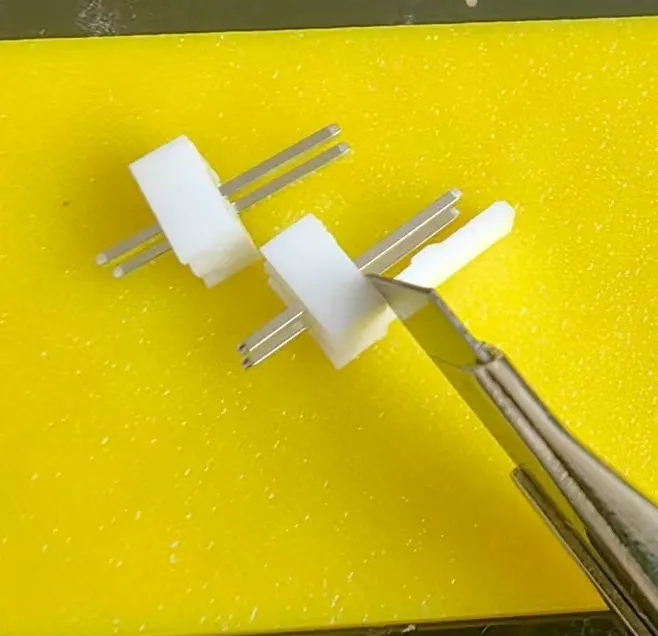

3. Requires four 2P 2.54 straight pins (very inexpensive, it's advisable to buy several since they can deform during high-temperature soldering; alternatively, you can skip soldering and insert the silicone wire directly, trimming excess as shown in the image below)

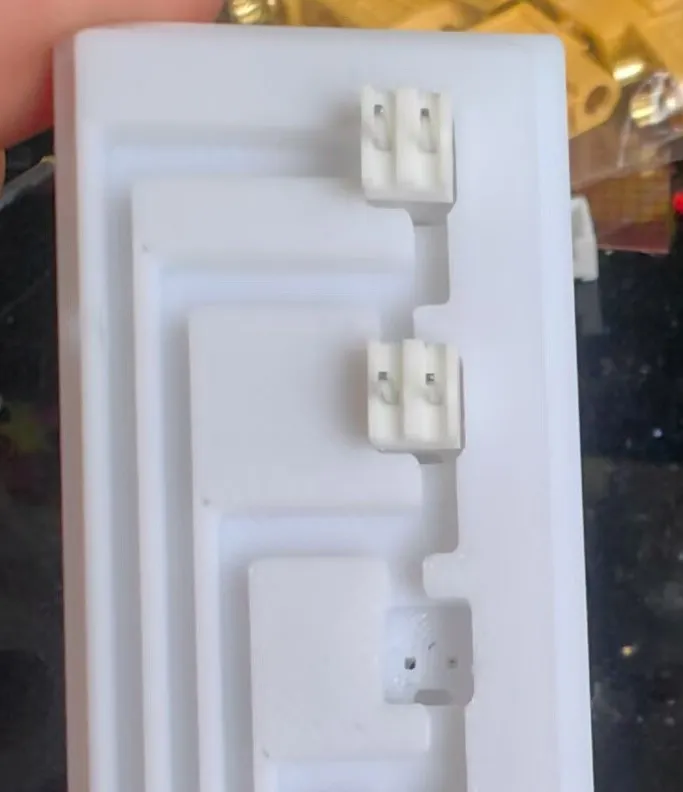

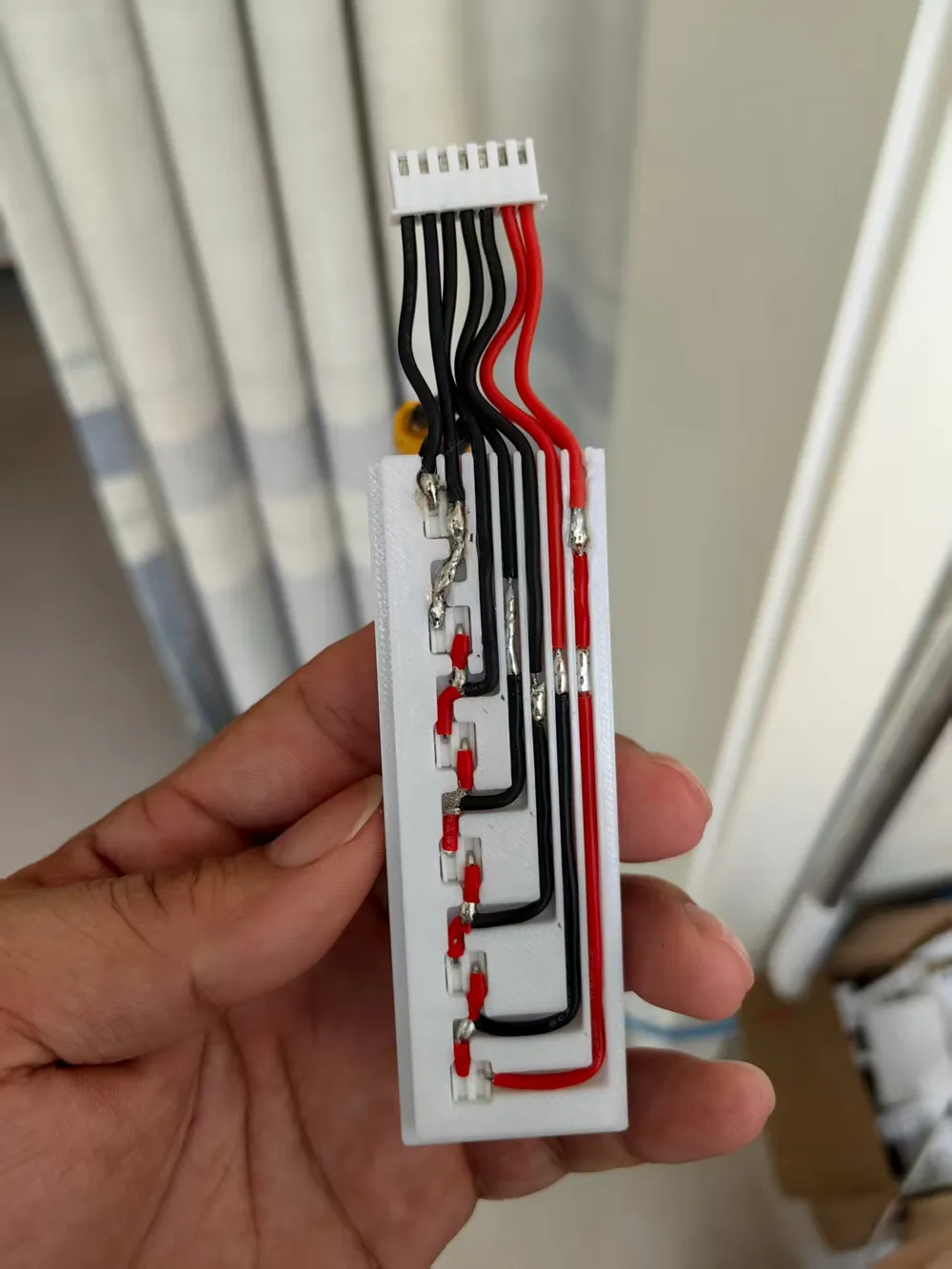

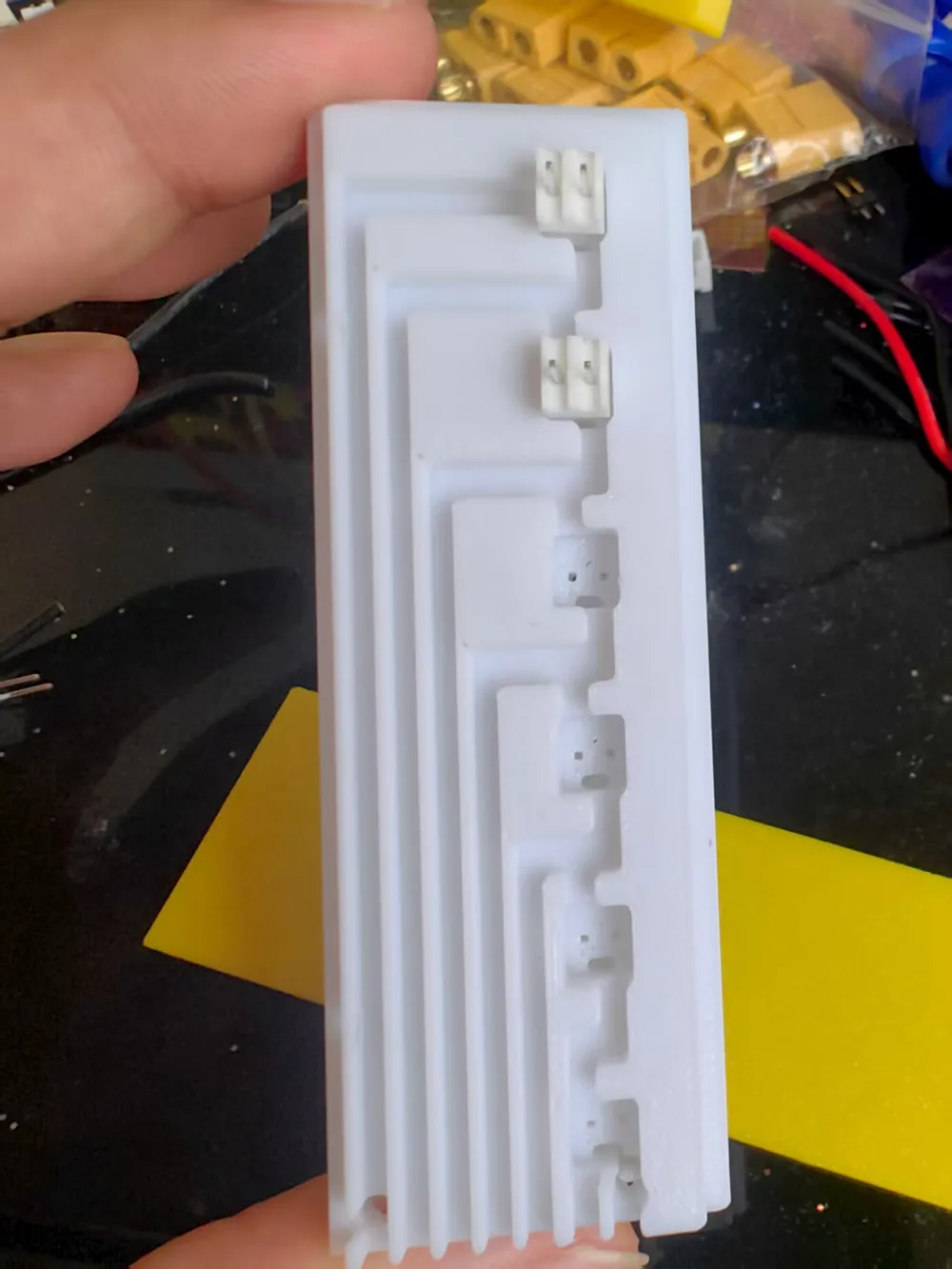

4. Insert the trimmed end of the wire into the groove.

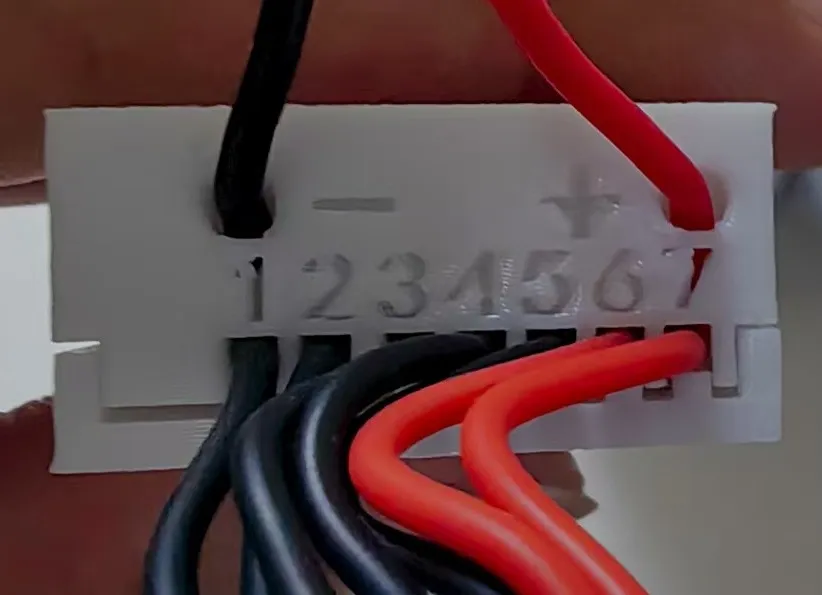

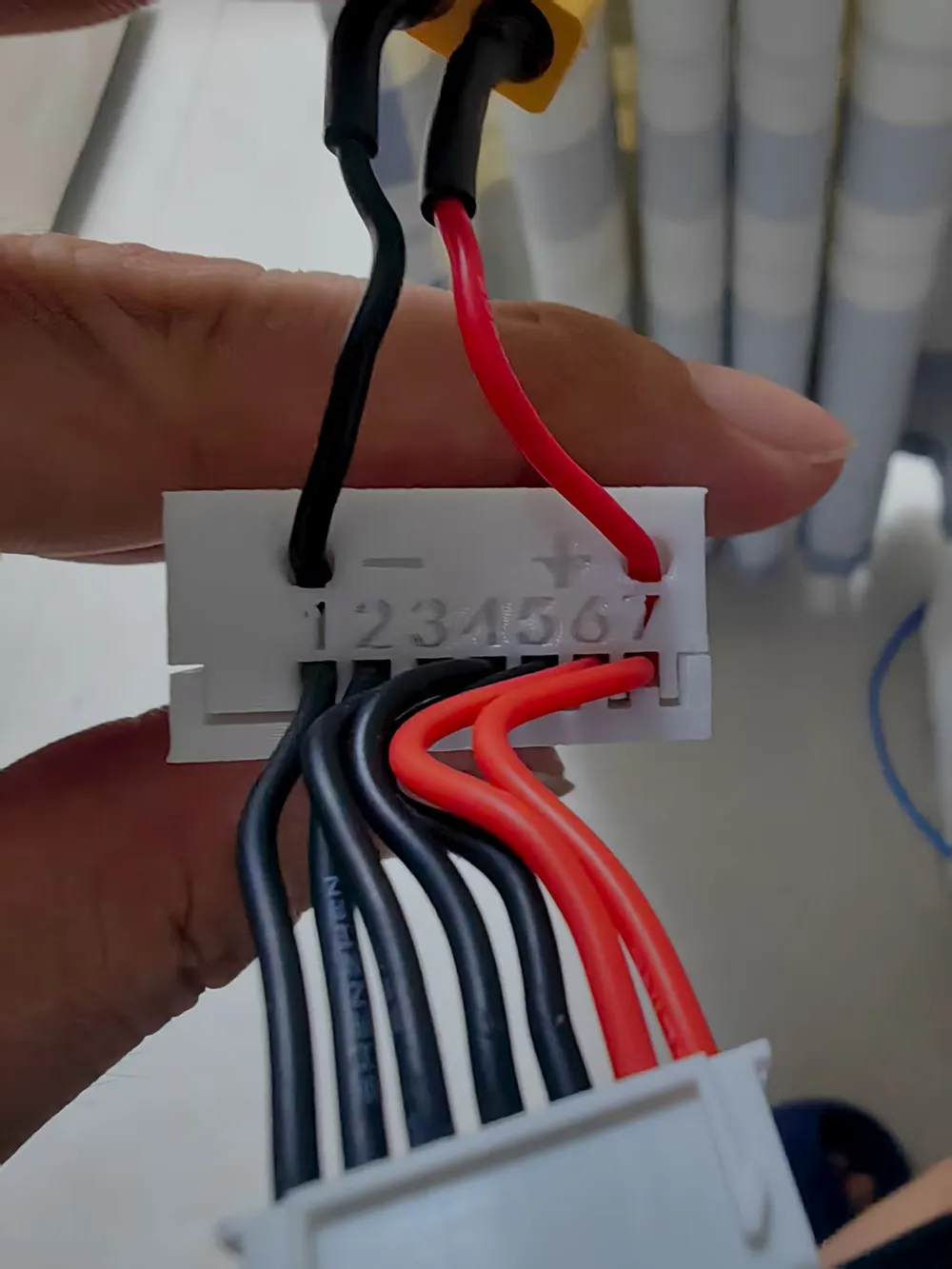

5. The order is -12345+, do not reverse the connections.
Finally, ensure someone is present during battery charging and prioritize charging safety.
Wishing all fellow flyers double flights without crashes!
