🎣 Boatman Actor Plus GPS - Ultimate Tablet & Smartphone Mount

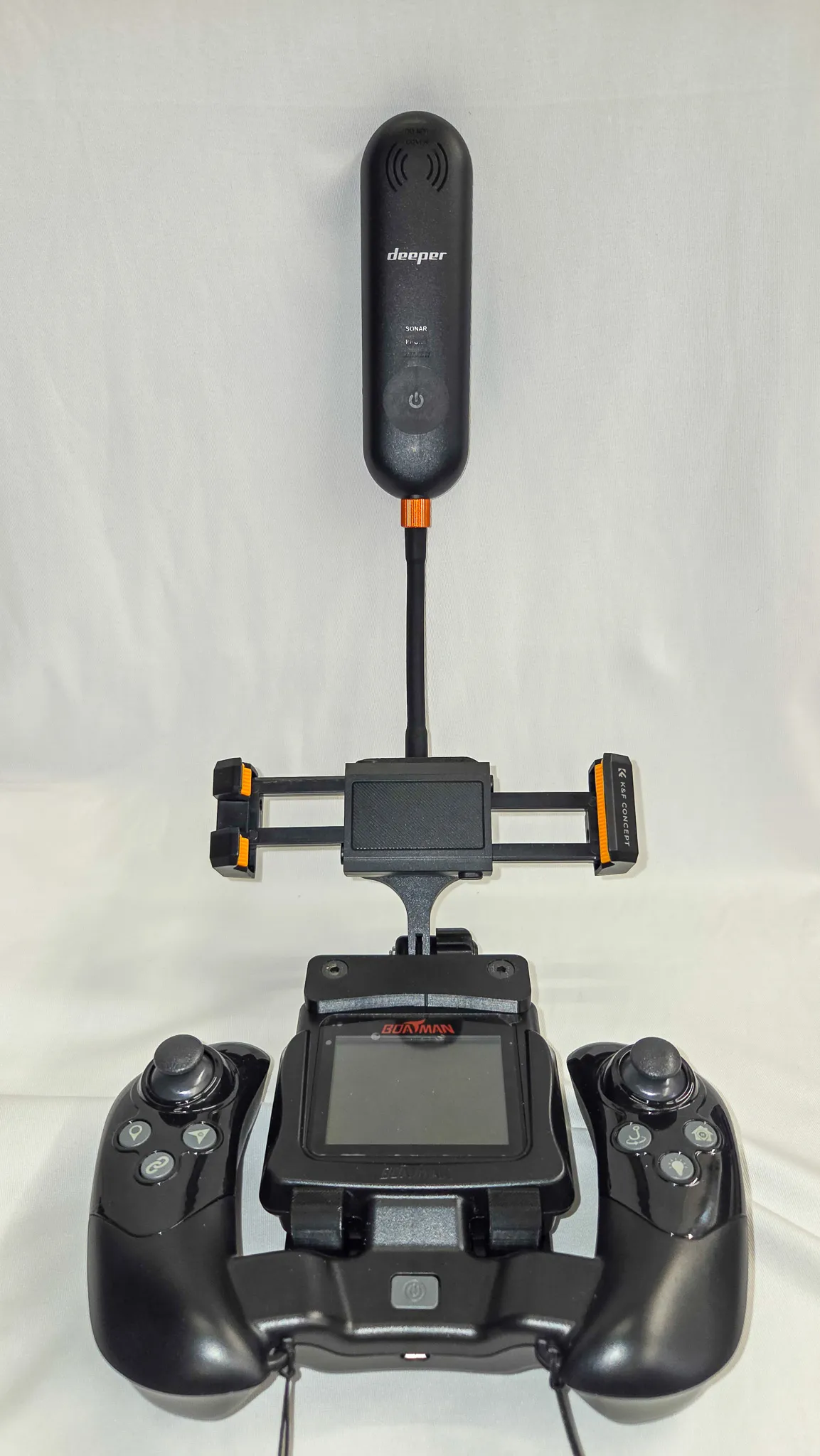

V2.0 Update: Now with integrated 1/4" camera thread for the Deeper Range Extender!

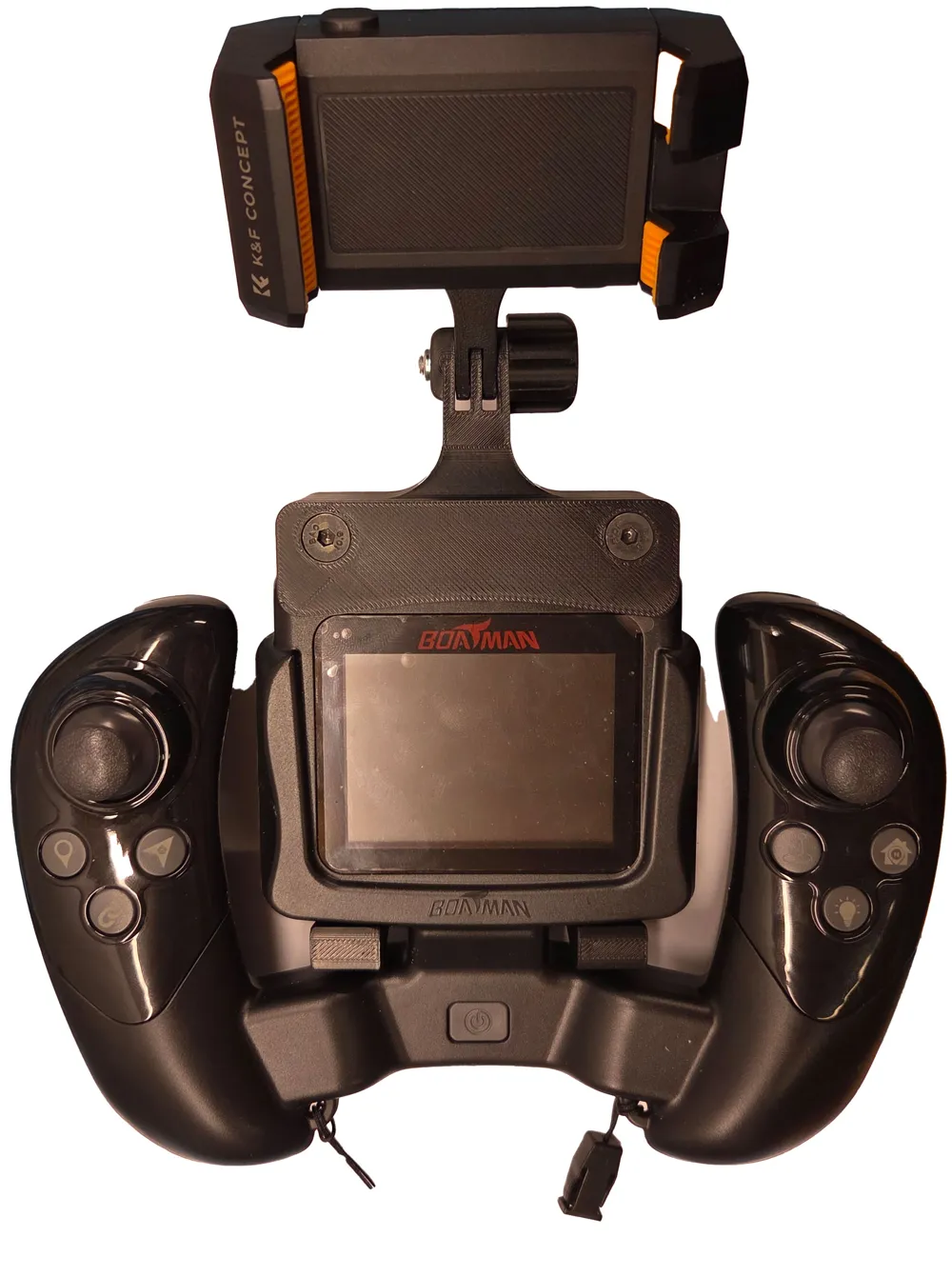

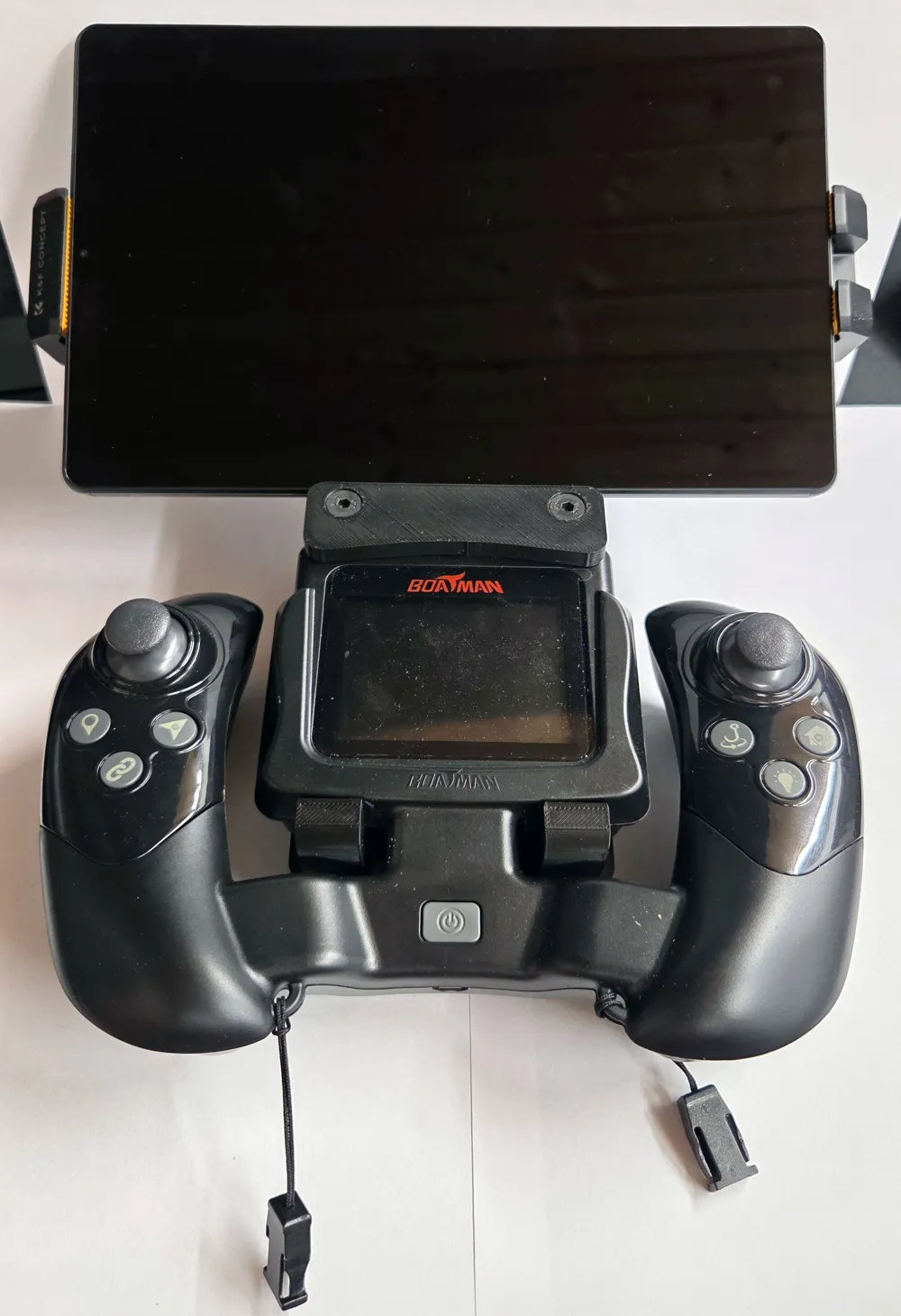

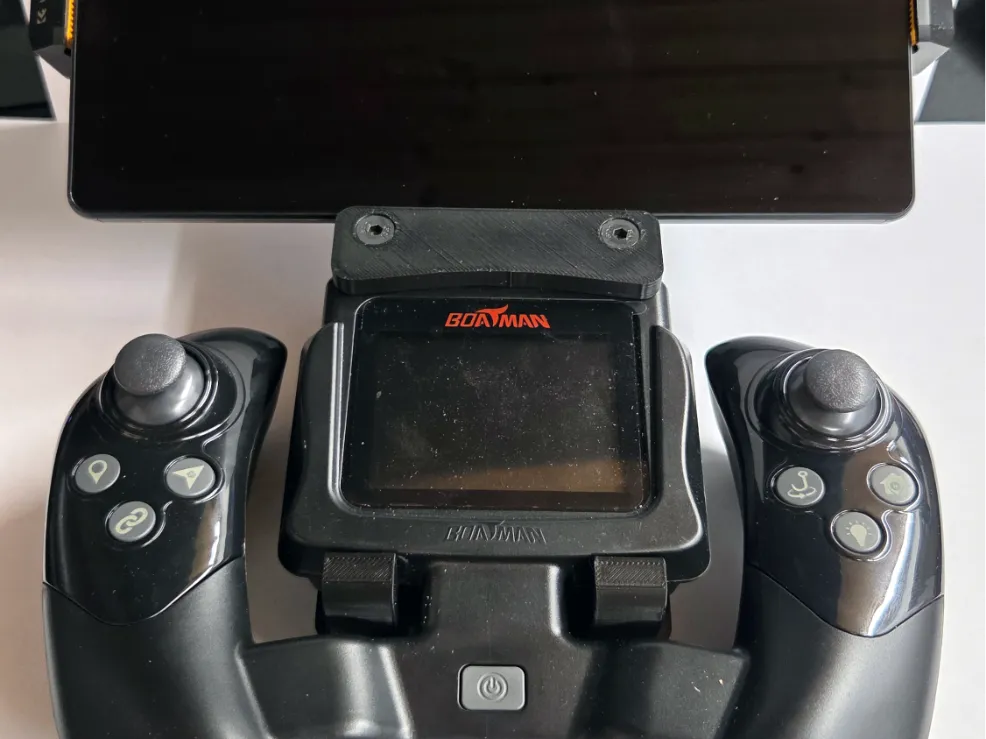

Upgrade your fishing experience! This specialized mount for the Boatman Actor Plus GPS remote control allows you to securely mount your tablet or smartphone at the perfect angle – completely without modifications to your remote control.
✨ Highlights
- No Drilling / No Screws: Simply clips securely onto the remote control.
- Full Flexibility: Sturdy joint with knurled screw for stepless angle adjustment.
- Universal Fit: Compatible with all mounts with 1/4" tripod thread (e.g. K&F Concept MS20).
- Extremely Stable: Tested on the water for maximum reliability.
🛠️ What you need (Hardware)
- Tablet Mount: e.g. K&F Concept MS20

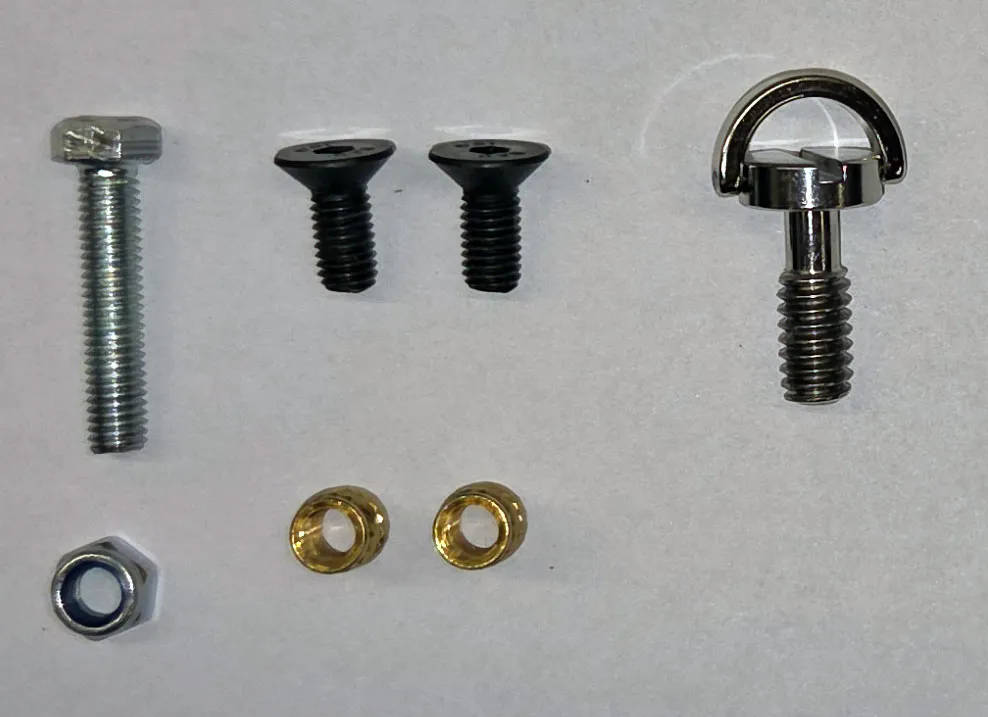

- Screws & Inserts:
- 1x 1/4" inch Camera Screw (D-ring screw, head max. 17mm)
- 1x M5 x 25 Hex Head Screw
- 1x M5 Nut (self-locking recommended)
- 2x M5 x 12 Countersunk Screws
- 2x M5 Threaded Inserts (Heat-Stakes / Press-fit)
🔧 Assembly Instructions

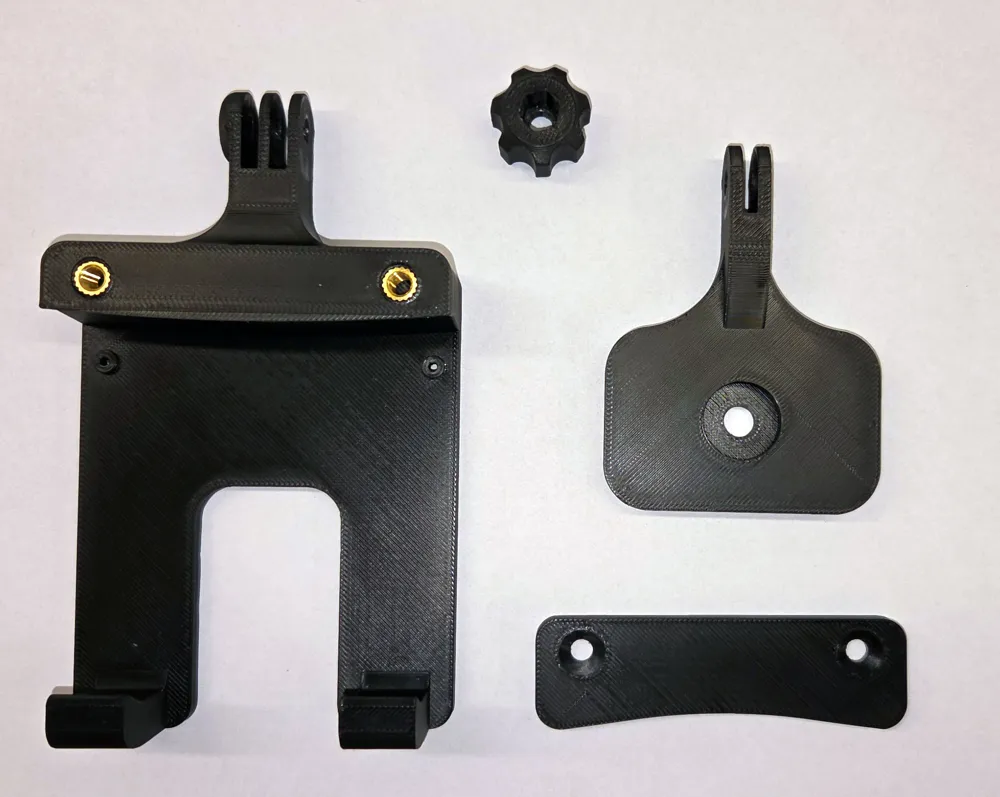

- Preparation: Press the two M5 threaded inserts into the base body.

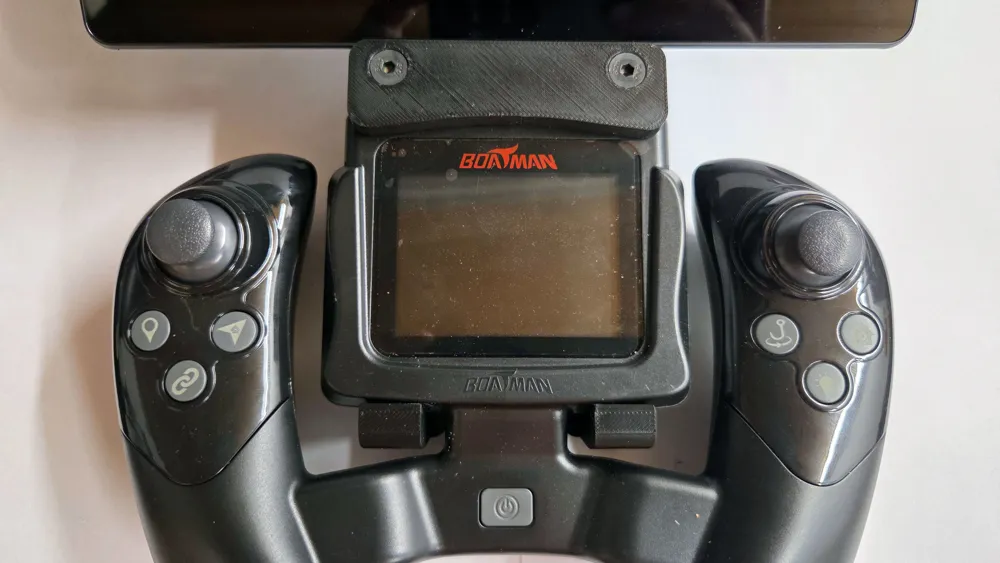

- Attachment: Clip the mount onto the remote control from below and fix the upper part with the two M5 countersunk screws.

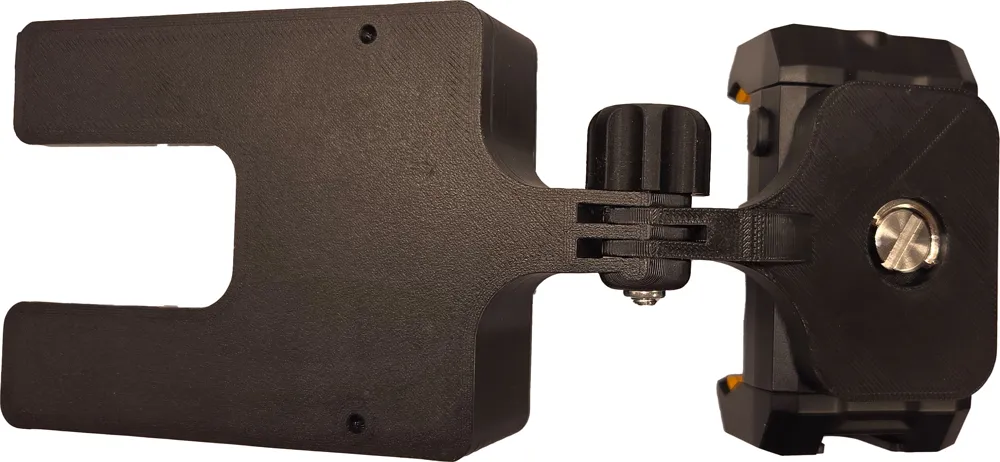

- Joint: Insert the M5 x 25 screw through the knurled screw, fix the nut and connect the arm.
- Final Setup: Fix the tablet mount to the arm with the 1/4" screw. Done!

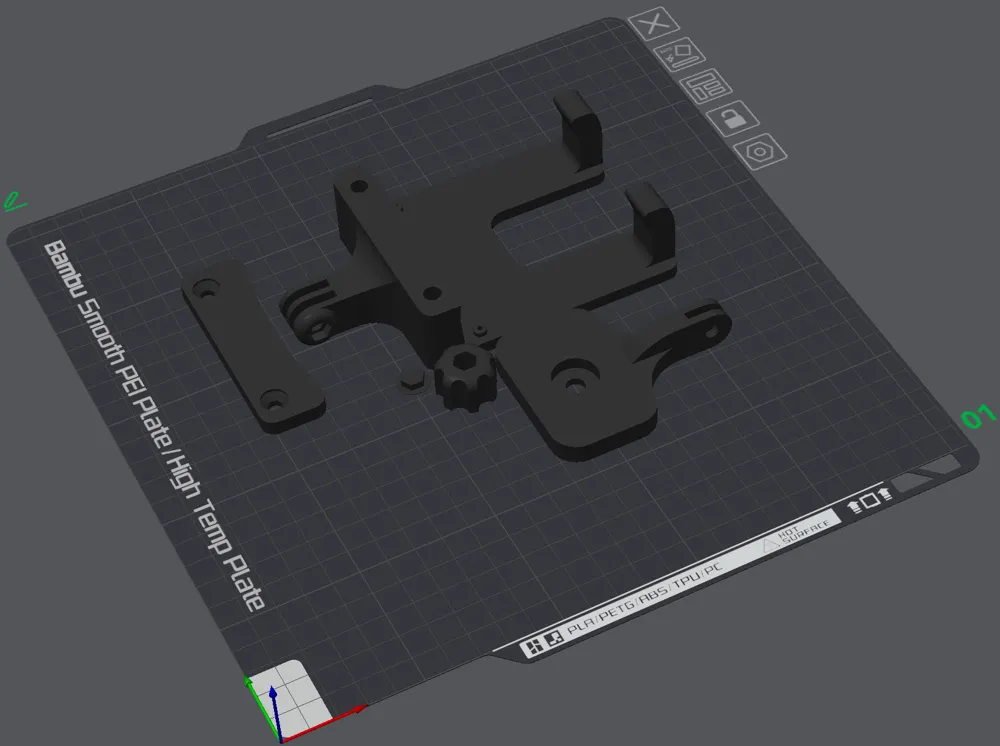

Note on the Screw Cap: If the cap for the thumb screw feels too loose, simply scale it up by 1-2% in your slicer to account for tolerances.
