Drink dispenser (different models)

Drink organizer.

New model 2024 compatible

https://www.printables.com/es/model/781648-2024-stackable-rotary-drink-dispenser

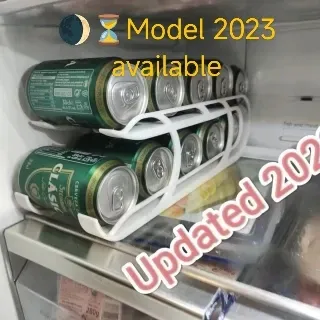

New model 2023

https://www.printables.com/es/model/377642-2023-stackable-rotary-drink-dispenser

And modular model:

https://www.printables.com/es/model/390092-extendable-and-modular-stackable-drink-dispenser

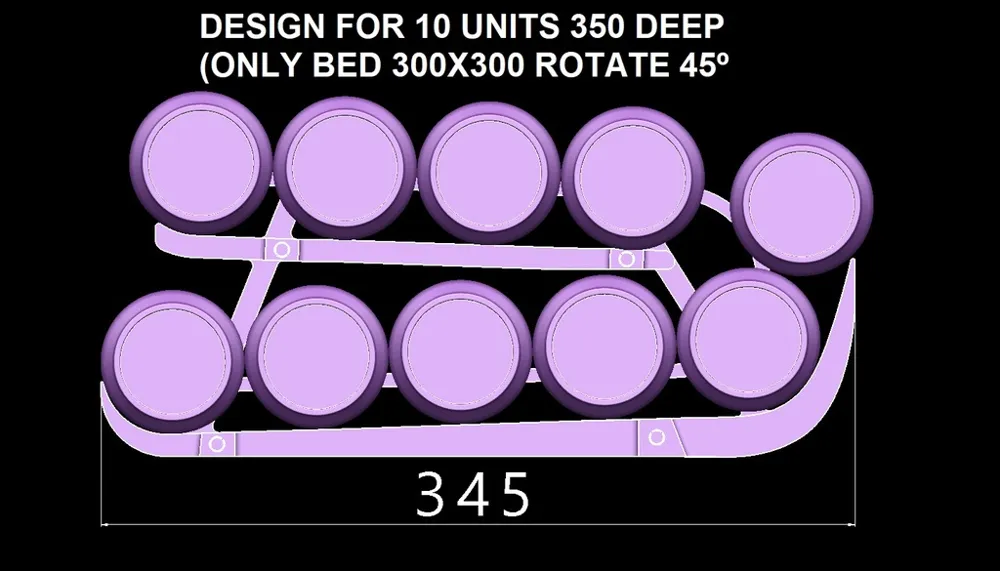

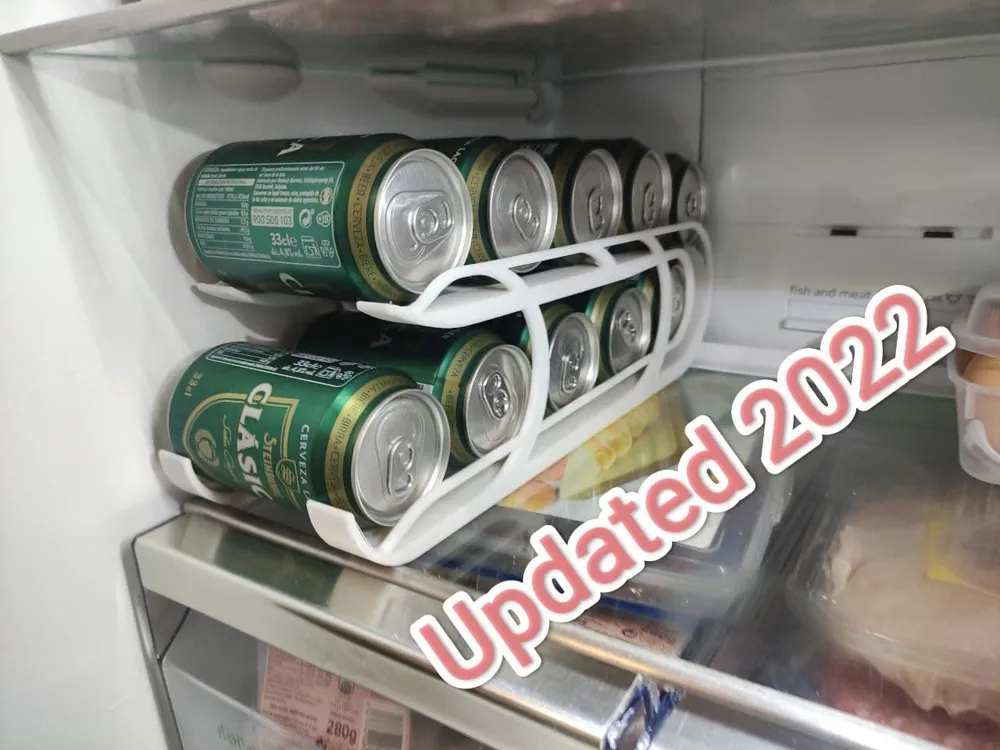

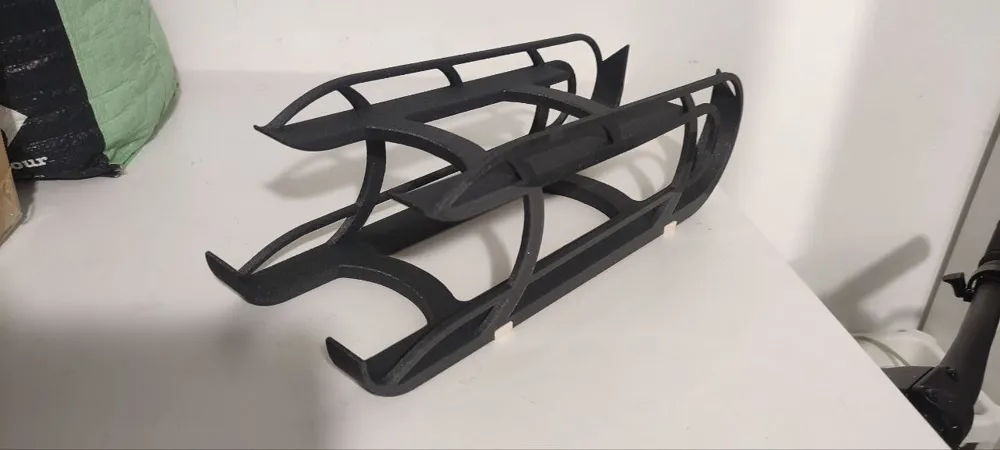

update Drink dispenser 2022 _ 10 units. (only for bed 300x300 _rotate model 45º)

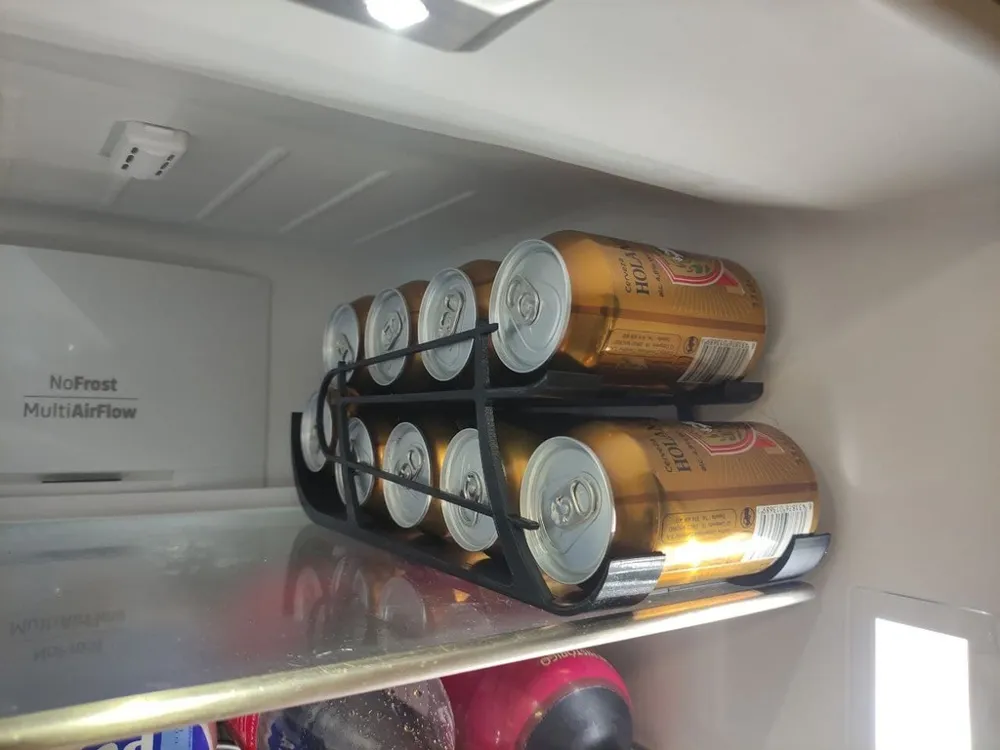

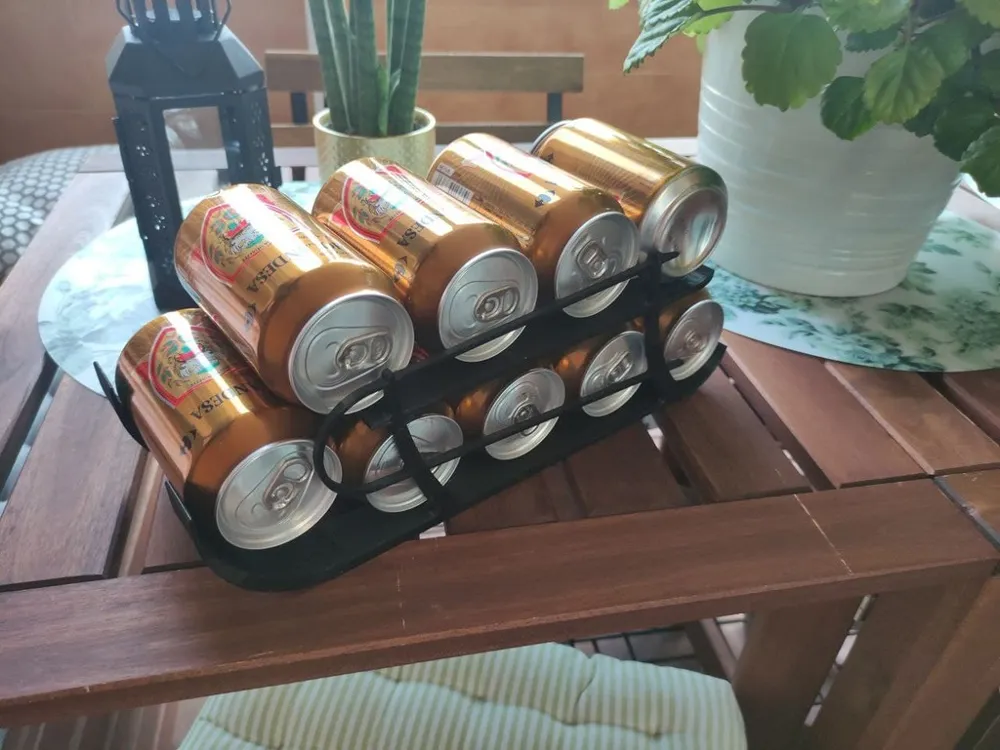

Have always cold drinks, thanks to this dispenser, fill the dispenser up to 9 units.(33 cl Diam 66 x 115 lenght)

The bottom drink is always the coldest.

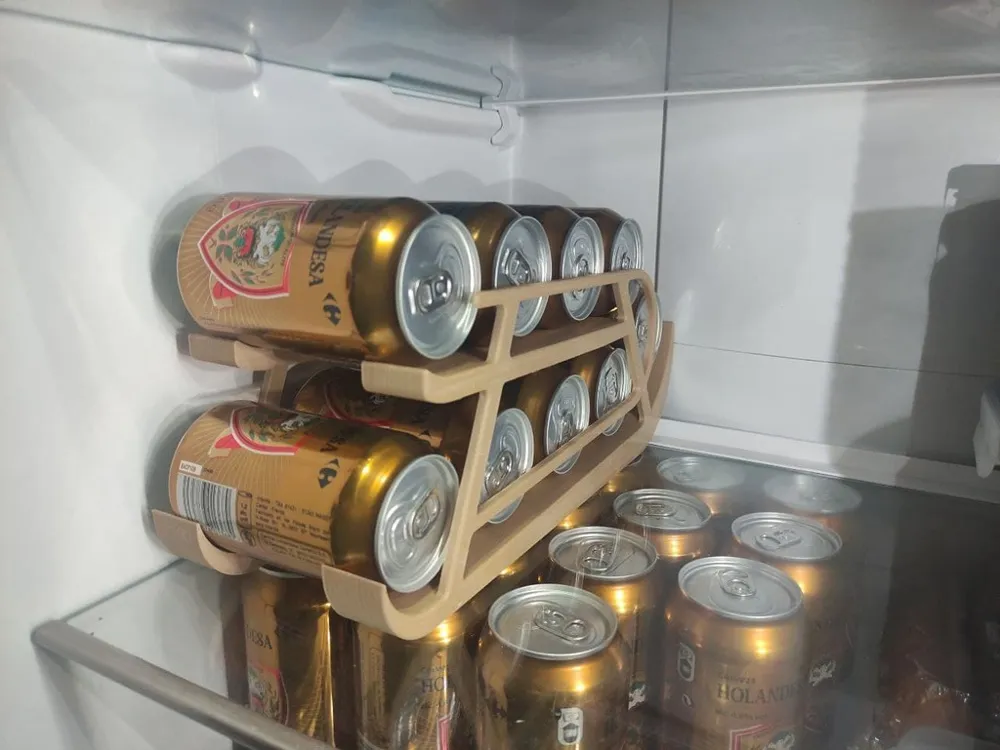

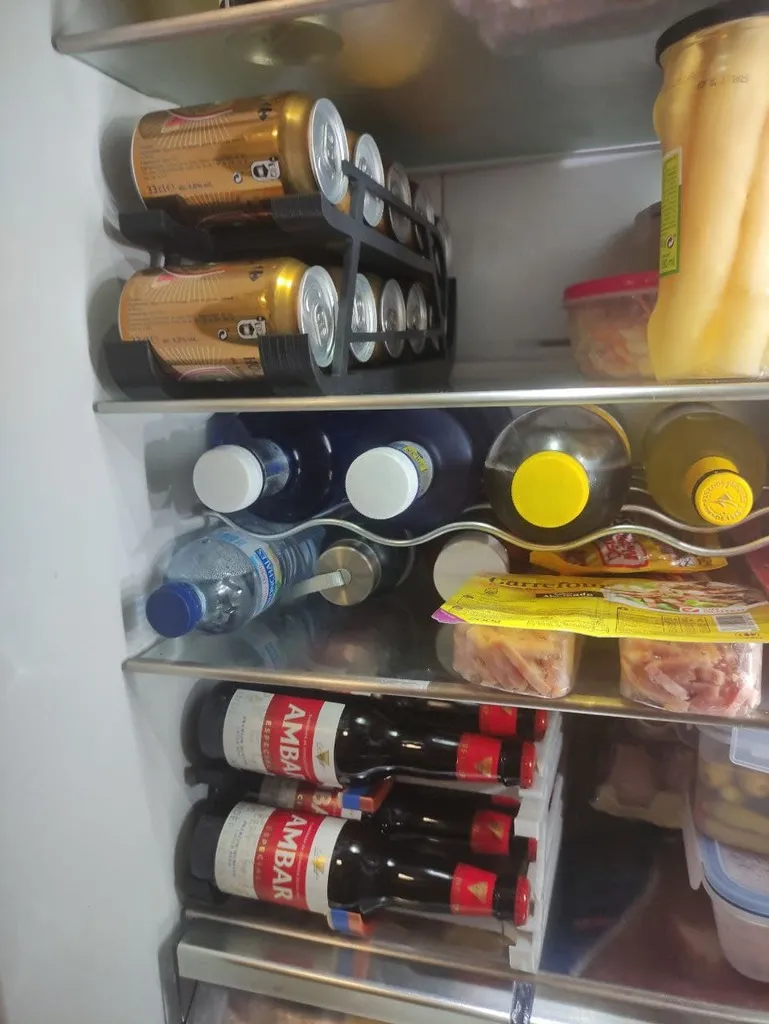

only 130 wide x 170 high x 330 deep, designed for fridge.

Full print with 3x4x4 walls/top/bottom and aprox 20% infil came to about 140g+140g in weight.

Model 2 pieces for bed 300 x 300 mm rotation 45 degrees. (2 models full)

Model 2 + 2 pieces for 220x200 beds (4 models little)

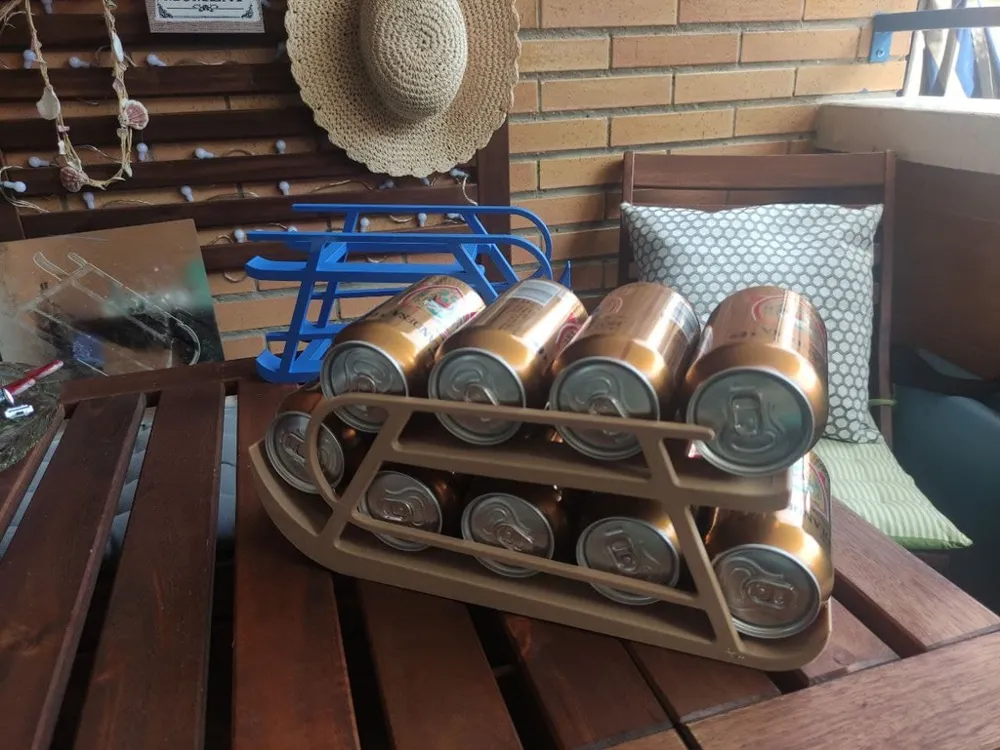

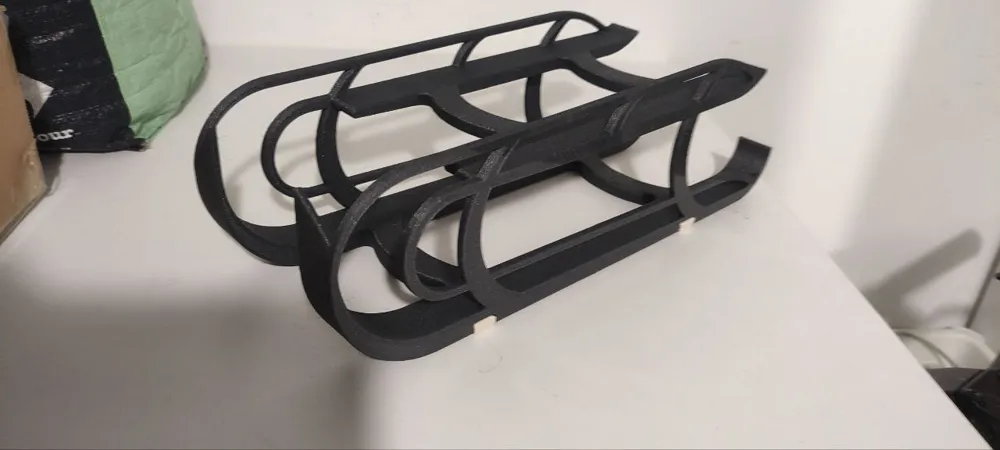

Added slim model, smaller dimensions and only 75 grams (always bed 300x300)

I have also added the CAD files

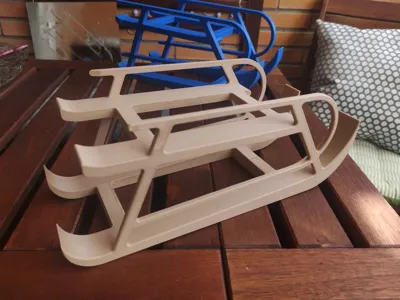

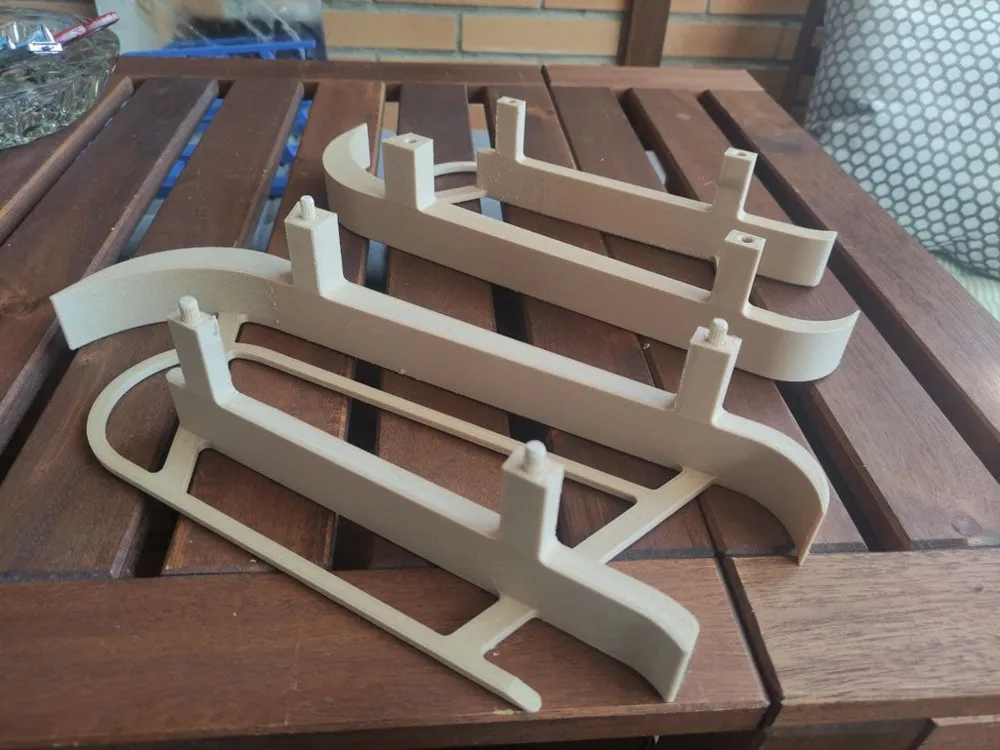

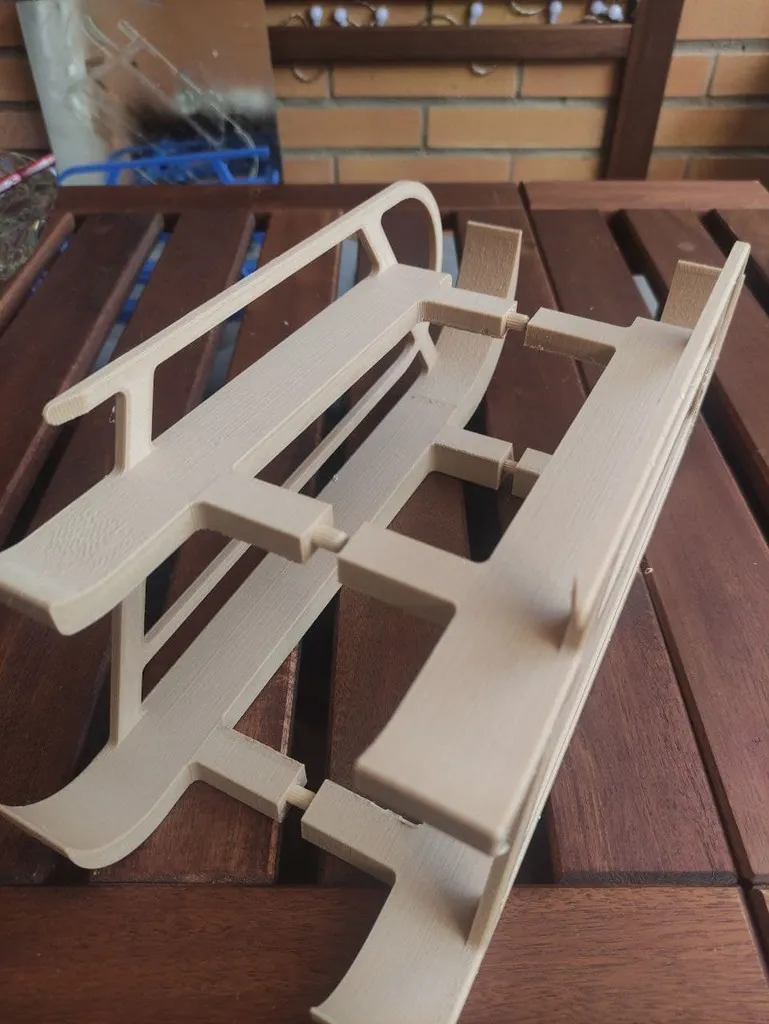

You do not need extra parts, only fit tightly, in case of loose parts you can put a little glue on the lace

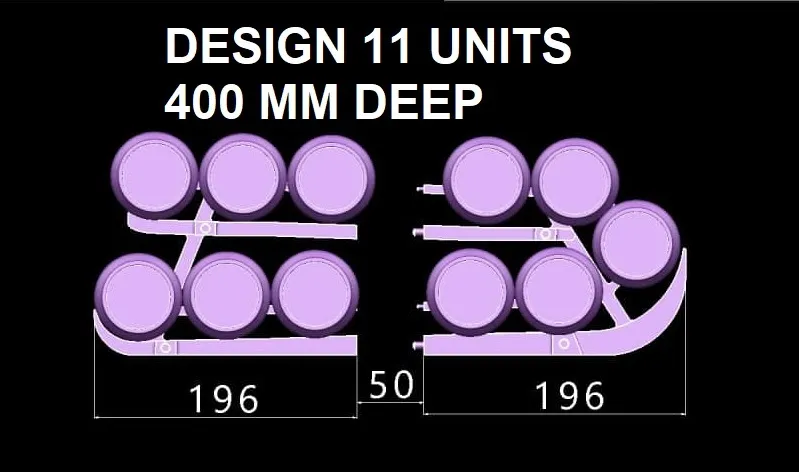

• Add design for 11 unit 66x115 in 4 piezes (bed 220x220)
• Add design for 10 unit 66x115 in 2 piezes (bed 300x300)
• Add design only 6 unit 66 x 115 in 2 piezes (bed minimum 220x220)

For other dimensions:

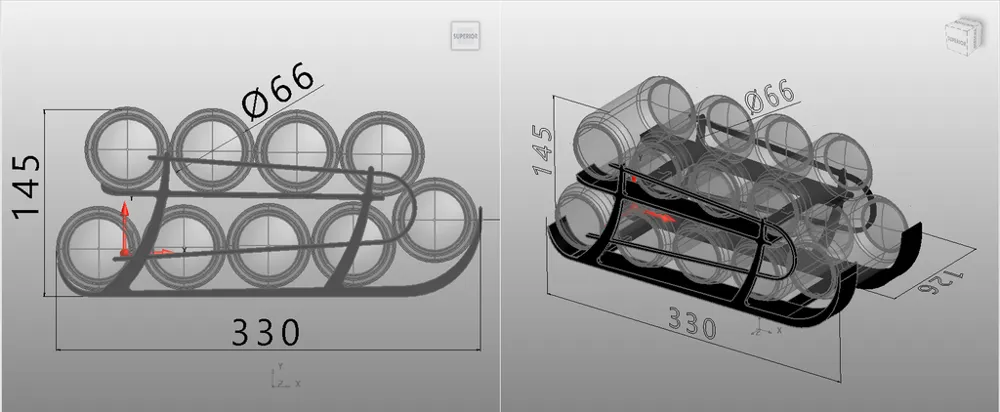

The design is prepared for a can of Diameter 66 x 115 in height. If you have other dimensions it is very easy to adapt it by scale. For example, a can with a diameter of 55/66 = 0.878 of scale in X and Y axis, if it has a length of 146/115 = 1.27 of scale in Z.

So you can make the design for any can, I have added a photo to understand.

Print Settings

Printer:

Two trees Sapphire Plus

Rafts:

No

Supports:

No

Resolution:

200

Infill:

30

Filament:

Pla Fervi Esencial, Petg PLA-PETG Post-Printing =============
