Key fob chassis
Print Profile(1)
Bill of Materials
Description
Replacement Key Fob Case
For key fob chip G42 94VO or Marantec Garage Door Digital 313

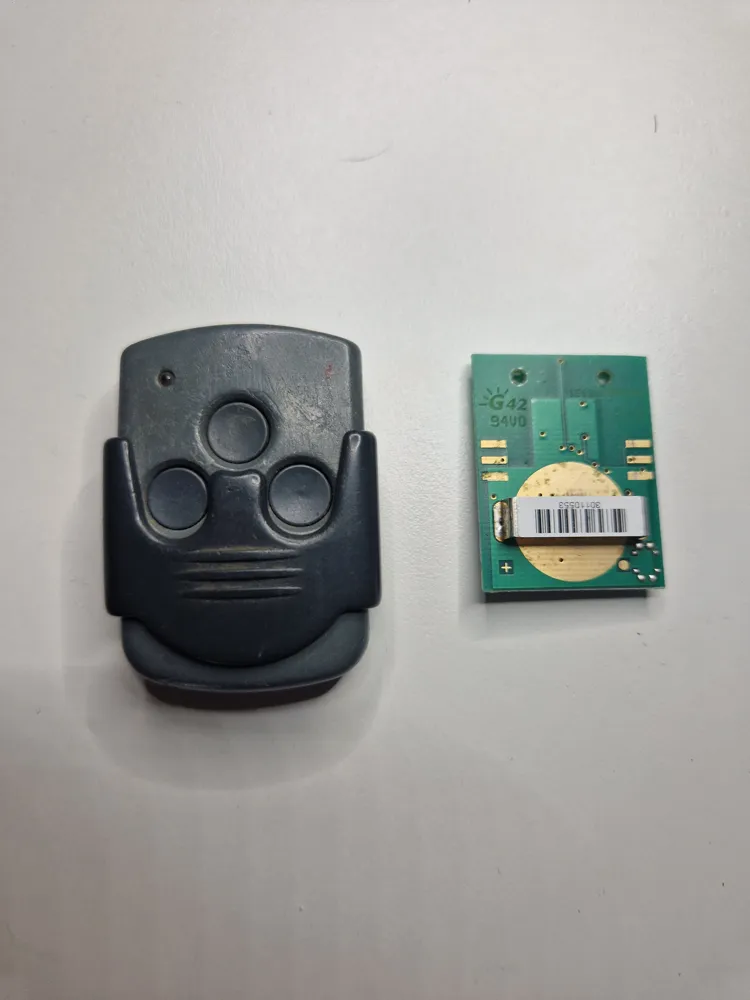

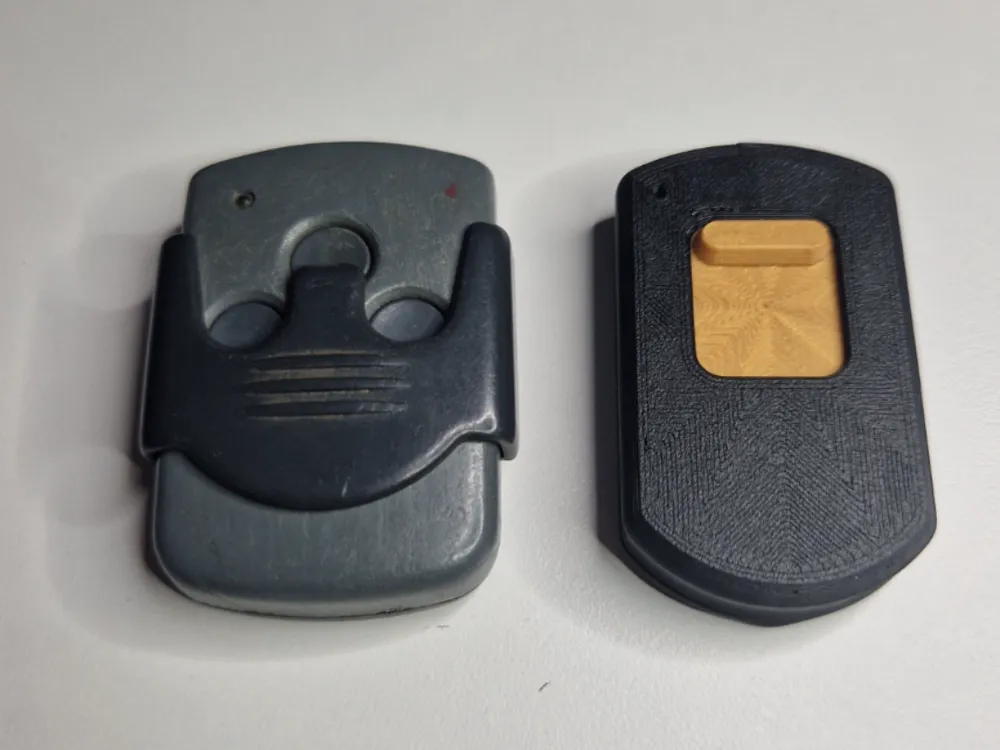

Problem with Original Housing:
The original sliding cover began to fall off, which led to accidental opening of the garage door.

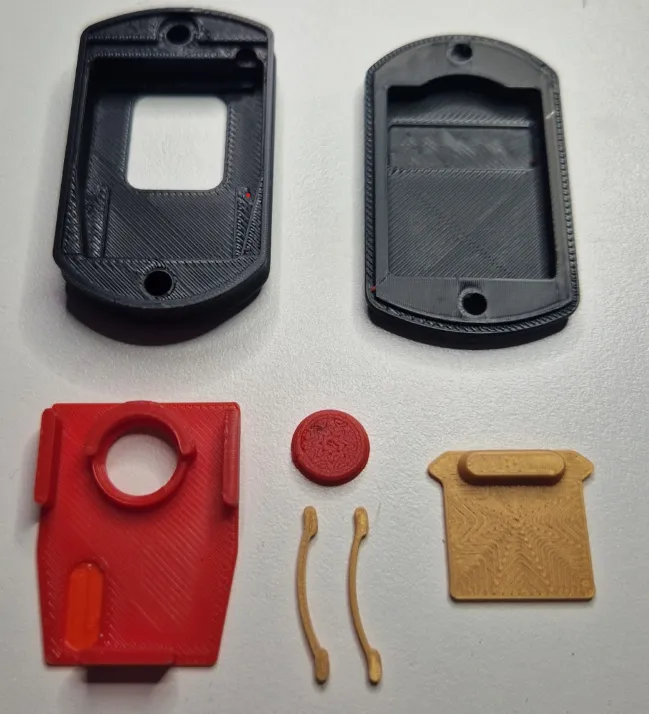

Printed parts needed:

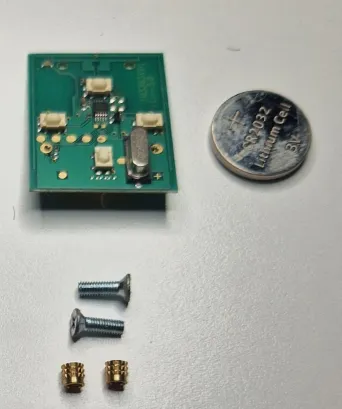

Additional Parts Required:
- 2 × M3 heated inserts
- 2 × M3×8 mm countersunk screws
- G42 94VO chip
Assembly Instructions:

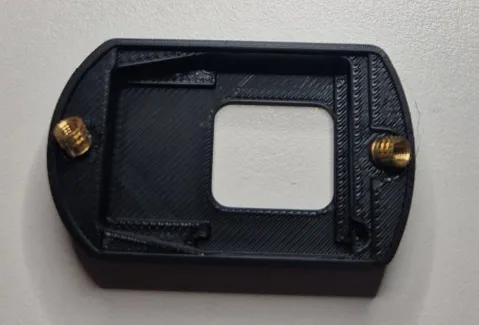

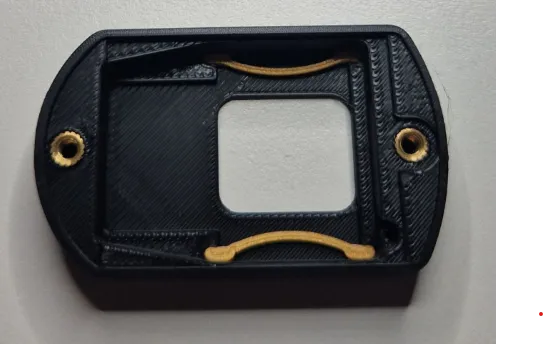

Step 1: Install the heated inserts into the lid.

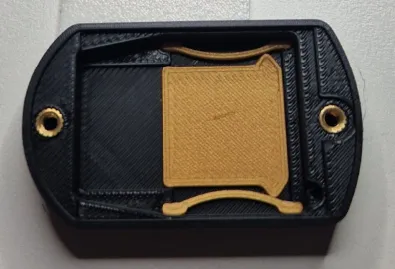

Step 2: Install the springs.

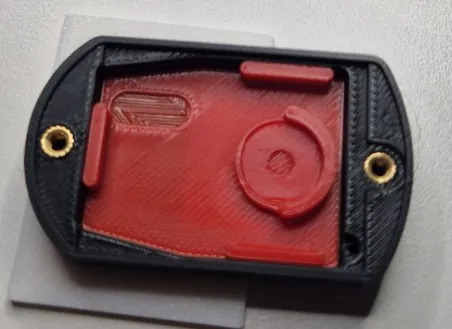

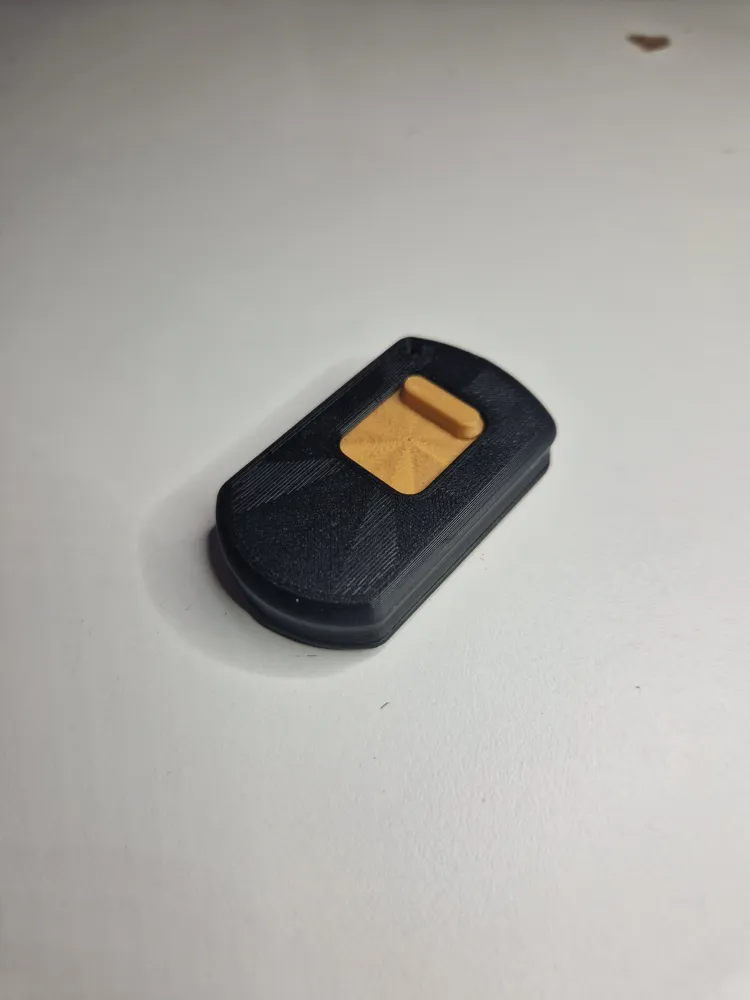

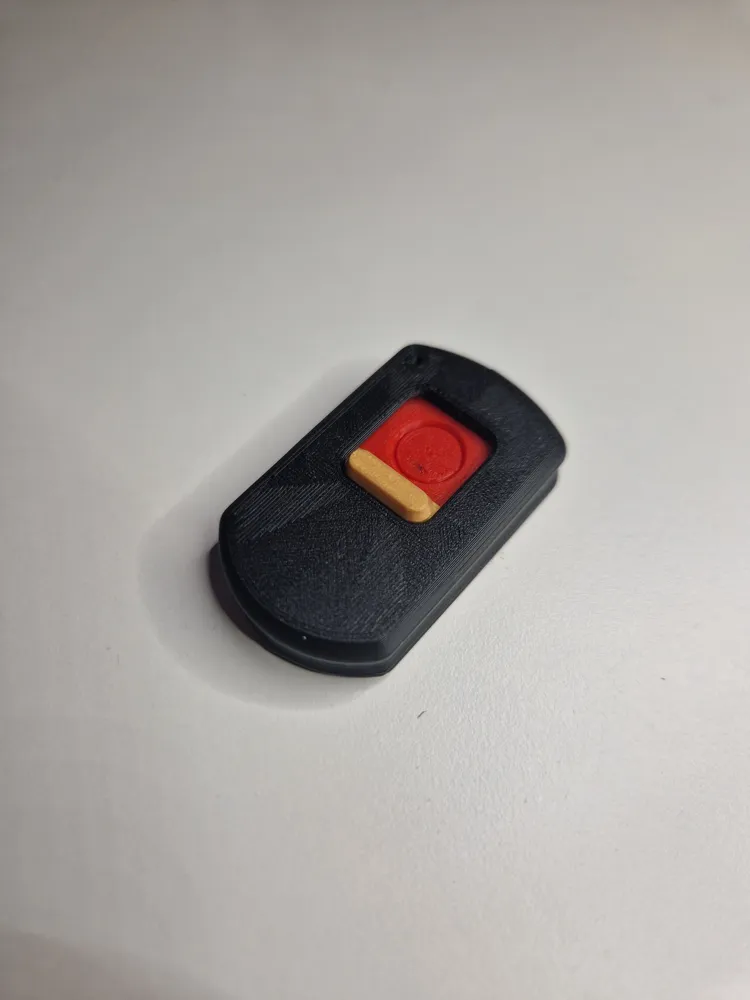

Step 3: Attach the sliding lid.
Step 4: Install the inner lid and bottom.

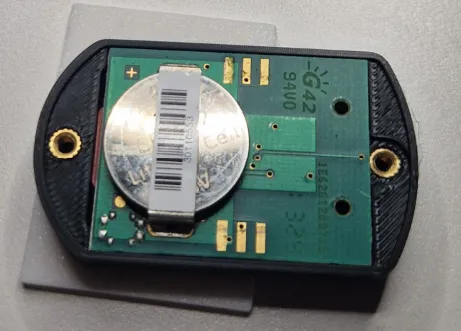

Step 5: Place the circuit board and battery.

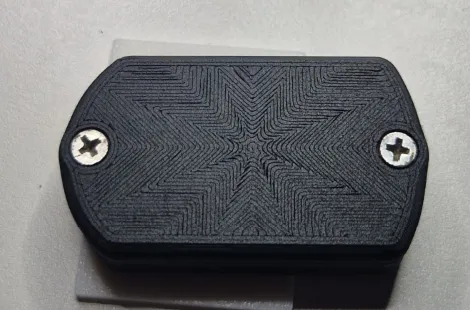

Step 6: Screw on the back plate.
