A1 X-Axis Enclosed Cable Chain
Print Profile(1)
Description

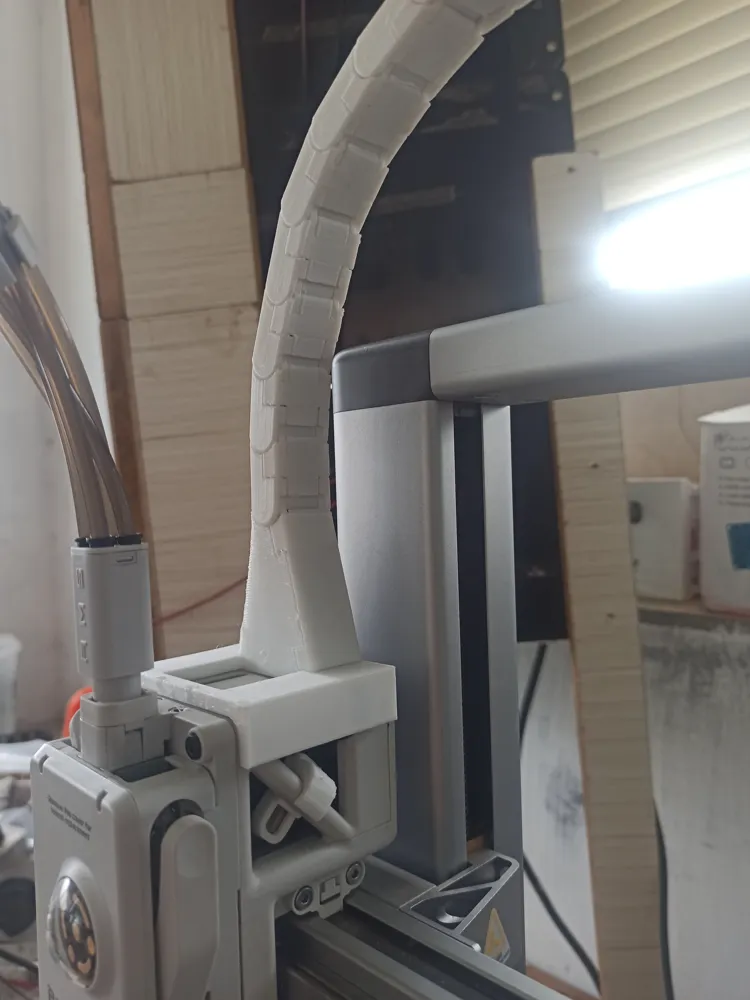

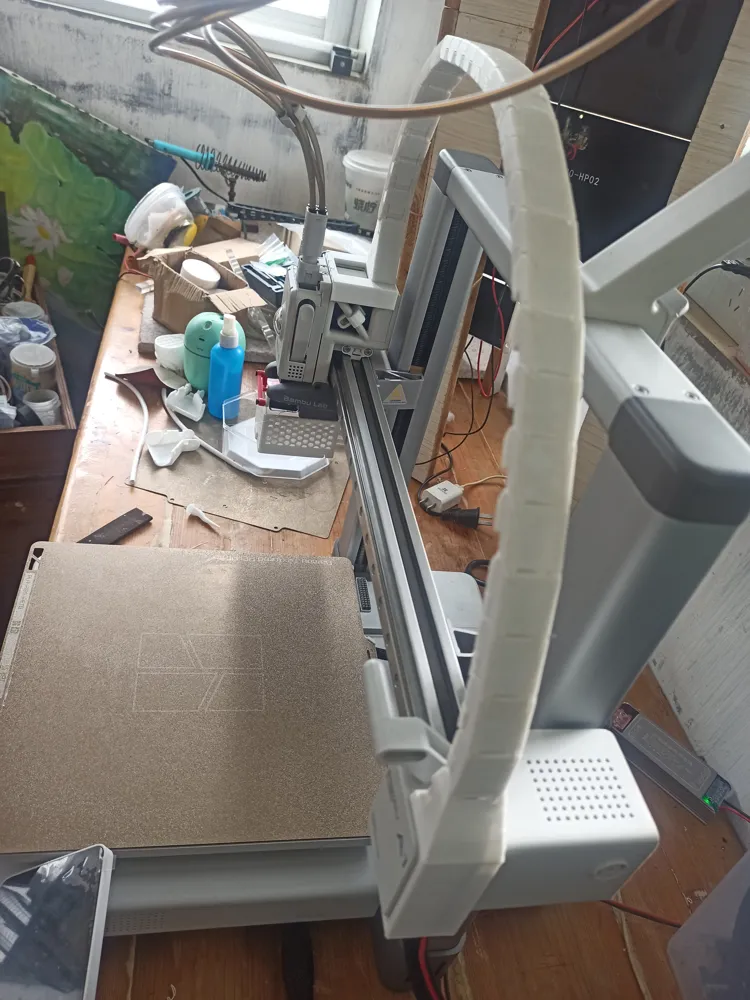

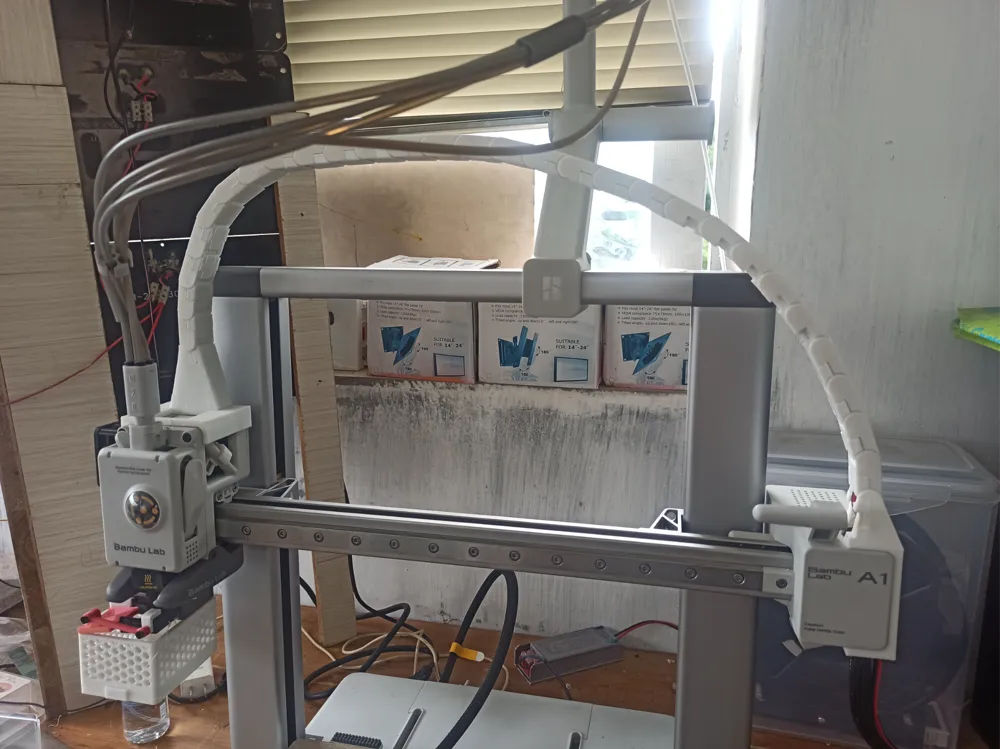

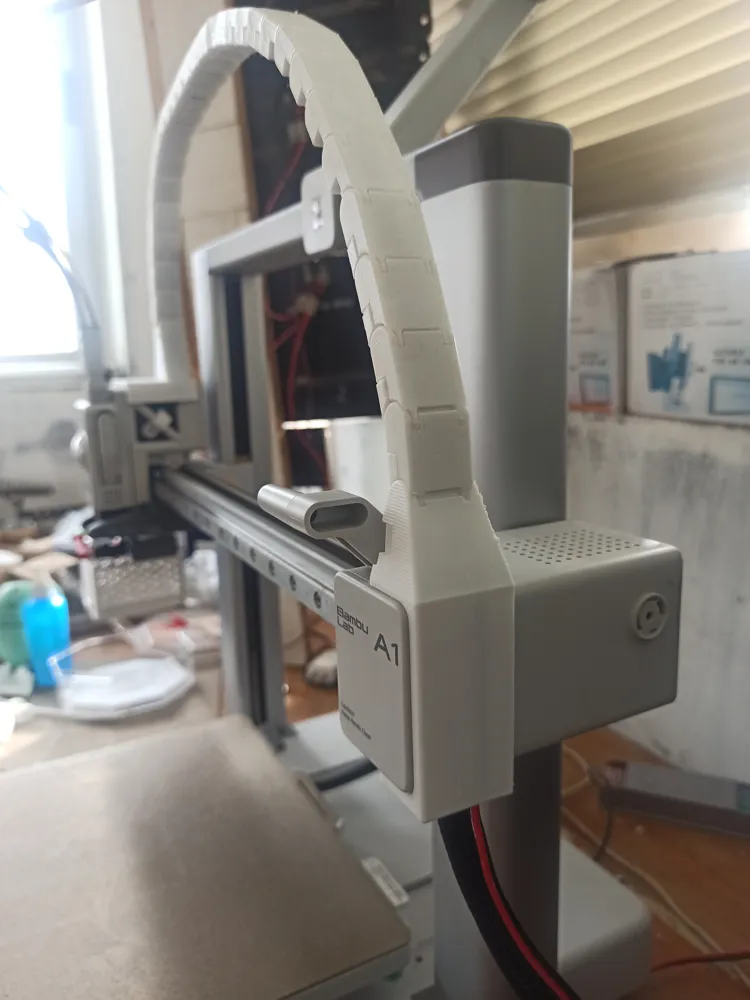

A1 X-axis cable protection enclosed drag chain

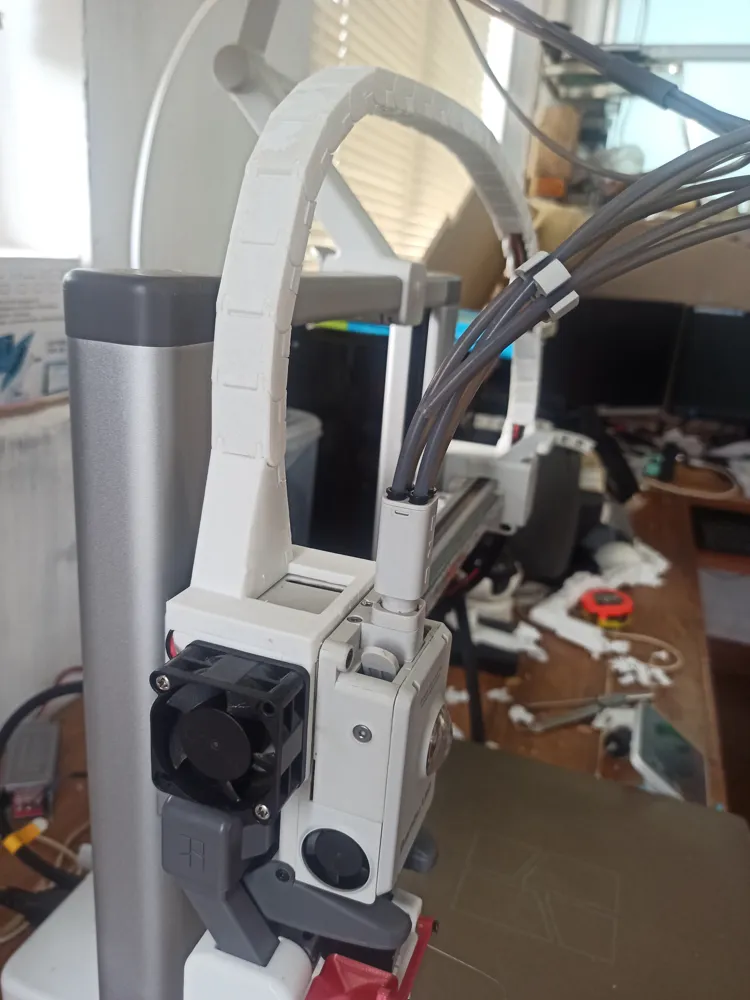

X-axis motor cooling fan: There are two types, 40x40 and 30x30 As I only have 40x40, the 30x30 hole spacing is based on online data All screws use M3
Drag chain components printed with PETG material
Linked models:
A1 Extruder Heatsink - Temperature Control Switch Mount:https://makerworld.com.cn/zh/models/1124142-a1ji-chu-ji-san-re-qi-wen-kong-kai-guan-gu-ding-qi#profileId-1178742
I will design drag chains for the Z-axis and Y-axis when I have time!!!
Please let me know if you have any questions or suggestions
Assembly steps:

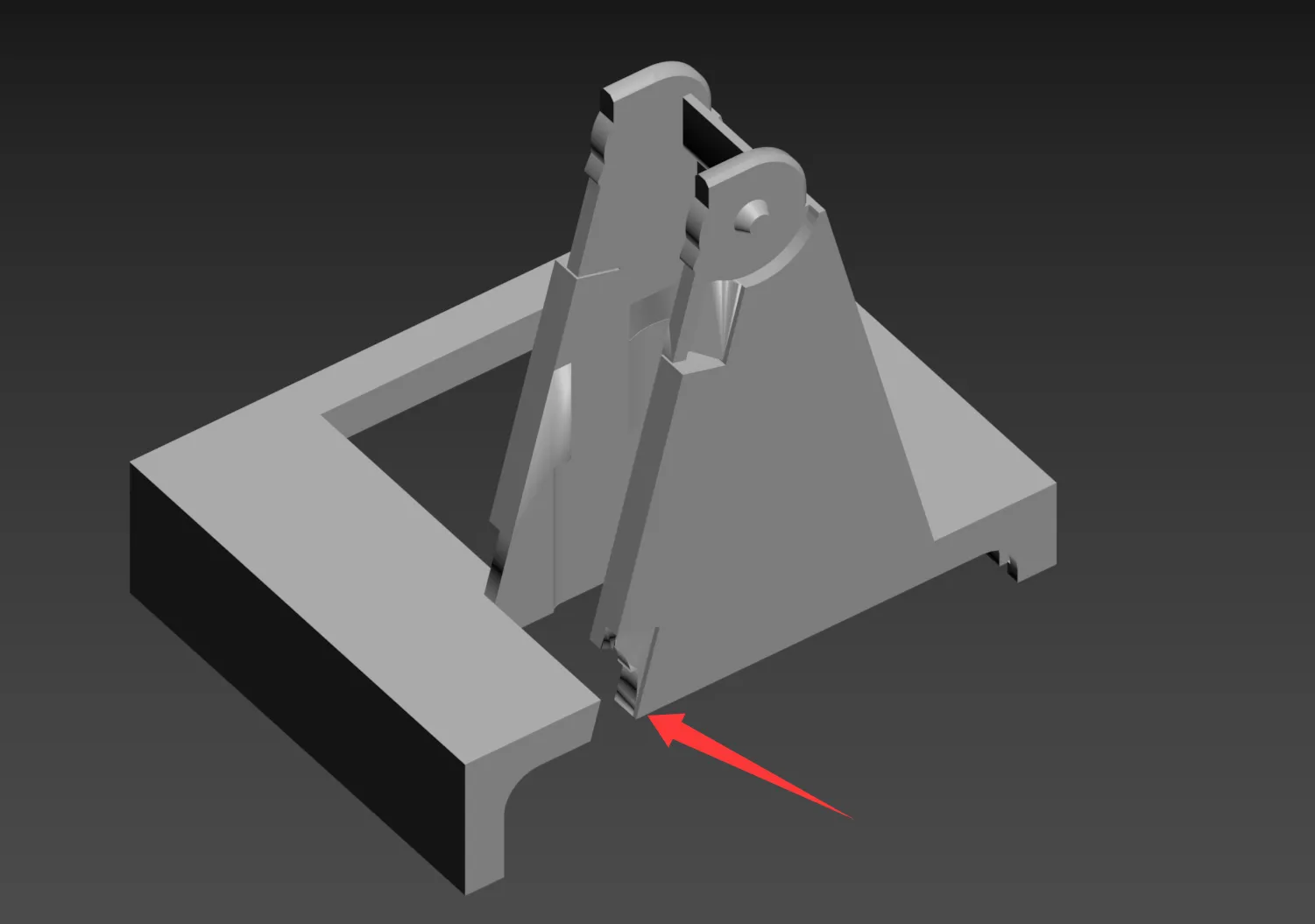

When installing the X-axis accessories, guide the cable along this path and press it inward
Boost Me (for free)
Do you like my design? Please like, collect, and follow!
If you want to support me further, you can boost me.
Striving forward for everyone's interests and passions.
Thank you
20250805: Added A1 Z-axis cable protection enclosed drag chain:https://makerworld.com.cn/zh/models/1463642-a1-zzhou-feng-bi-tuo-lian-dian-lan-lian#profileId-1593934
