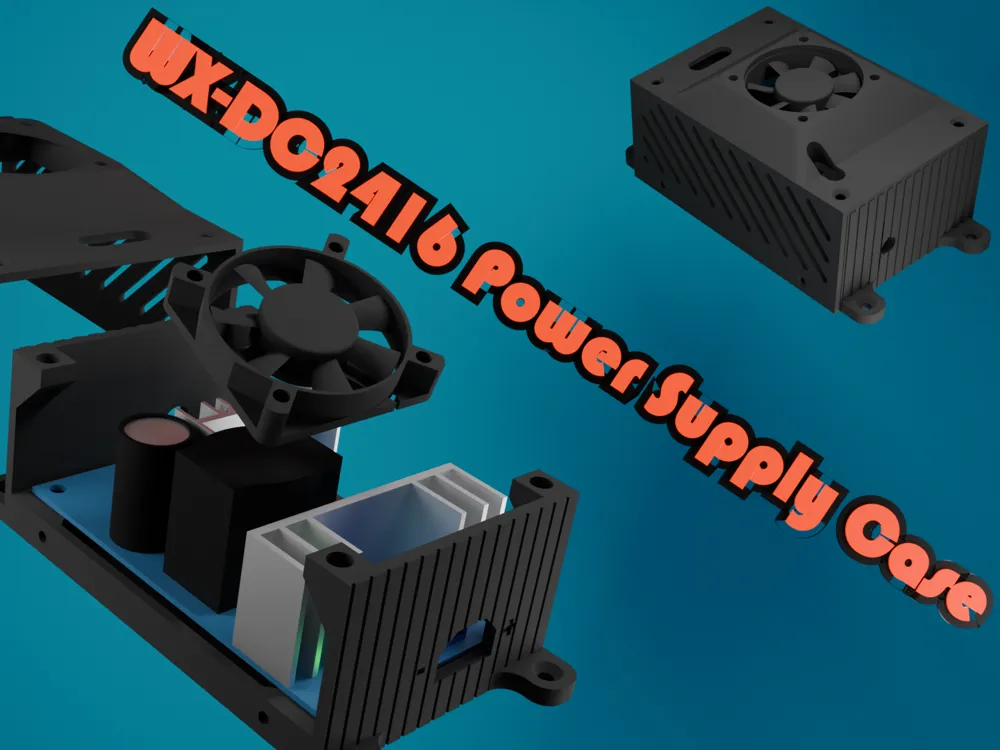

WX-DC2416 Power Supply Case
Print Profile(1)
Description
Description

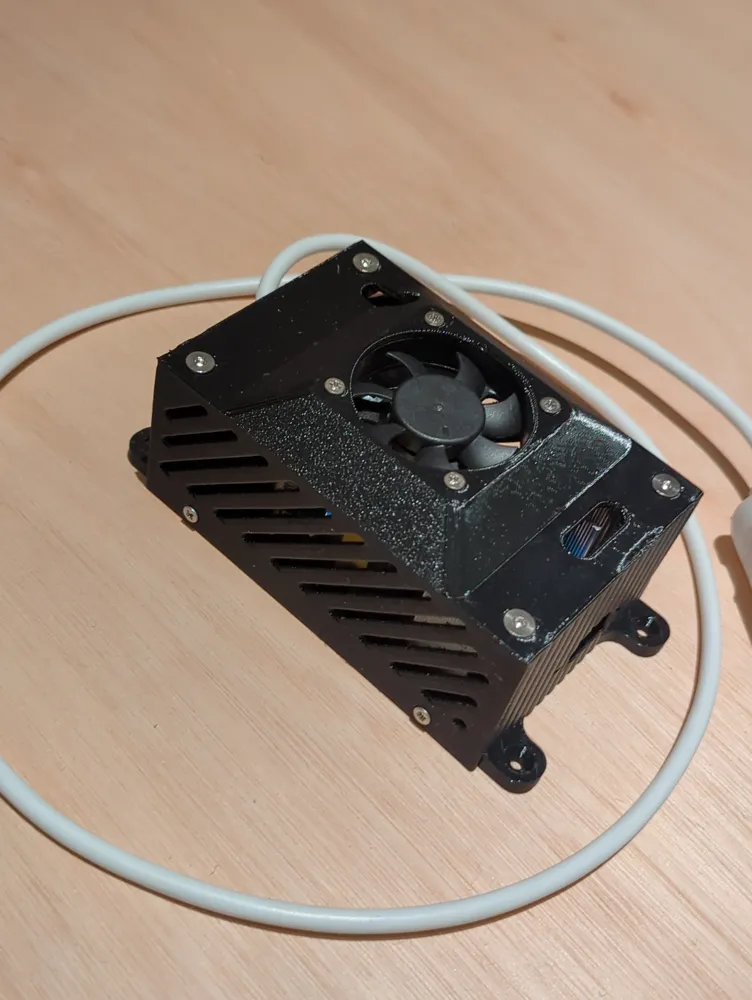

I got myself a WX-DC2416 Power Supply from eBay not too long ago. Its a really neat device but I wanted a case for it so I don't get electrocuted when using it. For this reason I created a case for it. I wanted a sleek design with space for a 24V 5010 fan so it can have some active cooling and not overheat. I know it has heatsinks already on the pcb but I much prefer knowing that they are actively being cooled down so that during extended use the the power supply wont over heat. The fan wires can be skewed into to terminal directly so that there is no hassle with soldering it on. I have also added mounting holes for the case that that if you want to, you can mount it on your project directly.
Print Settings
- Infill 20%
- Adaptive Cubic
- Layer Height 0.28mm
- Aligned Seams
- PETG (It needs to be PETG if you want the model to be more durable and last longer)
Material List For Complete Model
- 10mm M4 Screws
- 10mm M3 Screws
- M4 Heat Inserts
- M3 Heat Inserts
- Basic safety knowledge about dealing with high voltages
(Affiliate Ebay Links) (I get a kick back i you purchase via this link)
WX-DC2416 - https://ebay.us/OF5Drq
Screws - https://ebay.us/KwnZJE
