Wearable StarWars Inspired Greeble - Mandalorian

For Mandalore!

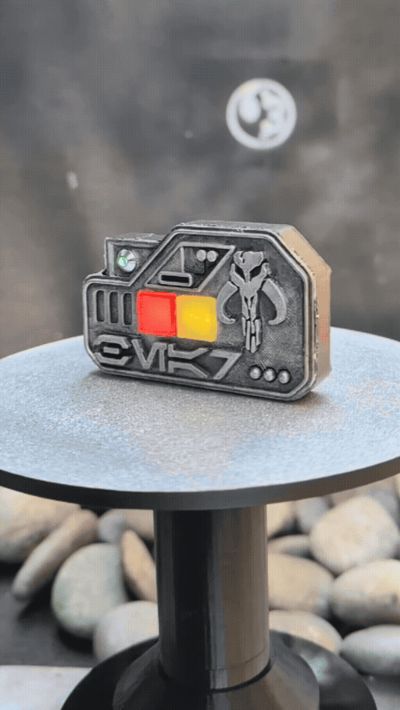

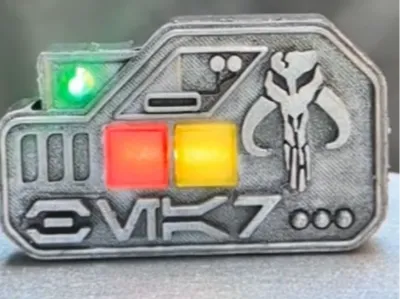

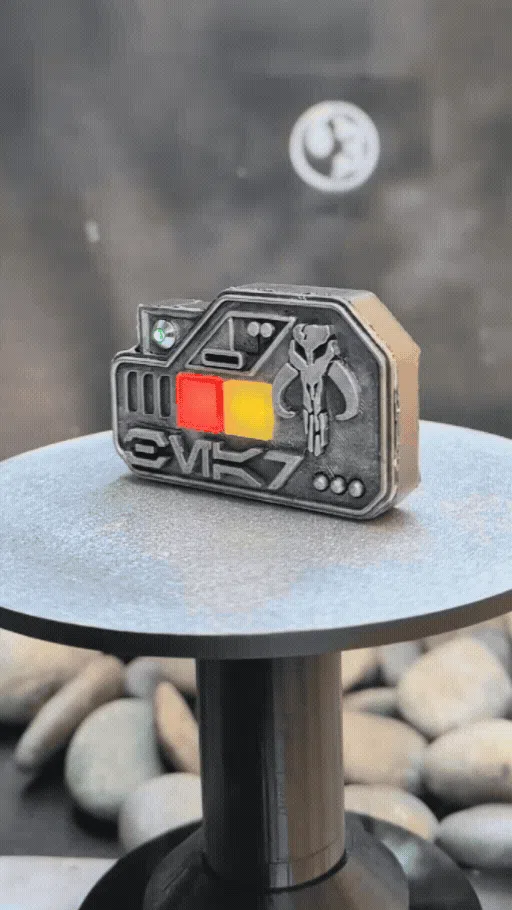

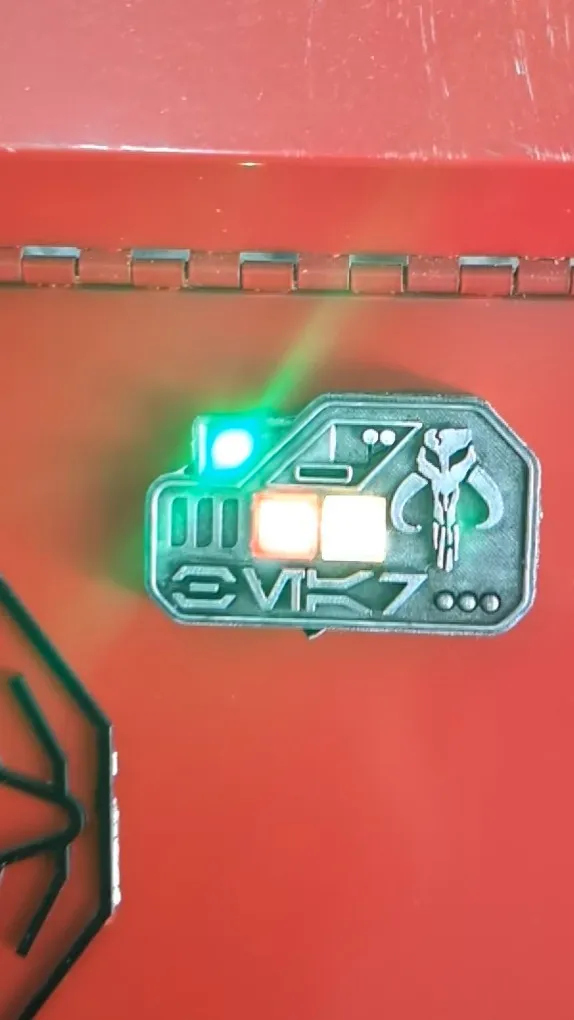

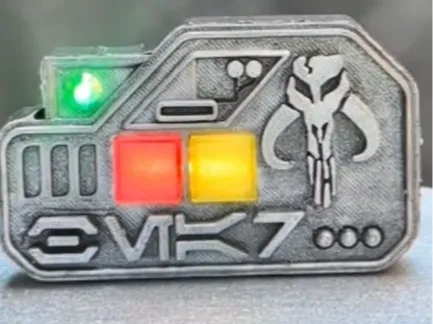

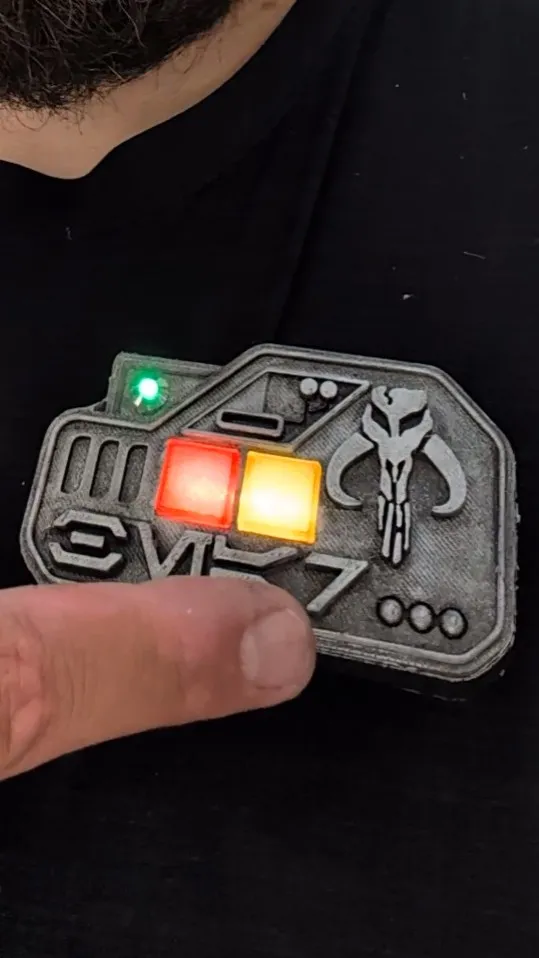

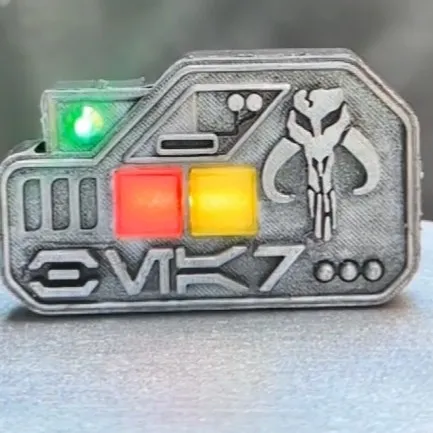

Make your own customizable wearable Star Wars Inspired Mandalorian Greeble. I split this into multiple profiles to be able to make it easy to print the lights on the greeble in what ever color orientation you would want. The light pieces are printed separate to reduce waste in the “By Oject” profile. If you want the same color for the two squares, there is a profile to print them by layer as the same color. This will require 3 LEDS for uniformed brightness, one of the LEDs will use the light housing that can be glued in. For the one in the photos I used a 3mm Diode Holder/Mount. You can use whatever you want as long as the threads are <6mm. If you use the same Diode Mount that I did, please be aware that. you may need to cut the end off because of the depth. That was why I included a printable version which can be glued in.

• 18mm Craft Magnets for attaching to clothes

If you want to light it up:

• CR2032 Battery
• CR2032 Lilypad
  • Any of these should work here. They typically sell in sets 5-10 for the cost to buy 2 individually.
  • These are the exact ones I use. HiLetgo 5pcs Lilypad Coin Cell
• OPTIONAL: 3mm diode holder
• 3v LEDs (can be prewired if you dont want to solder) or OPTIONAL: LED filament strips
  • Warning the LED filament strips are VERY fragile. They are really bright and have a ~.18amp draw, but break easily when you are working with them.

Instructions will be uploaded shortly, but a walk through reel will be on my IG, link in profile.
