Angle Grinder Hand Knob

Angle Grinder Hand Knob – No More Disc Change Drama! 😤💥

🔍 The Problem:

Do you regularly switch between cutting and grinding discs?
Is the original key missing again, jammed, or are you frantically turning the disc itself? Sounds like everyday life – but it doesn't have to be.

✅ The Solution:

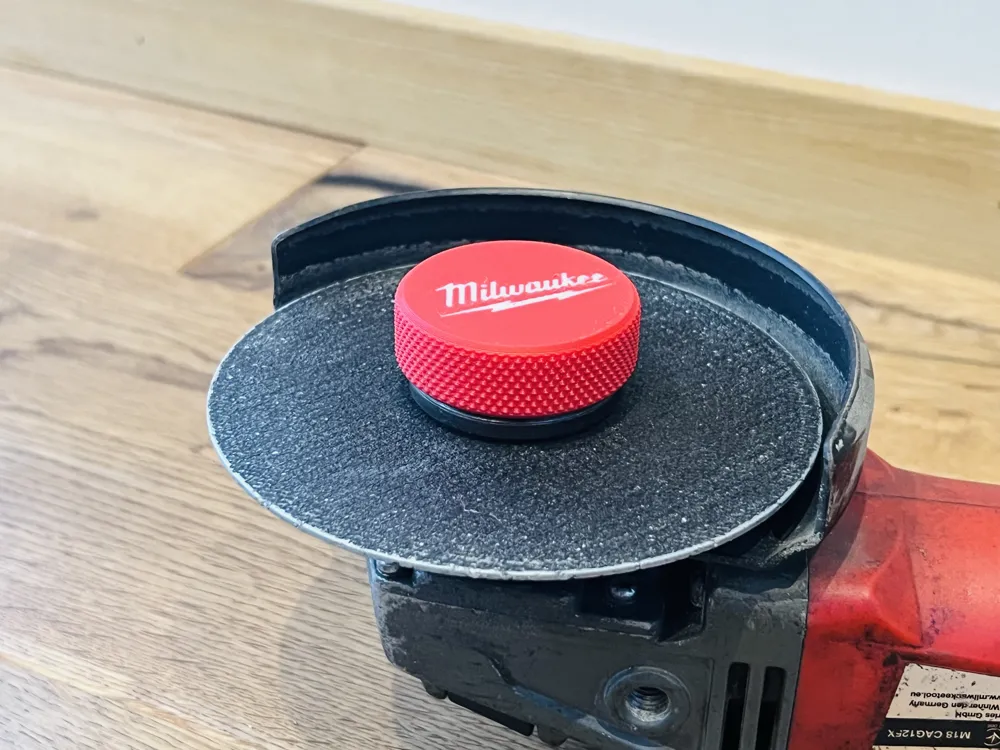

A robust, easy-grip hand knob with knurling:
🛠️ Compact, handy, fits in any pocket
💪 Substantial power transfer – no slippage
🧩 Includes an support ring for stable seating during printing
🖐️ No tools required for tightening

➡️ There are four variants included:

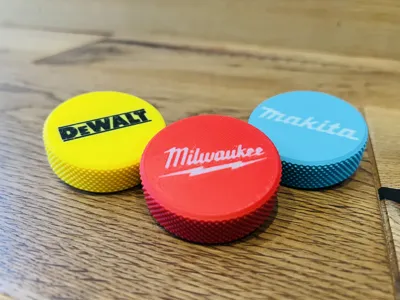

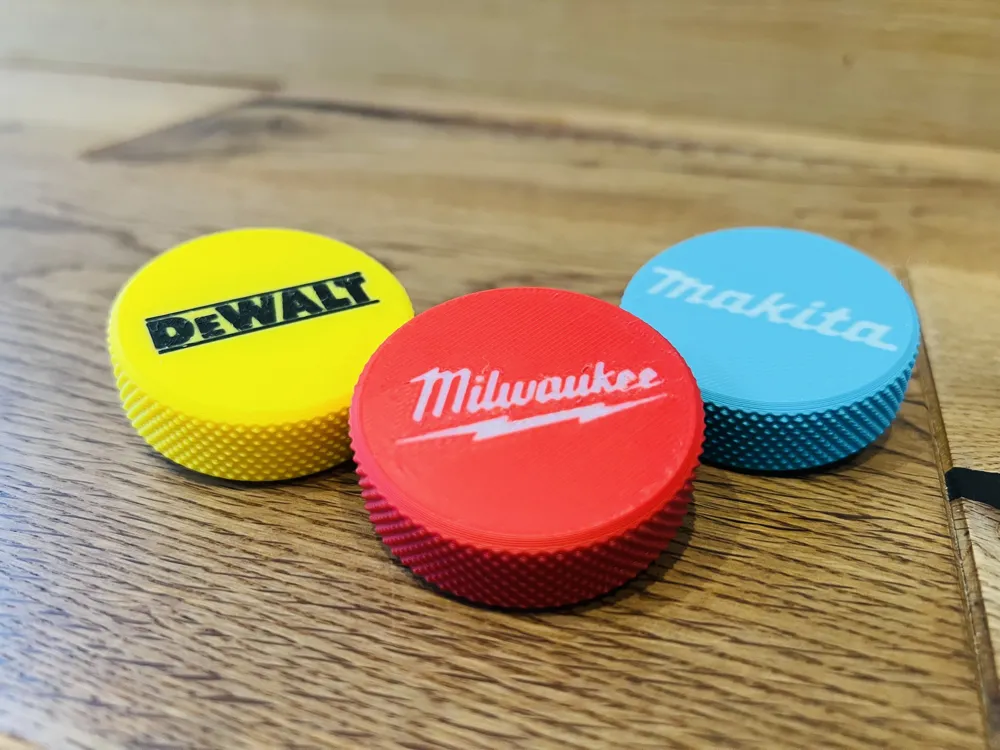

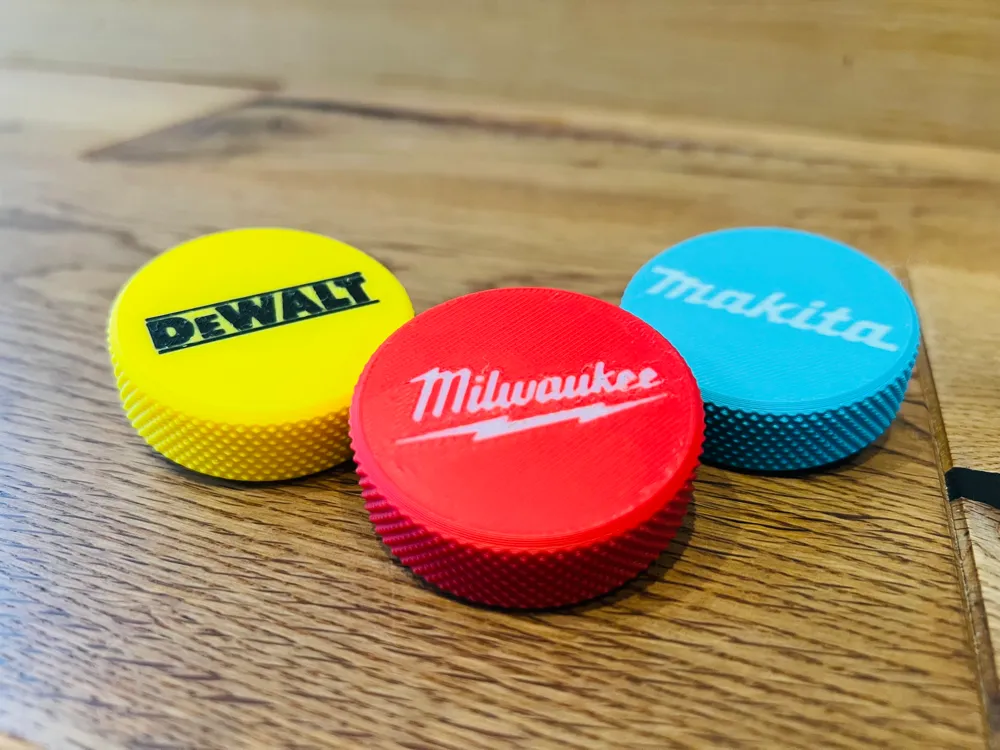

🟥 Blank | 🟨 Dewalt | 🟦 Makita | 🔴 Milwaukee – for the matching brand look.
(The logos are purely decorative – see note below.)

🧵 Printing Instructions:

• Knob Material: PLA – that's enough.
• Support Ring: made of PETG, so it separates cleanly.

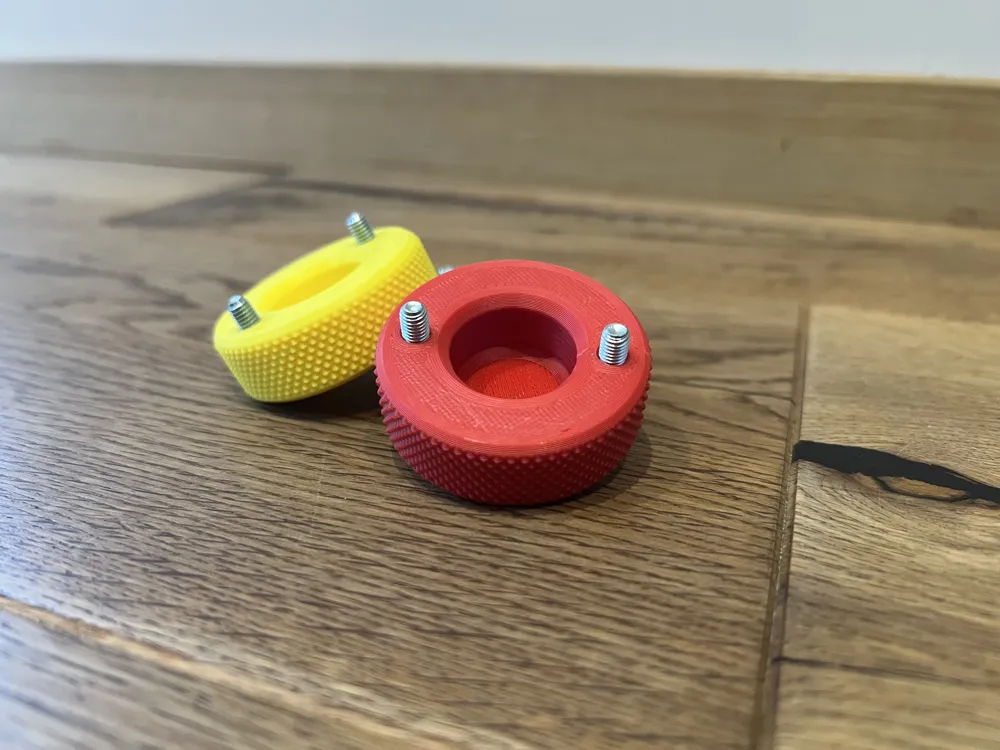

• Pause at 18 mm (Layer 90): Insert two screws:
   🔩 M5x12 Allen head screw
    Head: Ø 8.3 mm • Height: 5 mm
    Shaft: Ø 5 mm • Length: 12 mm

📦 Material change and pause are already integrated into the G-code/profile.

⚠️ Legal Notice:

The logos of Milwaukee, Makita and Dewalt are registered trademarks of their respective manufacturers.
This model is in no way connected to the aforementioned companies. It is merely optional design elements for better visual integration into your existing tool setup.

💬 Desired Logo?

Do you use a different brand or want your own logo on it?
No problem! Just write to me – I'll gladly add more variants.
