Description

I recently got into resin printing and the Yoopai Enclosure that I got off Amazon had an underpowered PC exhaust fan; so I wanted to get something better. I got the AC Infinity Cloudline Pro T4 Kit to help pull the VOCs out of the enclosure with some good pressure behind it.

In my current setup, I have my Elegoo Saturn 4 Ultra 16K and the Mercury Wash Station v3.0. The Vent is connected to the right side and exhausts using a 4" tubing to the AC Infinity, then another 4" tube to the window vent.

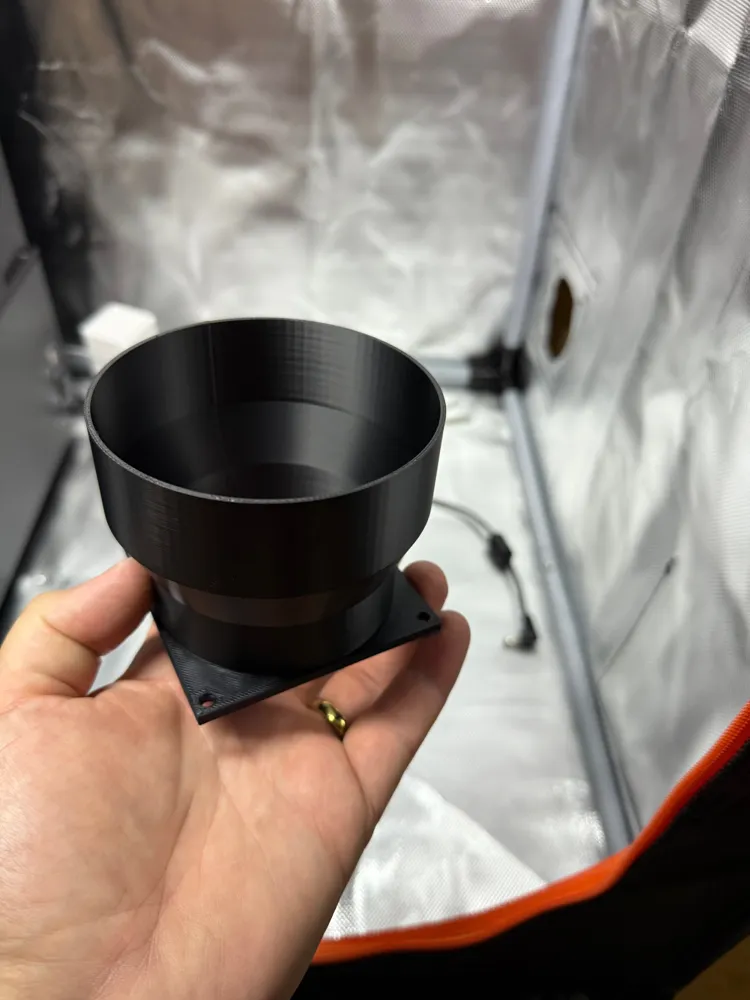

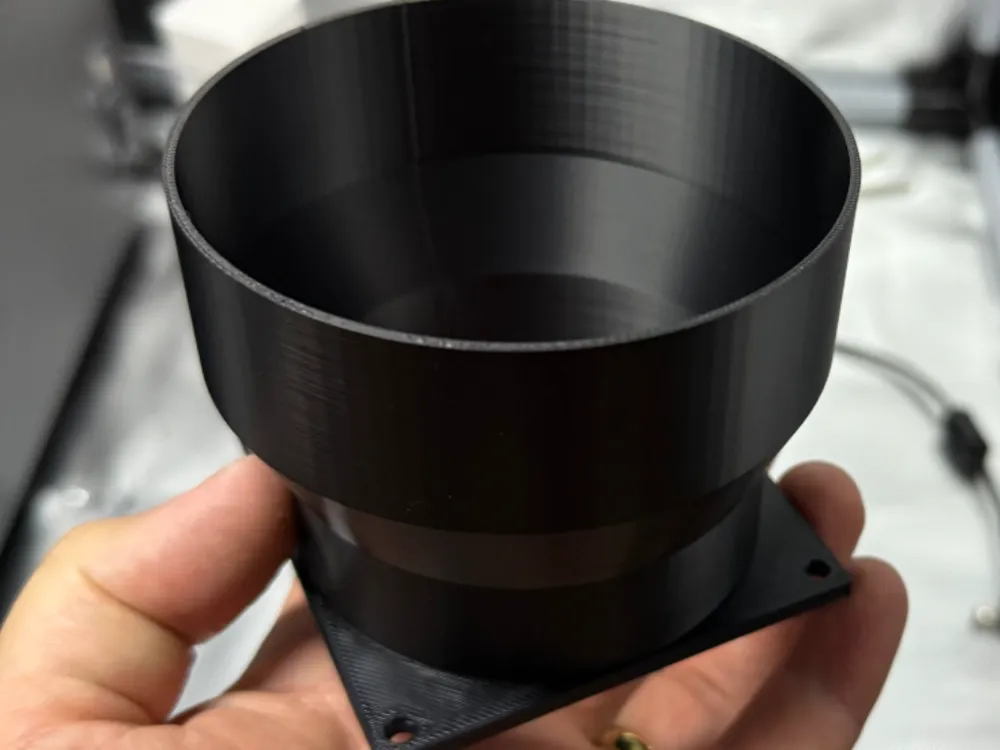

The file has the adapter as well as another bracket to mount to the inner side of the enclosure. If you're worried about items getting sucked in, you can add a PC fan cover. I will work on getting another file uploaded with the hex grid pattern to help solve this
