Está pensado para monitores con un grosor de hasta 30mm, y para cables de mouse de hasta 3mm.Si necesitas una base de sujeción para un monitor de más de 40mm de grosor, o el cable de tu mouse es mayor a 3mm, dímelo en los comentarios y te diseño una pieza adaptada a las medidas que necesites.

It is designed for monitors with a thickness of up to 30mm, and for mouse cables up to 3mmIf you need a clamping base for a monitor thicker than 40mm, or if your mouse cable is thicker than 3mm, tell me in the comments and I will design a piece adapted to the measurements you need

Mini_Bungee_0.2mm layer, 3 walls, 15% infill


Variante del mini bungee para instalar con cinta adhesiva.

A variation of the mini bungee, designed for adhesive tape installation.

mini_bungee_adhesive_tape_0.2mm layer, 3 walls, 15% infill


Perfil de impresión para montar en el borde del escritorio.

Print profile for mounting on the desk edge

DESK MOUNT_0.2mm layer, 3 walls, 15% infill

peroxidase_princess

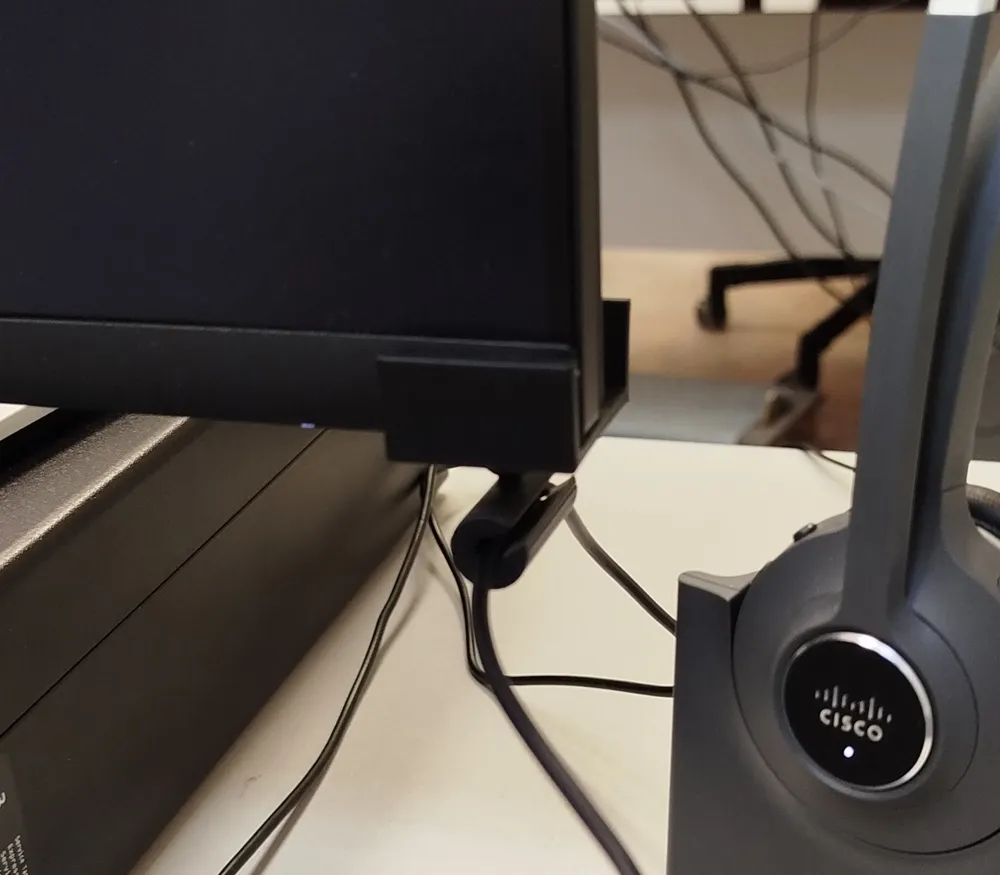

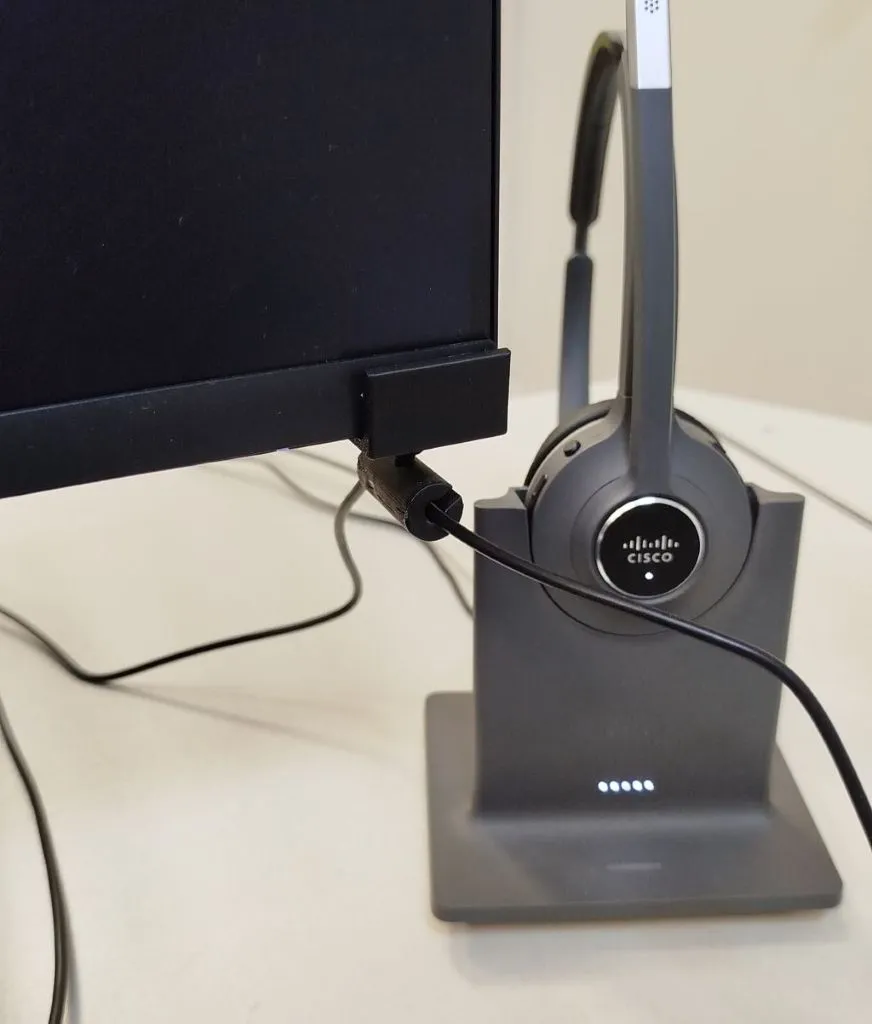

All I did was move the ball joint socket to the top of the bracket so that it could be mounted on the edge of a desk rather than a monitor. All other settings are the same as the original (0.2mm layer, 3 walls, 15% infill, supports enabled).  Word of warning: the screw is only long enough to clamp onto a desk edge that is about 13mm thick. I didn&#39;t consider this before printing and thus did not modify the screw to accommodate my cheap, flimsy desk. If your desk lip is thicker than 13 mm, you should be good to go ahead and print. If your desk is thin like mine, you can either modify the screw yourself or take the lazy route (like me) and print a small block to fill the gap.

Desk edge version, 0.2mm layer, 3 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle></boostme>He diseñado este Mini Bungee para evitar los enredos y tirones del cable del mouse mientras trabajas (o juegas) en tu PC.No tenia espacio suficiente para colocar un bungee como los habituales que van colocados sobre el escritorio y necesitaba algo que solucionara el problema sin ocupar mucho espacio.La base de sujeción se acopla a la parte inferior del monitor mediante un tornillo de ajuste, y el cable del mouse se inserta por la ranura del tubo.El tubo está unido a la base de sujeción mediante una rótula giratoria que hace que los movimientos del cable sean suaves y sin tirones.&nbsp;<img class="image_resized" style="width: 49.49%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000001633384/design/83d0c2abc371d89f.jpg">&nbsp;Nuevos perfiles de impresión:&nbsp;- Perfil de impresión para instalarlo con cinta adhesiva.- Perfil de impresión con un modelo para instalarlo en el borde del escritorio.&nbsp;Está pensado para monitores con un grosor de hasta 30mm, y para cables de mouse de hasta 3mm.Si necesitas una base de sujeción para un monitor de más de 40mm de grosor, o el cable de tu mouse es mayor a 3mm, dímelo en los comentarios y te diseño una pieza adaptada a las medidas que necesites.&nbsp;Perfil de impresión:Impresora: Bambulab A1Boquilla: 0.4 mmAltura de capa: 0.20 mmFilamento: PLA BambulabSoportes: Utiliza unos pequeños soportes (ya están configurados en el perfil de impresión)&nbsp;

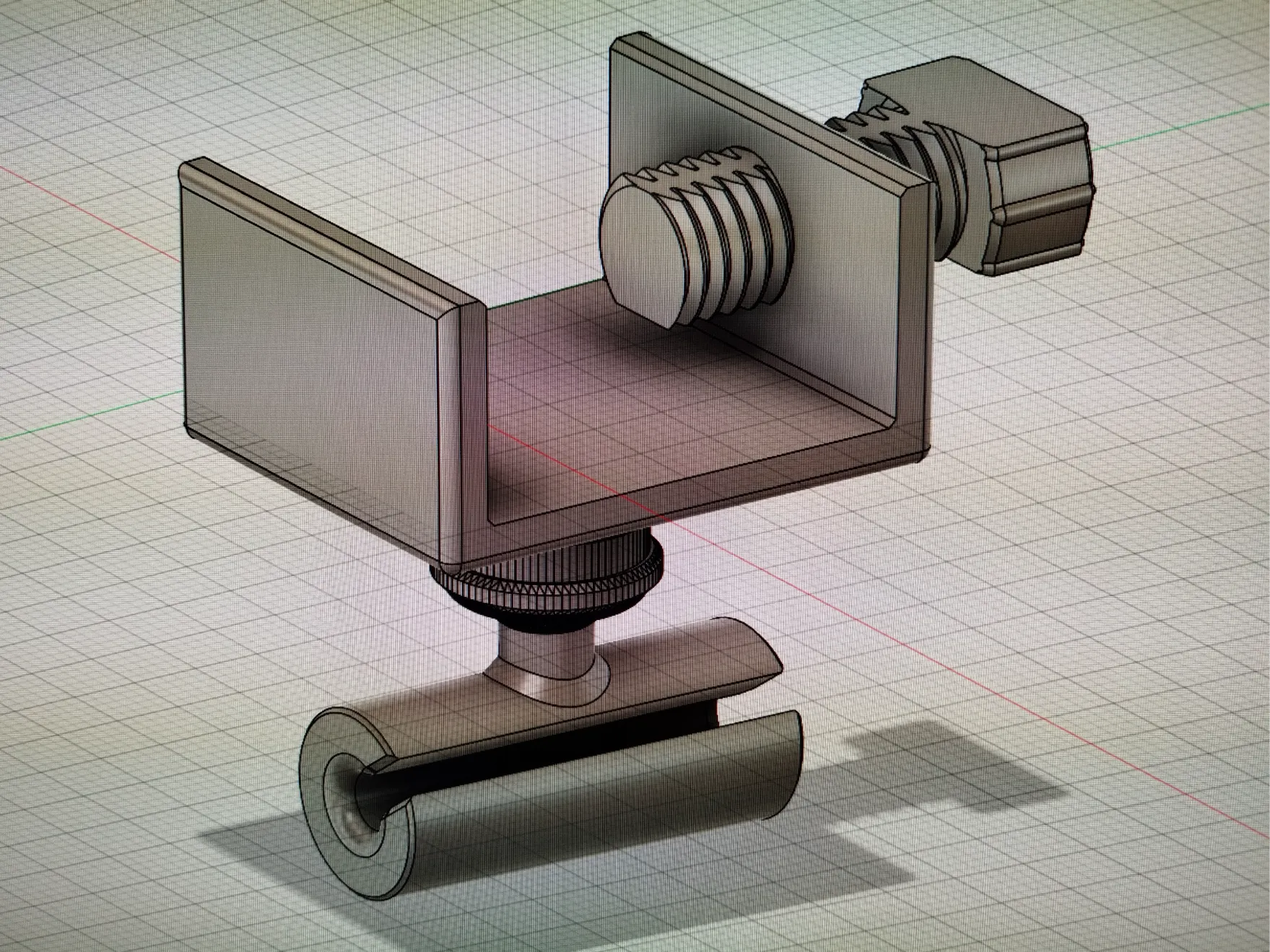

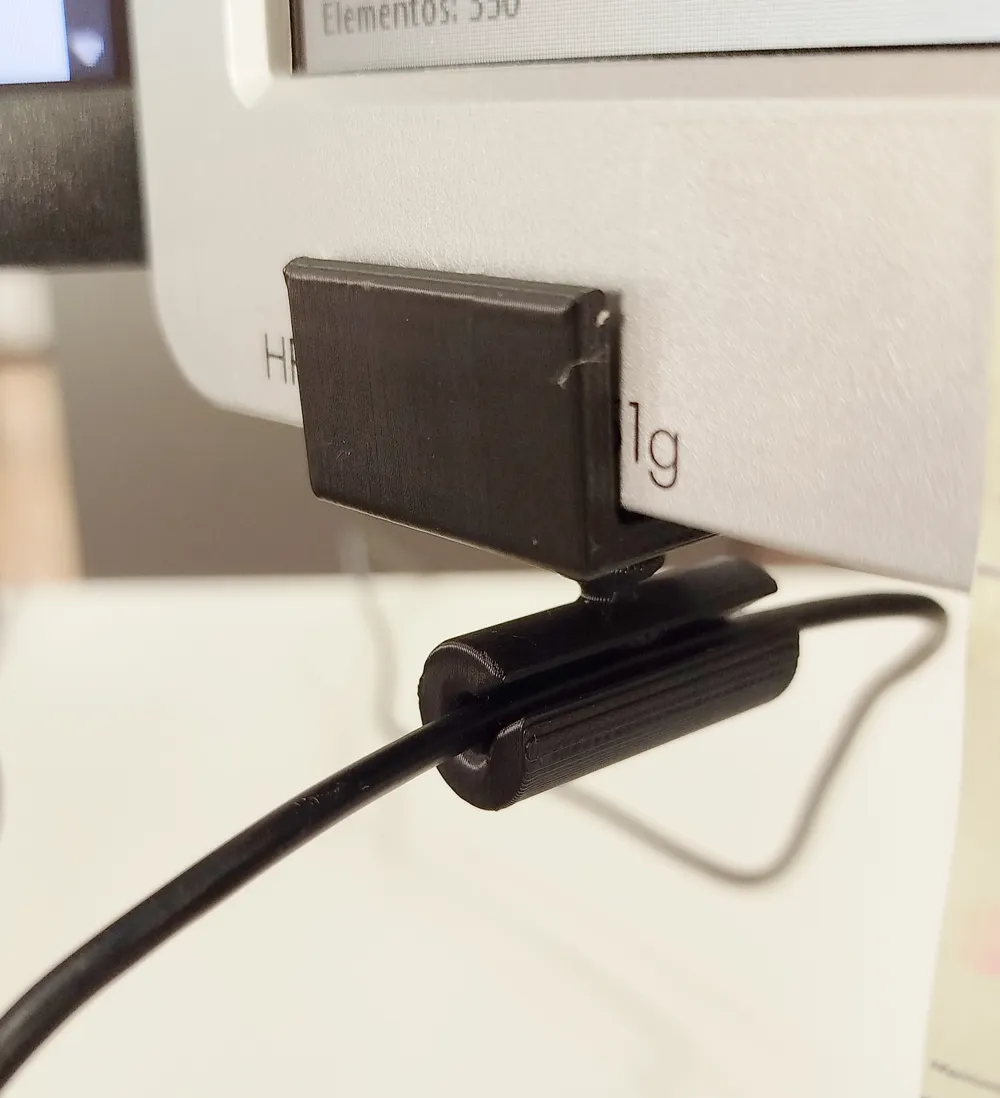

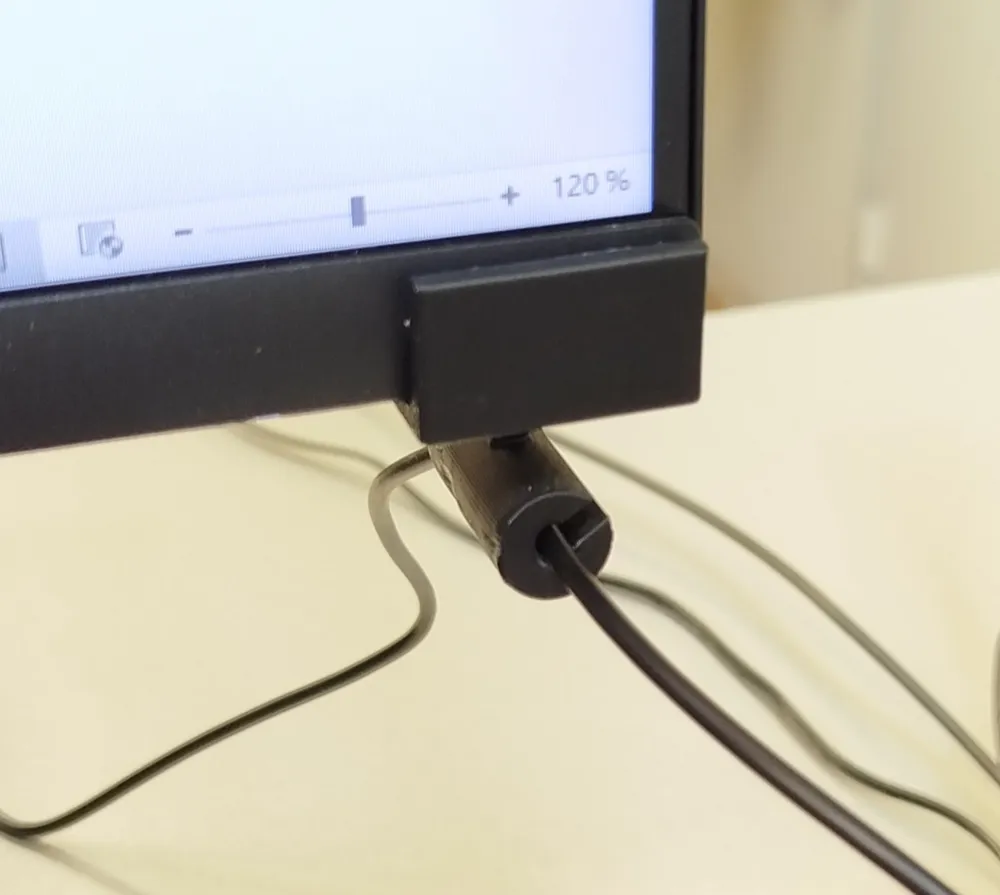

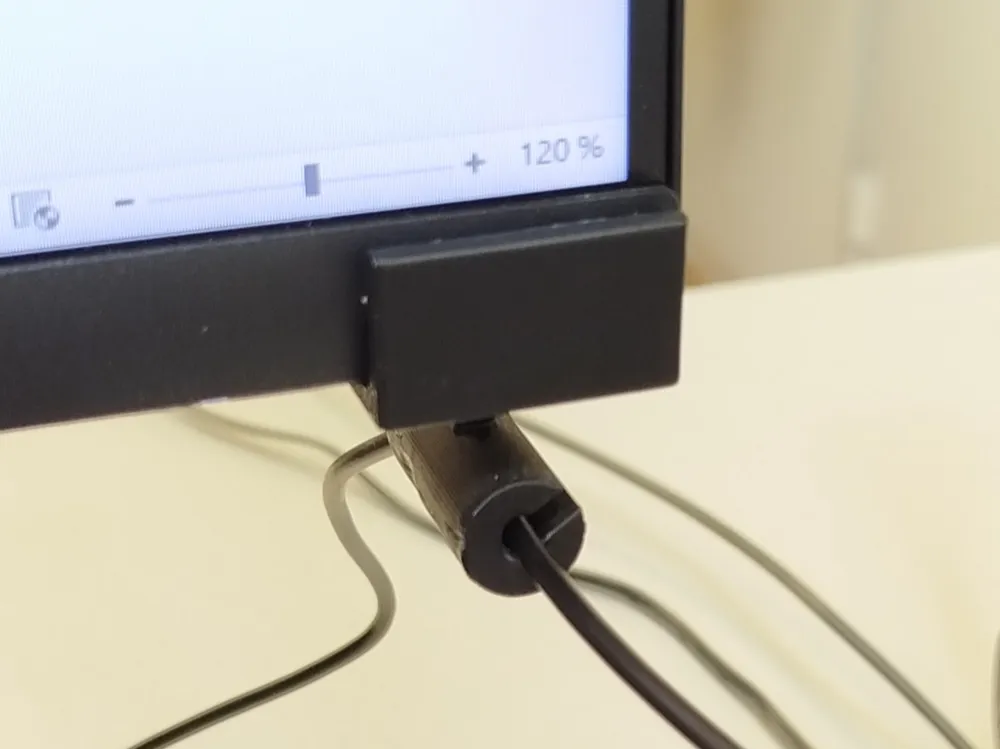

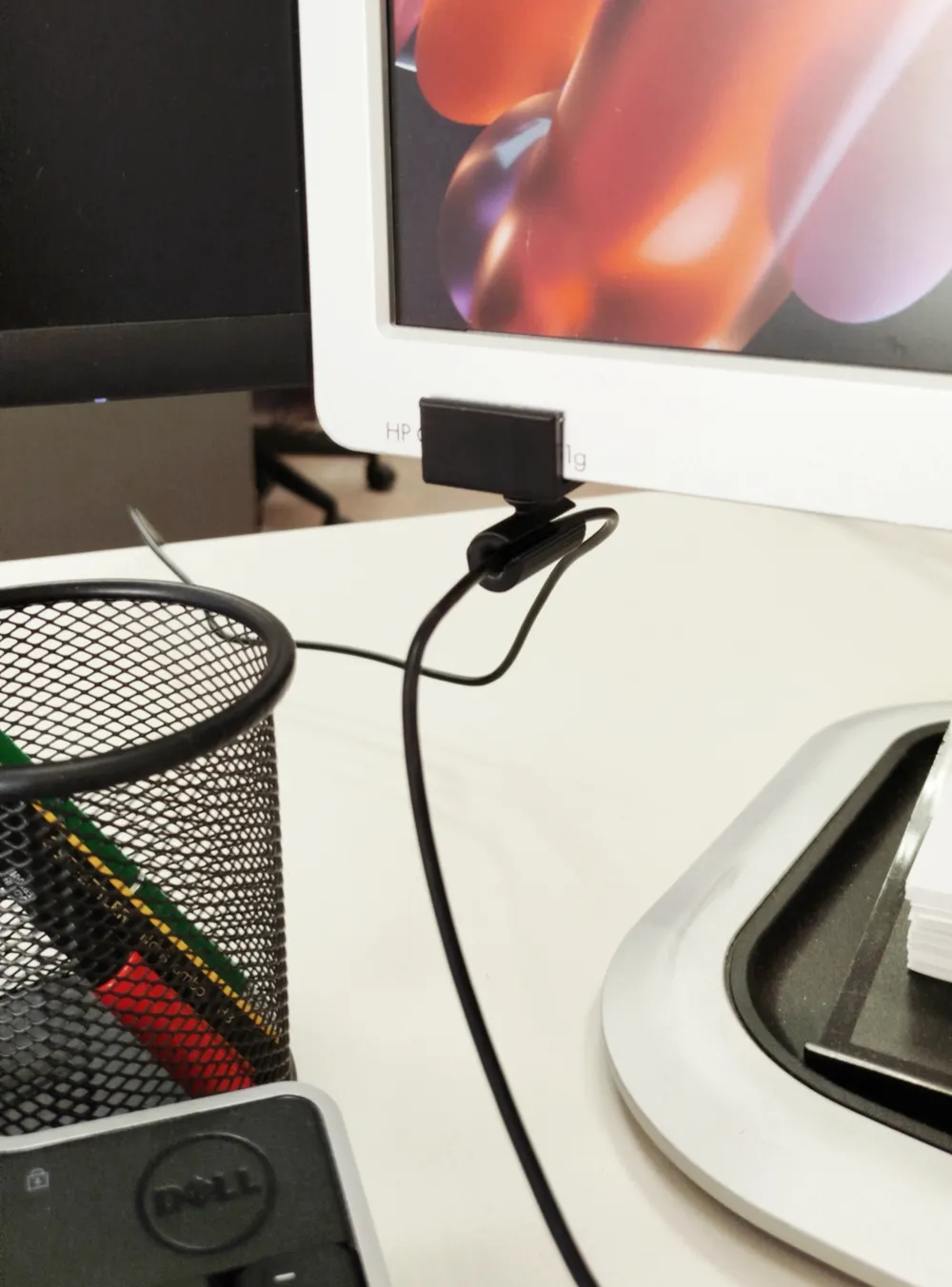

<boostme><boosttitle>Boost Me</boosttitle></boostme>I have designed this Mini Bungee to prevent mouse cable tangles and pulls while you work (or play) on your PCI didn't have enough space to place a bungee like the usual ones that sit on the desk, and I needed something that would solve the problem without taking up much spaceThe clamping base attaches to the bottom of the monitor with an adjustment screw, and the mouse cable is inserted through the tube's slotThe tube is attached to the clamping base with a swivel ball joint that makes the cable movements smooth and free of tugs&nbsp;<img class="image_resized" style="width: 49.49%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000001633384/design/83d0c2abc371d89f.jpg">&nbsp;New print profiles:&nbsp;- Print profile for installation with adhesive tape- Print profile with a model for installation on the edge of the desk&nbsp;It is designed for monitors with a thickness of up to 30mm, and for mouse cables of up to 3mm.If you need a clamping base for a monitor thicker than 40mm, or if your mouse cable is larger than 3mm, let me know in the comments and I will design a piece adapted to the measurements you need&nbsp;Print Profile:Printer: Bambulab A1Nozzle: 0.4 mmLayer height: 0.20 mmFilament: Bambulab PLASupports: Use small supports (already configured in the print profile)&nbsp;
