Gridfinity Modular Hammer & Mallet Rack
Print Profile(1)
Bill of Materials
Description

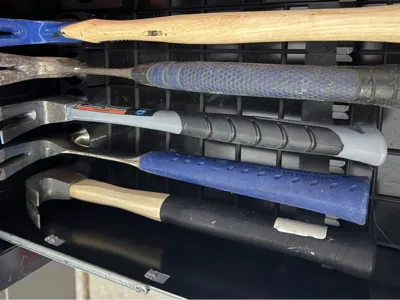

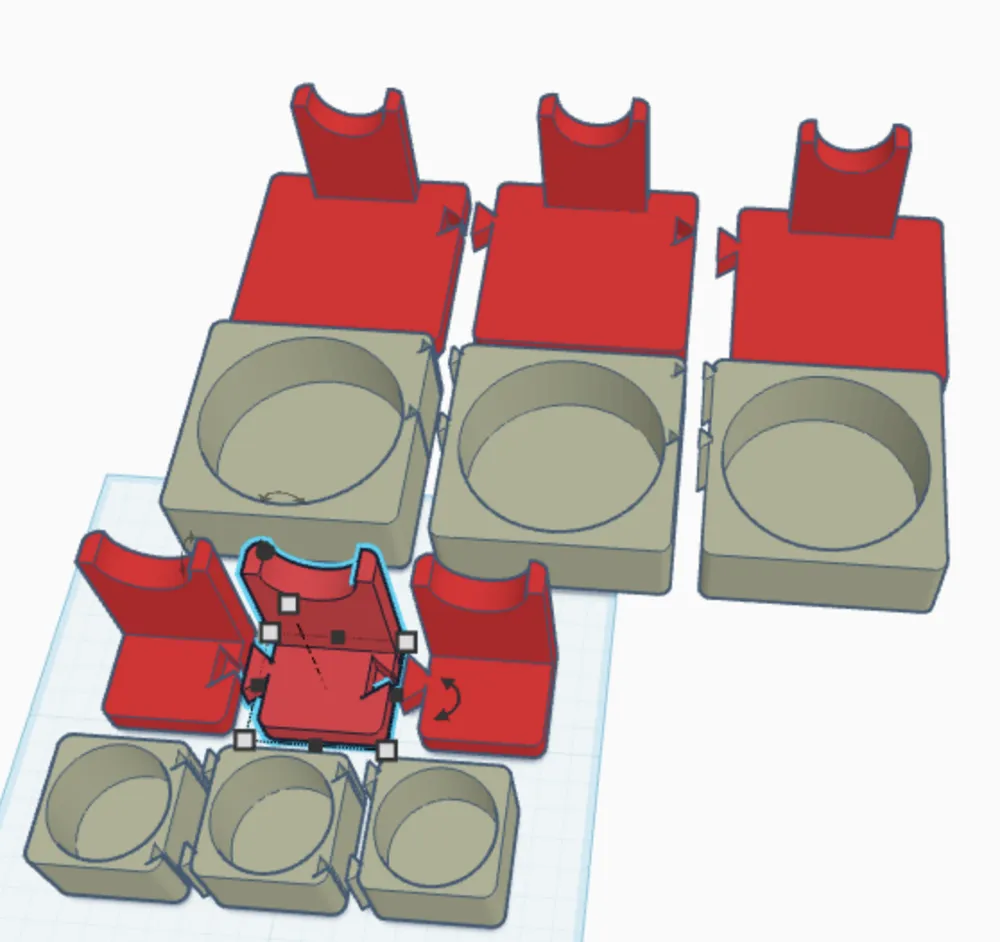

I created this GridFinity Modular Hammer Rack to store my hammers in an organized way. Each piece is a 1x1 block that interlocks with its neighbor through sliding dovetails (tolerances are tight, so it may require you to tap it together with a mallet or a hammer + wooden block). You print one of each end piece plus as many middle pieces as you need to store all of your hammers. This works with any hammer up to a 1.5" face and uses about 36g of filament per hammer.
I have also added a 2x2 with a larger cutout for larger hammers or mallets. This includes a separate handle holding piece so that the handle and head properly align. This uses about 97g of filament per mallet.
Note: the tolerances on the dovetails is quite tight. You will need to use a mallet or hammer and a piece of wood to tap them together.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
Comment & Rating (20)
