Description
Bambu A1 10-in-9-out Feeder Inlet with Hall Sensor
Background
Previously, I designed an A1 8-inlet feeder from jianxuesheng2009 on MakerWorld: Free 3D model download and a series of modules to address insufficient inlet issues.
Several users requested a version that would retain Hall sensor functionality, leading to the creation of this design.
Introduction
- Bowden tube configuration for reduced weight
- 10-in-9-out configuration, ample capacity
- Hall sensor support!!!

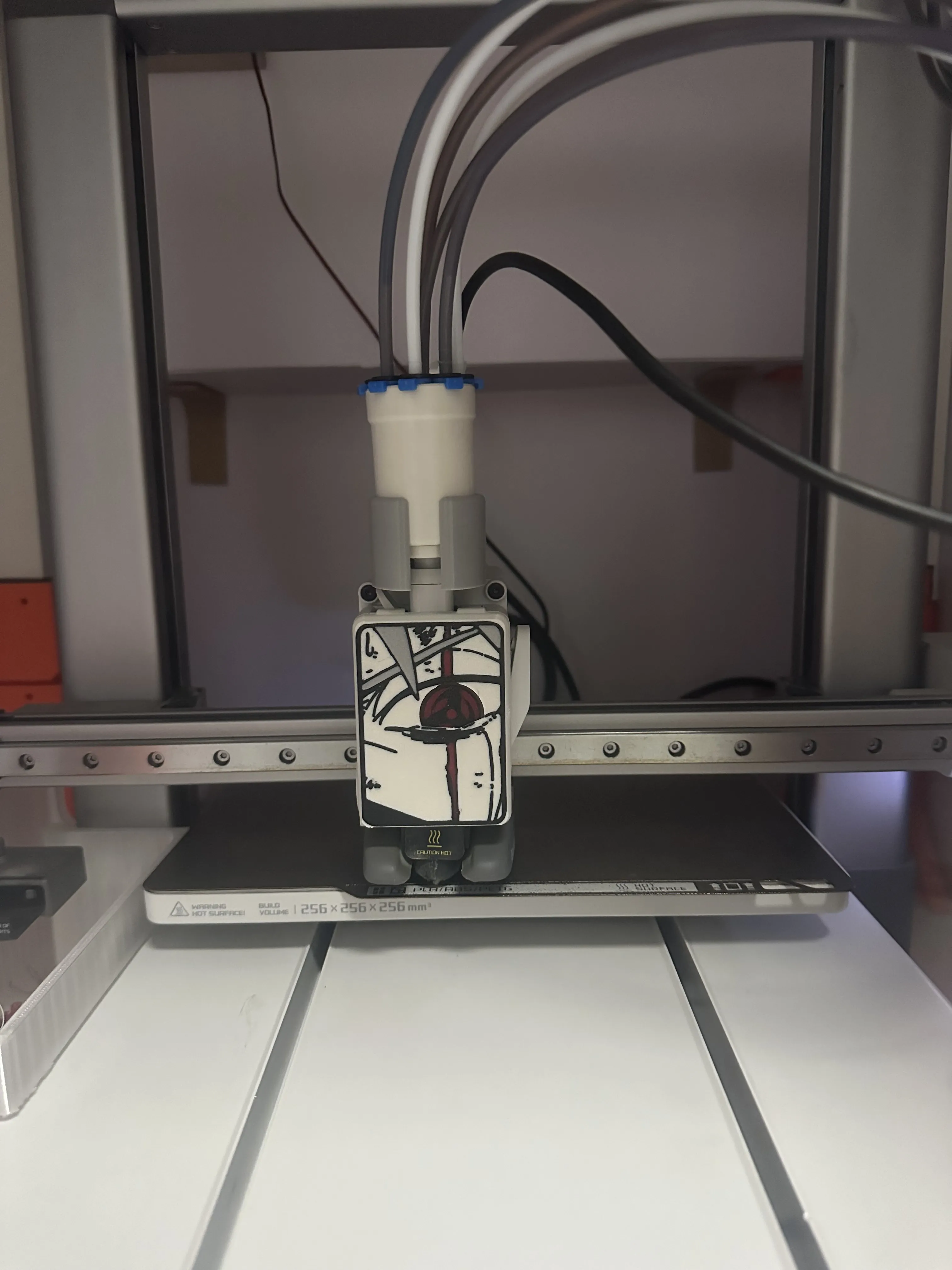

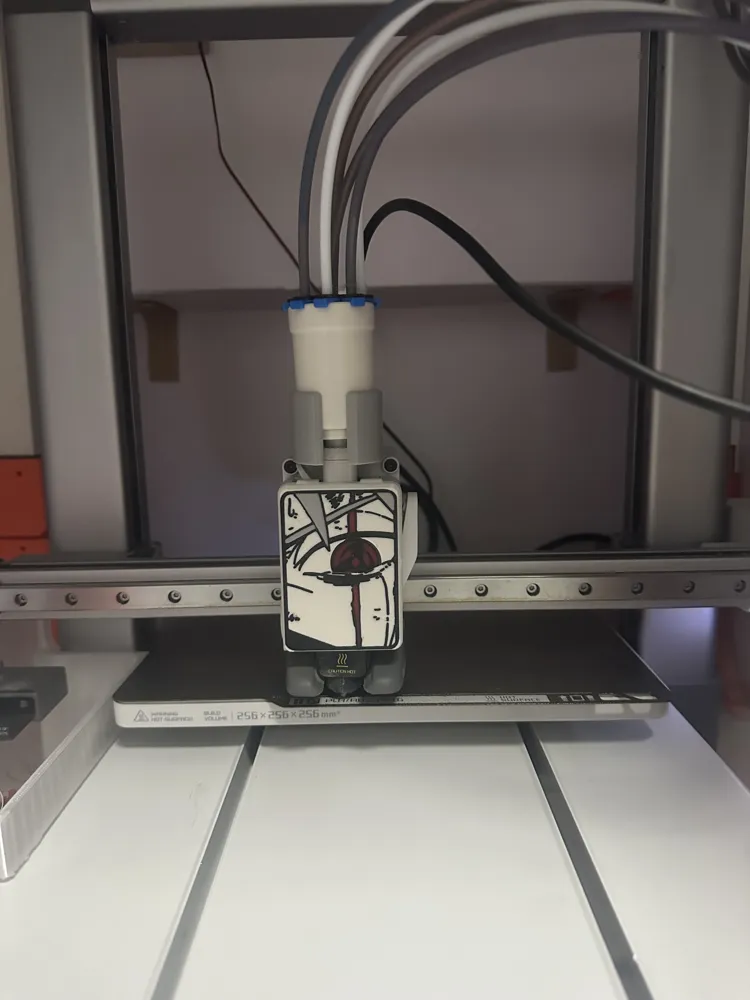

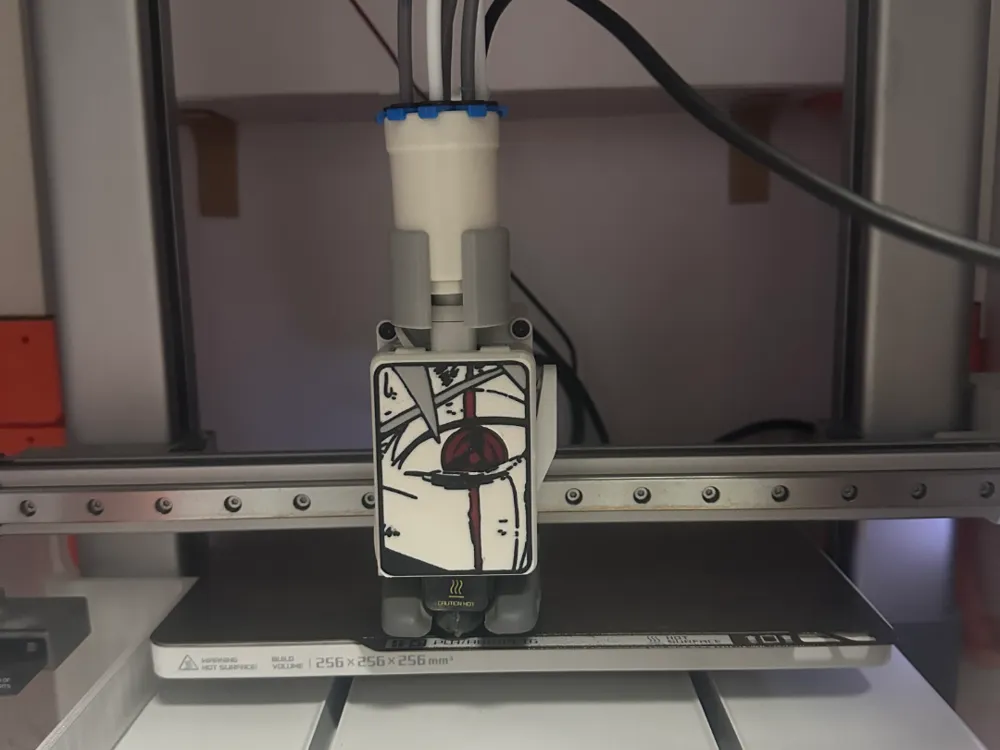

Results
Note:
Enabling Hall sensor functionality necessitates the destructive removal of the original feeder, which is irreversible. Please carefully consider before replication!!
Enabling Hall sensor functionality necessitates the destructive removal of the original feeder, which is irreversible. Please carefully consider before replication!!
Installation Steps
This section only details Hall sensor installation; for other components like the Bowden tube, please refer to:
A1 8-inlet feeder from jianxuesheng2009 on MakerWorld: Free 3D model download

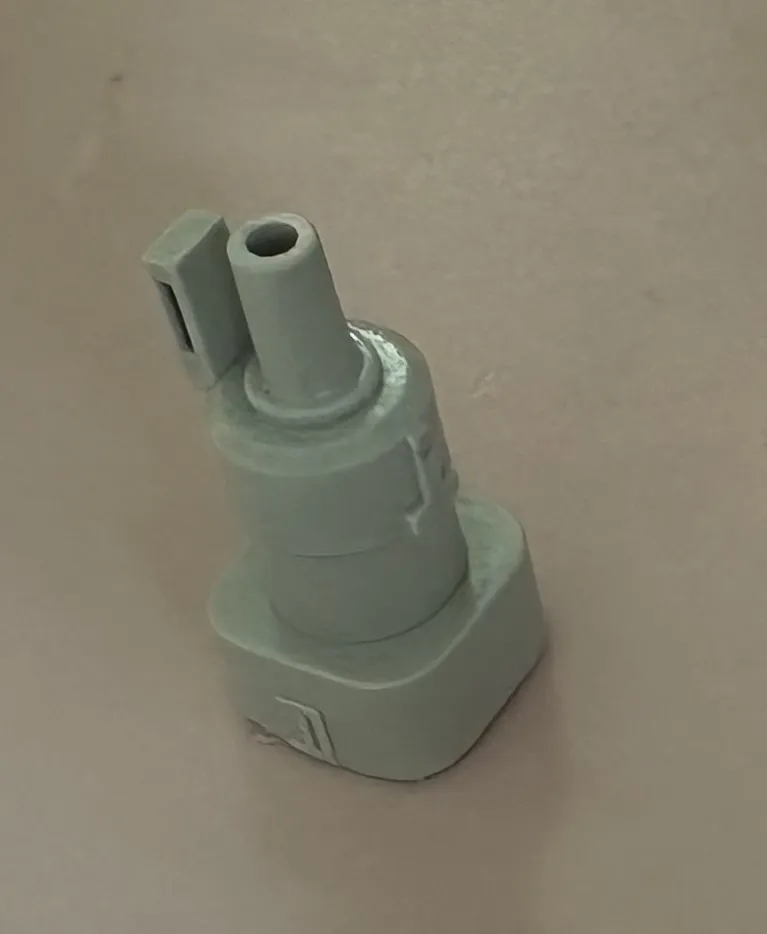

- Following the official instructions, completely remove the original feeder. We only need its housing, as shown, then sever it between letters A and M (precision is not critical), as illustrated:

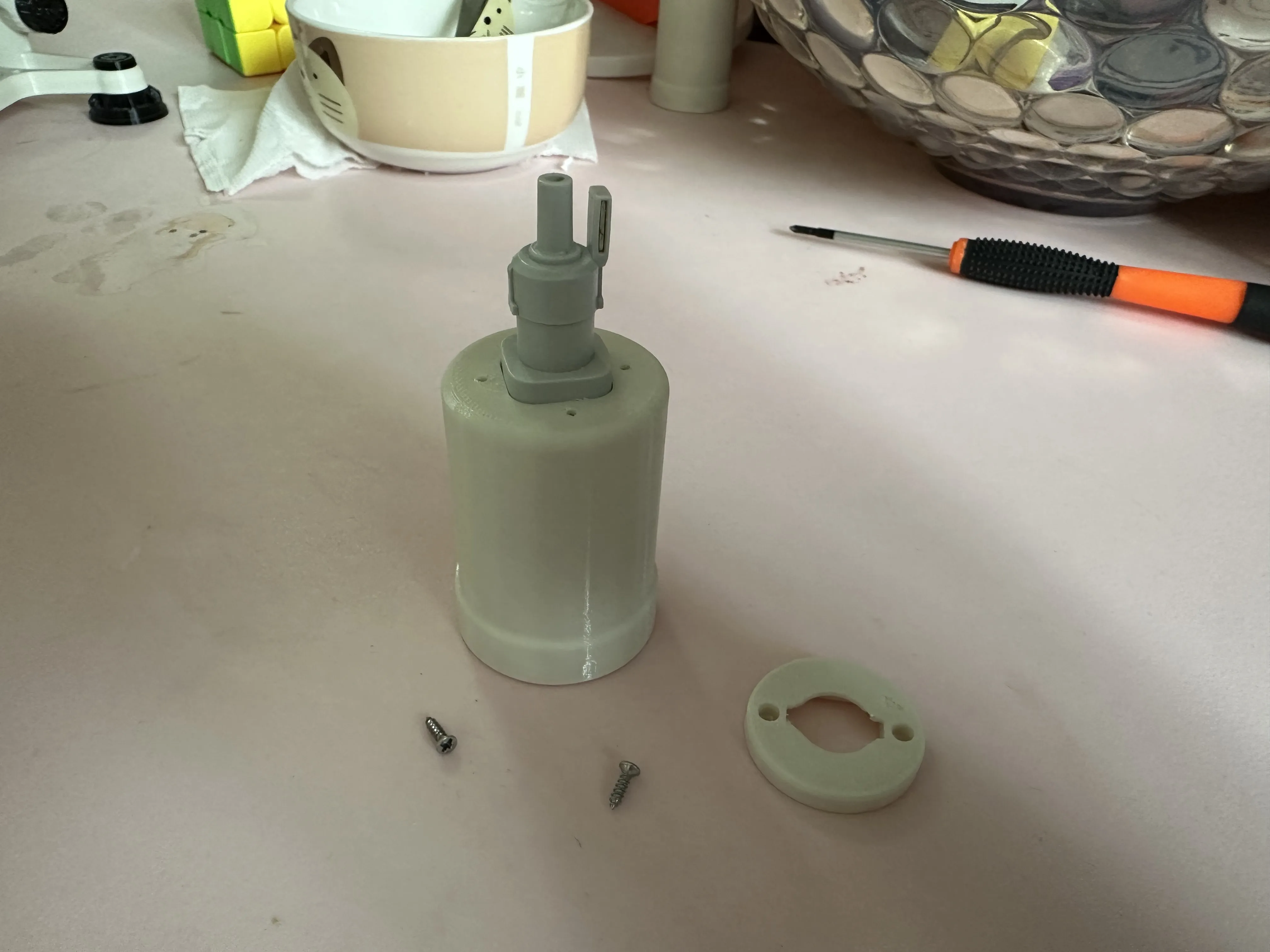

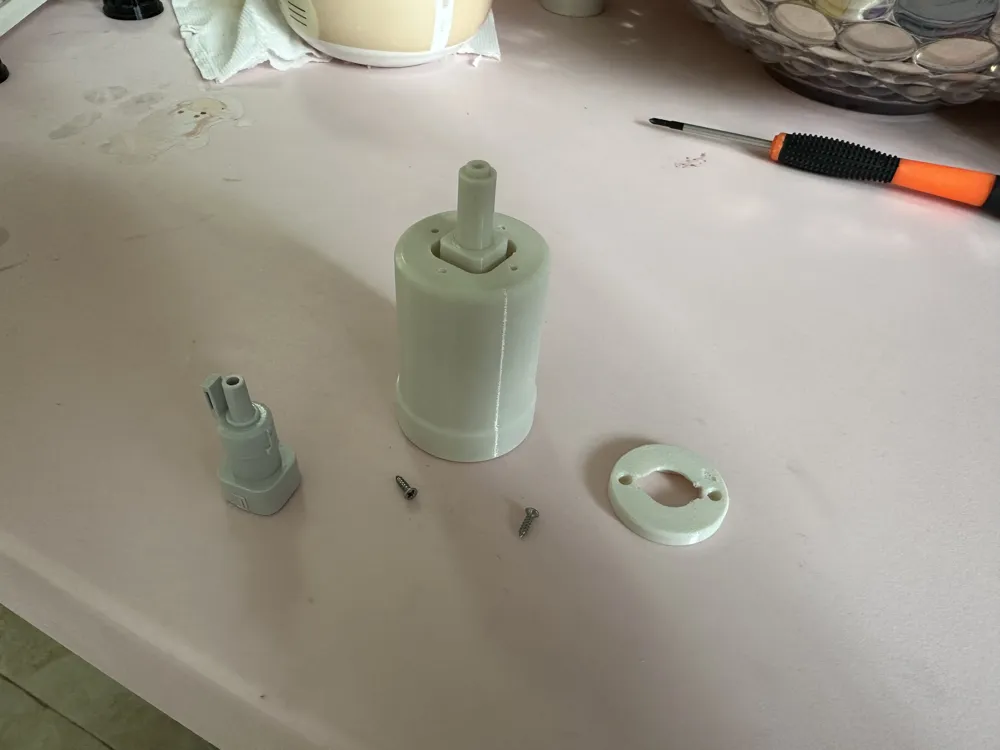

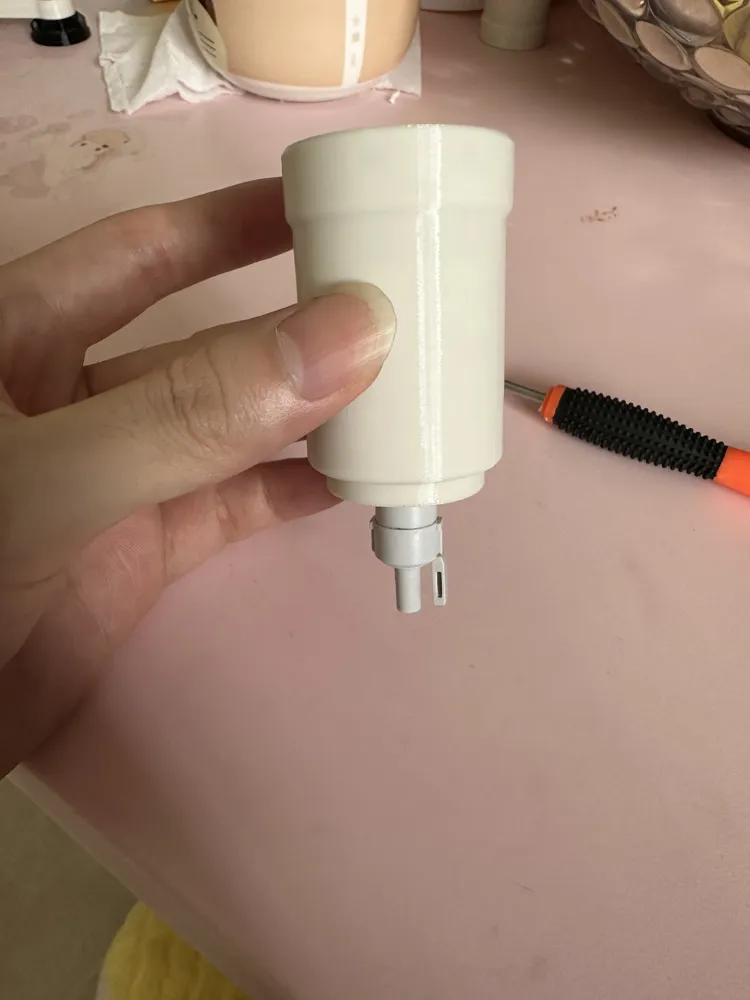

Insert the severed feeder into the printed component, as shown:

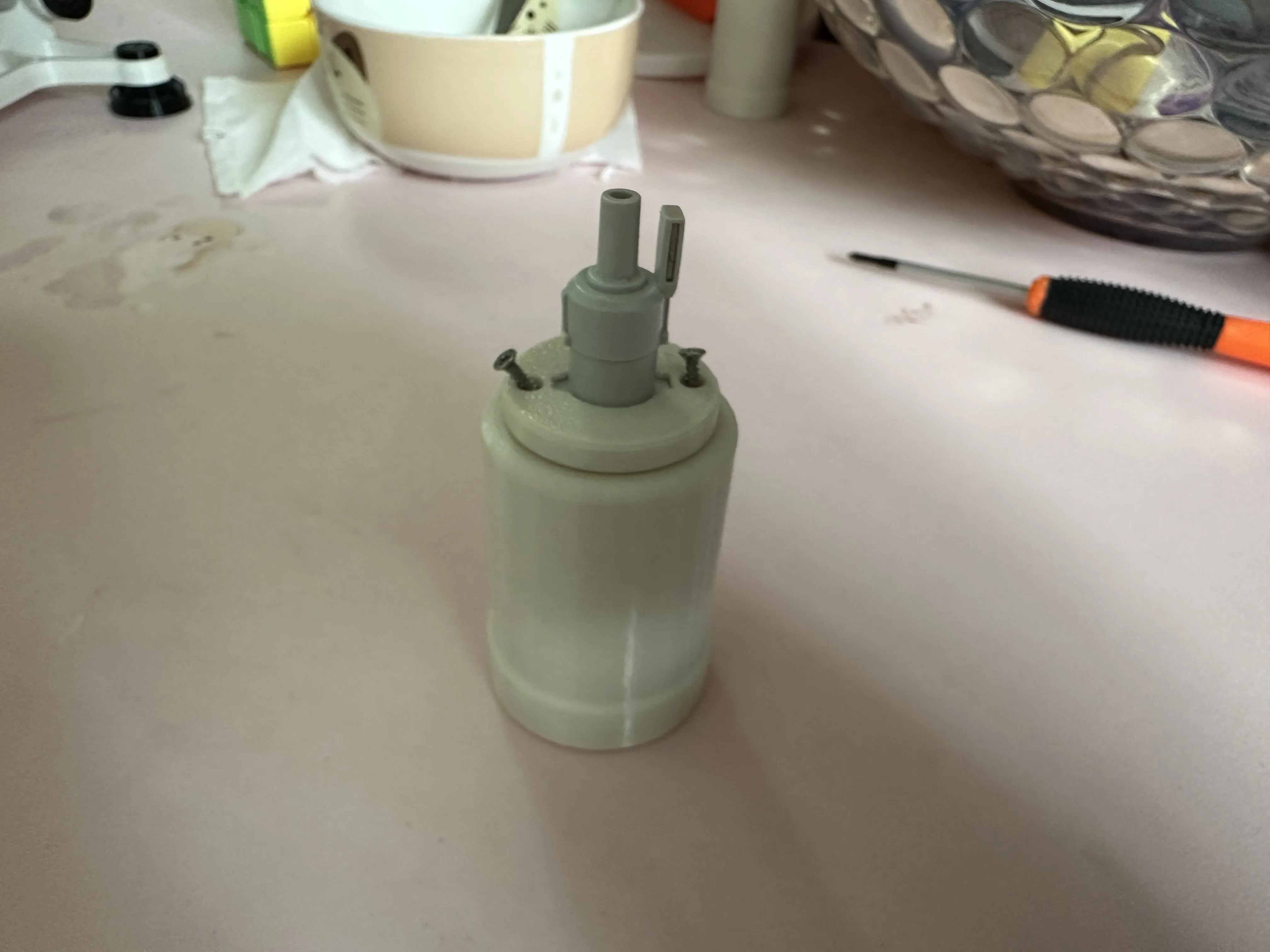

Secure the cover and tighten the screws
- For remaining installation, refer to A1 8-inlet feeder from jianxuesheng2009 on MakerWorld: Free 3D model download
Questions or suggestions are welcome
