1. About the model

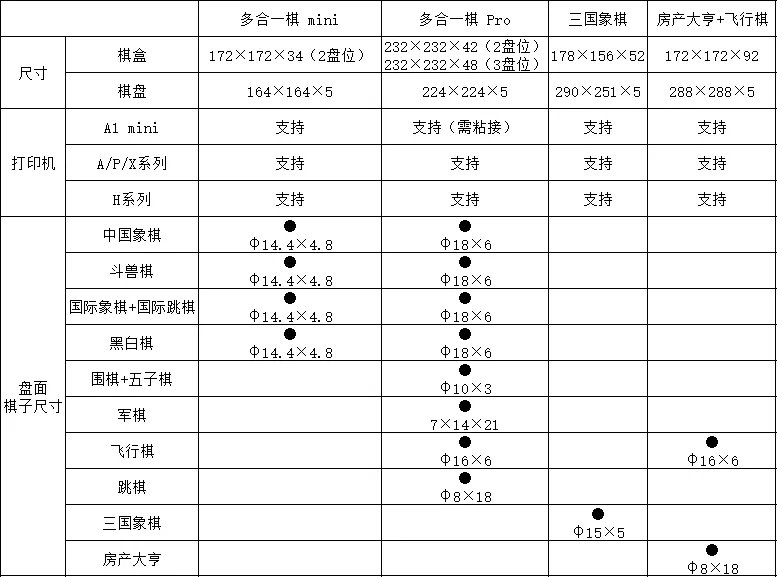

This series includes 4 models, with comparisons as follows, unit: mm:
This link is for the all-in-one chess Pro, other models can be found by clicking the links below:

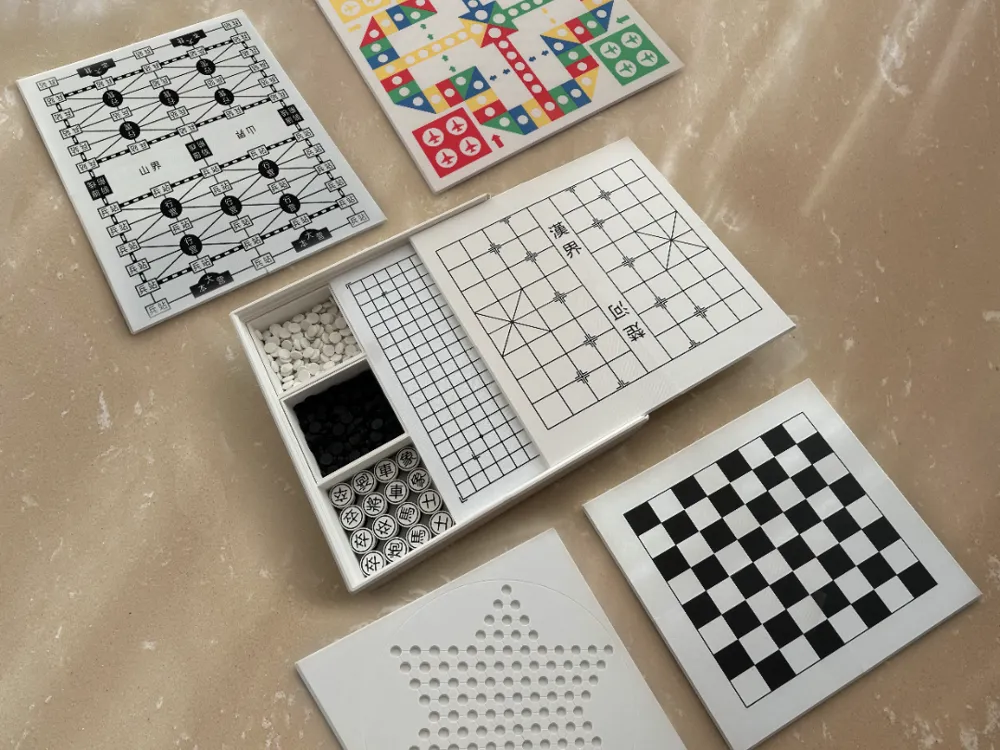

- Chess box: includes the main body and a vertical board. If printing a chessboard set, place it on the top slot during play, and on the bottom slot for storage to prevent pieces from scattering
- Chessboards: both sides have game surfaces, see the configuration table above for game surface types
Boost Me (for free)
You can also expand with other chessboards. If there's a specific chessboard you want, you can vote or leave a comment in the pinned comments. We also welcome creators to make derivative works of other chessboards. If you like it, please give it a boost, thanks for your support!
2. Regarding Filament
- The materials in the picture are all printed with PLA Lite or PLA Matte. The matte texture is quite good, but I feel marble or wood filament would be even better
3. Regarding Printing
- The chessboard, chess box, and chess pieces are placed in separate print profiles for easy selection and updates
- Different models have slight printing variations, please refer to the descriptions corresponding to the print profiles for details
4. Regarding Assembly
- A1 mini requires parts to be printed separately and then glued, other machines do not require gluing
- A1 mini: first glue the chess box, before gluing the chess box vertical board and chessboard, try assembling it to see if it fits. If it doesn't fit, you may need to sand it down. Sanding it smooth will also reduce the seams
5. Update Log
- July 29, 2025: Due to a shielded area in the bottom left corner of machines like the P1S, the original 256mm*256mm chess box and 248mm*248mm chessboard could not be printed. Therefore, the chess box size was changed to 232mm*232mm and the chessboard size to 224*224mm to improve machine compatibility, and the chess piece size was synchronously reduced

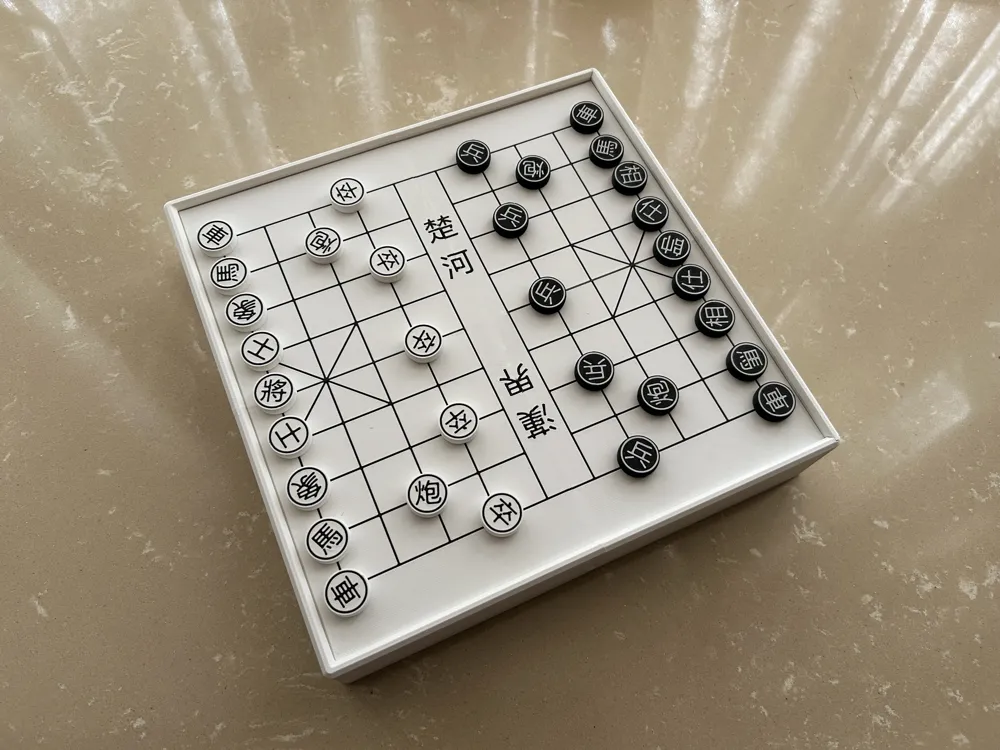

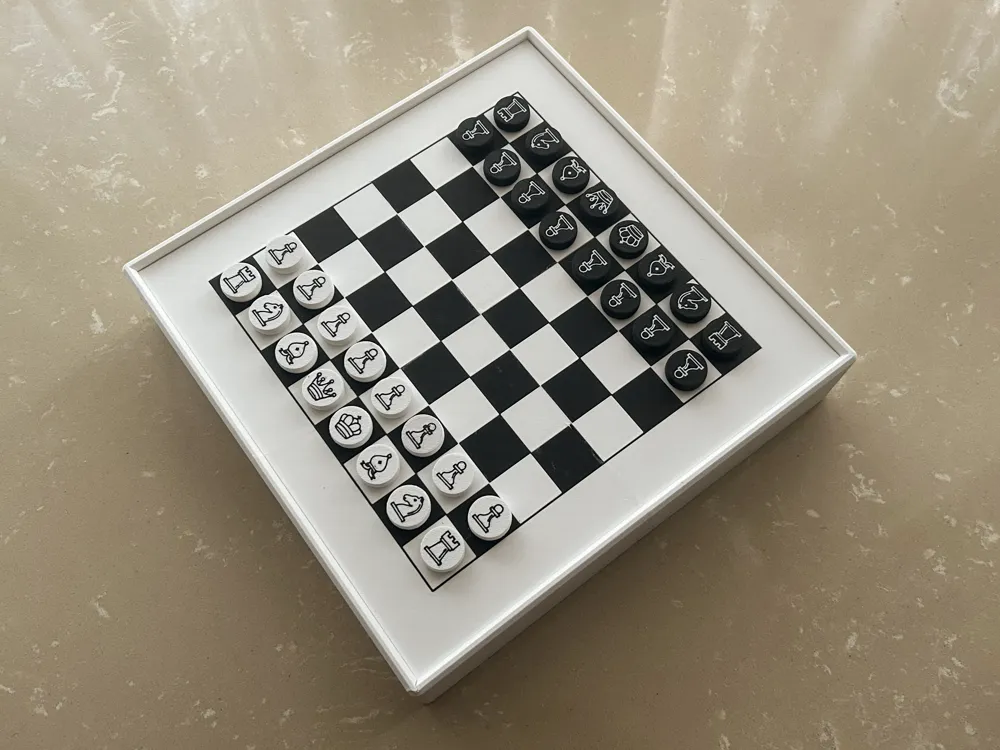

- July 30, 2025: Added Chinese Chess + International Chess + International Checkers chessboard, Chinese chess pieces were changed to Chinese Chess + International Chess double-sided pieces

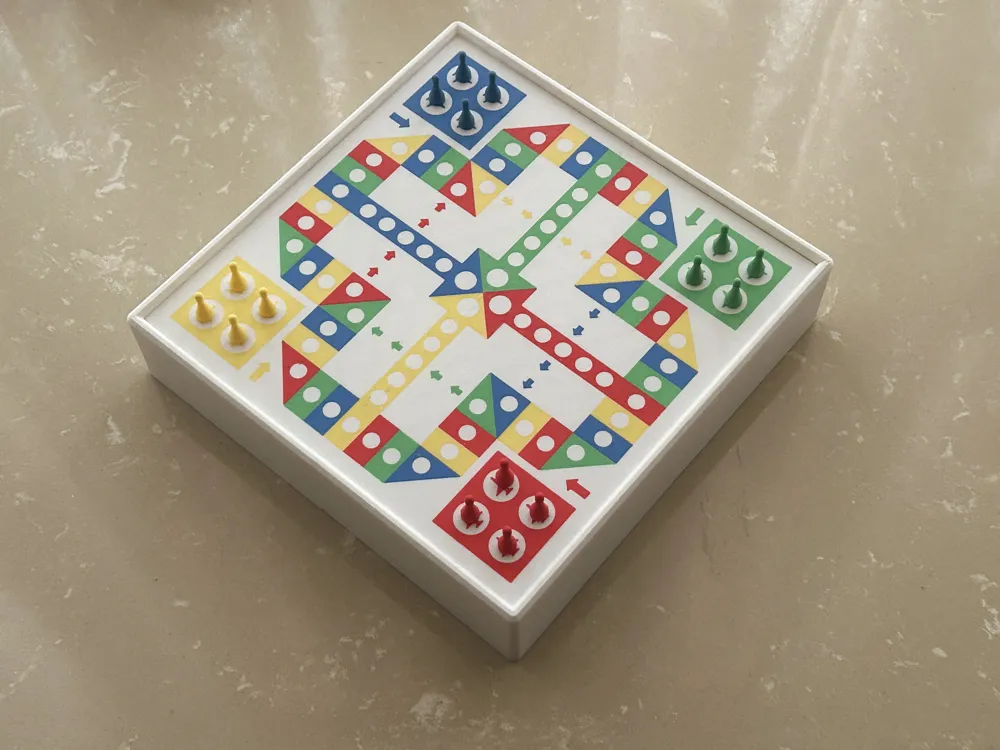

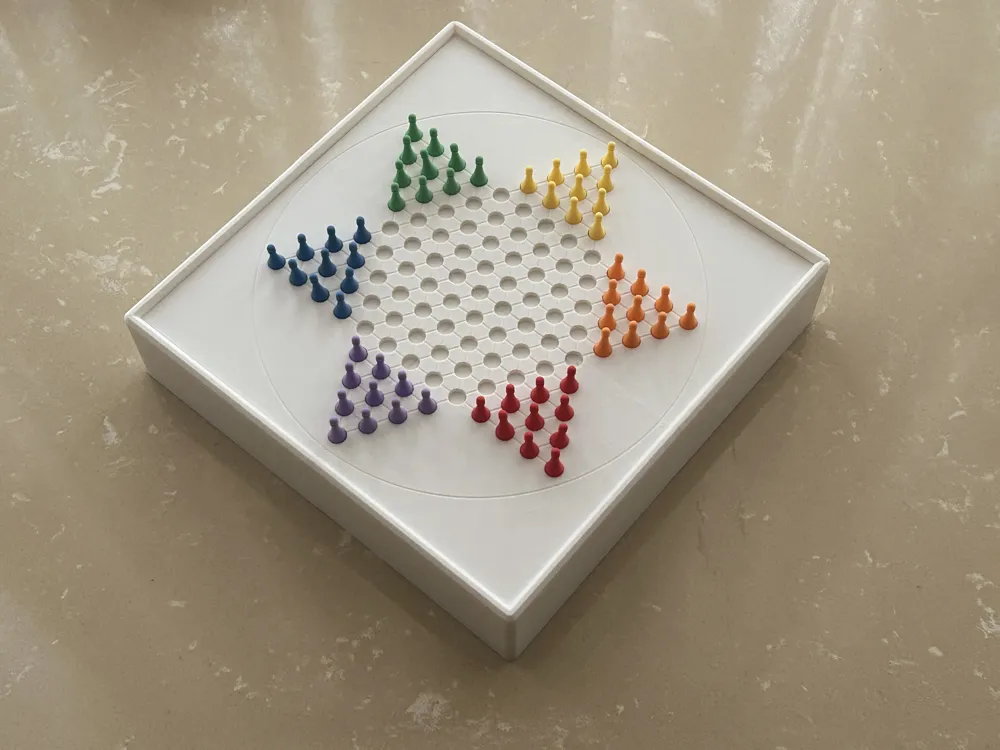

- August 1, 2025: Added Checkers + Ludo chessboard and pieces

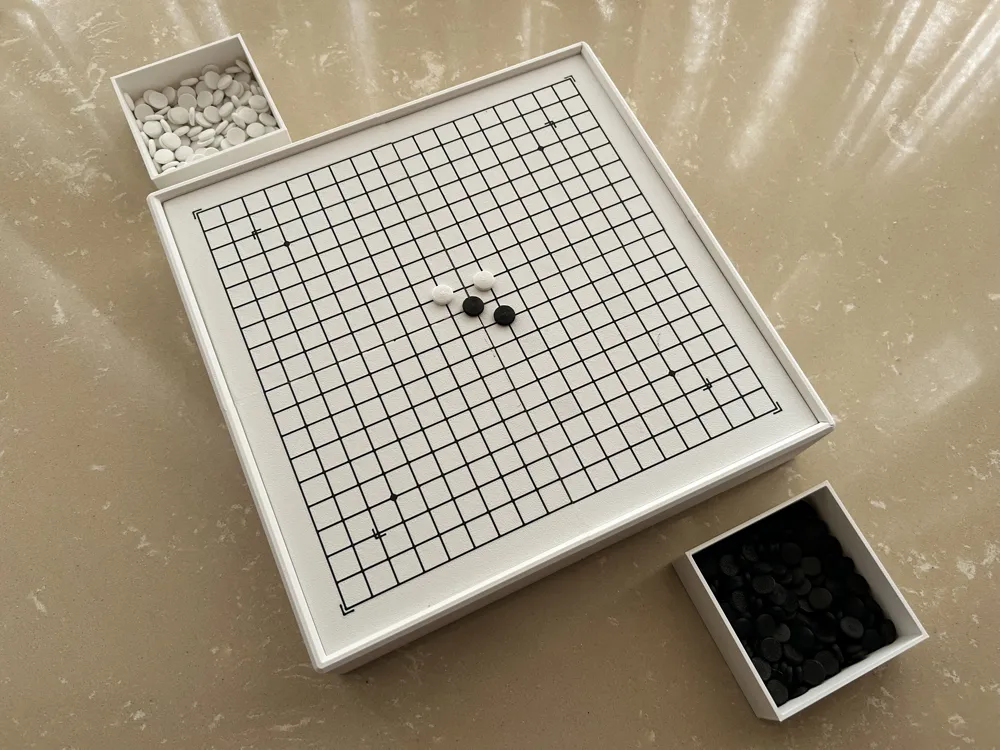

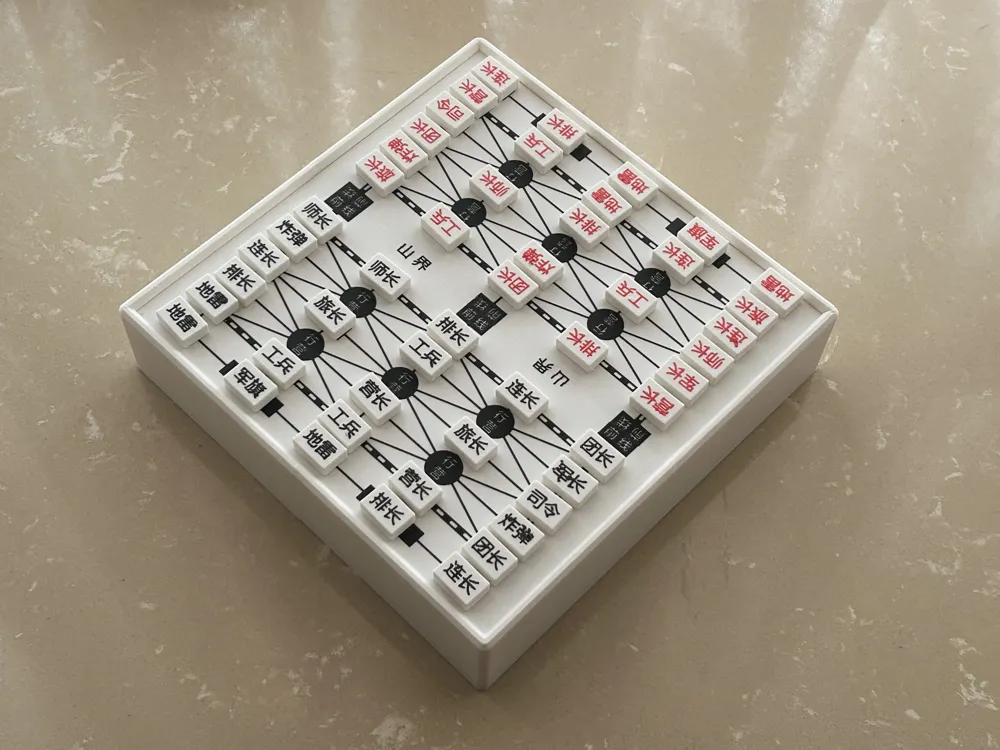

- August 4, 2025: Added Army Chess + Chinese Chess chessboard, Go + Five-in-a-Row + International Chess + International Checkers chessboard, and Army Chess pieces
- August 5, 2025: Added Army Chess + International Chess + International Checkers chessboard, and added Ludo pieces
- August 20, 2025: The 9-grid section of the original 2-slot chess box was lowered by 6mm, and chamfers were added to reduce sharp edges. The Go chess box was lowered synchronously, and chamfers were added to reduce sharp edges. A new 3-slot chess box was added
- November 14, 2025: Added Animal Chess + Reversi chessboard and pieces
- January 5, 2026: Chess box height reduced by 2mm, some dimensions modified to reduce winter shrinkage effects; a small skirt was added to the vertical board to prevent tipping; a mini version was added and placed in a separate link
- February 26, 2026: The chessboard was re-arranged, which should resolve the color misalignment issue for P2S; the pause at the last layer of the chessboard and pieces was removed
